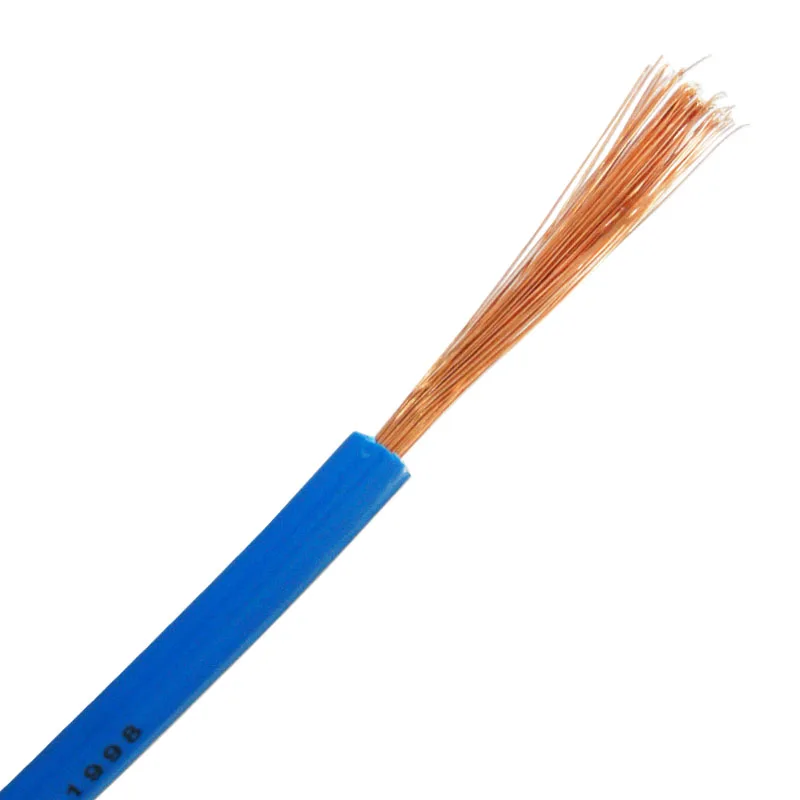

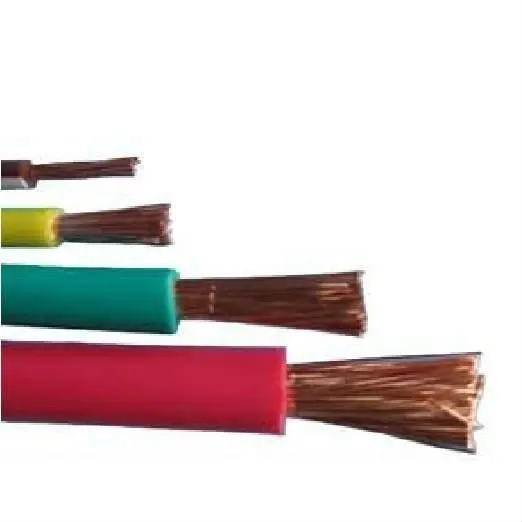

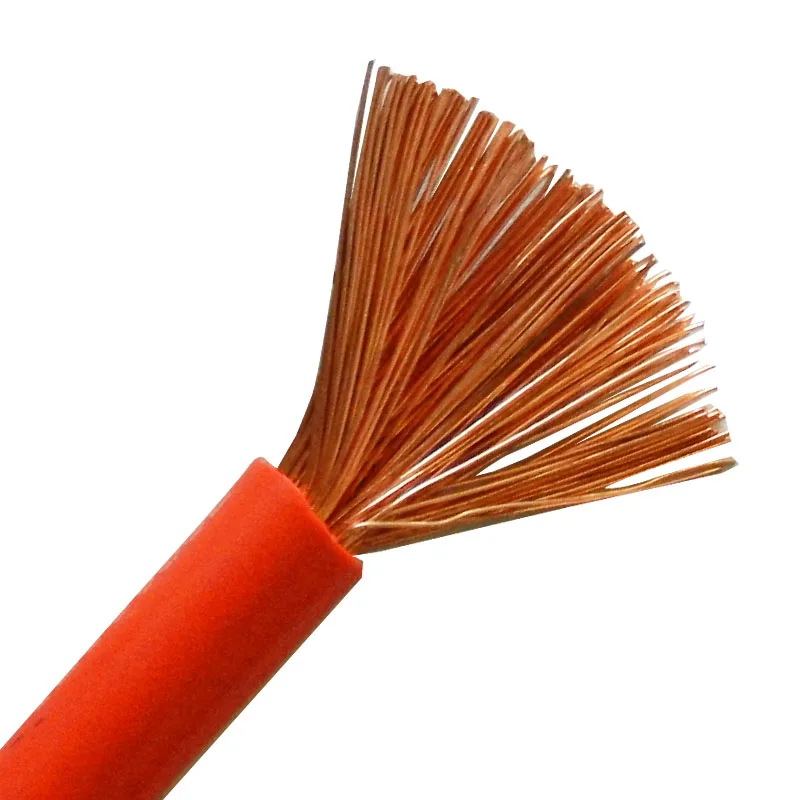

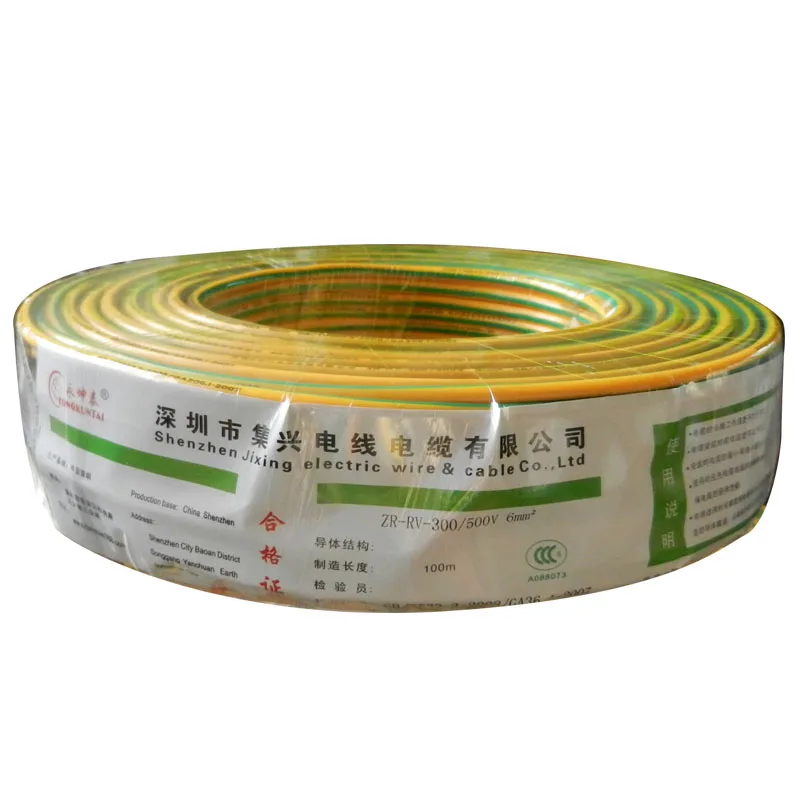

Africa hot sale cca stranded wire with PVC insulation 1mm,1.5mm,2mm,3mm,4mm,5mm

Product Overview

Description

CCA cables

Free samples,fast delivery

What is CCA?

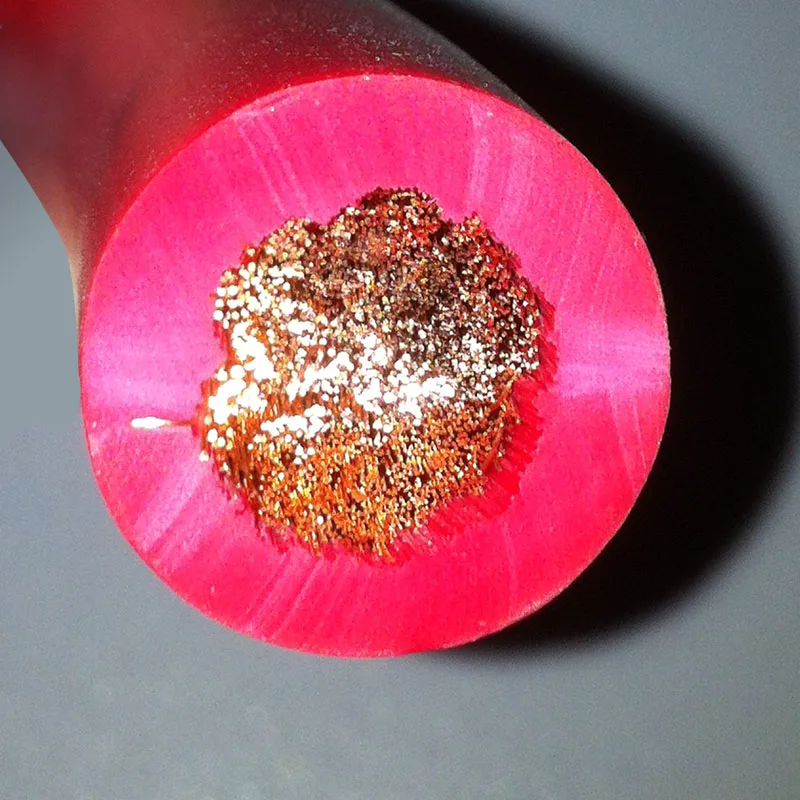

Copper clad aluminium wire, commonly abbreviated as CCAW or CCA, is an electrical conductor composed of an inner aluminium core and outer copper cladding.



RV (CCA 0.22mm): Technical Parameters

Usage	Model	Cross-sectional Area (mm²)	Conductor Material	No.of Wires/Dia. (mm)	Insulation Material	OD (mm)
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	RV	1mm²	copper clad aluminum	14/0.22	PVC	2.52
		1.5mm²	copper clad aluminum	21/0.22	PVC	2.8
		2mm²	copper clad aluminum	28/0.22	PVC	3.1
		3mm²	copper clad aluminum	43/0.22	PVC	3.8
		4mm²	copper clad aluminum	56/0.22	PVC	4.15
		5mm²	copper clad aluminum	70/0.22	PVC	4.5

 *Kindly note that also we can make cables and wires according to your requirements.

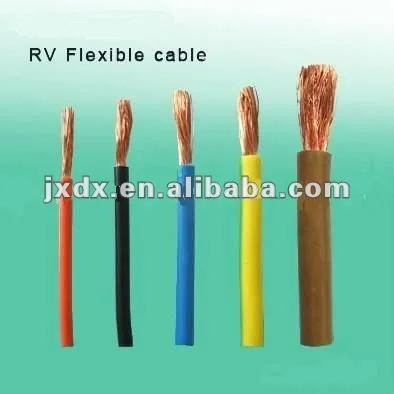

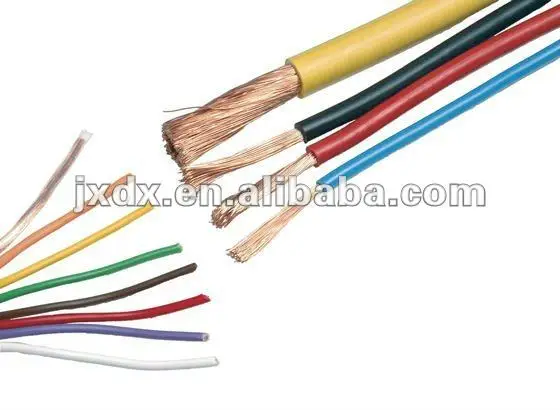

1)Product Name: PVC insulated copper clad aluminum electric wires and cables



2)Model No.:RV



3) Cross-sectional Area---No.of Wires/Diameter---Overall Diameter

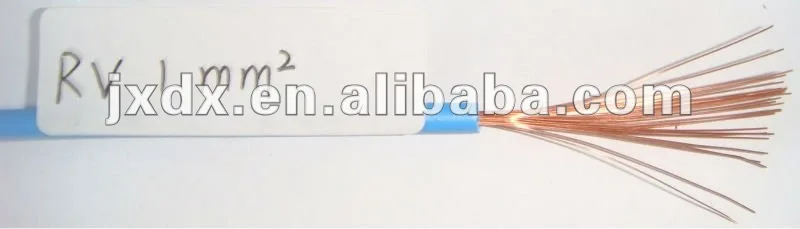

 1mm²---14/0.22mm---2.52mm

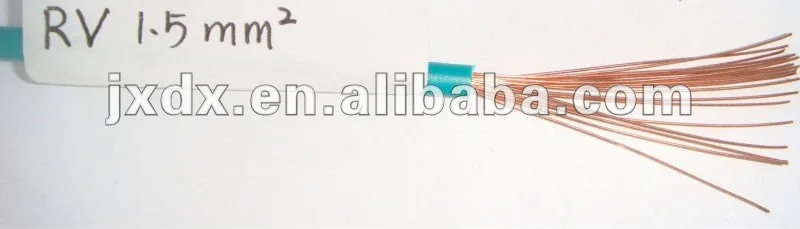

 1.5mm²---21/0.22mm---2.8mm



 2mm²---28/0.22mm---3.1mm



 3mm²---43/0.22mm---3.8mm



 4mm²---56/0.22mm---4.15mm



 5mm²---70/0.22mm---4.5mm



 4)Conductor Material:copper clad aluminum



 5)Insulation Material: PVC (Polyvinyl Chloride)



 6)Color: red,black,white,cream,yellow,bule,green,brown or as you require



 7)Rated Voltage: 450/750V



 9) Rated Temperature: 0°C to 70 °C



10)Usage:Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required.



 11)Our company can accept all trading manners, e.g EXW,FOB,CIF,DDP,DDU. etc….

We can also accept any kinds of payment terms, such as TT,L/C,D/P,O/A, Western Union, etc…





 12) We are going to load your goods.

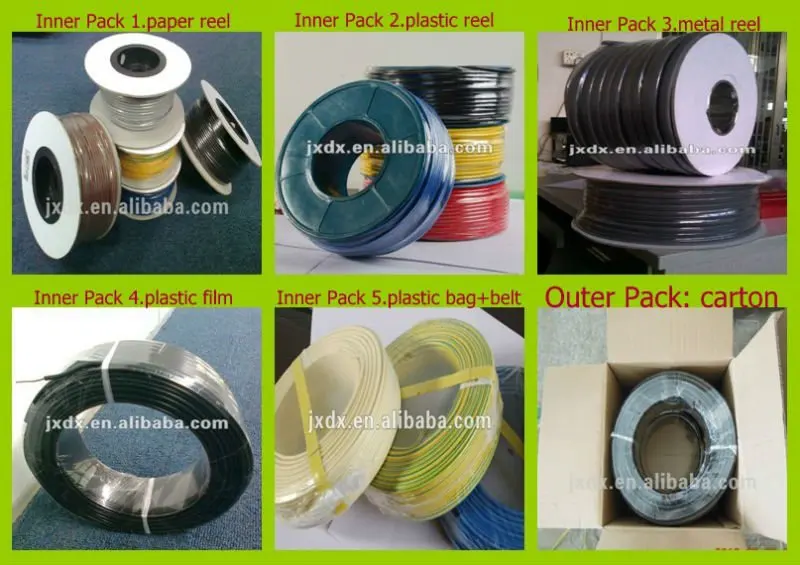

 Packing

1-paper reel



2-plastic reel



3-metal reel



4-plastic film (free)



5-plastic bag+belt

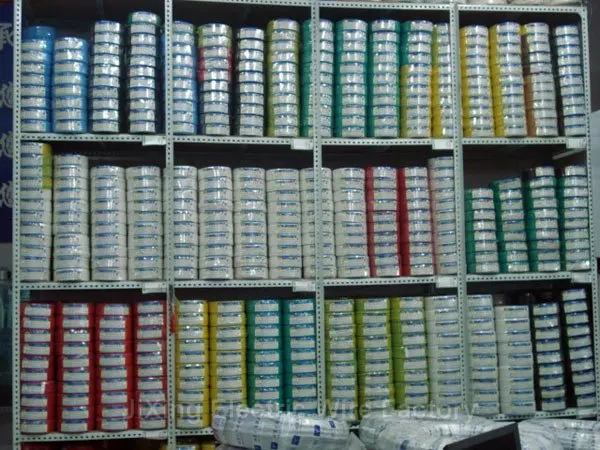

Electrical cables in stock

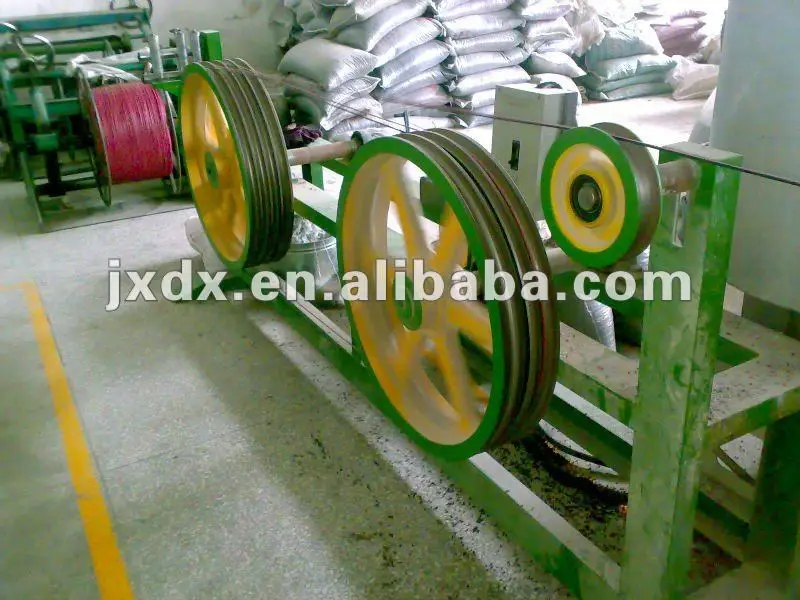

Welcome to visiting our factory





   *Kindly note that also we can make cables according to your requirements.



                                              Your inquiry will be replied within 24 hours !
