6 axis 6kg payload palletizer robotic arm with controller for spraying welding cutting duty
- Category: >>>
- Supplier: Wuhan Questt Asia Technology Co. Ltd.
Share on (62312352275):
Product Overview
Description
6 axis 6kg payload palletizer robotic arm with controller
for spraying welding cutting duty
Introduction of KIKA robot/MR5 Collabotative robot/Epson Series
KiKA robotic system MR1400 model is especially designed for Mig/Mag welding, which has high efficiency.
This series robot Small size light weight, is dedicated to arc welding robot, can realize the stable welding, obtain high precision welding path, shorten the welding cycle, extend the life of the pipe and cable At the same time SA series welding robot can flexible welding operations within the narrow space, can easily choose the ground installation mount inversion
MR5 OPTIMAS series robot adopts the fully modular design and uses system towards developers.

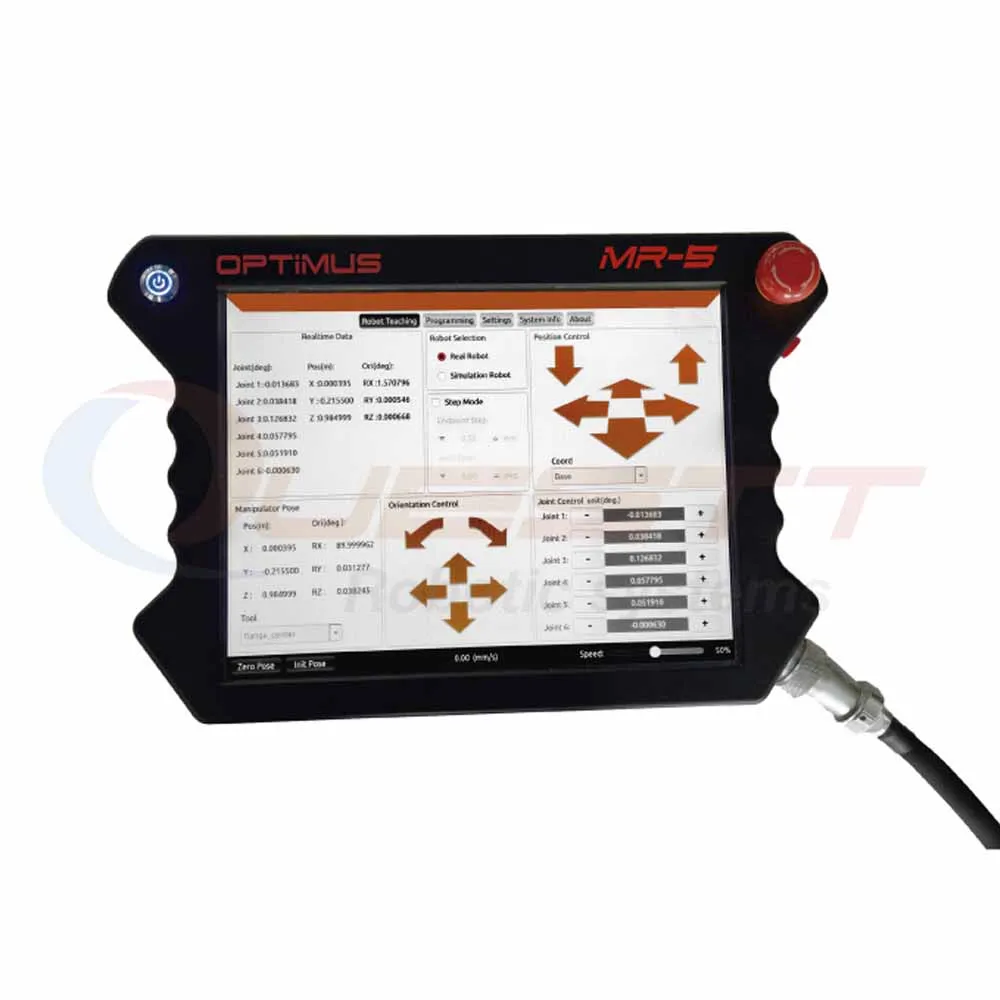

Users can develop their own robot control system based on the API of OPTIMAS robot. Meanwhile, OPTIMAS robot is equipped with its own programmable interface, which allows the user to observe robot’s operating status in real time, carry out lots of robot control settings and perform offline simulation. This can improve the efficiency of practical application greatly.

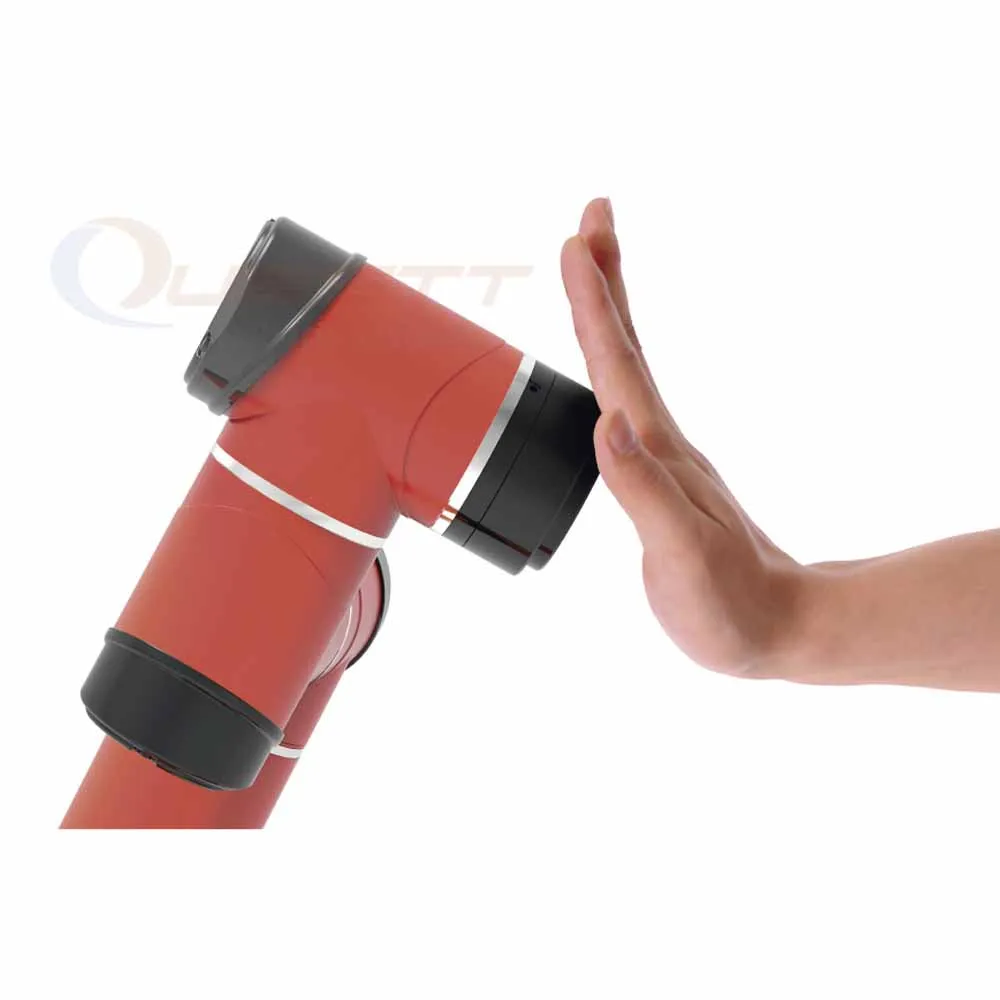

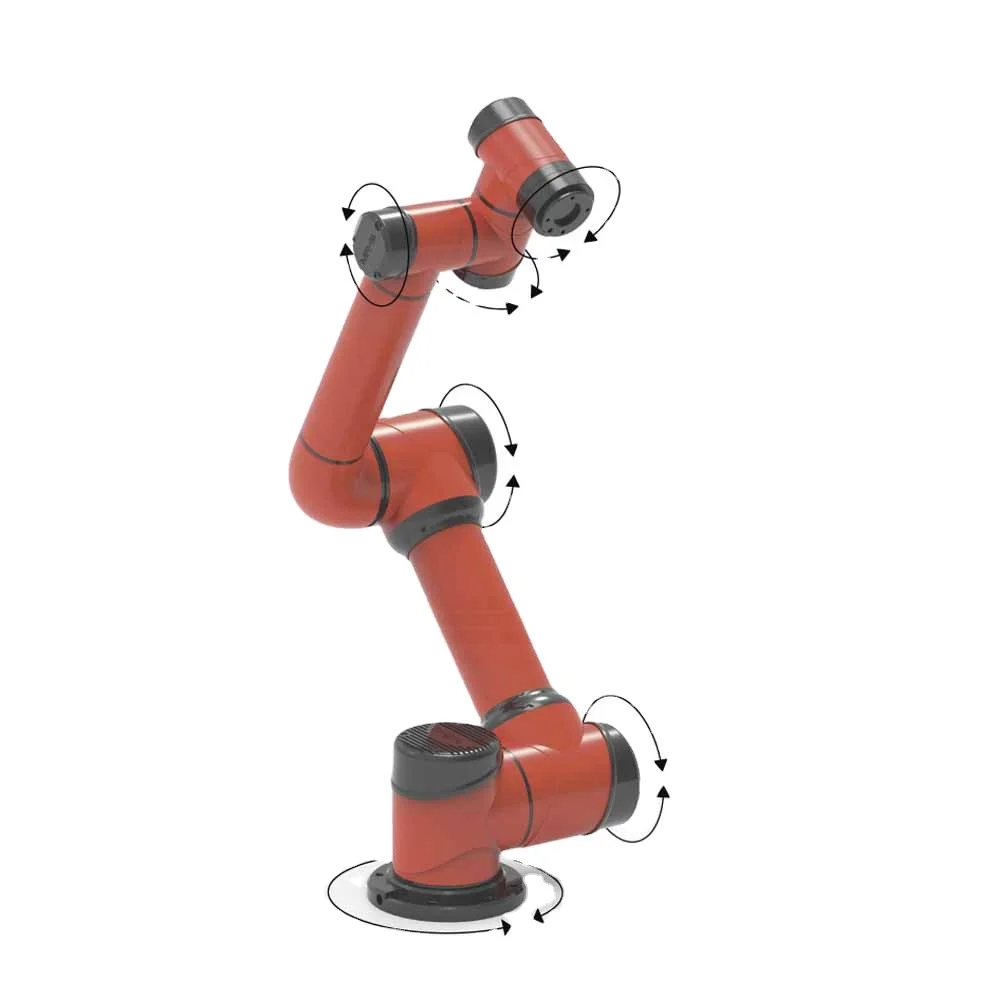

OPTIMAS MR-5, the second generation of smart lightweight 6 DOF modular collaborative robot, whose payload is 5kg, is one of OPTIMAS series modular robots.
We also have Epson Scara Series Robot. Please kindly contact us to get the details. Thank you.
Advantages
1. stability and improve quality, ensure its homogeneity;
2. improve productivity, available 24 hours a day continuous production;
3. improving labor conditions, long-term work in a hazardous environment;
4. reduce the operation technique requirements;
5. reduce product modification replacement cycles, reduce investment in appropriate equipment;
6. realization of welding automation of batch products;
7. save floor space;
Technical Parameters
| Model | MR1400 | |
| Payload | 6 KGS | |
| Max Working Radius | 1405 mm | |
| Arm Length | 2391 mm | |
| Number of Axis | 6 | |
Max speed | Axis1 | 150 °/S |
| Axis2 | 150 °/S | |
| Axis3 | 160 °/S | |
| Axis4 | 360 °/S | |
| Axis5 | 320 °/S | |
| Axis6 | 360 °/S | |
Max Operation Area | Axis1 | ±165° |
| Axis2 | +155° ~ -90° | |
| Axis3 | +70° ~ -200° | |
| Axis4 | ±170° | |
| Axis5 | ±120° | |
| Axis6 | ±360° | |
| Max moment Allowable Torque | Axis5 | 54 NM |
| Axis6 | 23 NM | |
| Weight | 140kg | |
| Position Repeatability | 0.05mm | |
| Working temperature | 0-45 ℃ | |
Applications
Kika COMPACT robots are ideal for small parts assembly , dispensing , lab automation , medical device assembly , machine tending , material handling , packaging, electronics and many other applications.
This type is specially designed for Mig/Mag weldting industry.

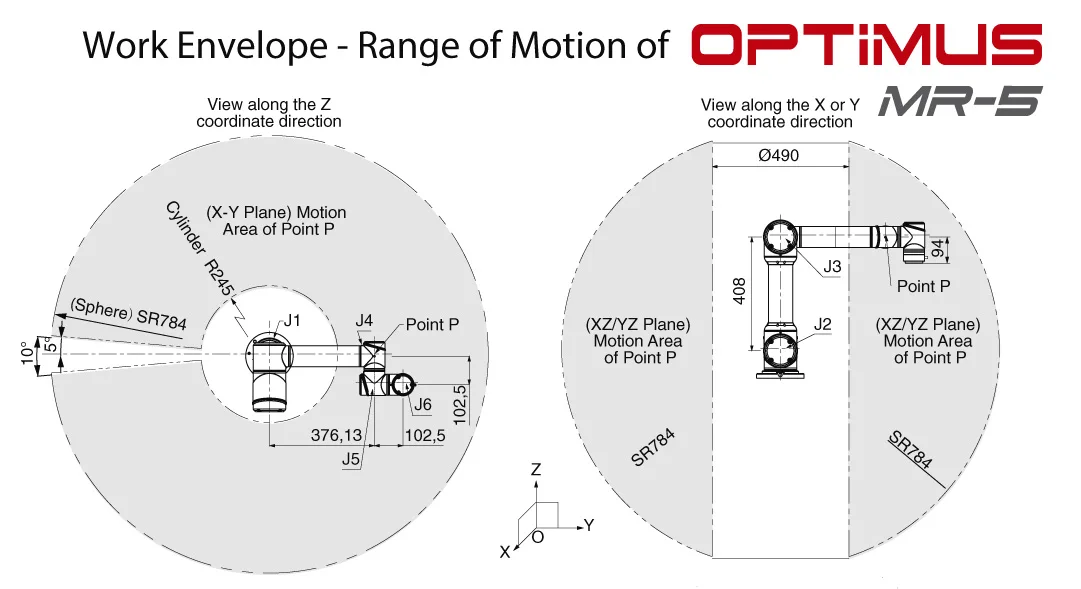

Drawings
Company Profile
Our factory
FAQ
1.Q:What is the warranty of the machine?
A:Questt Lasers have a warranty for 1-2 years.
2.Q:Are you a factory or trading company?
A:Quesstt Lasers is a factory for 22 years.Got import and export License.
3.Q:How about the quality?
A:Quesstt Lasers Technology is from Germany.High quality best price.
4.Q:What is your after-sale service?
A:If needed,Questt Lasers offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!
5.Q:How do i get technical support after purchasing?
A:Questt Lasers offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.
6.Q:How can i get assurance of my Payment?
A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
