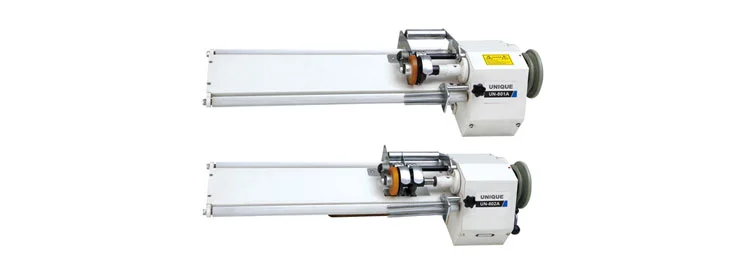

Cloth rib cutter fabric strip cutting machine
UN-801A - single blade
UN-802A - double baldes
Main Features & Specifications
1, It is suitable for cutting all types of fabrics into tapes, including 45 degree tapes for binding, with different width available.
2, Working well for thin, medium and thick fabrics.
3, Specialized for cutting knitting fabrics to binding tape.
4, Tape width can be adjusted to 90mm as maximum. Cutting speed is also adjustable.
5, Specially designed fabric feed roller brings better performance.
| Model name | UN-801A | UN-802A |
| Number of Blade | Single blade | Double blades |
| Application | Light to medium and heavy materal | |
| Max. sewing speed | 3,000 sti/min | |
| Eccentric distance | 18 mm | |
| Stroke | 38 mm | |
| Closing height | 16-50 mm | |
| N.W./G.W. | 20.5/22.5 kgs | |
| Measurement | 82*35.7*26.5m 0.776 cbm # | |
