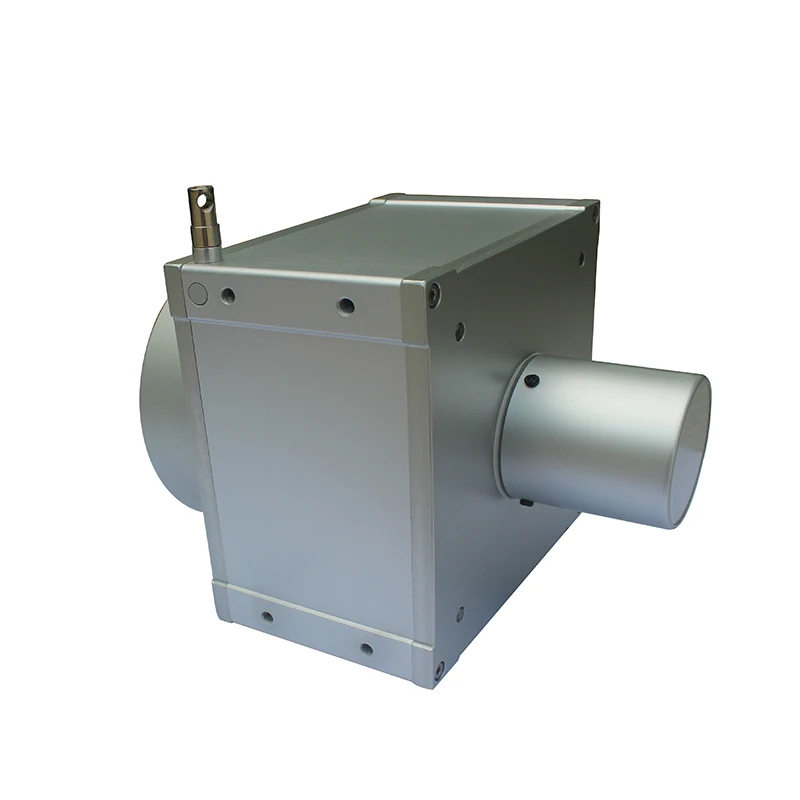

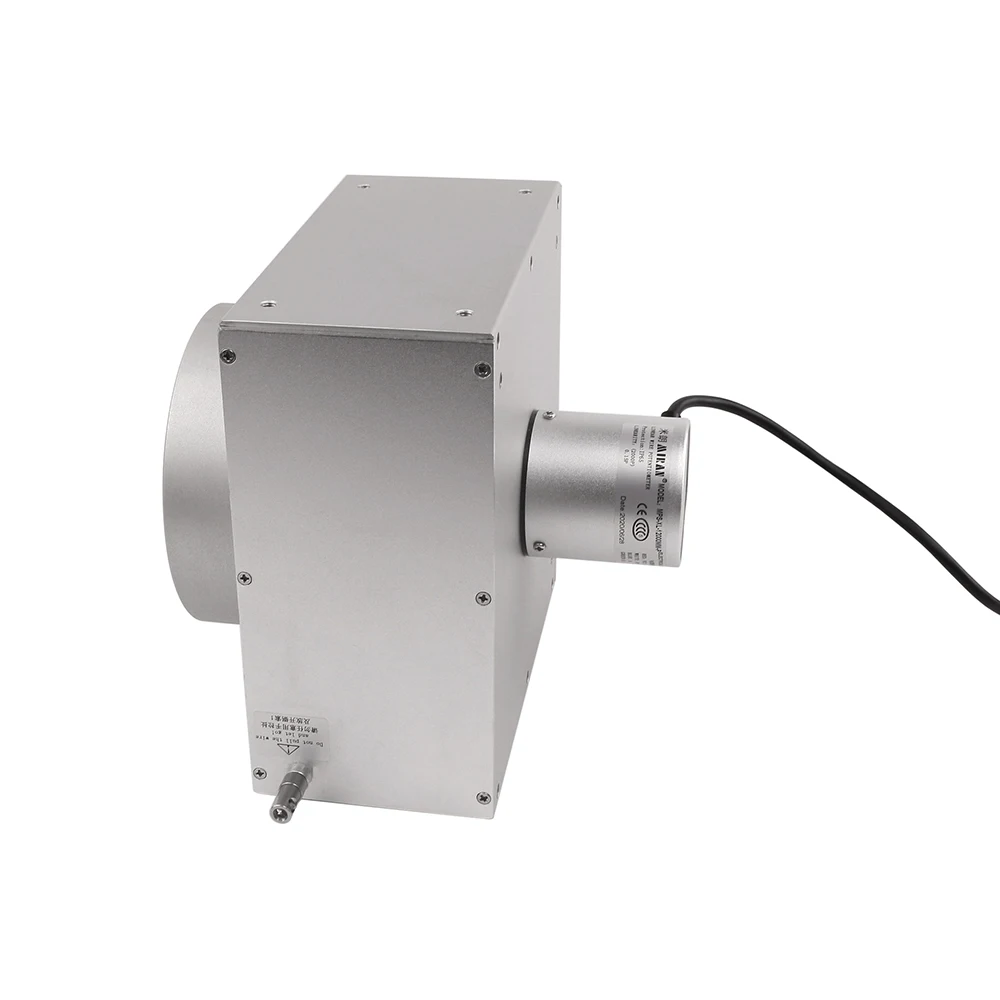

MIRAN 9000 15000mm Long Distance Measuring Linear Encoders Draw Wire Displacement Sensor
MIRAN 9000-15000mm Long Distance Measuring Linear Encoders Draw Wire Displacement Sensor
MIRAN 9000-15000mm Long Distance Measuring Linear Encoders Draw Wire Displacement Sensor

MIRAN 9000 15000mm Long Distance Measuring Linear Encoders Draw Wire Displacement Sensor

Share on (62312386351):


Price:

Quantity:


Product Overview

Description



Product Description


MIRAN Super Long Measuring Range 9000-15000mm Length Measuring Linear Encoders Draw Wire Displacement Sensor String Potentiometer Encoder


Electric Specifications
Stroke Length(mm)
9000mm~15000mm
Output Signal
4-20mA (3 wires)(2 wires)
Linearity
± 0.3%FS(normal standard)
Repeatability
± 0.05%FS
Resolution
Essentially Infinite
Wire Measurement
Diameter 1.5mm   SUS304
Sensor Type
Wire-Winding potentiometer
Starting Force
≤2200g
Max Measuring Speed (back and forth)
600mm/sec
Mechanic Specifications
Voltage Supply
12-24V dc(3wires);15-36V dc(2wires)
Current Supply
Max 25mA
Loop Resistance (load)
(loop supply voltage-10) / 0.02max
Working Temperature
0℃～+70℃
Storage Temperature
-20℃～+80℃
Vibration
10Hz to 2000Hz
Ingress Protection
IP65


MIRAN Draw Wire Encoder(MPS)


Application
Miran Draw Wire Potentiometer MPS type is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control,wind power lifting equipment on the sea.
Product Selection Guide
Model Example: MPS-XXXS-R-100mm
Measuring range and enclosure models
XXXS:100-200mm
XXS:100-800mm
XS:100-1000mm
S:100-1250mm
M:1250-4000mm
L:4500-8000mm
XL:9000-100000mm

There are 6 kinds of output as below,please choose the one you need.
R: 0-5KΩ Resistance
V1：0-5V
V2：0-10V
A1：4-20mA with 3 wires
A2：4-20mA with 2 wires
P：incremental pulse phase output AB phase or ABZ phase.

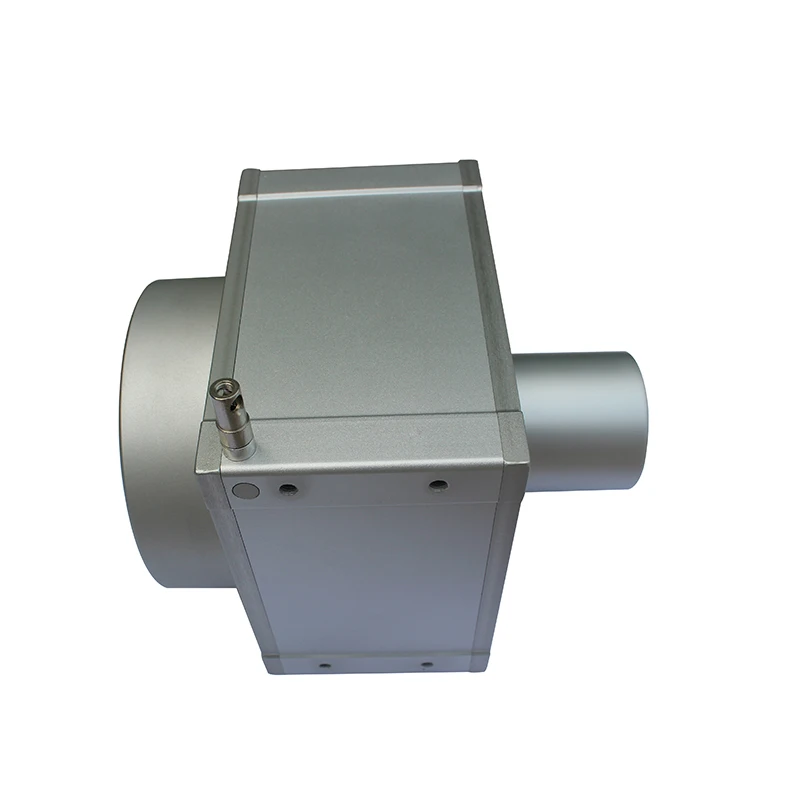

Detailed Images


MIRAN Super Long Measuring Range 9000-15000mm Length Measuring Linear Encoders Draw Wire Displacement Sensor String Potentiometer Encoder






Packing&Shipping


1.Packing with carton.
2.Shipping via DHL,FedEX,TNT,UPS etc.
3.Delivery time: around 5-7 days after receive the payment.(according to your quantity)
4.Port: Shenzhen
