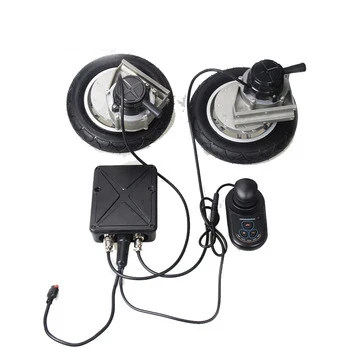

  • BLDC wheel chair motor and joystick controller kit for power wheel chair
BLDC wheel chair motor and joystick controller kit for power wheel chair
BLDC wheel chair motor and joystick controller kit for power wheel chair
BLDC wheel chair motor and joystick controller kit for power wheel chair
BLDC wheel chair motor and joystick controller kit for power wheel chair
BLDC wheel chair motor and joystick controller kit for power wheel chair
BLDC wheel chair motor and joystick controller kit for power wheel chair
BLDC wheel chair motor and joystick controller kit for power wheel chair

BLDC wheel chair motor and joystick controller kit for power wheel chair

Share on (62312419609):


Price:$370.00 - $375.00

Quantity:


Product Overview

Description



BLDC wheel chair motor and joystick controller kit for power wheel chair


Product Description

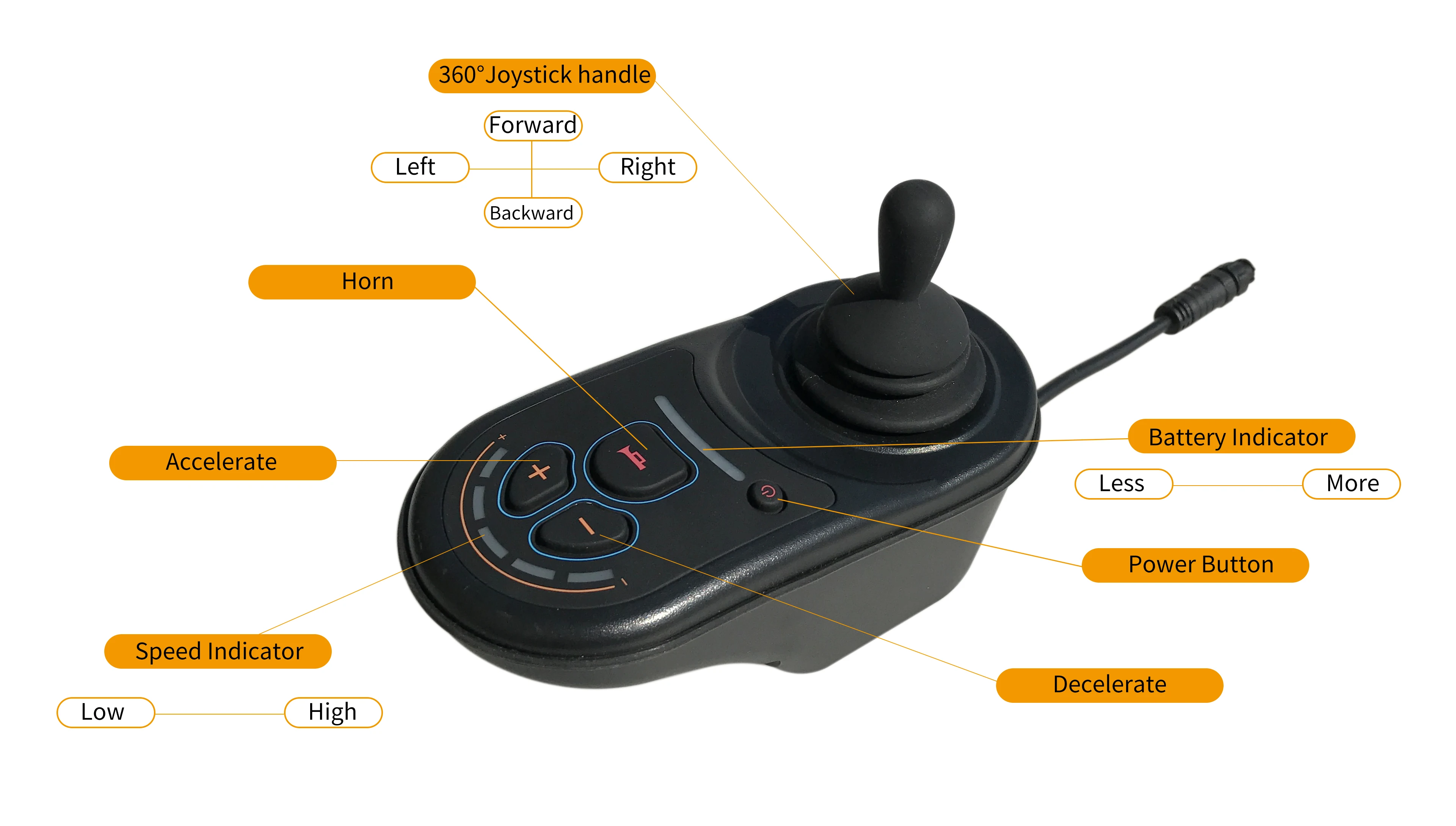

This is a creative design fashion brushless wheelchair joystick-style controller. It allows users to smoothly through a user-friendly control panel, instant control for the power wheelchair in any direction(360 degrees) movement.



The controller with programmble computer chips to drive two brushless DC motors with different speed or direction of rotation to achieve power wheelchair movement in any direction, so users really feel the power of perfect control through finger.







Product name
Brushless Controller
Voltage
24V
Under-voltage
21V+0.5
Application
wheelchair
No-load current
1.5A
Certification
CE,EN61000,ISO90001
Power
250w
Model number
YL-K1
Brake type
Electromagnetic brake
Control voltage
0.5-4.5V
Speed limited
<6km/h
Operating temperature
-30-80°C
Size of Controller
167*81*115mm
Weight
1041g(control box)
Size of Controller
176*135*47mm
Place of Origin
Jiangsu, China (Mainland)



Futher Specifications

1.EMC anti-interference                                                      2.Panel parameter setting
3.Runaway protection                                                          4.Over current protection

5.Over voltage protecti                                                        6.Under voltage protection

7.short circuit protecti                                                         8.Over temperature protection

9.Locked rotor peotection for motor






 Product Advantages:

1. Brushless motor, high efficiency, long working lifespan, free of maintenance;

  1. 2. Single-stage gear power transission, low loss and long driving range;
  2. 3. Small size, light-weight, suitable for various portable electric Wheelchairs;
  3. 4. Speed and power of the motor at users' option;
  4. 5. Rectangle plate installation, compatible with a variety of models;
  5. 6. Adaptive 8 inches inflate-free type;
  6. 7. With anti-tip wheels (user selectable).


Product Parameters
Product Name
  Brushless Dc Motor Electric Wheelchair Motor
Rated Power
250W
Rated Voltage
24V dc
Insulation Class
F Class
No-load Speed
3100rpm
No-load Output Speed
 130rpm
Starting Current
≤ 1.8A max
No-load Current
≤ 1.1A
Insulation Voltage
0~550Vac/ 1mA/ 1sec
Reducer Speed Ratio
23:1
Electromagnetic Brake
3N.m 24V dc
Wheel diameter
10 inch



Further specifications:

Brake type                                Electromagnetic brake

Brake level                               3N.m 24Vdc

Reduction Grade (dB)              ≤60

Torque                                      0~30 N.M

Insulation Class                        F

Insulation voltage                     0 ~ 550Vac/1mA/1sec



Tests & Certifications:

IP65



CE/EN61000/EN60950/ISO90001




Detailed Images

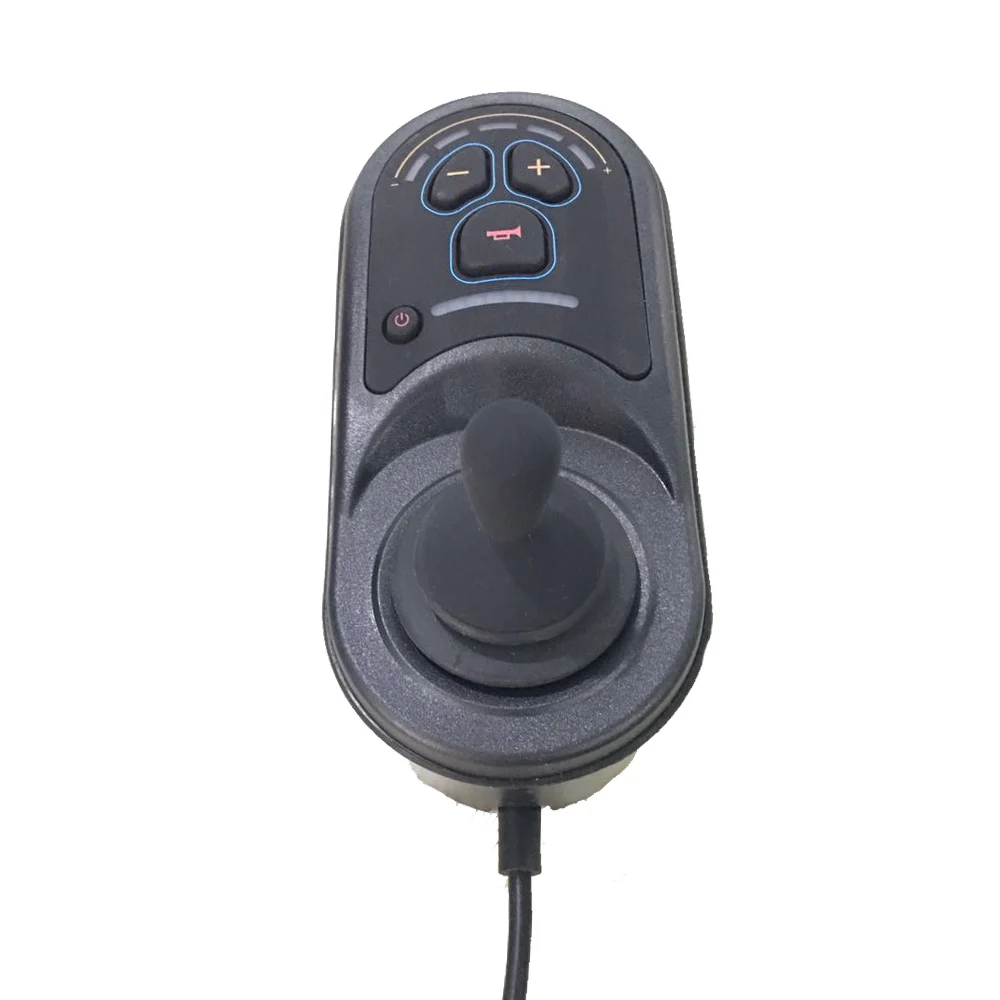

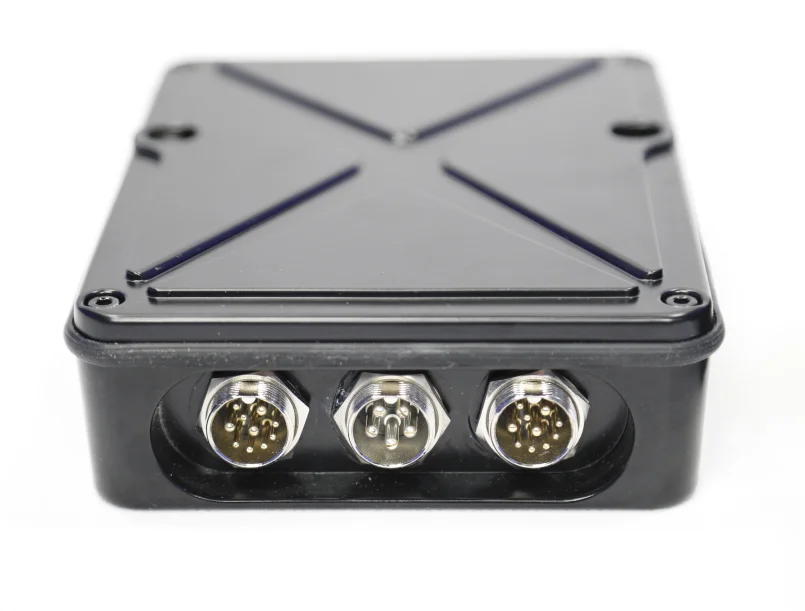

Brushless Wheelchair Controlller

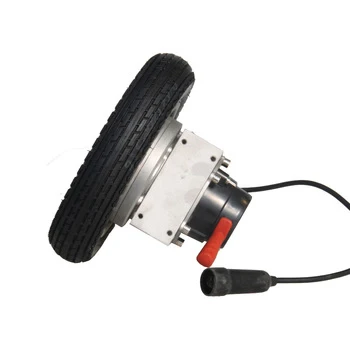

Brushless Wheelchair Gear Motor










Other Products






Our Company




One-stop electric wheelchair manufacturer

Nanjing Yuanlang Electronic Technology Development Co., Ltd,founded in 2005, is a manufacturer of large-scale medical equipment. We have strong product development and manufacturing capabilities. Our main products are electric wheelchair series, electric wheelchair motor series, electric wheelchair joystick controller series products.We ccould provide customers with a full range of electric wheelchair solutions.

Our company have passed ISO9000 quality system certification and ISO13485:2003 quality system certification. Our products have passed the test of Chinese authorities and CE certification of the European Union.They are popular with customers in Europe, America and Southeast Asia. We are always ready to provide customized solutions for our customers.

We will continue to be the leader of China's rehabilitation equipment industry with the spirit of innovation, responsibilityand dedication.





Packing & Delivery



Our most professional packaging

The warehouse inventory

And international transport cooperation




Packaging Detail:

Each electric wheelchair brushless motor and controller is packaged in single package size:

controller:340*280*120mm;  motor: 500*260*210mm





Our Service


1. We provide our customers with a full range of accessories for power wheelchairs, including brushless motors, joystick controllers, frames, batteries,chargers.seat cushions, front and rear wheels and more.



2. We also provide customers with frame spraying, baking varnish and initial installation services. It is convenient for power wheelchair manufacturers to conduct one-stop procurement and production.



Warranted for one full year (checking and repairing or replacement services) from the data of purchasing, the returns are not being damaged by any man-made factors.

· Your inquiry related to our products or prices will be replied in 24 hours.

· Well-trained and experience staffs to answer all your requires in fluent English.

· OEM&ODM,any your customized wireless chargers we can help you to design and put into your products.

· Protection of your sales area, ideas of design and all your private information.



FAQ


Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
