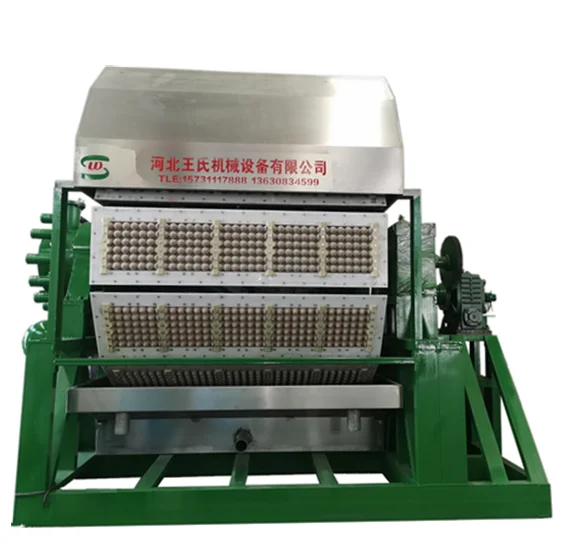

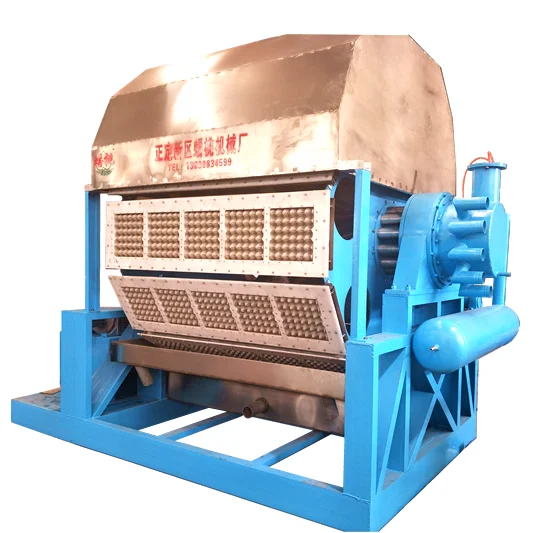

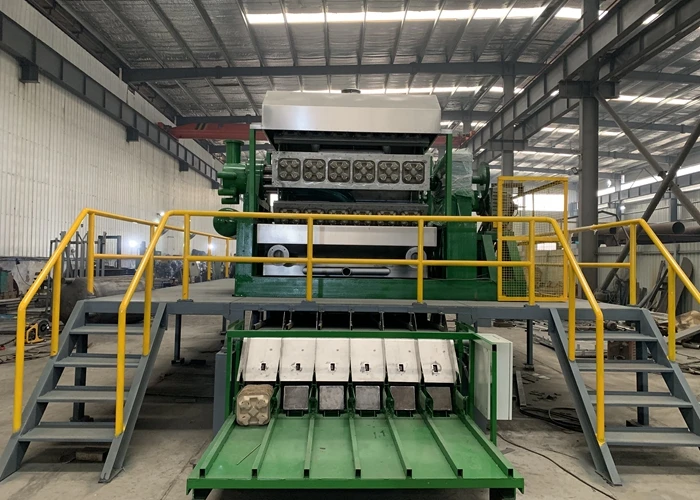

High output wasted paper egg tray making machine with iron box type drying
This machine is 5x8 type.It has eight sides.Each side has 5 molds.It can produce egg tray,egg box,egg carton,shoe tray,fruit tray,wine tray,seeding tray with the raw materials.The raw materials includes waste paper,waste newspaper,cardboard and so on.Its output is 6000 pcs/h.The product can be recycled,is a new green packaging, which is not only the development of environment-friendly enterprise, also long get rich choice.
Product Paramenters
Model | WS-6000 |
Side | 8 sides |

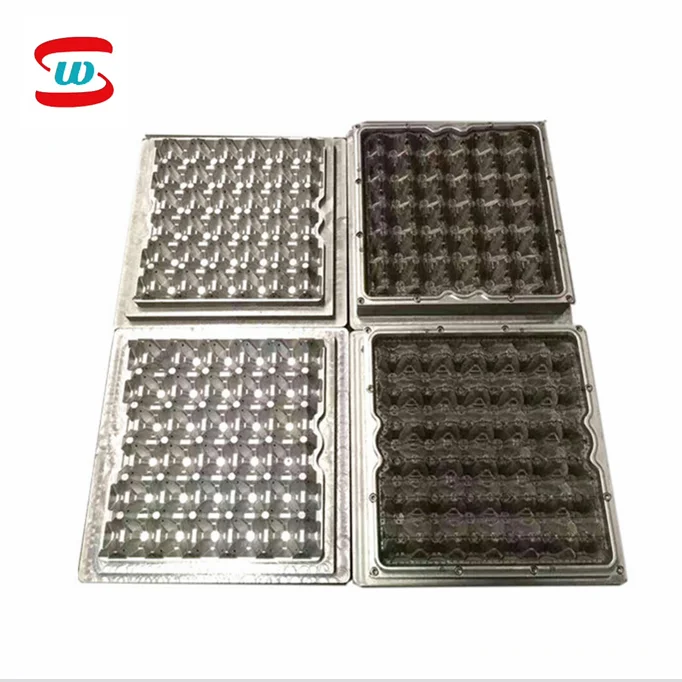

Forming molds quantity of each side | 5 forming molds |
Transfer molds quantity | 5 transfer molds |
Capacity | 6000 pcs/hour |
Water consumption | 875-1050 kg/hr |
Paper consumption | 420-500 kg/hr |
Electricity consumption | 180 kw/hr |
Labor force | 10-12 |
Contact me for more details.
Product Process

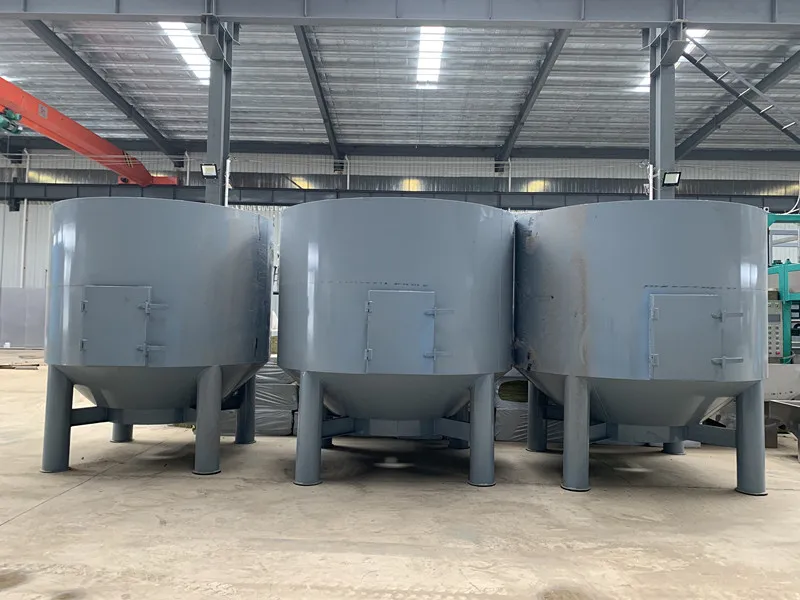

1.Pulping System
Put the raw materials into the pulper and add an appropriate amount of water to stir the waste paper into pulp.

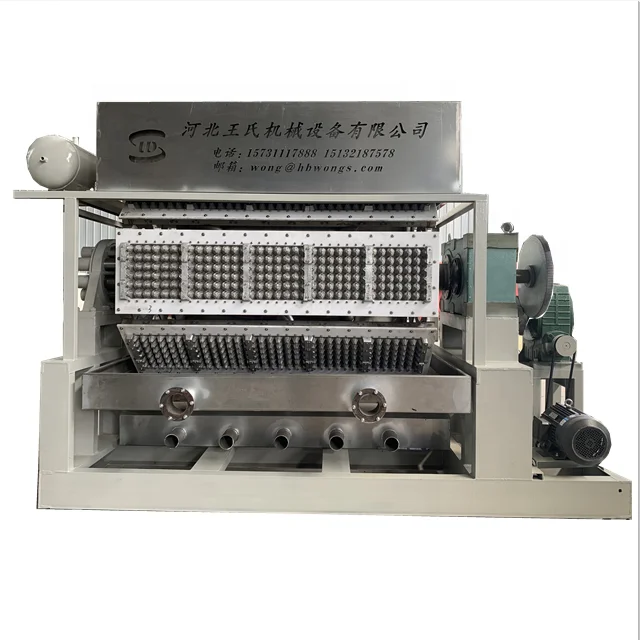

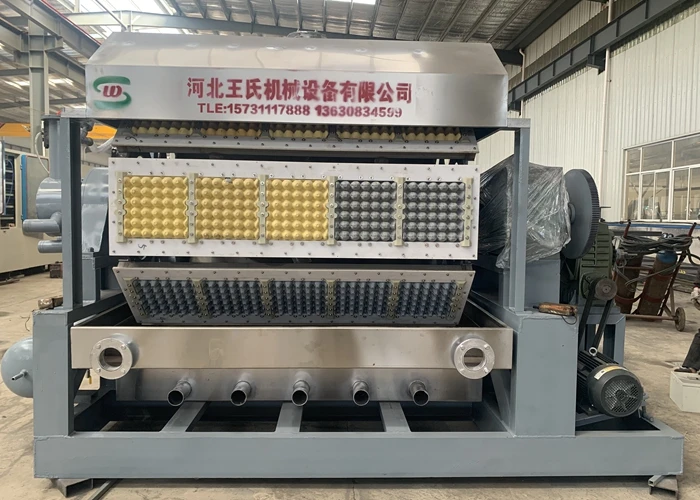

2.Forming System
The forming system is the process to produce the wet egg tray by forming machine. When the above forming moulds sink into the pulp tank, the negative-pressure vacuum pump will work on the the back of the forming mould, the pulp will be sucked and gathered on the mould surface to form the wet egg tray.

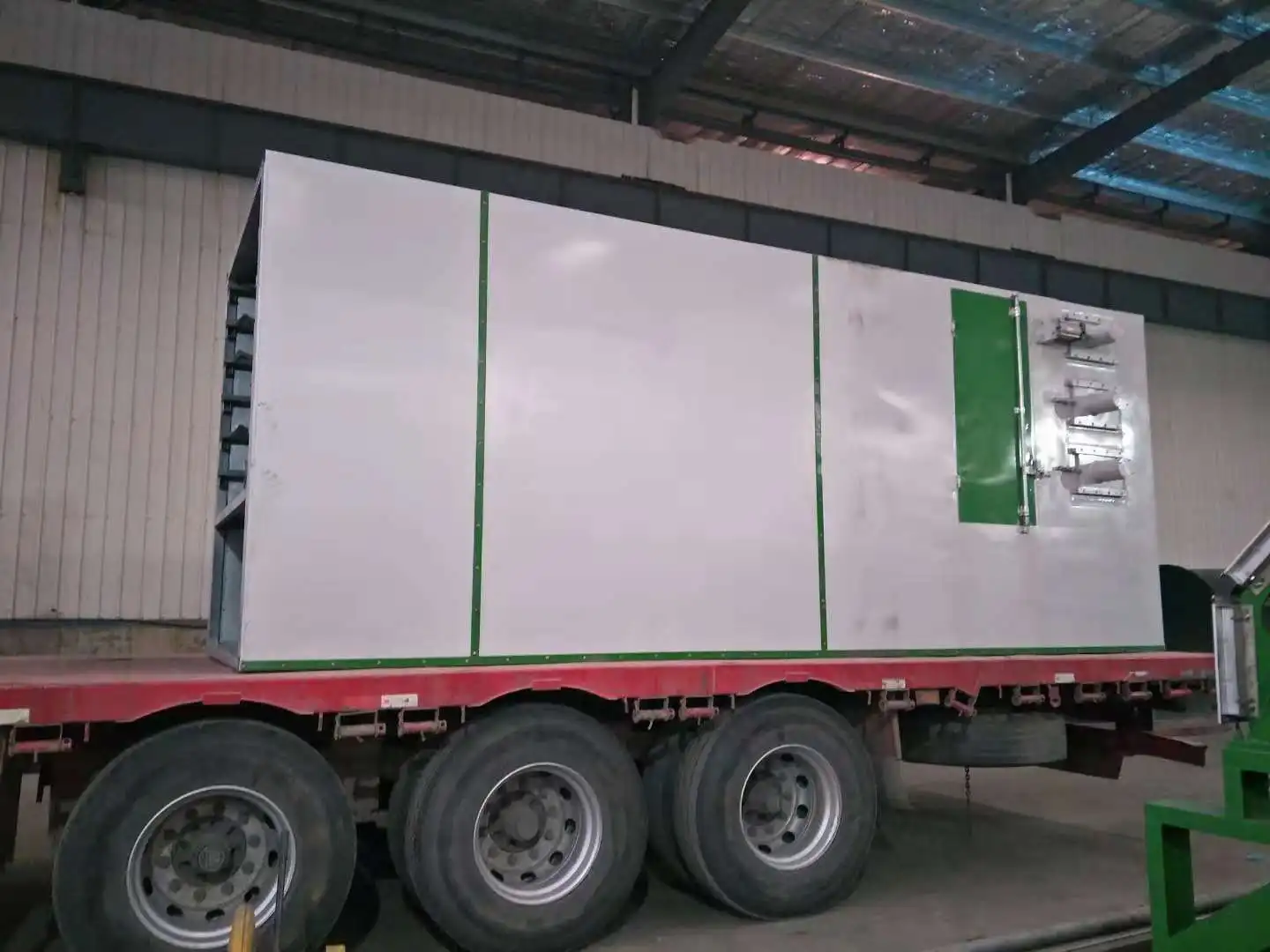

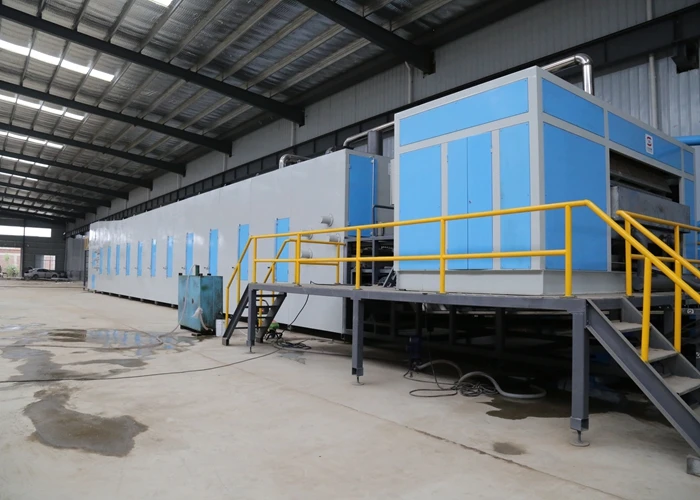

3.Drying System
Then the wet trays are ready for sending to the metal dryer for drying.The metal dryer is six-layers.It occupies a small area; It saves about 30% energy than brick dryer.It can be
designed to multi layer according to your requirements.Brick dryer is also your choice.
4.Packing System
This is automatic counting machine.
Count the number of dried products ,separate them and stack them up ,
Recommend Products

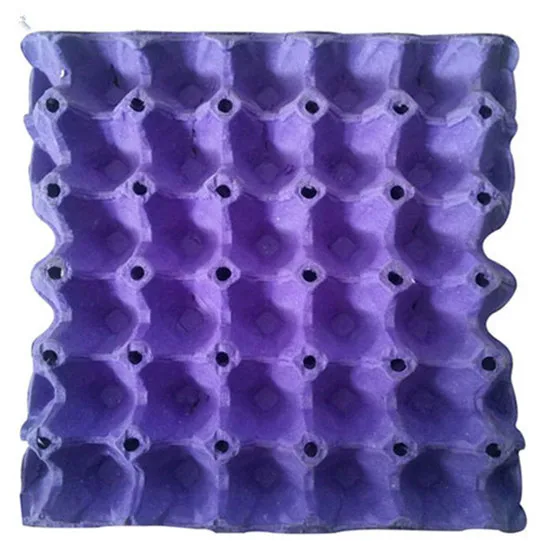

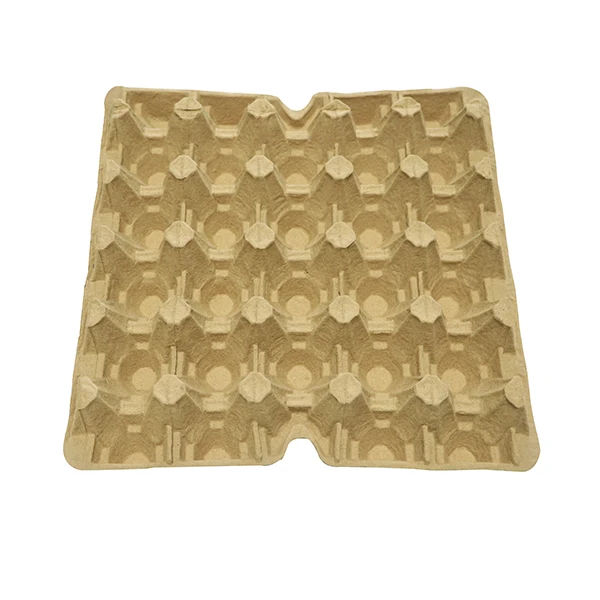

Finished product
The egg tray making machine can produce egg cartons, egg box, egg tray, bottle holder, agricultural culture fruit tray, coffee cup tray.The product can be recycled, is a new green packaging, is not only the development of environment-friendly enterprise,also is the choice of getting long rich .
Company Profile
Hebei Wongs Machinery Equipment Co., Ltd. supplies various types of egg tray machines, egg tray production lines, complete sets of equipment and egg tray production technology. It integrates machine manufacturing, sales, production line assembly and technical services. The egg tray equipment of our factory is well-equipped with advanced technology and strong technical force. The machines that leave the factory implement strict scientific management and testing methods, and meet the needs of users to the greatest extent. We have always served our customers with the tenet of "excellent quality, prompt delivery, reasonable price and thoughtful service", and have won praise from new and old customers.
The main products are: various large, medium and small egg tray machines, assembly lines, complete sets of equipment; pulp molding machines, packaging machines, setting machines; various mold egg tray products, drying iron trays, drying bead trays and various egg tray machines accessories. The product specifications are complete and the quality is excellent. They are sold all over the country and exported to the United States, Russia and some countries and regions in Southeast Asia, and are deeply trusted by domestic and foreign users.
The main products are: various large, medium and small egg tray machines, assembly lines, complete sets of equipment; pulp molding machines, packaging machines, setting machines; various mold egg tray products, drying iron trays, drying bead trays and various egg tray machines accessories. The product specifications are complete and the quality is excellent. They are sold all over the country and exported to the United States, Russia and some countries and regions in Southeast Asia, and are deeply trusted by domestic and foreign users.

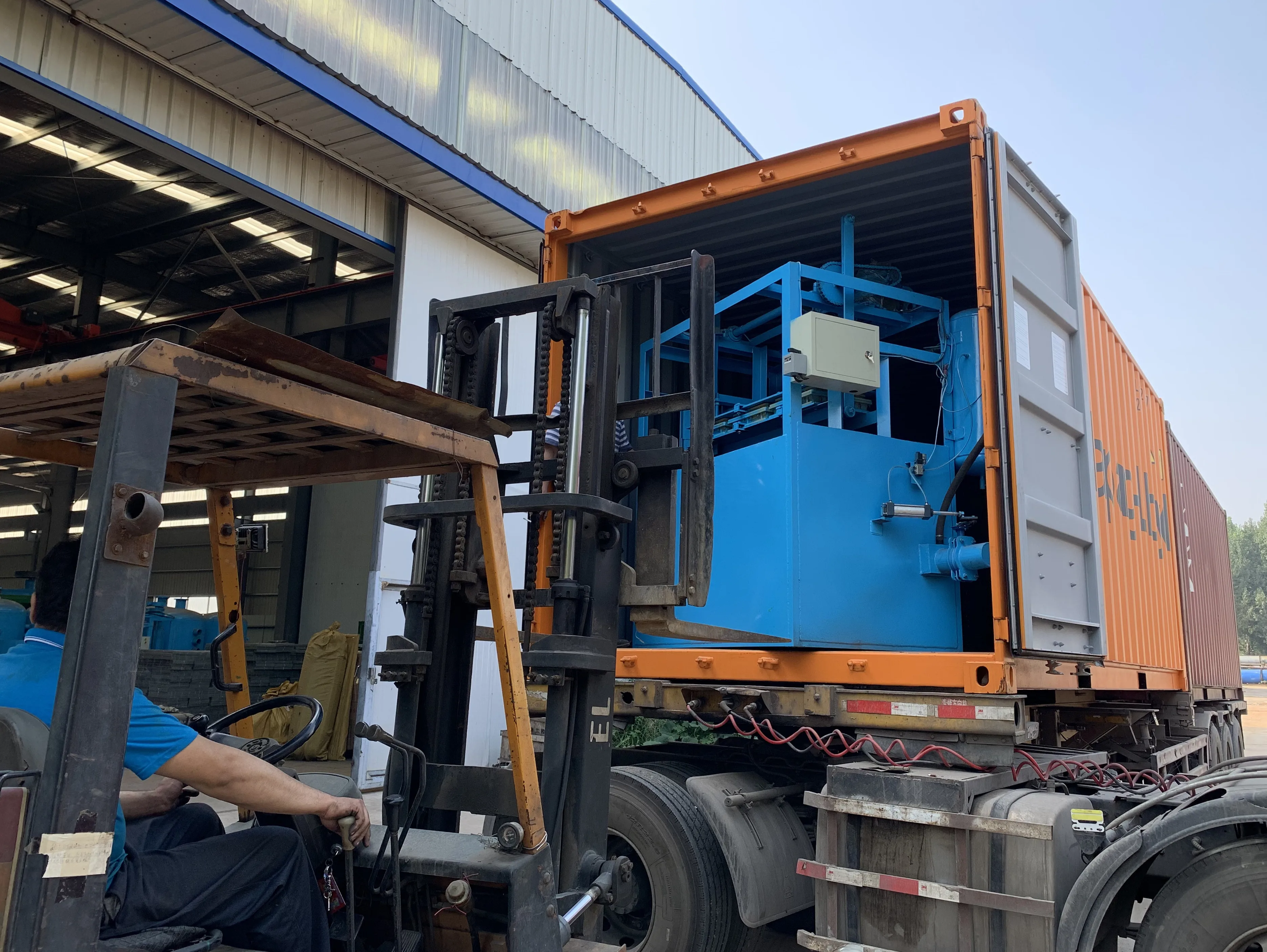

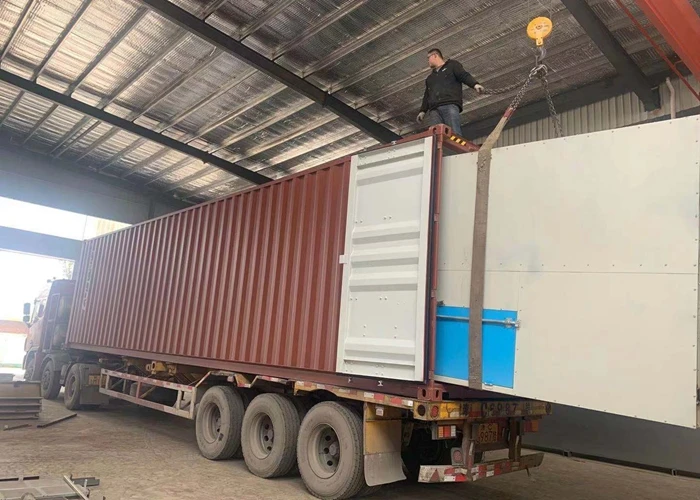

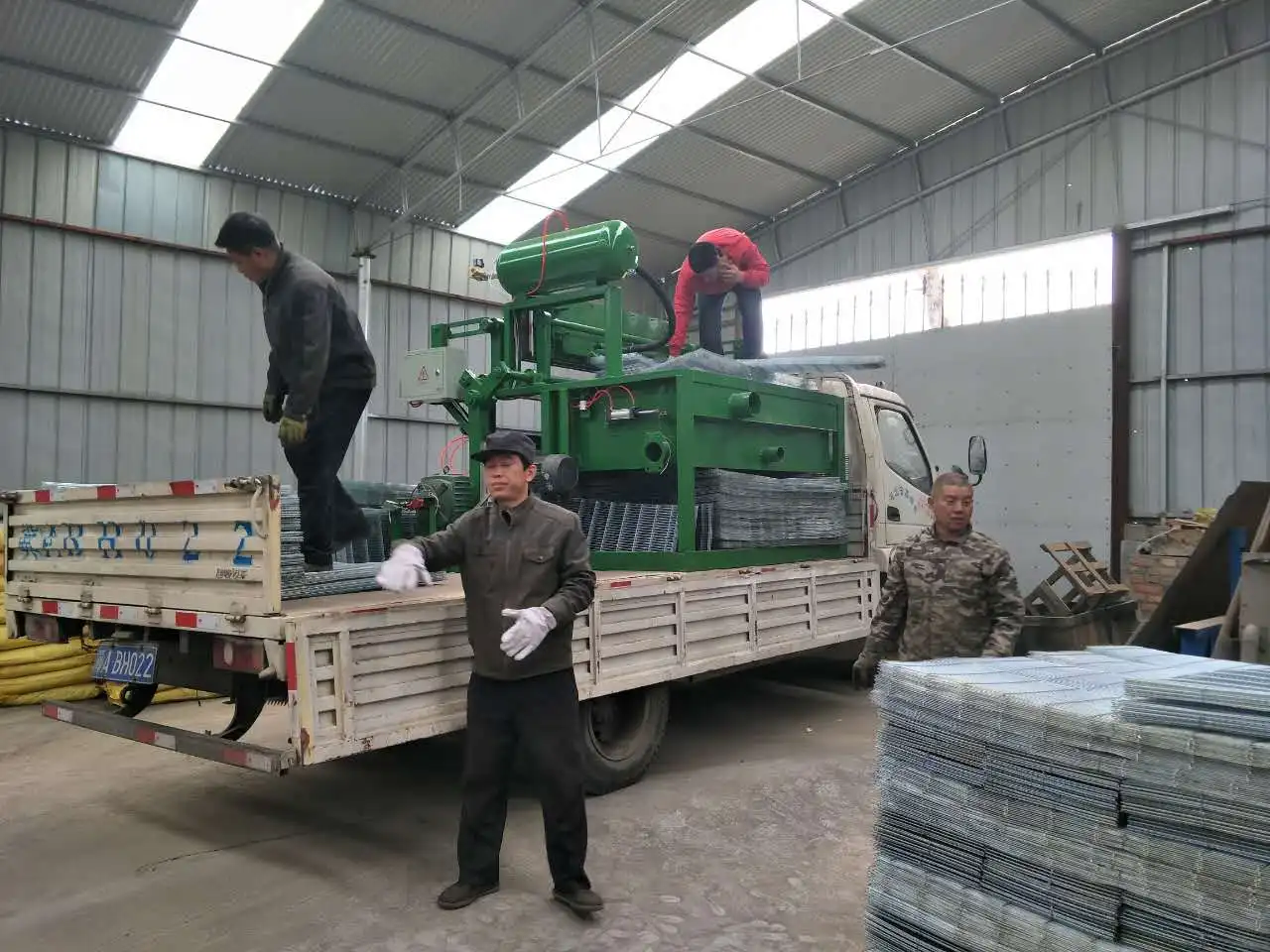

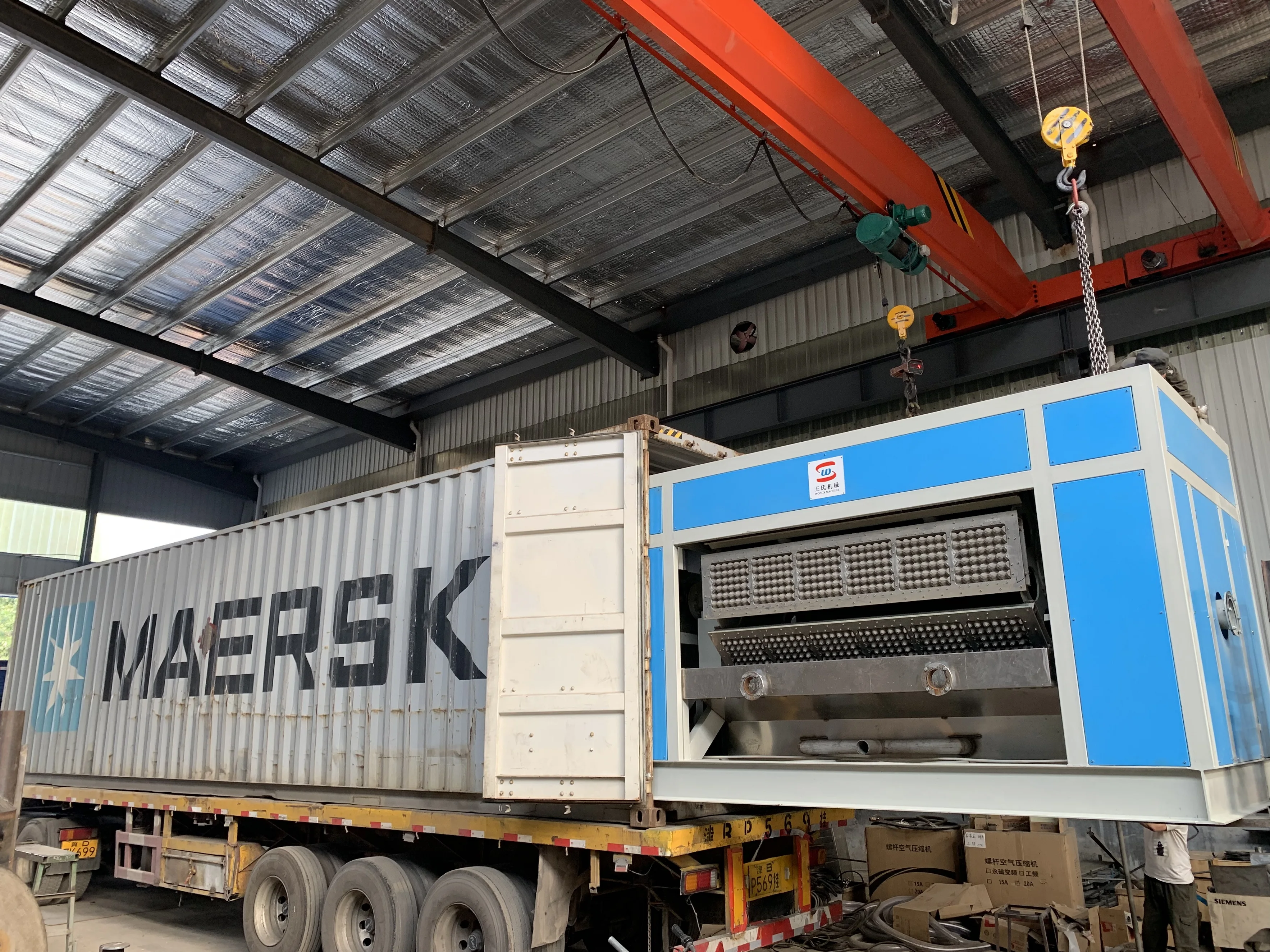

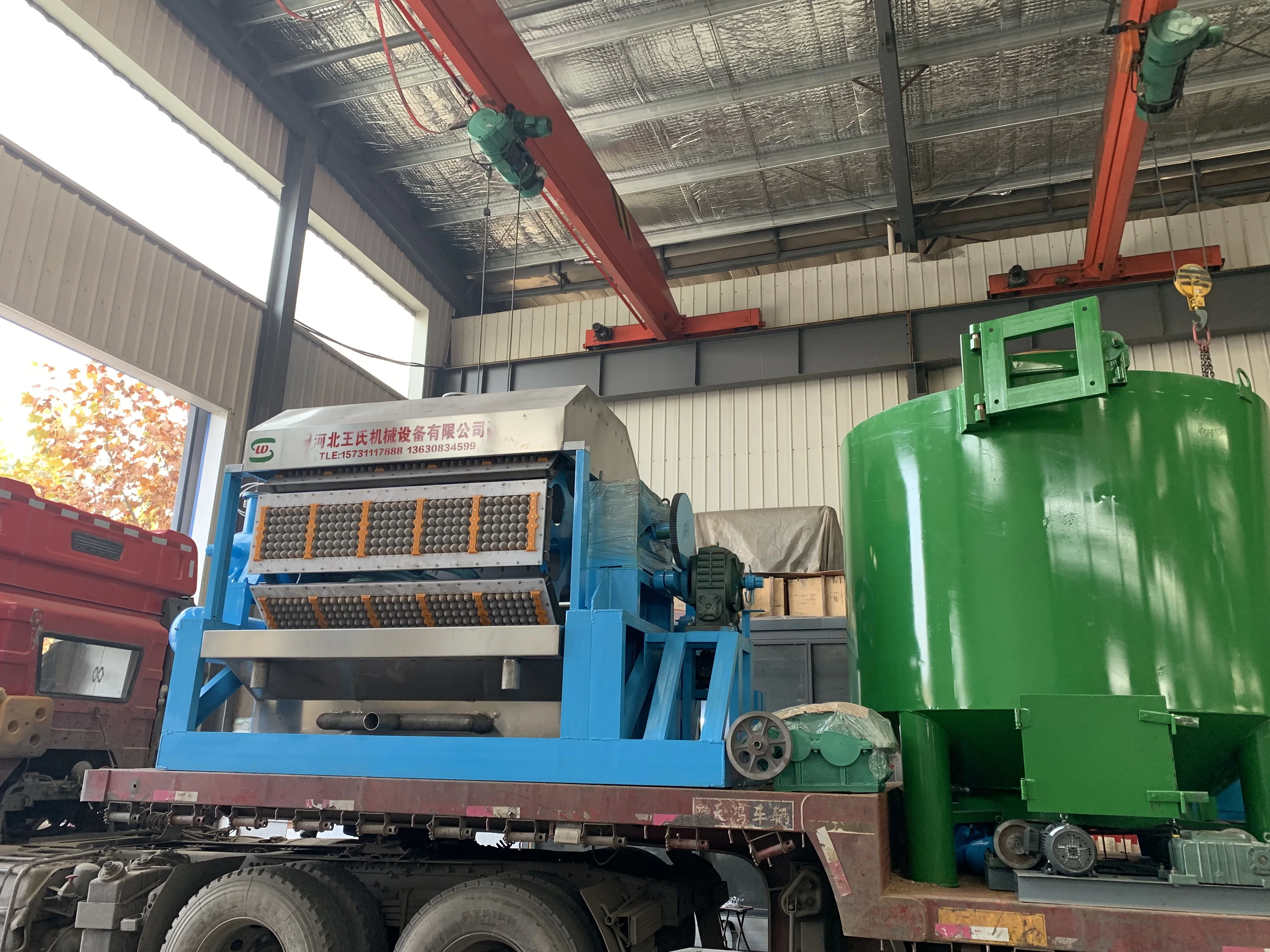

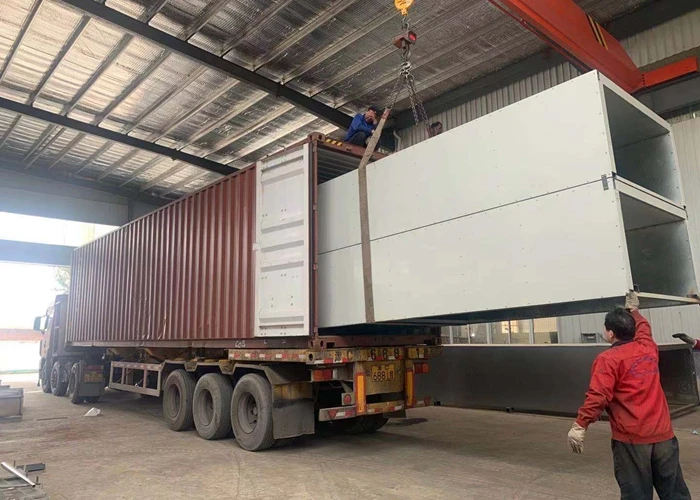

Packaging and Delivery
