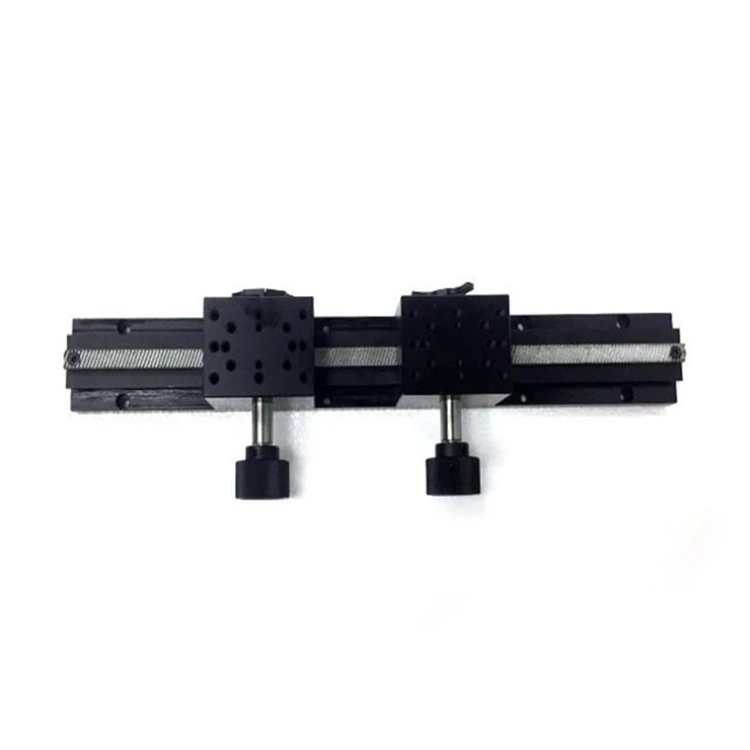

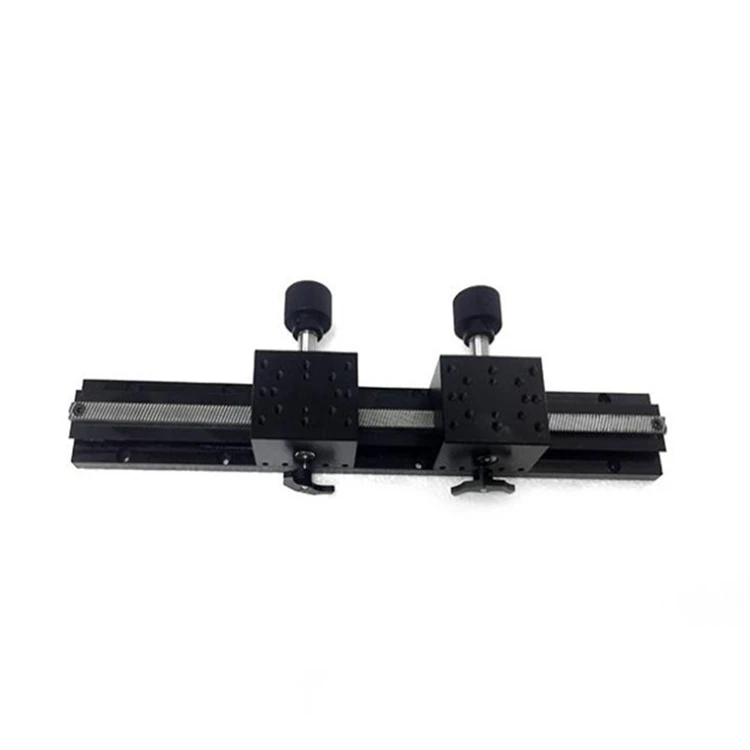

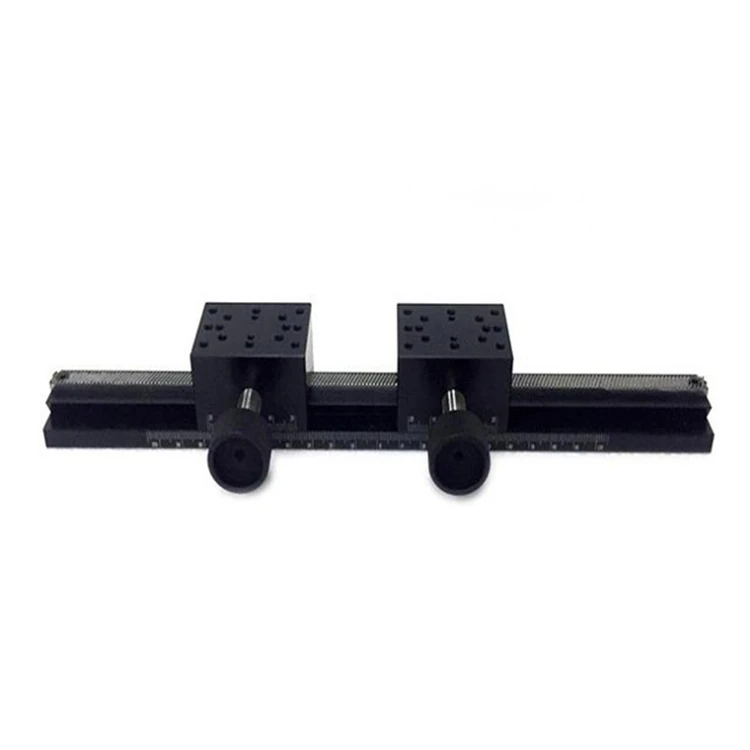

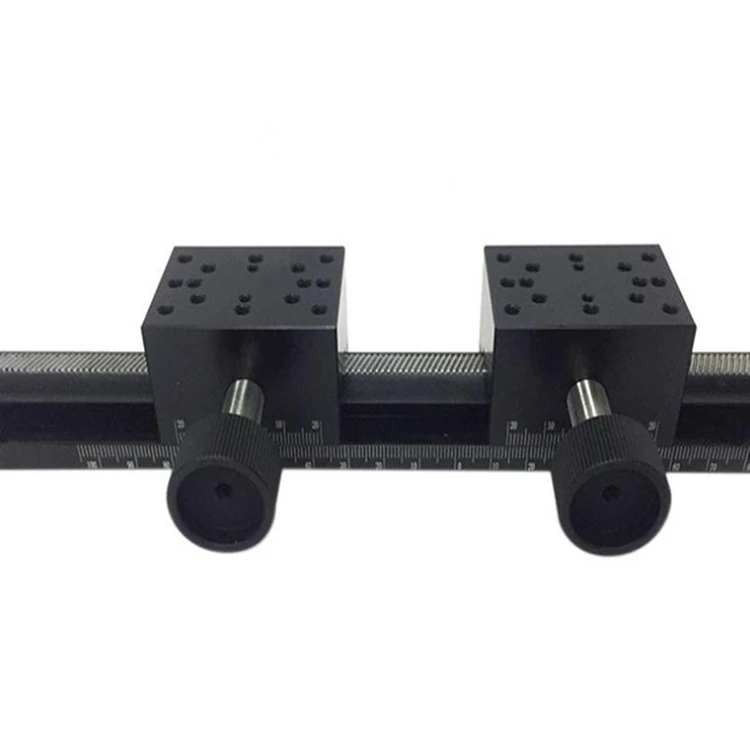

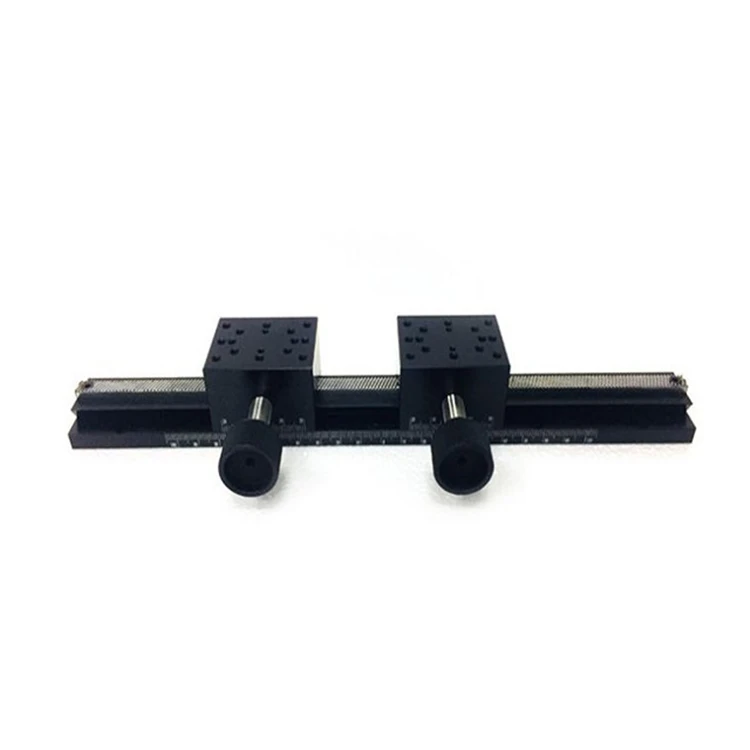

XY axis manual displacement platform high precision sliding platform multi axis platform dovetail slide

Product Overview

Description

Product details:



Shell material	The shell is made of high quality environmental protection material with good safety heat dissipation, high temperature resistance and long service life.
Superior performance	The product has strong performance, high temperature resistance, heat dissipation, suitable for all kinds of workplaces, and can guarantee stable mechanical performance.
Application scenario	The products are widely used in the electronics industry, plastic production industry equipment, automotive, medical, food production industry equipment automation equipment and other fields.

Movement amount (range selection) ±30mm ~

Feed mode rack & gear type

Table size (length) L(range selection)(mm) 41 ~ 60

Load (range selection)(N) 30.1 ~ 50

Table size (width) W(range selection)(mm) 26 ~ 40

Table size (thickness) H(range selection)(mm) 35.1 ~ 40

Moving guide mode dovetail slot oriented

The sliding table is made of aluminum alloy

The surface of sliding table is treated with black anodic oxidation

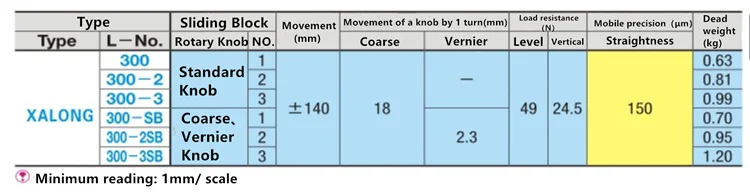

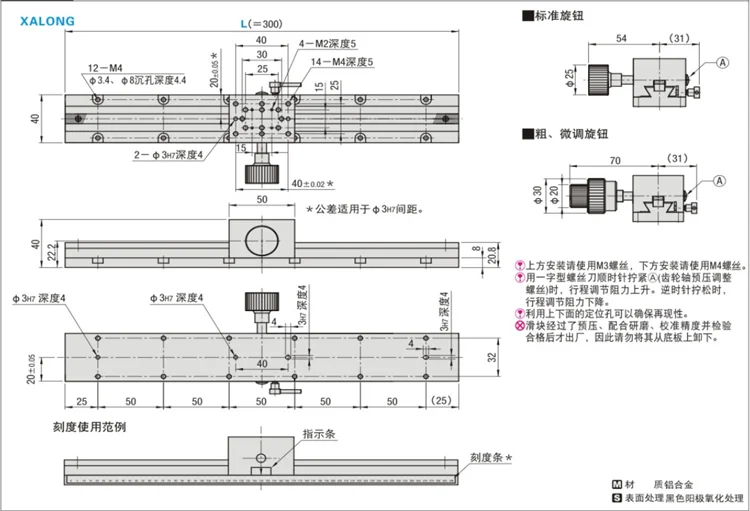

Classification of ontology

Mesa dimension (length) L(mm) 50

Table size (width) W(mm) 40

Carrying load (N) 49

Movement (X distance)(mm) ±140

Table size (thickness) H(mm) 40

Type X

Straightness of sliding table (mu m) 150

Feed knob position side

Clamping mode [standard] 00013

The direction distinguishes the standard type

No through hole (sliding table center hole)

Feed mode (rack and pinion type) standard type

Number of sliders 2

RoHS 10



FAQ about this product
1. Definition of sliding table?
Sliding table refers to the component products with three mechanisms of guiding, sending and clamping.
2. Can the XYZ type sliding table be assembled by itself without the size or travel quantity I want?
You can.
3. Are all the easy adjustment components manual?
Yes, there is no automatic.
4. What kind of guiding mechanism does the sliding table have?What is the accuracy?
Dovetail groove: 30um, cross roller: 3-30um, straight ball: 1um
5. What kind of feeding mechanism does the slide table have?What is the amount of movement of 1 rotation of the knob?
Gear rack: 17-20mm, feed screw: 0.5-4.2mm, micrometer knob: 0.5mm
6. Can the sliding table be installed vertically?What do I need to pay attention to?
Yes, but note that the load tolerance is about 1/3 of what it would be if installed horizontally.
7. What is the positioning accuracy of the automatic sliding table?Is the motor included in the purchase?
Automatic sliding table has the highest repetition accuracy of ±0.5um. When purchasing automatic sliding table, the motor is included, including the third party automatic sliding table of mismi agent.
8. What are the main types of motors for automatic sliding table?
Mainly by 5 - phase stepper motor and AC servo motor.
9. What does an automatic sliding table usually need?
Automatic bench body, alpha stepping motor or servo motor, driver and cable.The brake motor comes with cable and driver.
10, manual sliding table products can be used upside down?
With the exception of dovetail groove products can be.Dovetail trough products are strictly prohibited to use upside down.
