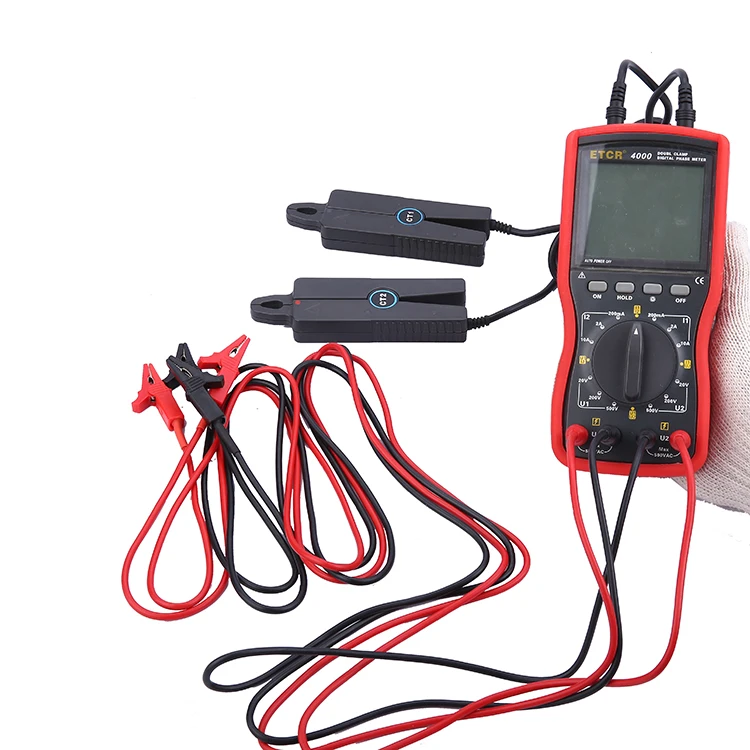

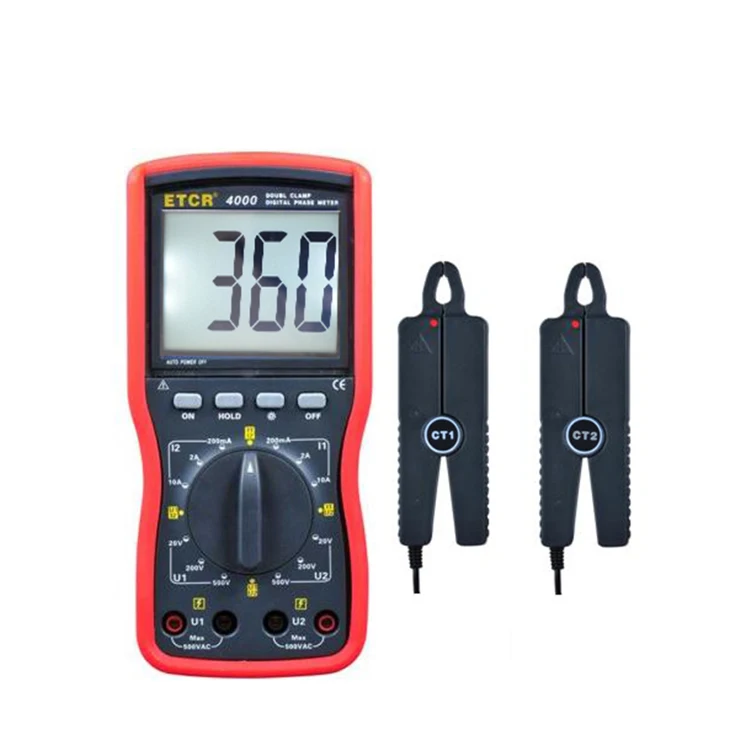

ETCR4000 Screen Angle Free Conversion Double Clamp Phase Test Equipment Voltage Multimeter

Voltage Range(in reference conditions)

0~20V;  Resolution:0.01V;Error:±(0.5% range)

0~200V; Resolution:0.1V; Error:±(0.5% range)

0~500V; Resolution: 1V;  Error:±(0.5% range)

Current Range(in reference conditions)

0~200mA;Resolution:0.1mA;Error:±(0.5% range)

0~2A;   Resolution: 1mA; Error:±(0.5% range)

0~10A;  Resolution:10mA; Error:±(0.5% range)

Phase Range(in reference conditions)

Phase:0~360°; Resolution:1°;Error:±1°

Power Supply

DC9V LR61.5V AAX6PCS

LCD Size

LCD Size:70mm×62mm; Display Area:64mm×54mm

CT Size

Φ8mm

Meter Dimensions

196mm×92mm×54mm

Weight

1140g

Sampling Rate

About 3 times/s

Measuring phase amplitude range

Measure phase U1-U2:30V~500V;

Measure phase I1-I2:10mA~10.00A

Measure phase U1-I2 or I1-U2:10V~500V,10mA~10.00A

Data Hold

In measurement, press HOLD key to hold data,“DH” symbol display

Auto Power-off

15 minutes after power on without any operation

Cable

Test wire length 1.5m; current clamp wire length 2m × φ5mm

Working Current

Open the backlight max 35mA,the battery continue working about 15 hours;

Close the backlight, meter power consumption about 5mA,the battery continue working 100 hours

Input Impedance

Test voltage input impedance: 1MΩ; Measure phase U1U2 voltage input impedance :40KΩ

Accessories

Host meter: 1pcs; Current Clamp: 2pcs; Test line: 4pcs;; Software CD:1cps; meter box: 1 piece
