Пескоструйный шкаф с системой пылесборника
- Category: Abrator >>>
- Supplier: Qingdao Binhai Jincheng Foundry Machinery Co. Ltd.
Share on (62312517617):
Product Overview
Description
tumble belt sandblasting cabinet with dust collector system
Product Description
This type machine suit for surface cleaning or peening many kinds part with large and medium volume production, The casting or heat treatment work-piece must be can impact and roll. Machine can work along or work together in a line.
Technical Parameter
No. | Item | Name | Specification |
1 | Productivity | 600-1200 kgs/h | |
2 | Max. loading weight | 200 kg | |
3 | Max. weight of single piece | 10 kg | |
4 | Power of caterpillar drive motor | 1.5 kw | |
5 | Diameter of end disk | 650 mm | |
6 | Rotating speed of end disk | 3.6 r/min | |
7 | Motor power of elevator | 1.5 kw | |
8 | Effective volume | 0.15 m³ | |
9
| Abrasive impeller
| Type | Q036 |
Rotate speed | 2460 r/min | ||
Diameter of impeller | φ360 mm | ||
Abrasive flow rate | 125 kg/min | ||
Power | 7.5 kw | ||
10 | Motor power of dust remover | 2.2 kw | |
11 | Power of vibrating motor | 0.55 kw | |
12 | Dedusting air volume | 2800 m³/h | |
13 | Power consumption | 13.25 kw | |
14 | Out line dimension | 3681*1650*4200 mm | |

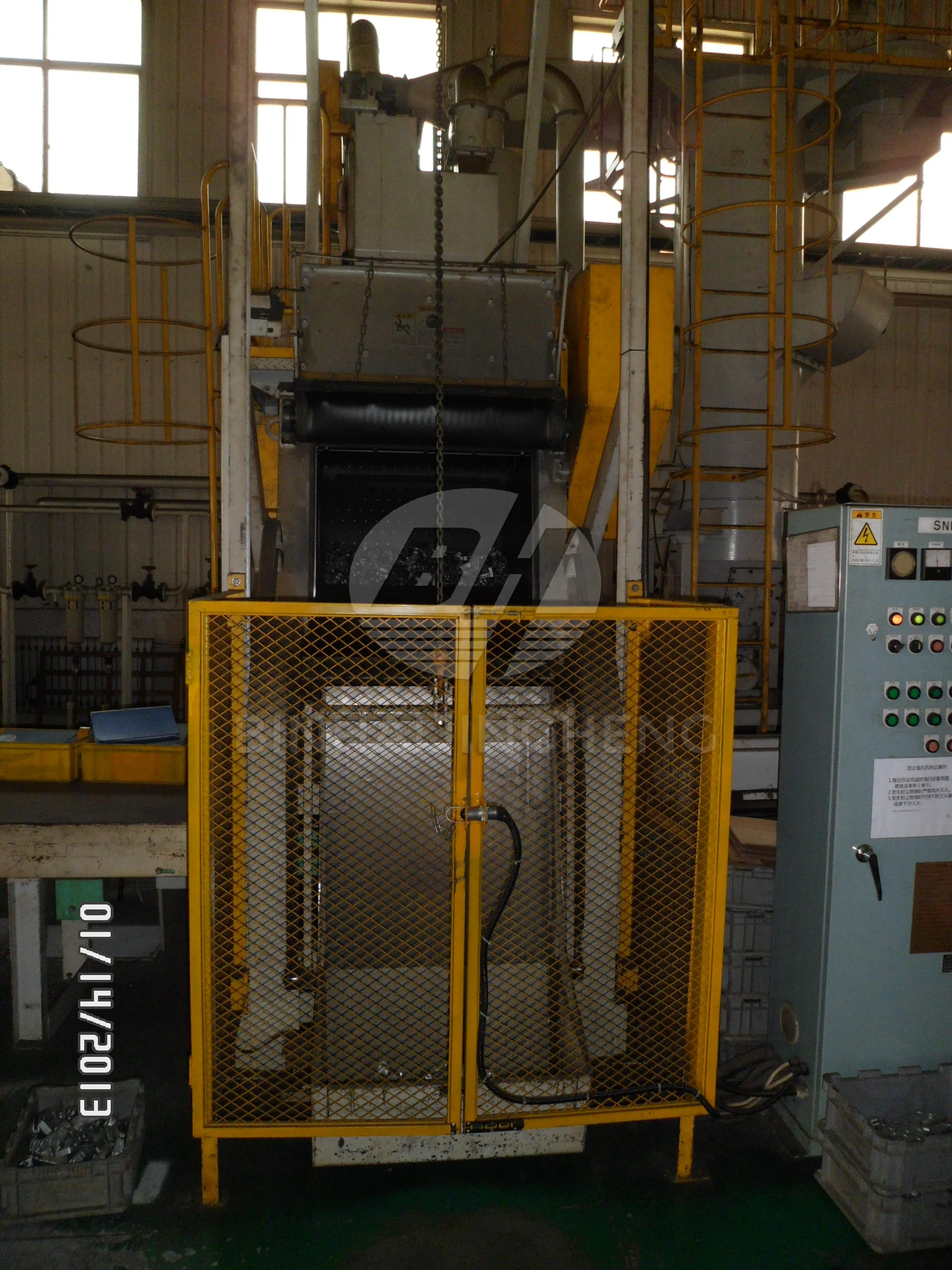

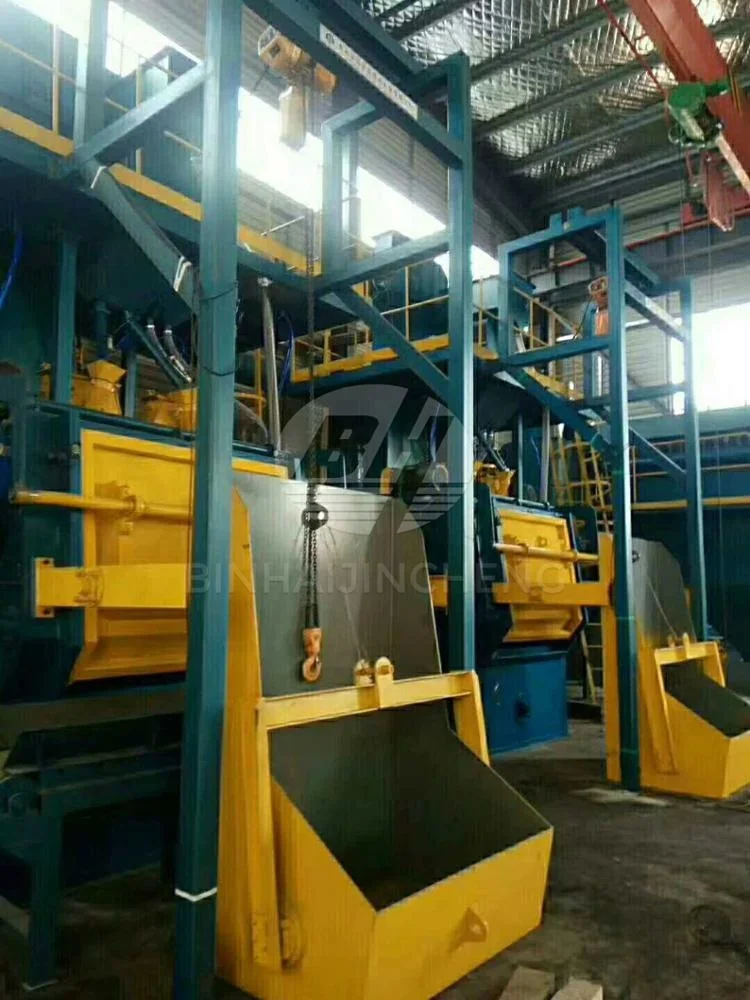

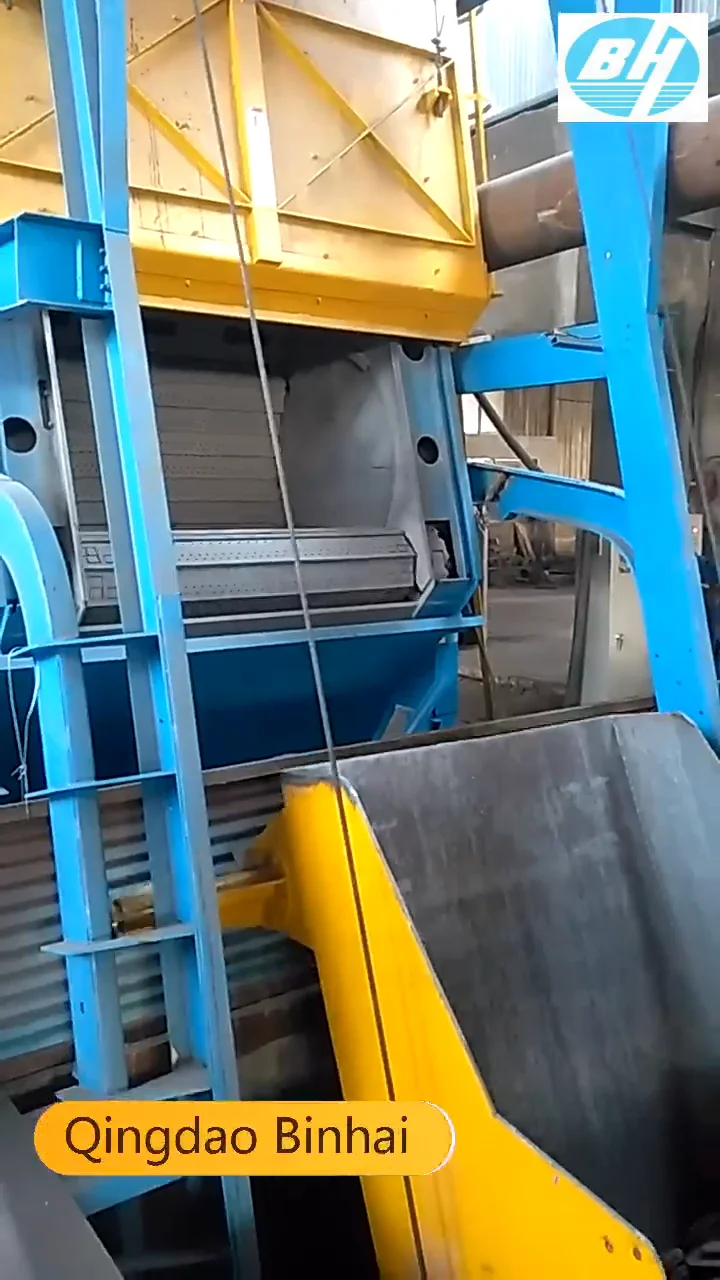

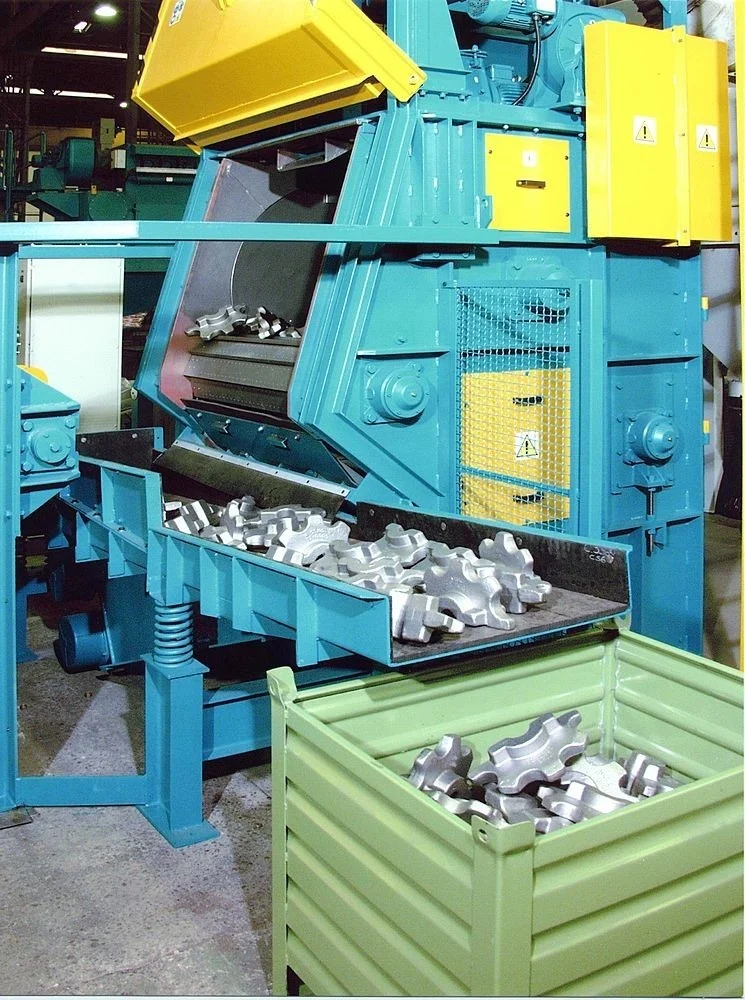

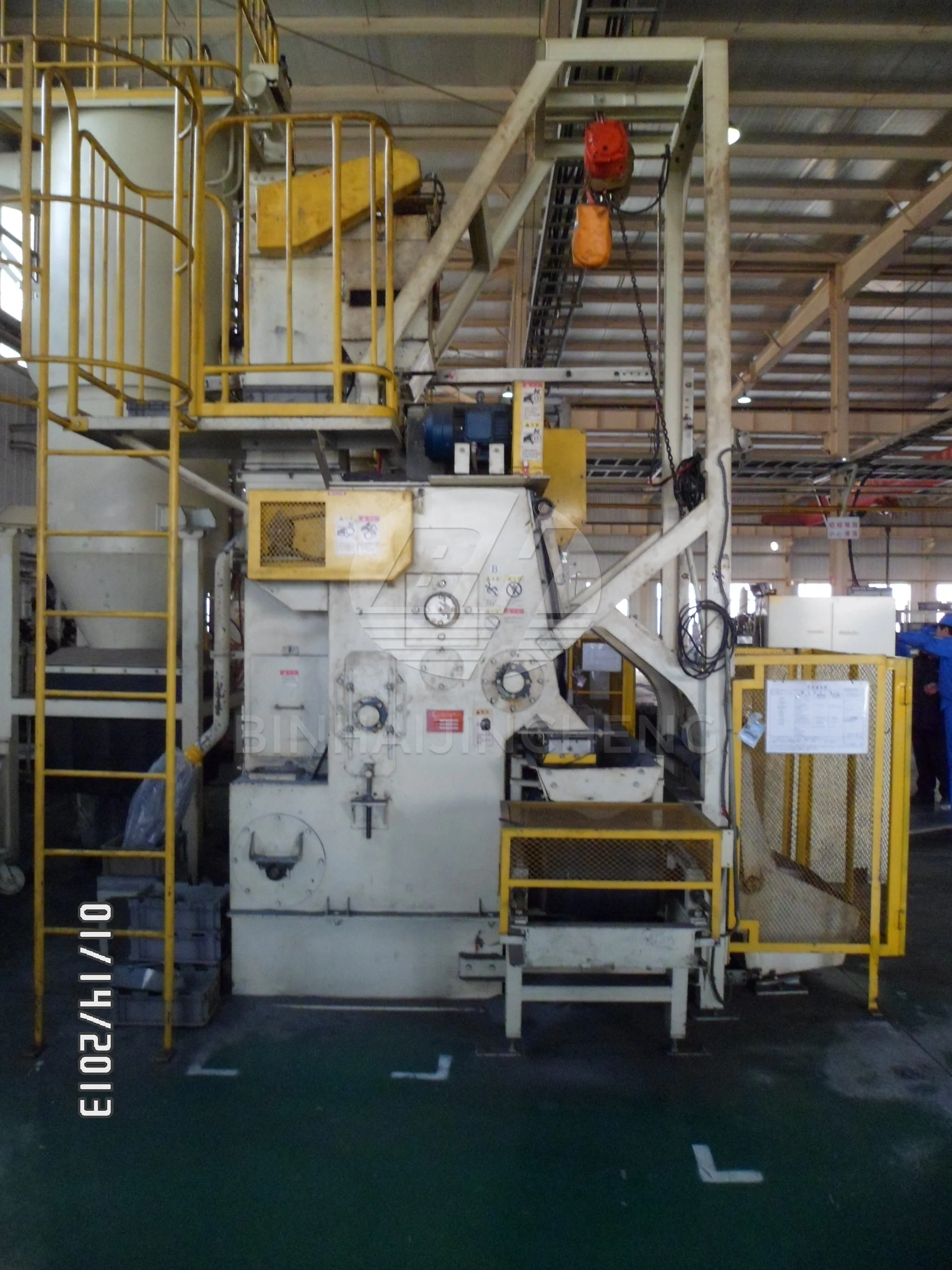

Product Show
Company Information
Binhai Jincheng Foundry Machinery Co.,Ltd
* More than 30 year experience in foundry machine industry;
* 10 skillfull technical engineers;
* More than 100 experienced workers.
* Occupy 30% of China local market with good reputation.
* Design, research, develop and produce shot blasting machines,sand blasting rooms, sand processing equipments, environmental protection equipment, etc.
* OEM & ODM service is available.
Our Services
1. Installation and commissioning issue:
We will send 1-2 technicians to guide machine installation and commissioning, customers pay for their tickets, hotel and diet, etc. Customer need arrange 3-4 skilled workers to assist in installation and prepare insallation tools.
2. Warranty time:
12 months after the date of commissioning completion for whole machine.
3. Supply full English documents:
We will send full English documents, including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
FAQ
If you want to buy shot blasting machine, Please indicate the following details:
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference.Note:As we are an integrated company, we sell our products direct to customers without any extra
agent charges. Hence, our price is relatively lower than others. Moreover, we are using the most
advanced equipment and technology in order to produce high quality and more professional.
One. How many days do you need to produce this machine?
This is specially designed machine according to your specific requirement. From engineers designing to production completion, it needs about 30-40 days.
Two. What does your factory do regarding quality control?
We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.
Three. What’s your machine quality guarantee?
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
Four. Could you give installation and commissioning overseas? How long will it take?
Yes, we supply overseas service, but customers need to pay for the engineers flight tickets and hotel, food.Small machines usually takes 5 days, while large machines usually takes about 20 days.
Five. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
