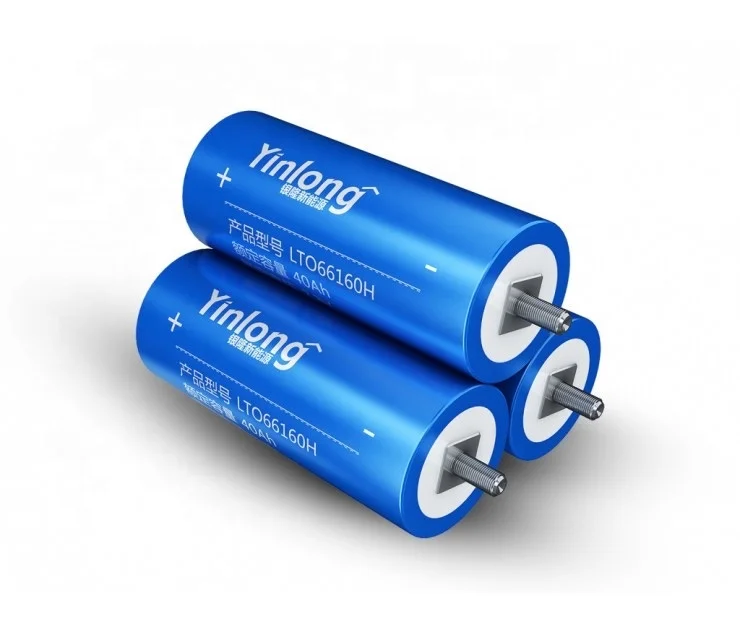

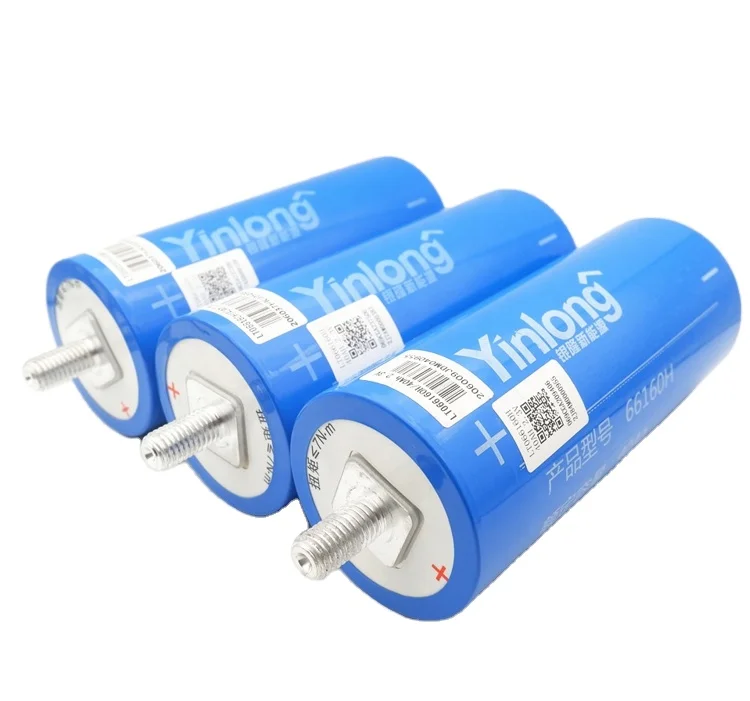

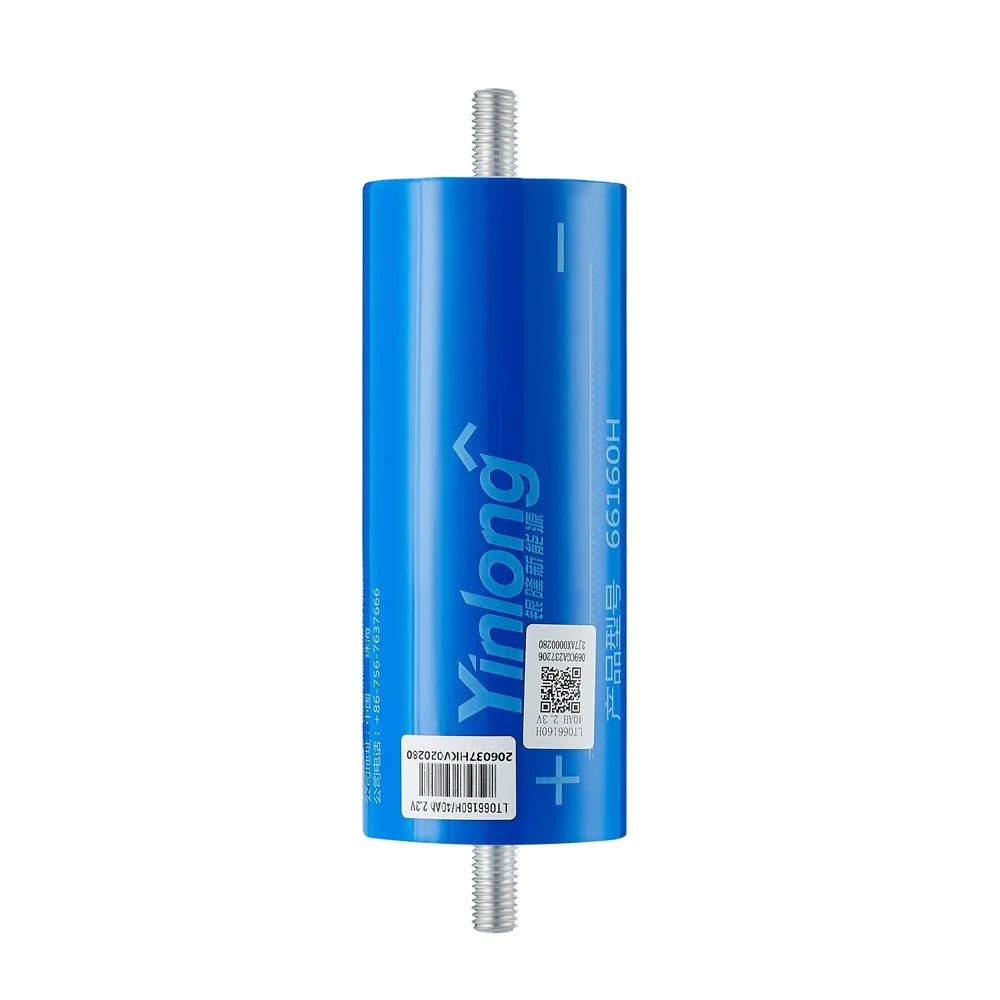

Original Brand New Yinlong 2.3V 35Ah 40Ah 45Ah Cylindrical Lithium Titanate LTO 66160F 66160H 66160K 35Ah 40Ah 45Ah Battery pack
- Category: >>>
- Supplier: Zhuhai Changing Energy Technology Co. Ltd.
Share on (62312599720):
Product Overview
Description
Product Introduction
ITEM | VALUE |
Nominal Voltage | 2.3V |
Rated Capacity | 40Ah |
High Rated Capacity (240A at 25℃, constant current) | 37Ah |
Rated Power (40A at 25℃, constant current) | 88Wh |
Energy Density | 161Wh/L |
Maxium Charge/Discharge Current | 10C (400A) |
Internal resistance | <1mΩ |
Dimensions | (DIA)66 mm *(H)160 mm |
Weight | 1.23kg |
LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn. as a new type rechargeable lithium battery, LTO battery has great performances of perfect high safety, high stability, super long cycle life, fast charging/discharging performance, and strong temperature tolerance.
It can be widely used in electrical vehicles, city buses, charging station, ESS, Solar/Wind Energy Storage System, UPS, back-up power, Telecommunication, Home Solar Energy Storage System, Car Audio, Car Starter, Forklift, etc.
Product Advantages
Lithium Battery Five Worldwide Challenges
1. High Safety: With spinel structure and zero strain material, No SEI layer occurs, ZERO EV accident worldwide, and No fire or explosion even after steel needle penetration, sea water submerging, cutting or burning testing, etc.
2. Long Circle Life: 80% capacity after 25,000 times life for 100% DOD charging/discharging. First 10 years used on electrical vehicles and also another 20 years on energy storage system products.
3. High Power: Large power similar to super capacitor. Have great advantages on grid peak load and frequency regulation.
4. Fast Charging/Discharging: 10 times capacity charging, 6 minutes charging tme for single cell, 10~20 minutes charging time for electric vehicles packs.
5. Wide Temperature Range: Stable and reliable performance covering the wide temperature range from -50 ℃ to 60 ℃. Work in super cold climate that no others can compete with.
