3.81 pitch YE330 381 2 24P PCB Screw Terminal Block
- Category: >>>
- Supplier: Zhejiang Deerkesi Electrical Co. Ltd.
Share on (62312693376):
Product Overview
Description

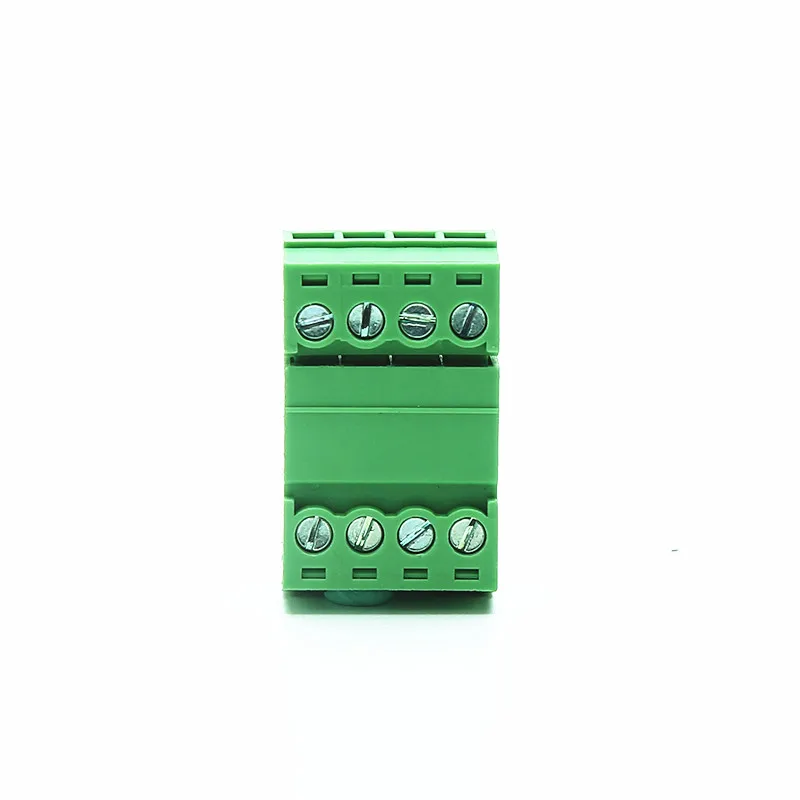

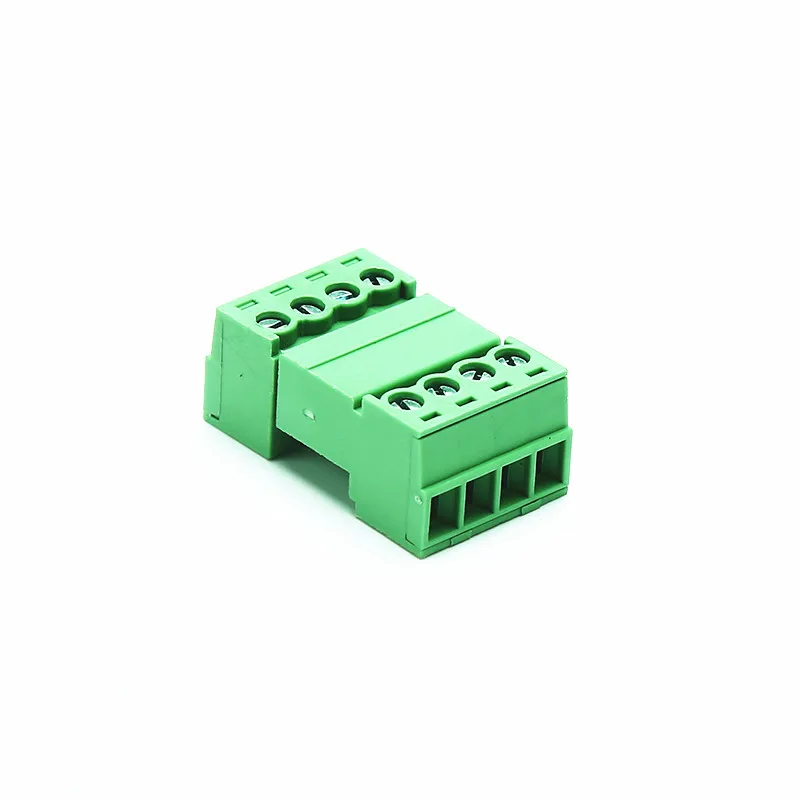

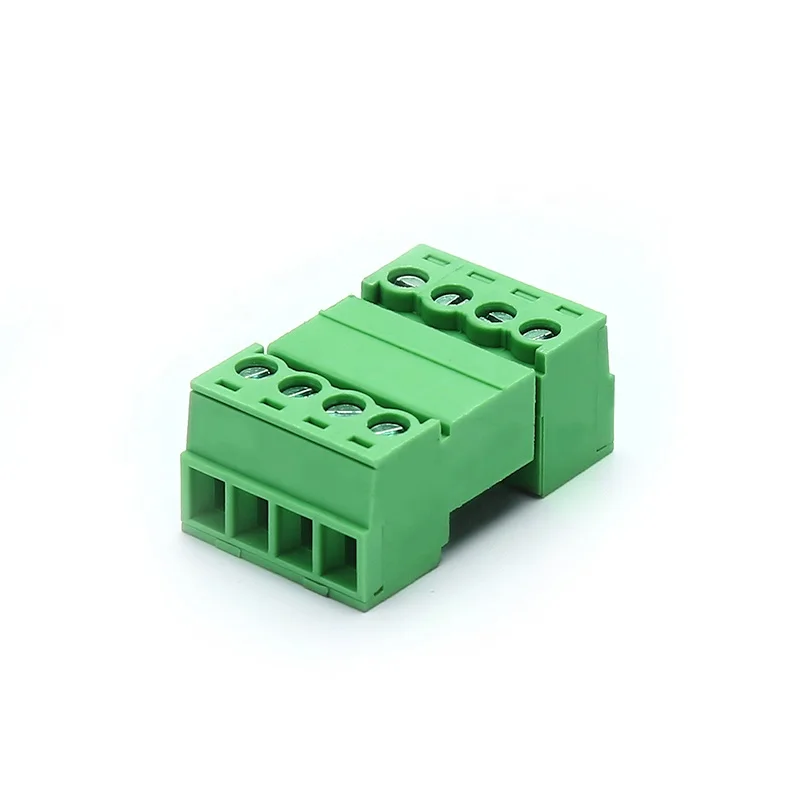

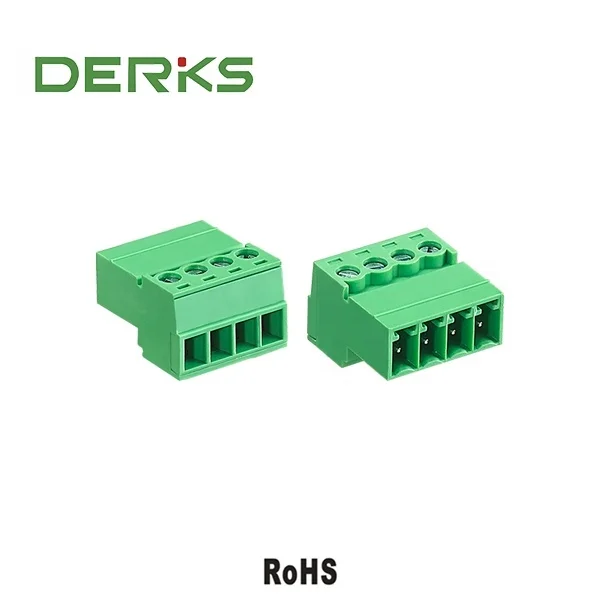

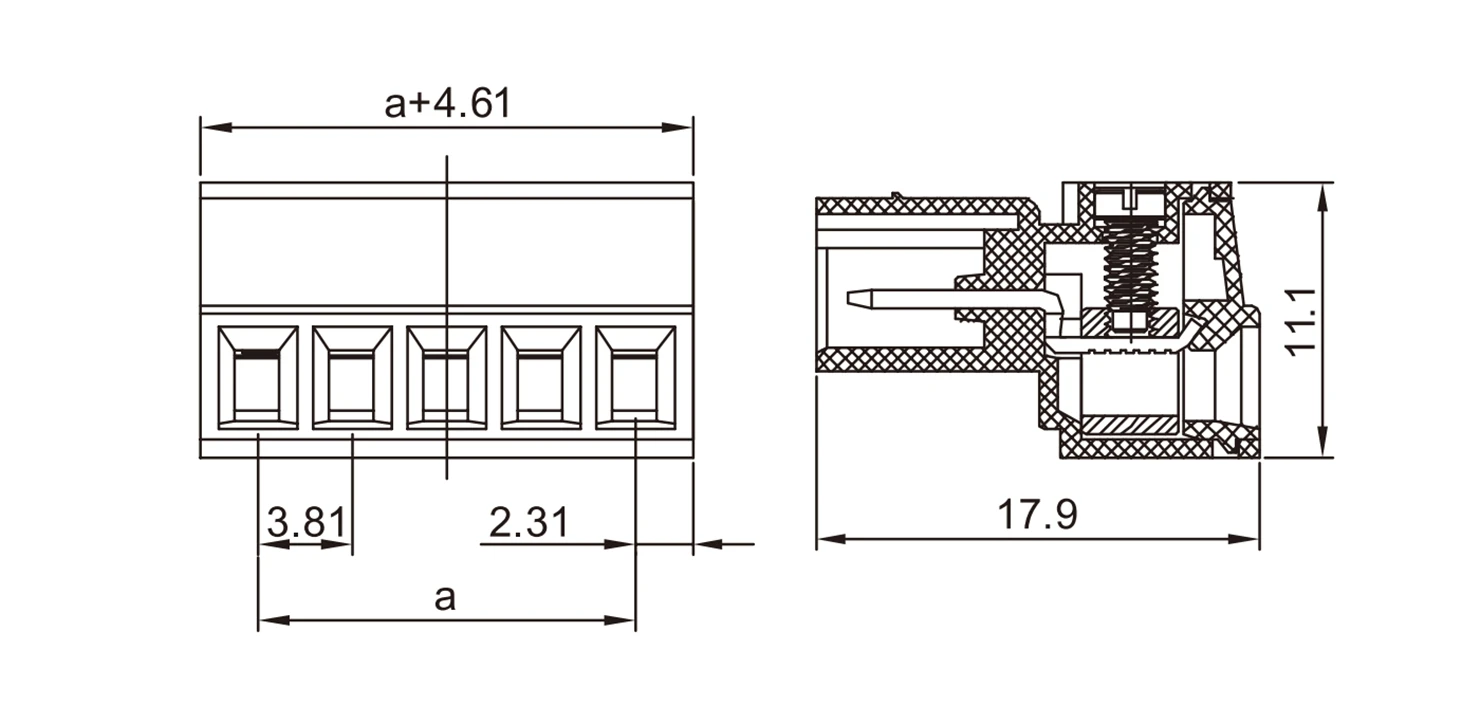

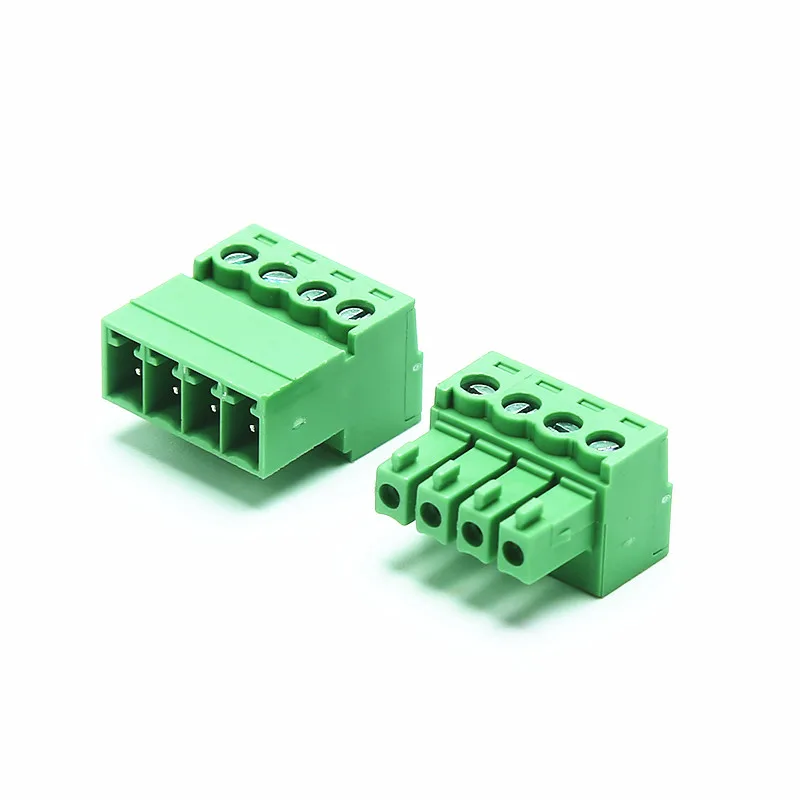

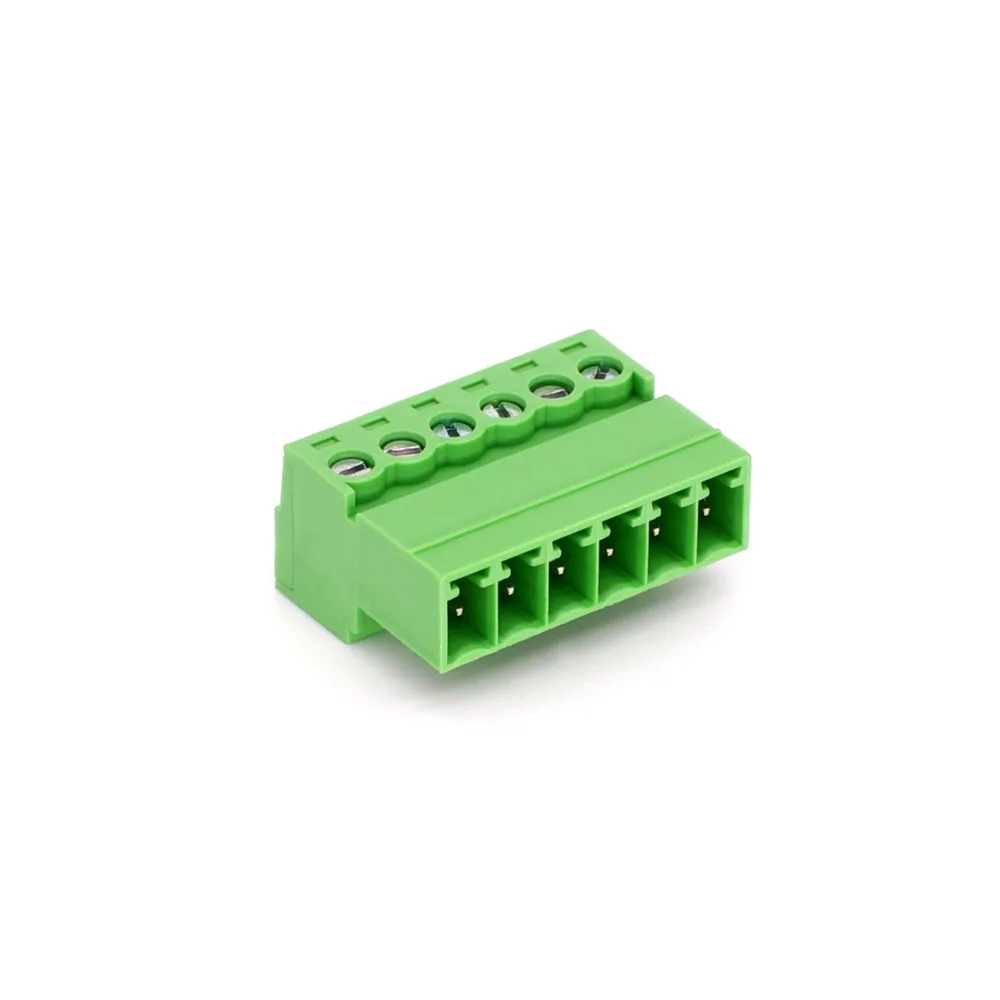

3.81 pitch YE330-381 2P-24P PCB Screw Terminal Block
Product Features:
1.ROHS
2.Made of PA66,UL94V-0
3. Good performance in quick connection of wires
DERKS
Product Description
Electrical Specifications | |||
Square needle | Brass nickel plate | Rated Voltage | 300V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 12A |
Screw | M3,STEEL WITH ZIN | Contact resistance | 20MΩ |
Color | Green | Insulation resistance | 5000 MΩ DC500V |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~150°C | Wire range | 28-12AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 5-7MM |
