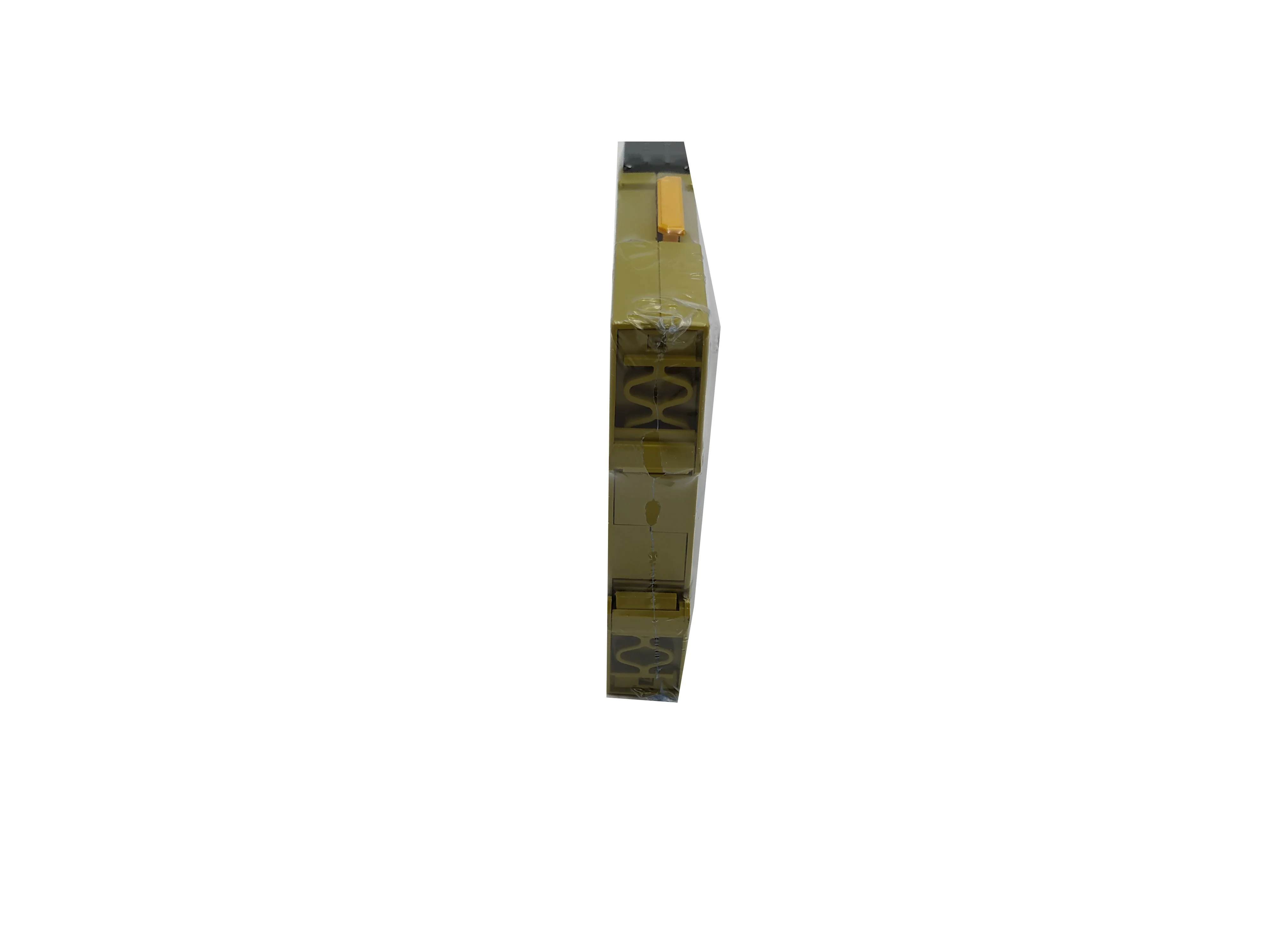

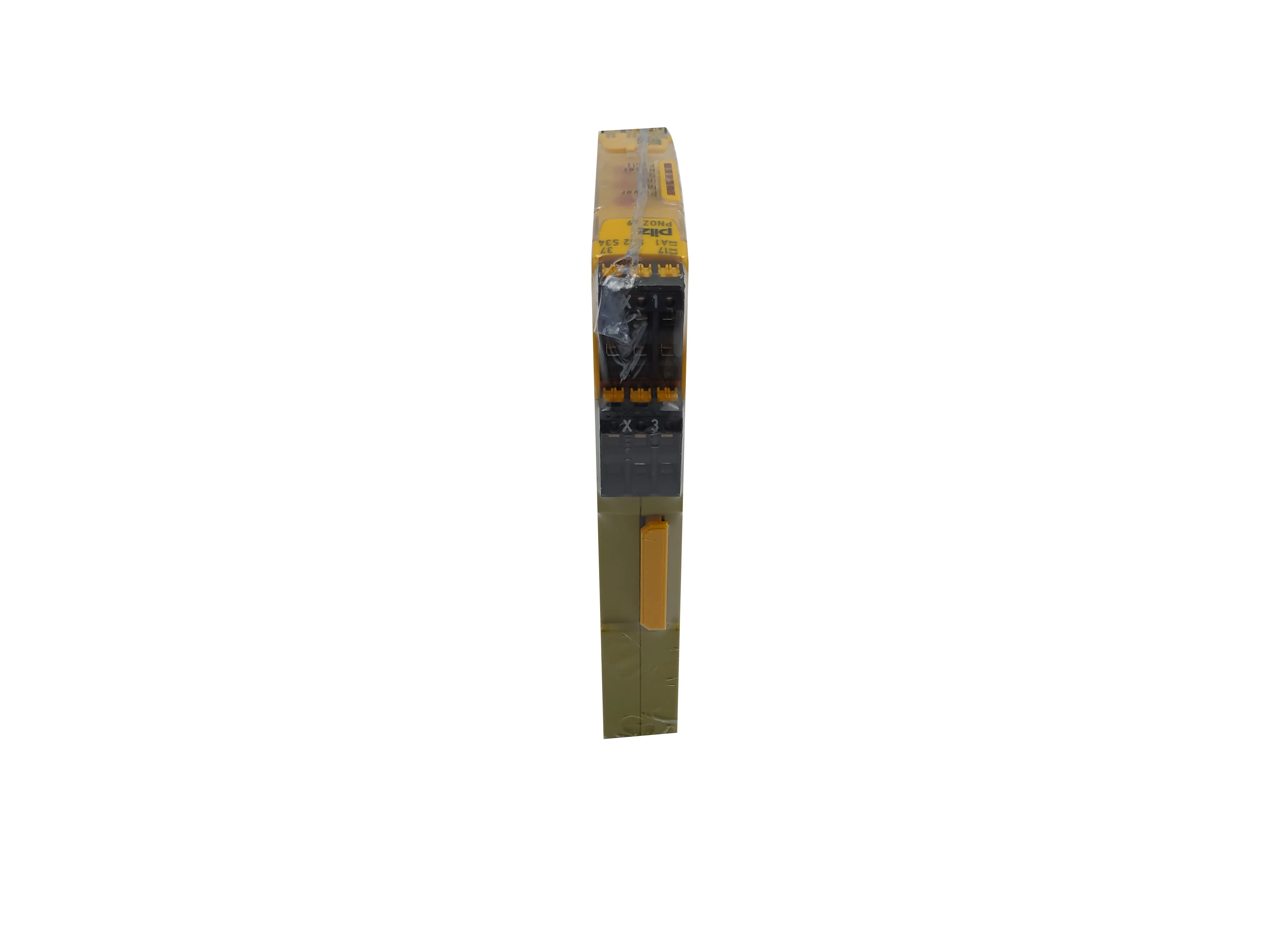

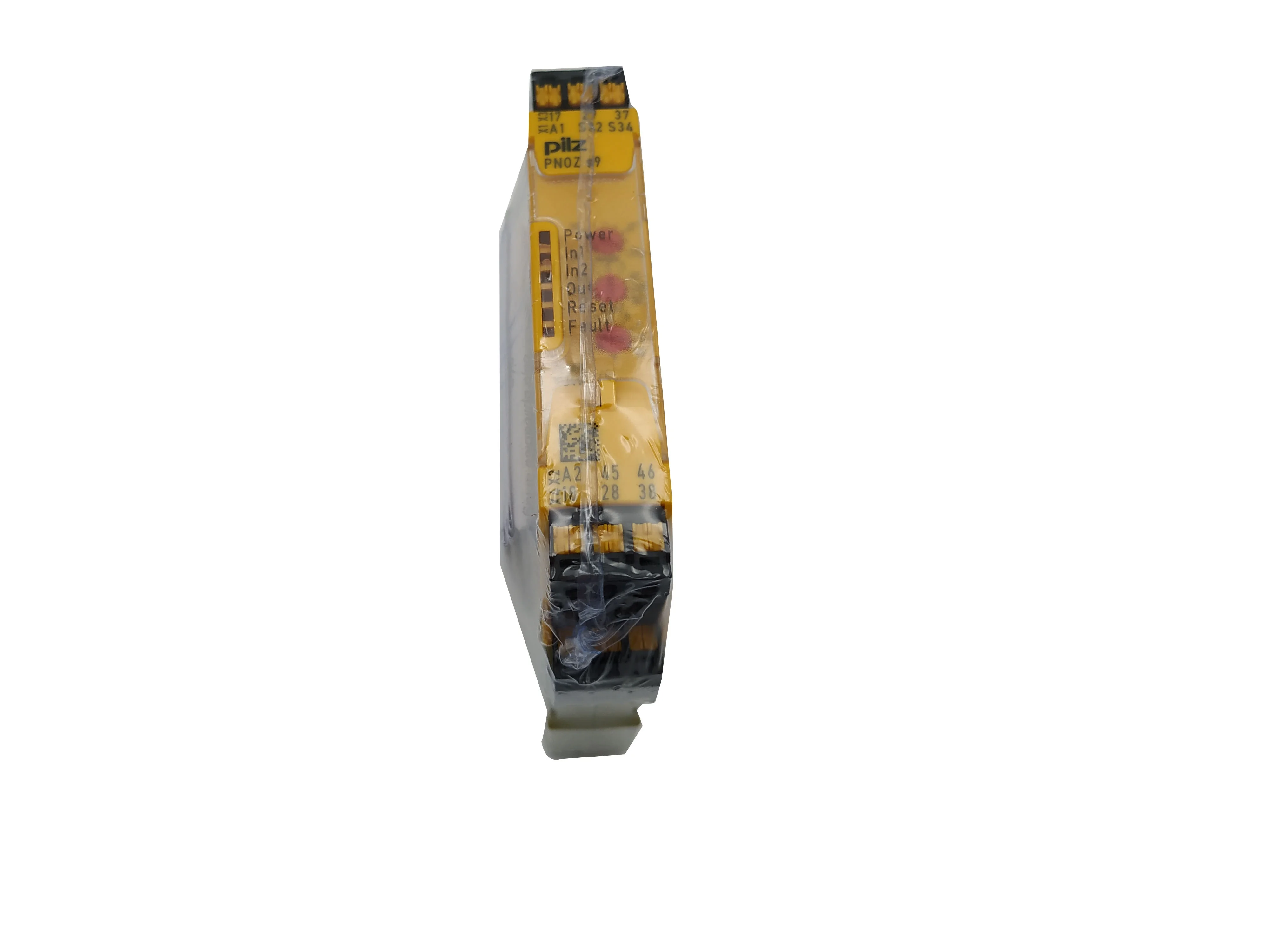

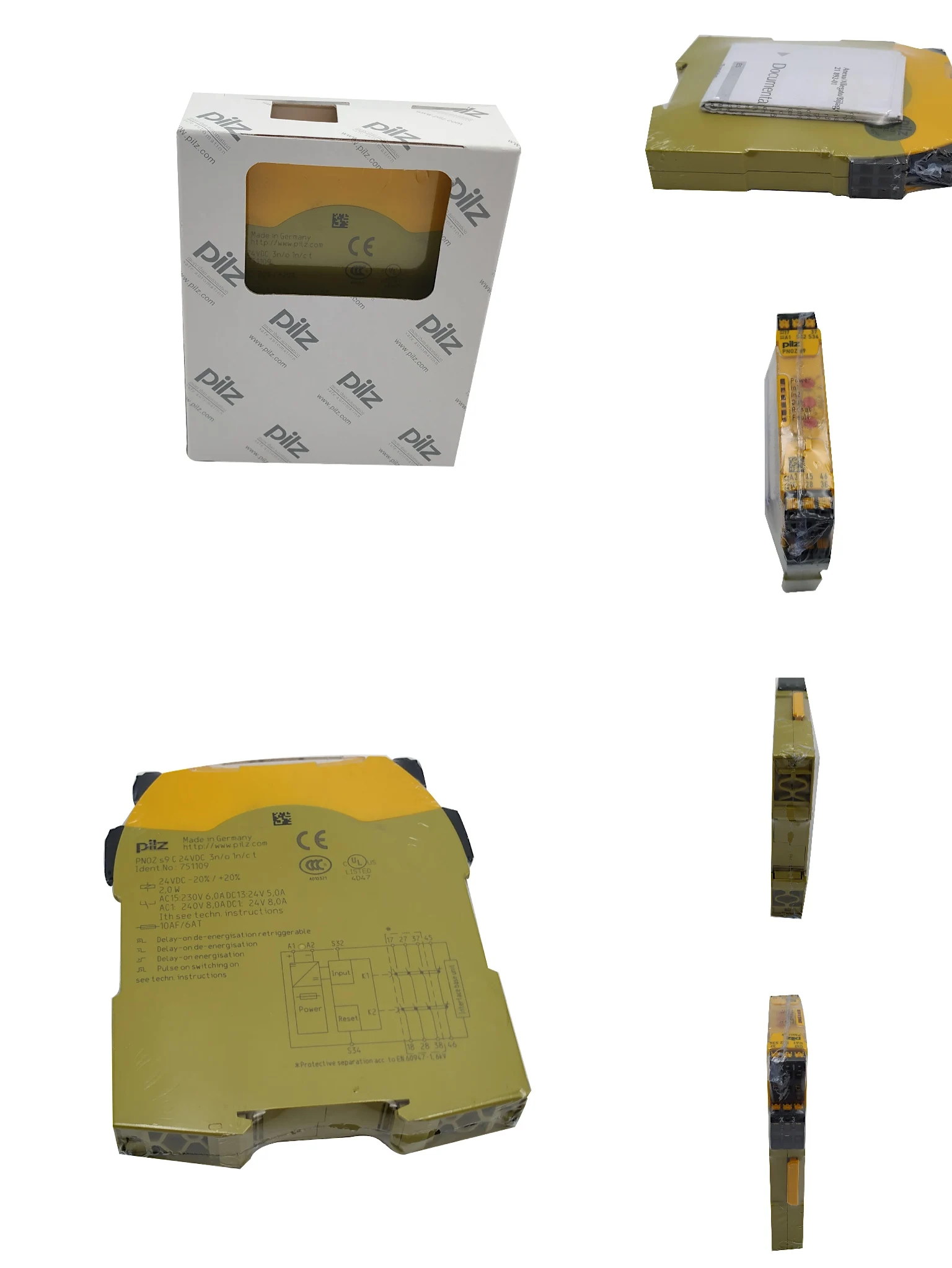

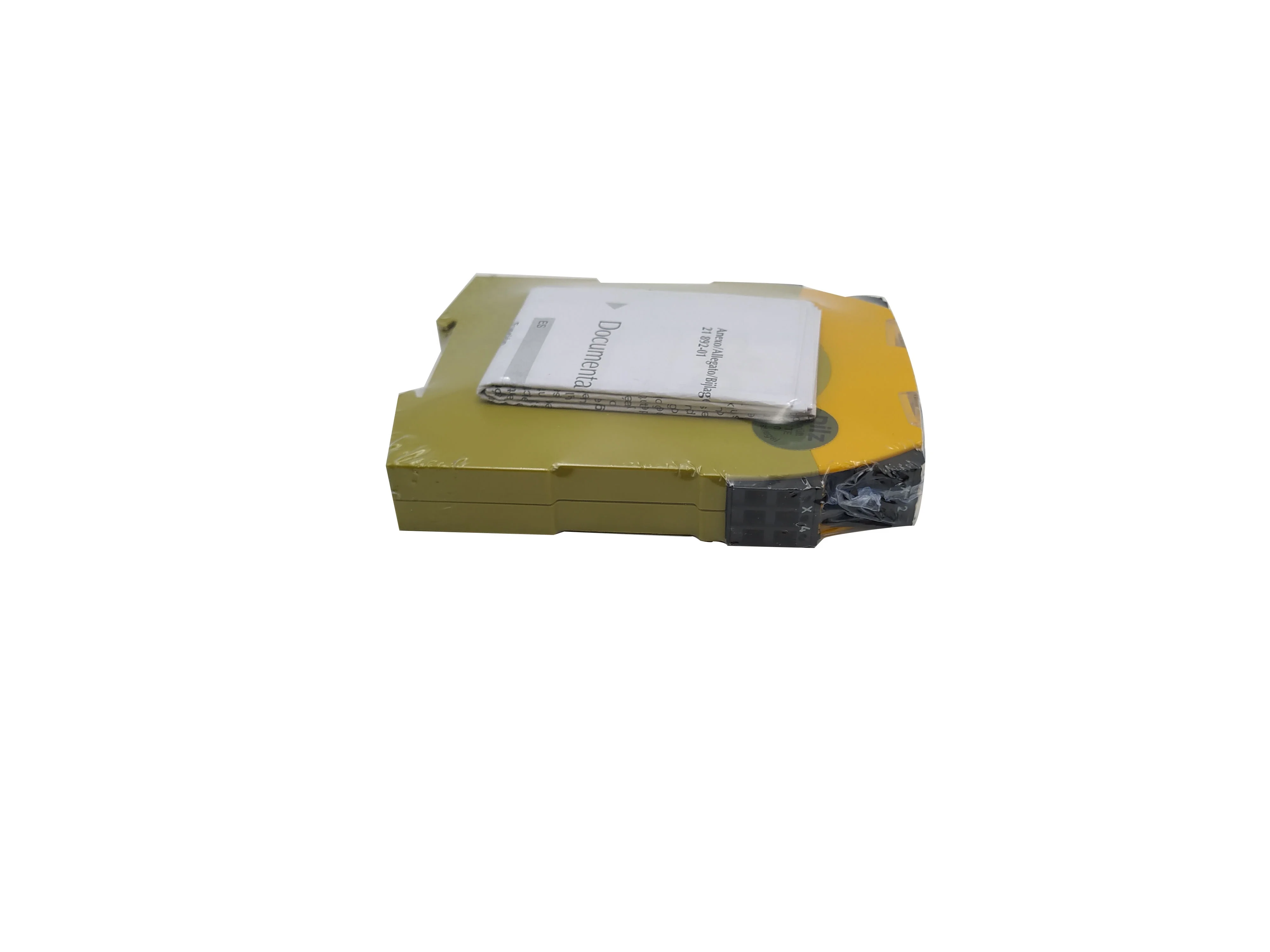

751109 PNOZ S9 PNOZ s9C 24VDC 3 n/o 1 n/c Time Delay Overload Safety Relay
- Category: Relays >>>
- Supplier: Shenzhen Haiyue Machine And Electronic Equipment Co. Ltd.
Share on (62312743335):
Product Overview
Description
751109 PNOZ S9 PNOZ s9C 24VDC 3 n/o 1 n/c Time Delay Overload Safety Relay
Product Description
PNOZ s9 C 24VDC 3 n/o 1 n/c t
PNOZsigma Safety relay (standalone). Inputs: Single-channel wiring. Outputs: 3 N/O, 1 N/C (t = 0 - 300 s). UB 24 V DC, width: 17.5 mm, plug-in spring-loaded terminals. Contact block and timer for contact expansion in connection with safety-related control components or sequence of a safety-related time function (delay-on energisation, delay-on de-energisation, pulsing).
Technical details
| Certifications: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC |
| Application options: | Instantaneous contact expansion, Delayed contact expansion, Safe delay-on de-energ. timer |
| Operating modes: | Single-channel |
| Standards: | EN 60204-1, EN 62061, VDE 0113-1 |
| Supply voltage (V): | 24,0 |
| Supply voltage type: | DC |
| Terminal style: | Plug-in |
| Terminal type: | Spring-loaded terminal |
| Number of delayed safety contacts: | 3 |
| Safety contact delay type: | Delay-on de-energisation, Card reader, Prog. delay-on de-energisation |
| Number of delayed auxiliary contacts: | 1 |
| Auxiliary contact delay type: | pulsing, Safe delay-on energisation timer, Safe pulsing timer |
| Selectable times: | 0.04 s, 0.10 s, 0.20 s, 0.30 s, 0.40 s, 0.50 s, 0.60 s, 0.70 s, 0.80 s, 1.00 s, 1.50 s, 10.00 s, 100.00 s, 12.00 s, 120.00 s, 14.00 s, 140.00 s, 15.00 s, 150.00 s, 16.00 s, 160.00 s, 180.00 s, 2.00 s, 2.50 s, 20.00 s, 200.00 s, 210.00 s, 240.00 s, 25.00 s, 3.00 s, 3.50 s, 30.00 s, 300.00 s, 35.00 s, 4.00 s, 40.00 s, 5.00 s, 50.00 s, 6.00 s, 60.00 s, 7.00 s, 70.00 s, 8.00 s, 80.00 s, 90.00 s |
| Stop category: | 0/1 |
| Max. current at DC13 I (6 cycles/min): | 5.0 A |
| Max. current at AC15: | 5.0 A |

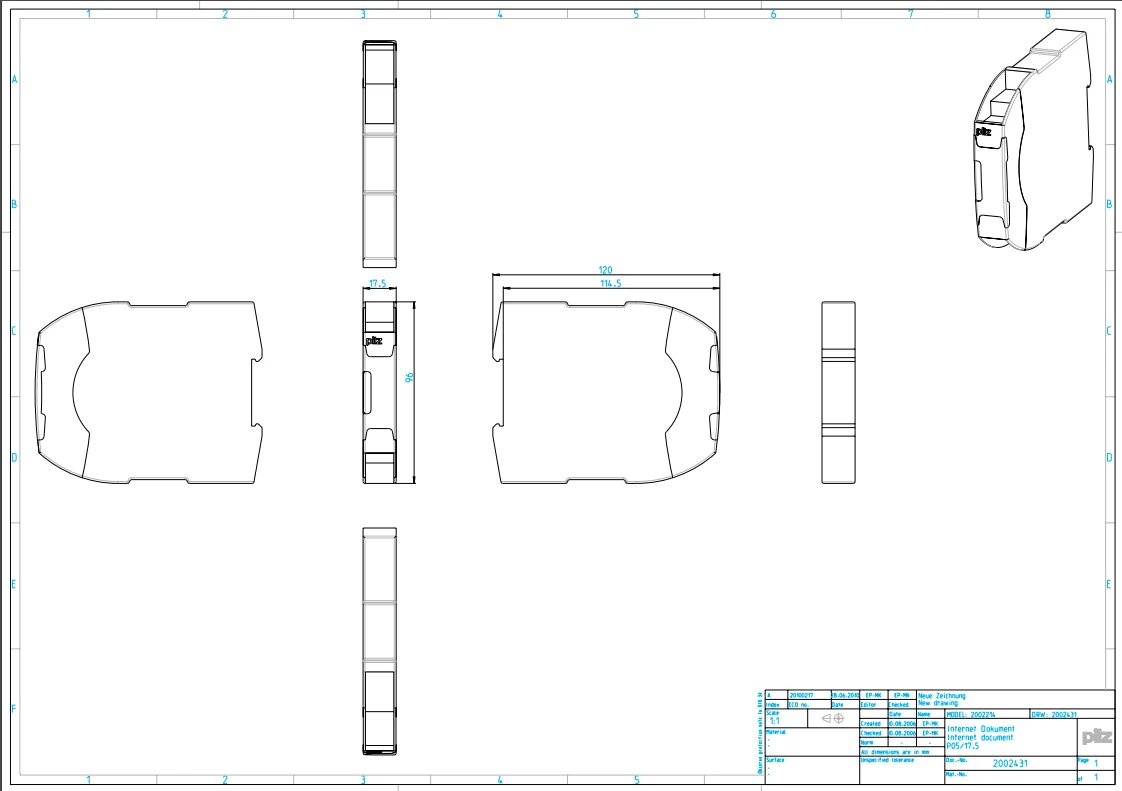

| Width dimension: | 17.5 mm |
| Height dimension: | 100.0 mm |
| Depth dimension: | 120.0 mm |
| Gross weight: | 185 g |
| Net weight: | 175 g |
| Ambient temperature: | -15 - 55 °C |
Accessories
Optional accessories
| 750020 | PNOZ s connector (10 pieces) Connector for connection of PNOZsigma base unit to PNOZsigma Expansion module, PU = 10 pieces. | |
| 751003 | PNOZ s Setspring loaded terminals 17,5mm Set of plug-in replacement terminals 3-pin of spring-type; PU = 1 piece each X1, X2, X3, X4. |
