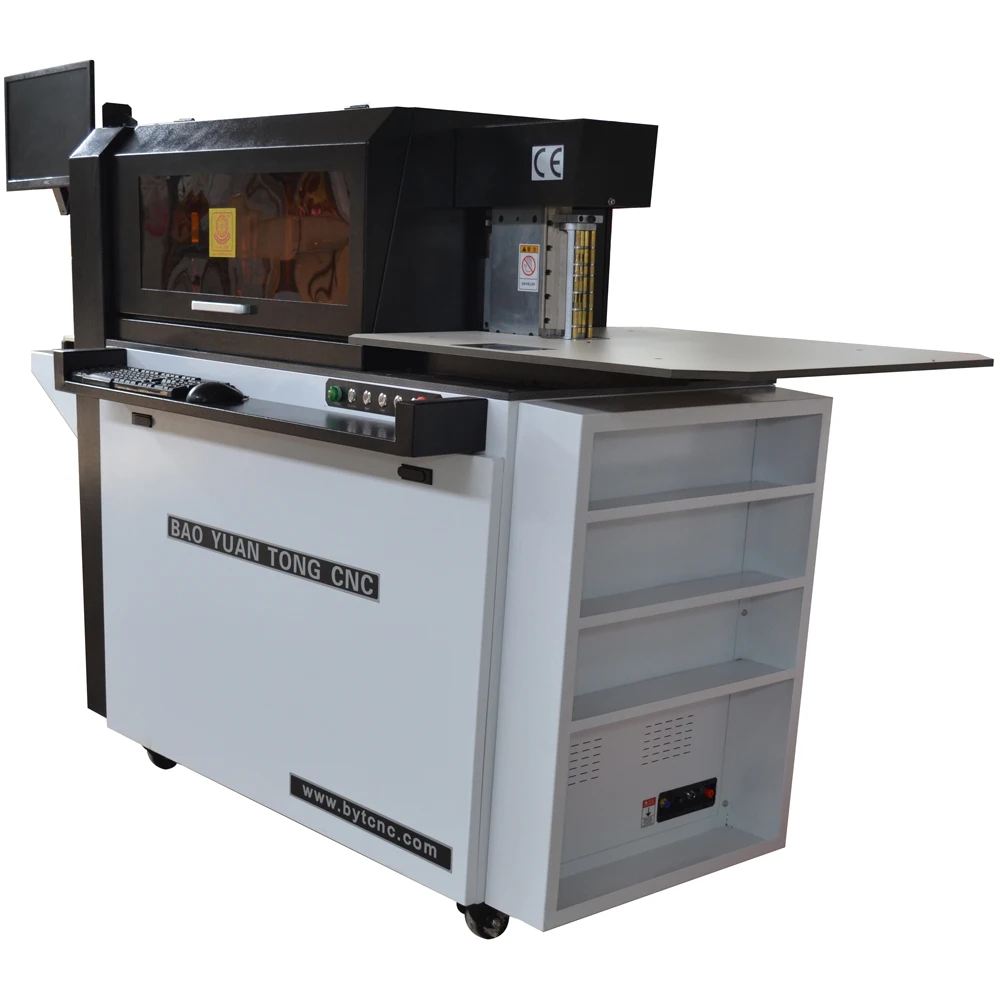

New channel letter bending machine for aluminum and stainless steel
- Category: Channel Letter Bending Machine >>>
- Supplier: Shandong Yuantong Century Intelligent Technology Co. Ltd.
Share on (62312856586):
Product Overview
Description
Products Information
Channel letter bending machine parameter | ||
Model | BWZ-C1 | |
Working Principle | High precision automatic feeding,trimming,notching and bending | |
Processing Materials | Flat Stainless steel ,Aluminum profile ,Iron &Copper plat and Floding Aluminum profile | |
Material Width | 10-160mm | |
Material Thickness | Aluminum profile 0.3-1.5mm, Stainless steel 0.3-1.2mm | |
File format | AI/DXF | |
Mini pat radius | R≥3.5MM | |
Mini extrusion Radius | R≥7 MM | |
Peak Power | 2000W | |
Length Accuracy | 0.1mm/meter | |
Feeding Torque | >45Nm | |
Planer Slotted Torque Peak | >30Nm | |
Arc Bending Torque Peak | >100Nm | |
Working Pressure | 0.3-0.6mpa | |
Voltage | 220V 50HZ 1P | |
Overall Dimensions | 2680*880*1590mm | |
N.Weight | 500kg | |
Product Advantage
1. Quality Guarantee
Whole machine guarantee 2 years , the motor guarantee 3 years
2.Processing material
Width: 10-160mm, Thickness : Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
3.Machining parts 1
All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.Machining parts 2
In the overall structure the working platform use 14mm whole plate deal with three times plain grinding finish ,the internal workpiece thickness 17mm,ensures the long-term working stability and accuracy
5.Length closed-loop control system
The software have Length closed-loop control system ,the length precision ≤0.1mm.
Meantime Independent development software system , which can updated according customer need and more easy to use .
6.voltage digital display device
The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable .
7.Whole machine weight meet 530kgs and more stable.
Feeding
1.The feeding roller diameter 45mm and install encoder, the precision and speed is similar as manipulator .
2.Install return material control device which ensure the returned material precision.
3. The guide roll diameter 60mm and ensure the material more straight when feeding.
Aluminum notching
1.Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle.
2.Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small.
3.Use four-column design ensure the cutting stable and effect.
Stainless steel Notching
1.Planer have current induction automatic knife adjustment, very easy finish cutting depth through software ,more precision than manual adjust.
2.Double Japan Fuji Servo motor and driver for cutting and bending , 20mm leading screw, more fast ,stable and high precision . One set bender can service 6sets laser welding working.
3.The Planner cutter use carbide blade, each blade have 8 sides ,every side can working about 7000 times ,the use cost is very lower and cutting effect is beautiful .
Bending
1.Use double arc bender design , lifting arc beating and squeezing, for the bender use one-button disassembly,usually one minutes can finish , improve the working efficiency .
2.At the consistency the lifting arc beating is more better than fixed single axis arc beating ,finish the Stainless steel width can meet 13-16cm . But others only meet 8-10cm.
3.There is two groups grinding gear on arc bending parts ,ensure arc bending accuracy and reduce noise .

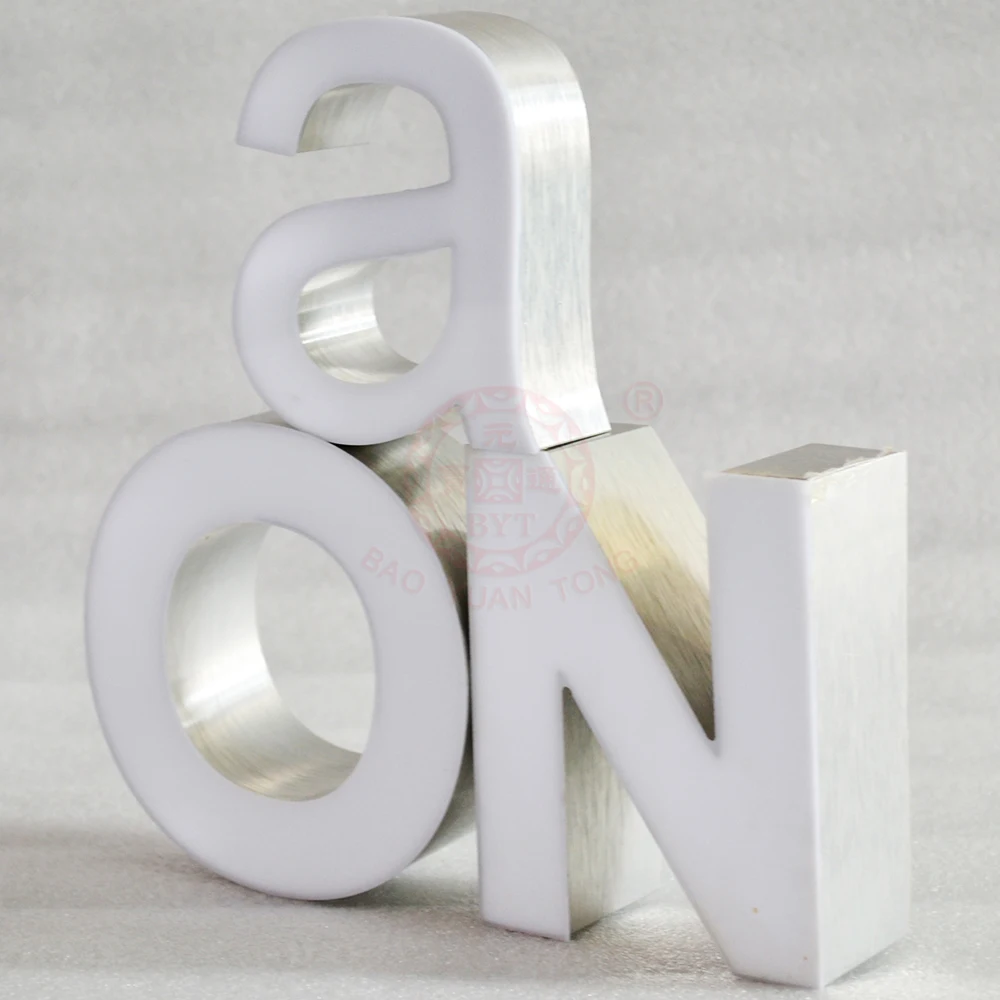

Sample Showing
How to learn machine operate
Operation Manual U disk
Provide U disk with machine which have detail specific english operational manual and videos
Network Service:
Through Whatsapp ,Wechat Teamviewer ect,provide online service
Factory Visiting:
Welcome to visit our factory to learn how to operation the machine,
Abroad Training:
Engineer can go aboard for training when customer needed.
Our Company
Aluminum Coil Supply 1
Aluminum coil supply ,the width from 30mm to 80mm , the thickness from 0.5mm to 0.8mm.
Aluminum Coil Supply 2
Different type aluminum coil supply ,accept customized produce .
Certifications

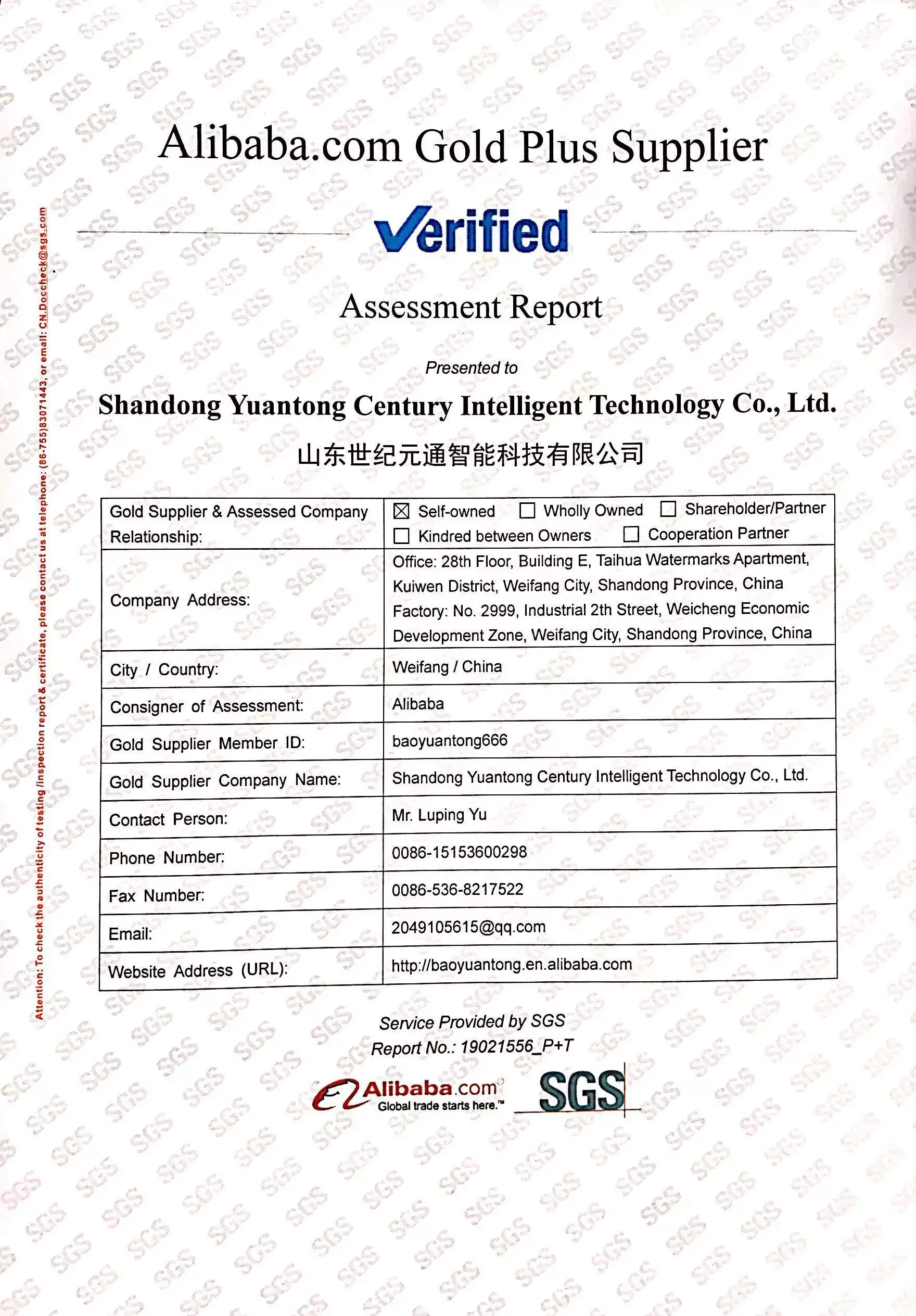

Factory SGS certification

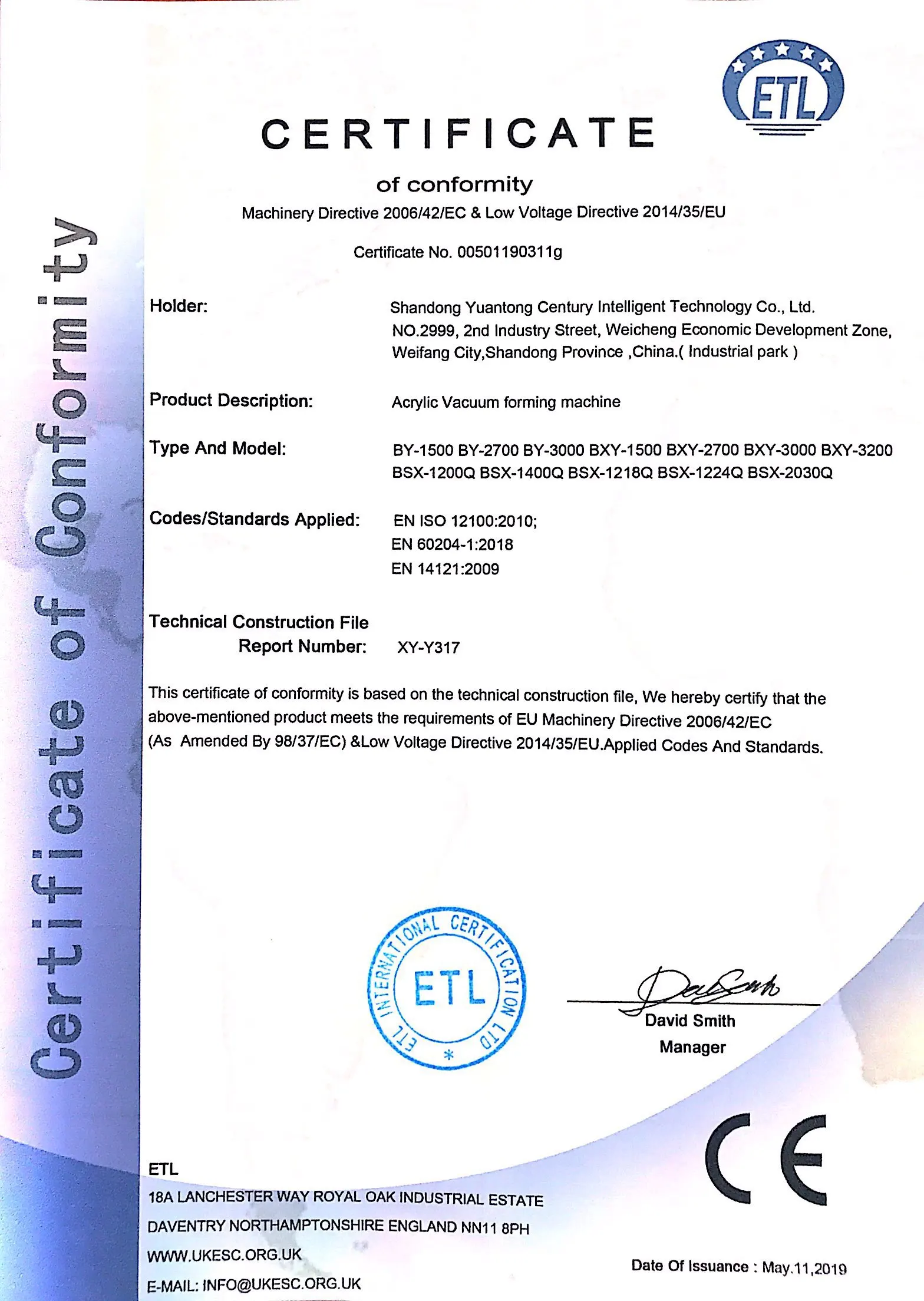

Quality CE certification
Brand Certification
