Disposable take away tableware machine / Automatic cups/boxes/plates/containers Plastic Thermoforming machine
- Category: >>>
- Supplier: Hengxing Blister Machinery (Shenzhen) Co. Ltd.
Share on (62312873180):
Product Overview
Description
Product Description
Application：
1. Vacuum forming machine is suitable for forming PVC, PET, PP, PC, PEGT, CPET, OPP, POF, PS, ABS, EVA and other materials. 2. Vacuum forming machine can be used to produce egg containers, salad boxes, snack boxes, fruit boxes, biscuit boxes, toothbrushes, batteries, gifts, hardware, stationery, decorations, medical, electronic and other plastic containers.
Model | Hx-61B | Condition: New Automatic Grade: Semi Automatic Usage: Vacuum Forming Machine Place of Origin: shenzhen longgang, China (Mainland) Brand Name:HENGXING Blister Machinery Warranty: 1 year After-sales Service Provided: Engineers available to service machinery overseas Oversea service:Yes Certification:CE | ||||
Power supply | AC380V | |||||
Power | 12.5KW | |||||
Max.forming size | 560*610mm | |||||
Max. forming height | 200mm | |||||
Speed | 200~300moulds/H | |||||
Thickness of material | 0.1~2.0mm | |||||
N. weight | 650KG | |||||
Machine size | 1800*1200 *2050mm | |||||
Main Features
1. Equipment investment cost is low, return is fast
2. Small batch blister production & production of blister samples
3.Fix with high quality vacuum pump and has stable performance and strong suction.
4.Independent temperature control system, simple operation and easy maintenance.
5. Large-scale cooling fan which can cool the products quickly.
6. Water-spray cooling system which suit for thick material.(optional)
7. Manual style & Semi-auto style available.

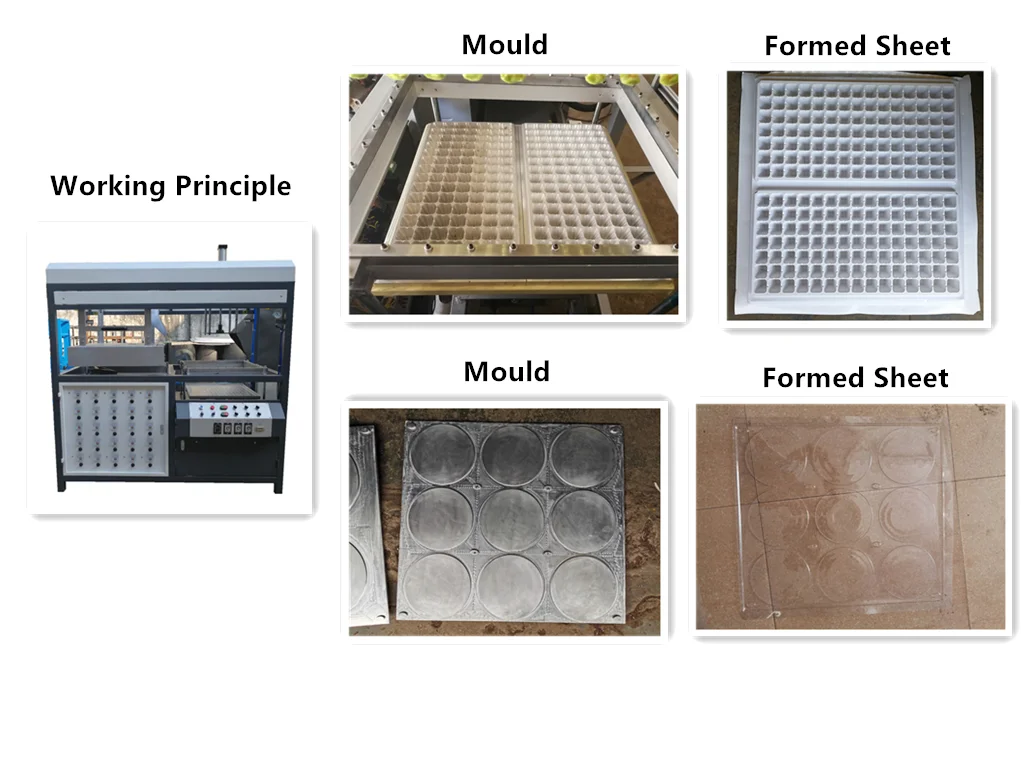

Working principle

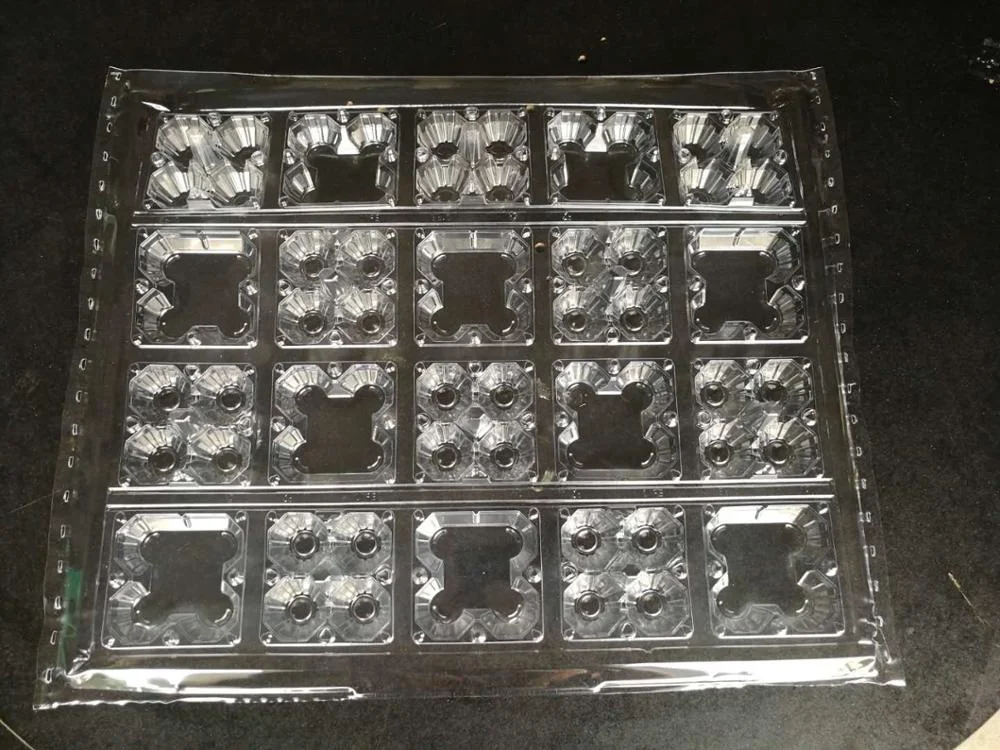

Sample

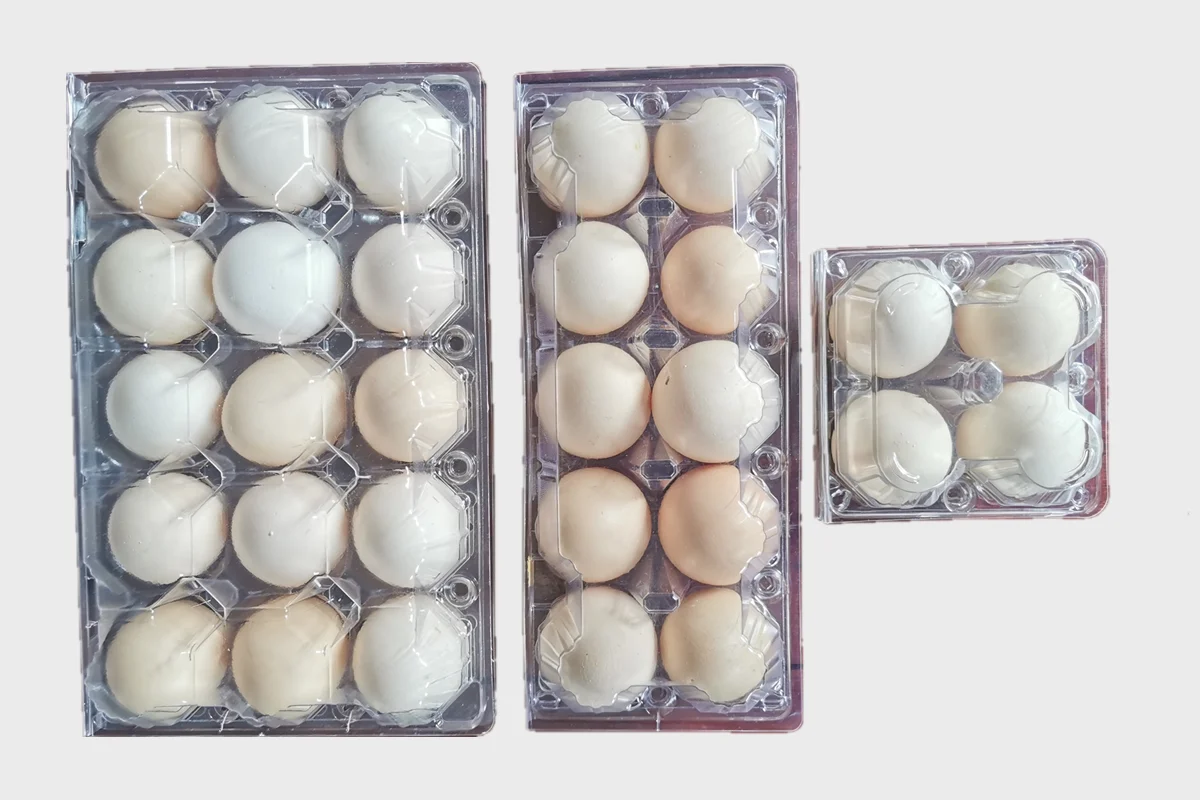

Fruit box, salad box, egg box
Cake box, dessert box

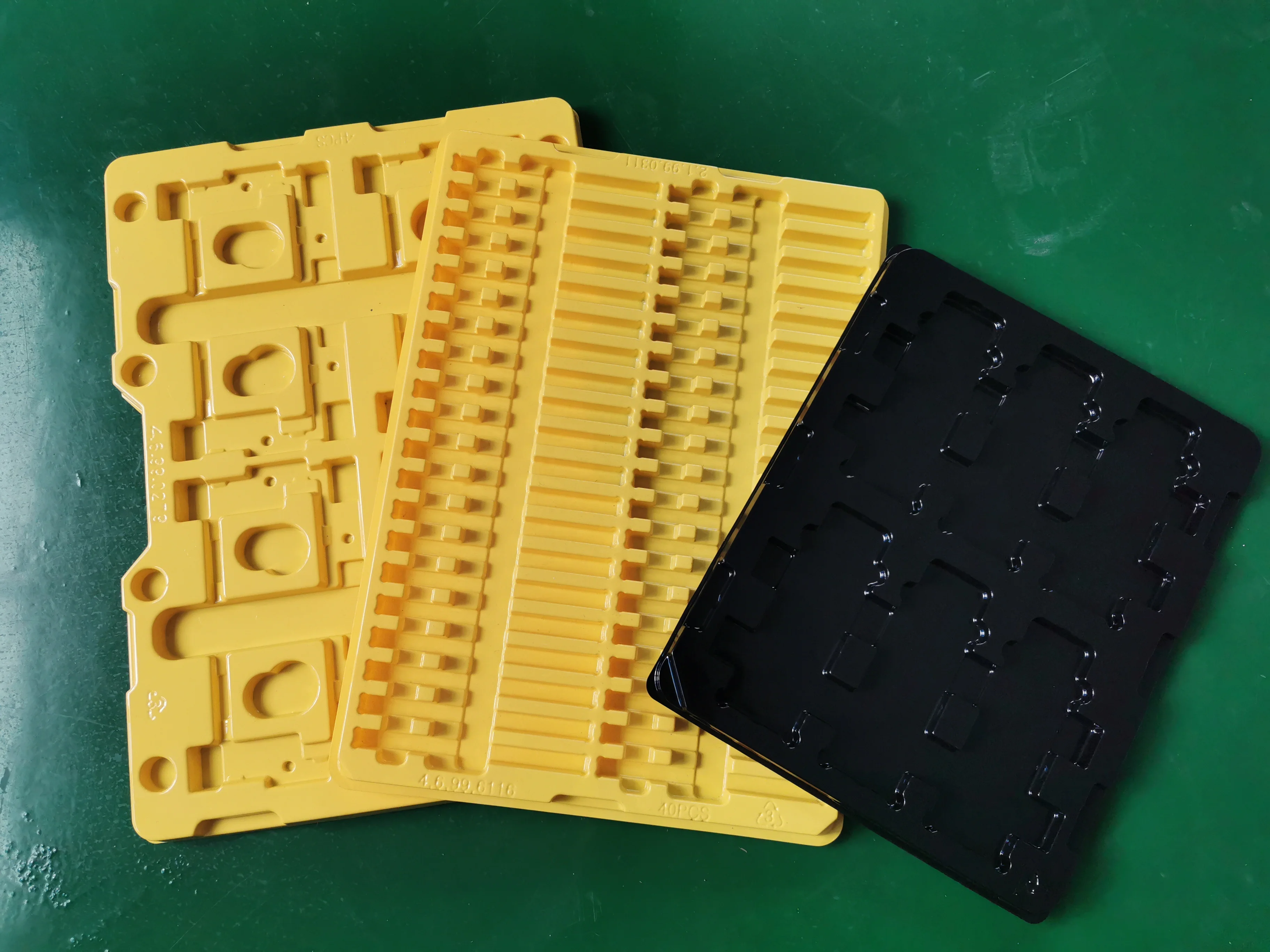

PS, ABS Electronic tray
Food Tray
Blister packaging box
Cosmetic blister box, flocking blister box
Details Images
Control Bord
Temperature control
Main Features
Name: Temperature Gauge
Brand: HENGXING
Brand: HENGXING
Original: China
Every gauge is connecting with the heater, if one heater breaks the gauge will show u, and then u can change the heater
Knob temperature control & digital display temperature control
1.Knob temperature control, economical and durable
2.Digital display temperature control, more precise temperature adjustment
Mould Plate
Machine Parts
Name:Mould Plate
Forming Area: 560*610mm
Name: Roller Carriage
Brand: HENGXING
Original: China
Vacuum pump
Name: vacuum pump
Brand: HENGXING
Original: China 20m³/h
Packing & Delivery
Packaging | |
Size | 2000 (L) * 1250 (W) * 1950 (D) |
Weight | 670kgs |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Related Products 1
HX-2 blister cutting machine
Working area:1160×400
HX-30T Hydraulic cutting machine
1.Working area: 510 × 1250mm
2.OEM
HX-6347 Thick plate plastic forming machine
1.Forming size:1500*2000 mm
2.OEM
HX-50 blister selling machine
1.Platen area: 300 × 500mm
2.OEM
HX-3350 Blister folding machine
1.Platen area: 330 × 500mm
2.OEM
HX-8000SR High frequency
1.Platen area: 400 × 600mm
2.OEM
FAQ
1. If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference or via face to face mutual video conference.
All above service is free.
The service cost in customers` country was not included if requires oversea service.
2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.
4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.
5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.
6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.
