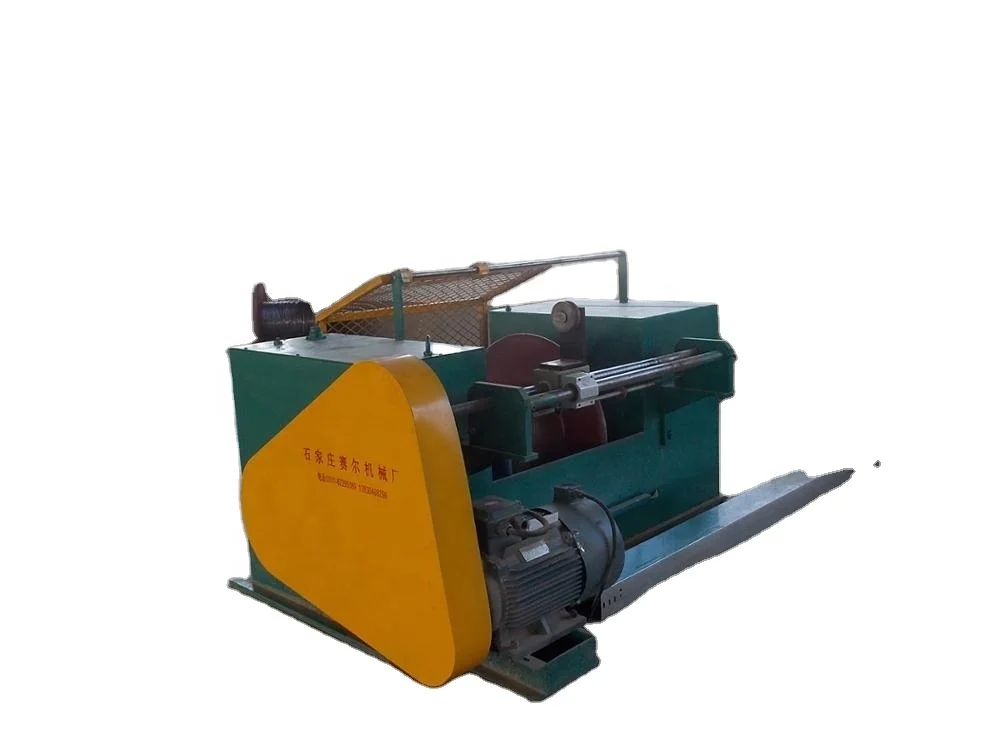

Coiler/spooler takeup machine for wire drawing machine
- Category: >>>
- Supplier: Shijiazhuang Satle Machinery Manufacture Co. Ltd.
Share on (62313108534):
Product Overview
Description

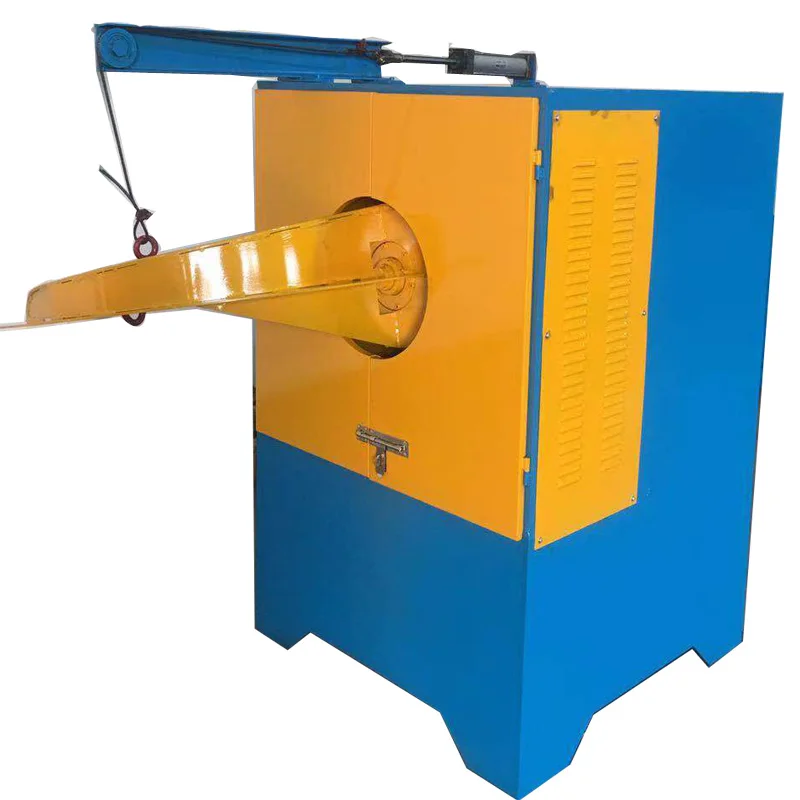

Take Up Machine
Trunk Type Take Up Machine
Application: trunk type take up machine/dead block coiler is developed on the basis of international advanced technology for discharging wires after continuous drawing. It can be discharging without shutting down the drawing machine in order to improve the efficiency of continuous drawing machine and reduce consumption of wire.

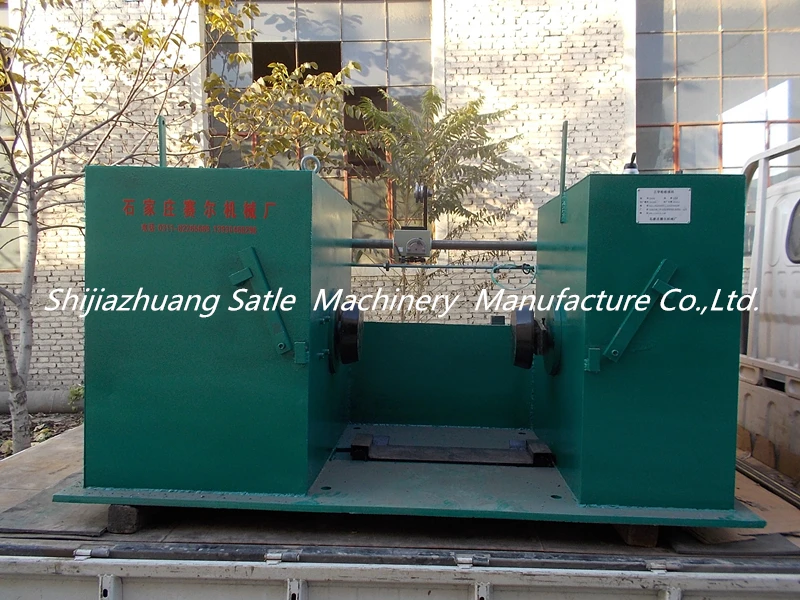

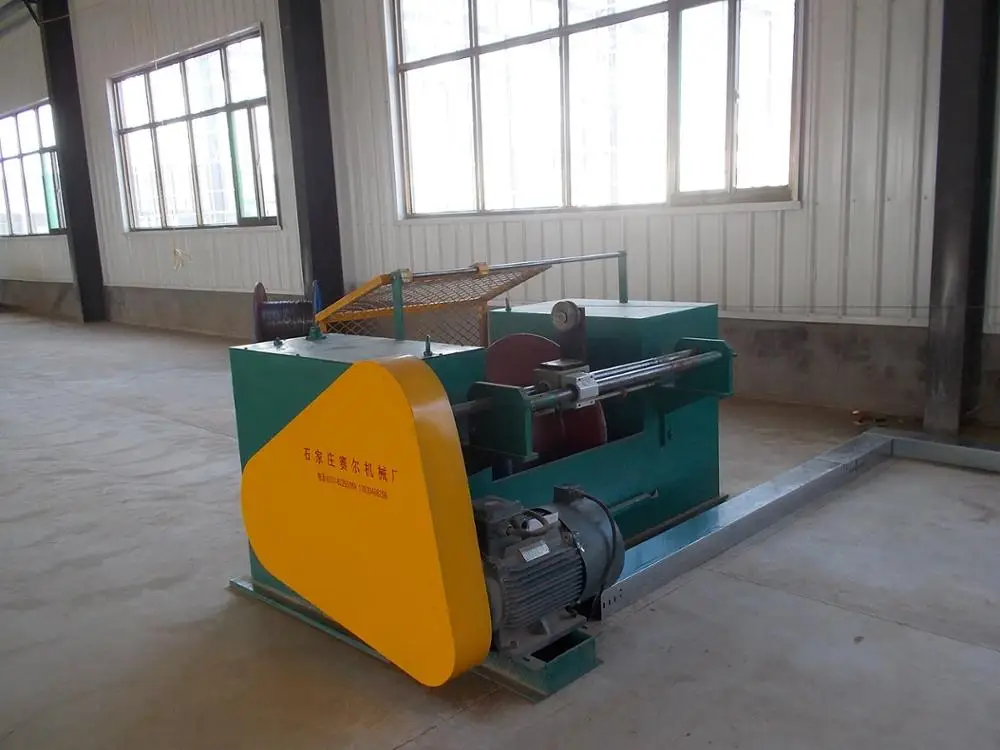

Spooler take up machine
Spooler takeup machine worked with dry wire drawing machine/wet type wire drawing machine.
It has fast speed and run stably.
It including driving system motor, belt pulley or gearbox as customer's technical requirement, it has pneumatic clamping or disclamping system for metal bobbin.
Model | 300 | 630 | 800 | 900 | 1000 |
Power(kw) | 4 | 11 | 22 | 22 | 30 |
Wire Diameter(mm) | 0.6-1.5 | 0.6-2.0 | 1.2-3.0 | 2.0-3.8 | 2.0-4.5 |
Max Speed(m/s) | 15 | 15 | 15 | 12 | 12 |
Brake | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Laying form | Traverse/ Servo | Traverse/ Servo | Traverse/ Servo | Traverse/ Servo | Traverse/ Servo |
Size(mm) | 1400*1000* 570 | 1500*1200* 970 | 2200*1600* 1100 | 2260*1680* 1220 | 2230*1700* 1230 |
Machine weight(KG) | 200 | 400 | 900 | 1100 | 1300 |
About us
Shijiazhuang Satle Machinery Manufacturer Co., LTD. Established in the year of 2001, which is located in Shijiazhuang City, Hebei Province China.
Technical Strength
We have a professional technical and production team, and mainly specialize in developing and manufacturing the whole set of welding wire production line and whole set metal wire drawing machine.
Main products
Straight line wire drawing machine,
water tank wire drawing machine,
pulley wire drawing machine,
horizontal wire drawing machine,
trunk type take up machine,
spooler take up machine,
payoff machine,
layer winding machine,
straightening cutting machine and so on.
Equipment based on artificial intelligence to achieve high speed and efficient also labor-based concept.
Overseas Market
Our machines have been exported to South Korea, Malaysia, Russia, Kazakhstan, Tajikistan, Brazil, India, South Africa, Zimbabwe, Guatemala, Egypt, Romania etc.
All the Products have gained the customers’ commend and approval in the world.
Service Target
1. We are always providing customers with not only the excellent solutions of steel wire production line, best related equipment and perfect service but also free technical services on the steel wire production line.
2. If you have any questions in the process of producing steel wire, or about steel wire production line, please feel free to contact us any time. Our solution and quotaion will be sent to you soon to meet you special requirements.
3. Welcome to visit our factory and wire drawing machine production lines.
4. Engineer available to service machinery overseas. Free training to how to install the machine, how to use the machine. Online support.
5. Low charge for continue maintenance when warranty is expired.
Conclusion
Now our company has full manufacture experience, good test measures and strong technical power. We will try our best to satisfy our customer with higher quality, higher service and higher reputation. Our company will obey to the word “User’s satisfaction is our honor” to serve our customer always.
