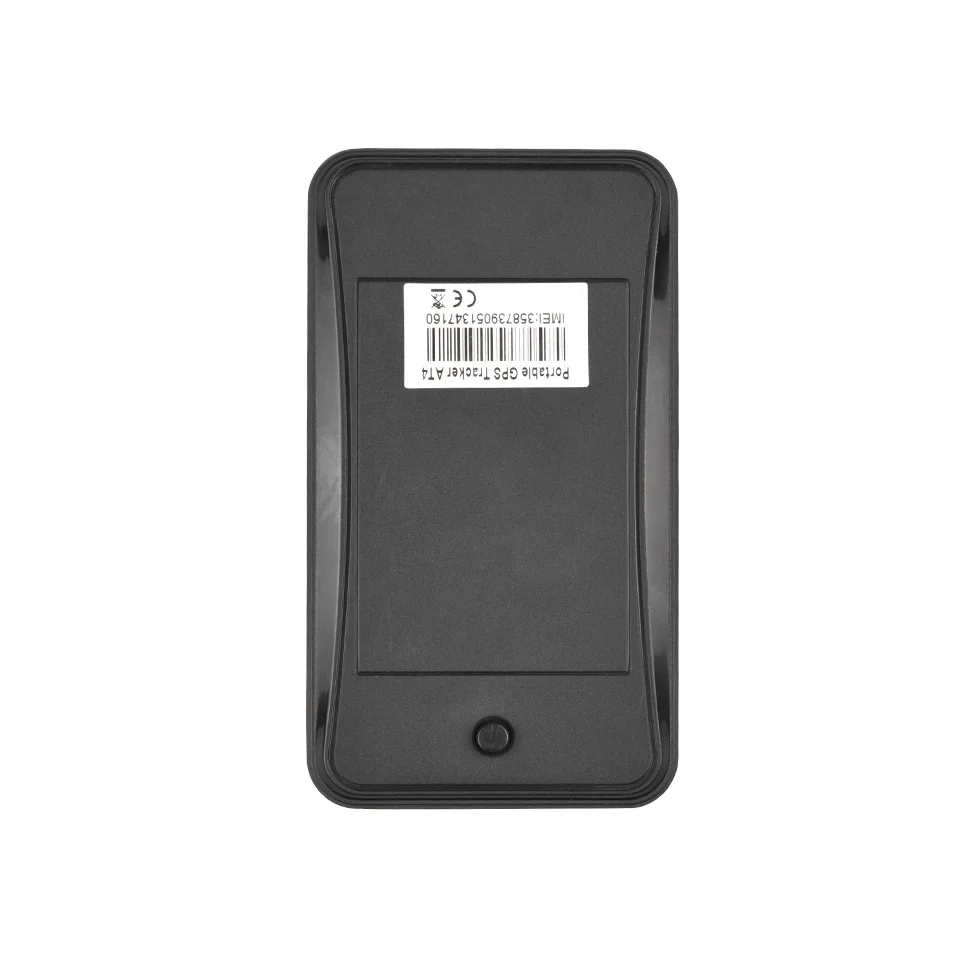

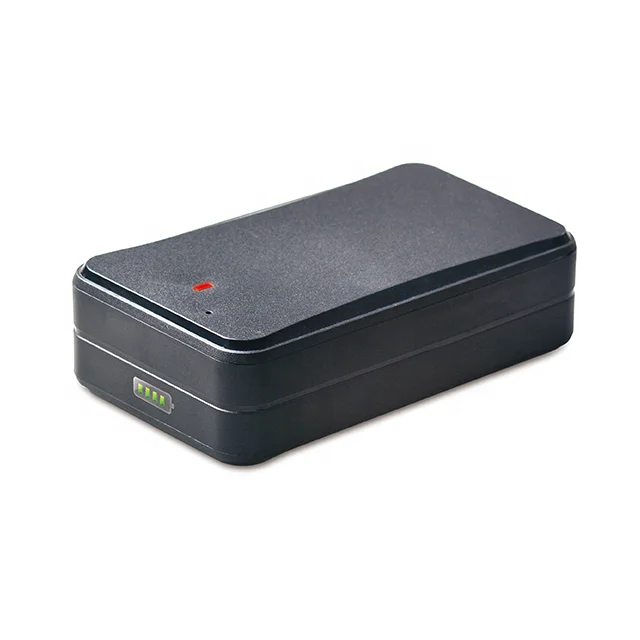

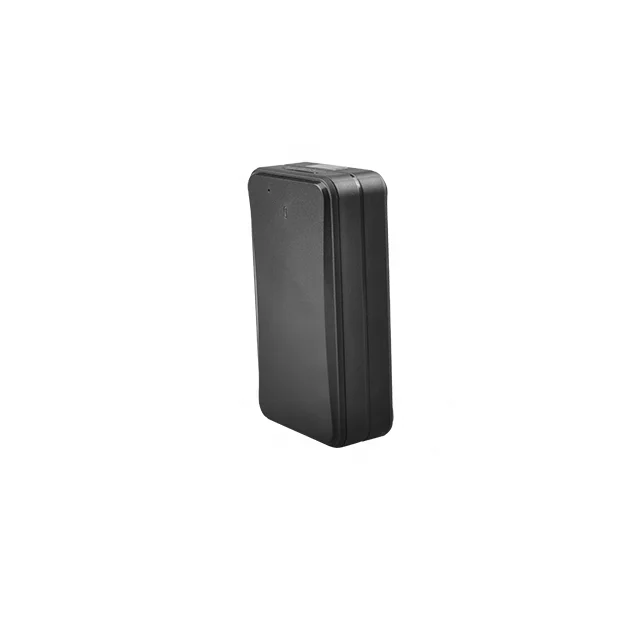

concox&JIMI 3g gps asset tracker with solar AT4, magnetic vehicle tracking,3years standby strong magnet

Product Overview

Description

concox&JIMI 3g gps asset tracker with solar AT4, magnetic vehicle tracking,3years standby

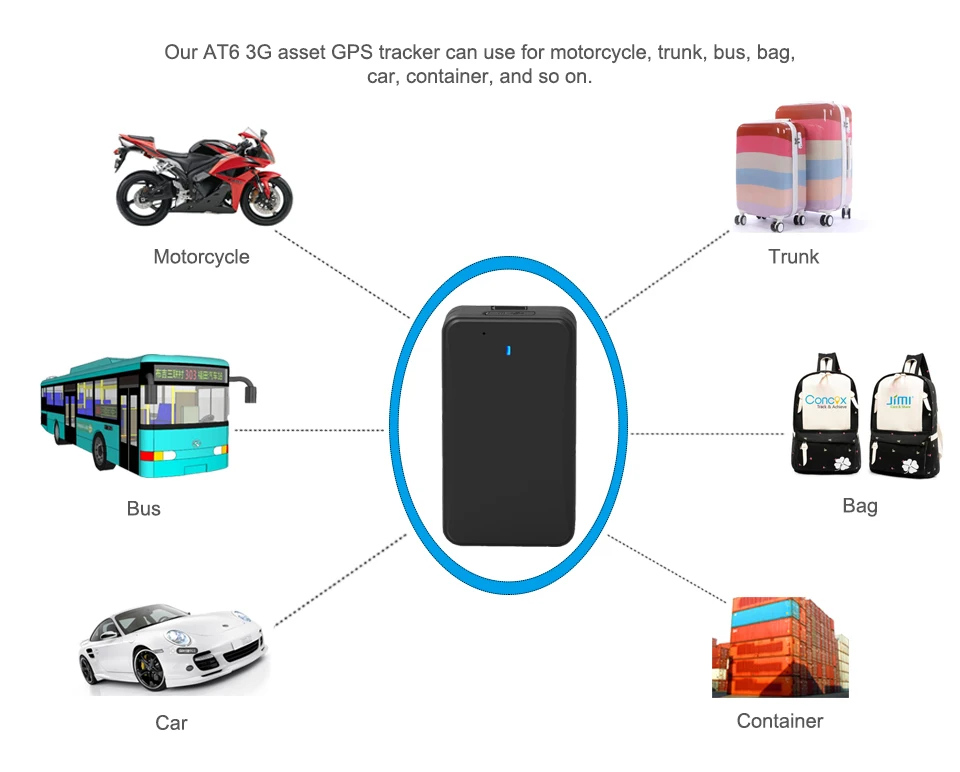

AT6 is a 3G asset GPS tracker with 850/900/1900/2100MHz WCDMA frequency and 850/900/1800/1900MHz GSM frequency. It is equipped with high powered lithium-ion battery which can last 7 weeks to 2 years depending on the location reporting interval. The magnetic and waterproof housing allows AT6 to be easily and inconspicuously placed inside or underneath a vehicle or other asset.

•   Listen-in

Listen to the surroundings by sending SMS command

•   WCDMA & GSM

Use 3G network (outstanding coverage, no 2G worries)

•   IPX5 water and dust proof

Water-resistant case to ensure stable operation in tough environment

•   10000mAh battery

High capacity Li-ion battery ensuring sufficient power supply


•   Tamper alert

Be notified of any removal from original installation

•   Strong magnet

Strong magnetic cover allowing for flexible mouting on vehicles or assets

1,WCDMA & GSM
2,Intelligent power management
3,Listen-in
4,IP65 water proof
5,Tamper alert
6,10000mAh battery
7,Tracked by: SMS, APP, Web





GSM Specification
Communication system	WCDMA/GSM
WCDMA/GSM	GSM: 850/900/1800/1900MHz
	GSM: 850/900/1800/1900MHz
GPRS	Class 12, TCP/IP
Class 12, TCP/IP	32 + 32 Mb
Phsase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±3dBm
	GSM1800/GSM1900:30±3dBm
Max frequency error	±0.1ppm
Receive sensitivity	GSM<-106dBm, WCDMA<-102dBm
GPS Specification
Chipset	High sensitivity GPS chips
High sensitivity GPS chips	GPS L1, 1575.42MHz
Channel	66
Location accuracy	<10 meters
Tracking sensitivity	-162dBm
Acquisition sensitivity	-149dBm
TTFF (open sky)	Avg. hot start ≤1sec
	Avg. cold start ≤32sec
Avg. cold start ≤32sec
Others
Switch	1 for power control
Button	1 for power on/off; 1 for cover remove alarm; 1 for tamper/disassemble alarm
GPS antenna	GPS antenna
LED indicator	1 red LED for GSM; 4 blue LEDs for battery
Standby	>2 years( GSM off, one position per day); >50 days (GPRS always connected, GPS sleep); >120 hours (GPS always on)
Tracking mode	30 days( drive for 2 hours per day)
Operating temperature	-20℃ ~+70 ℃
Battery	10000mAh/3.7V industrial grade  lithium polymer battery
Charger	5 VDC / 2A

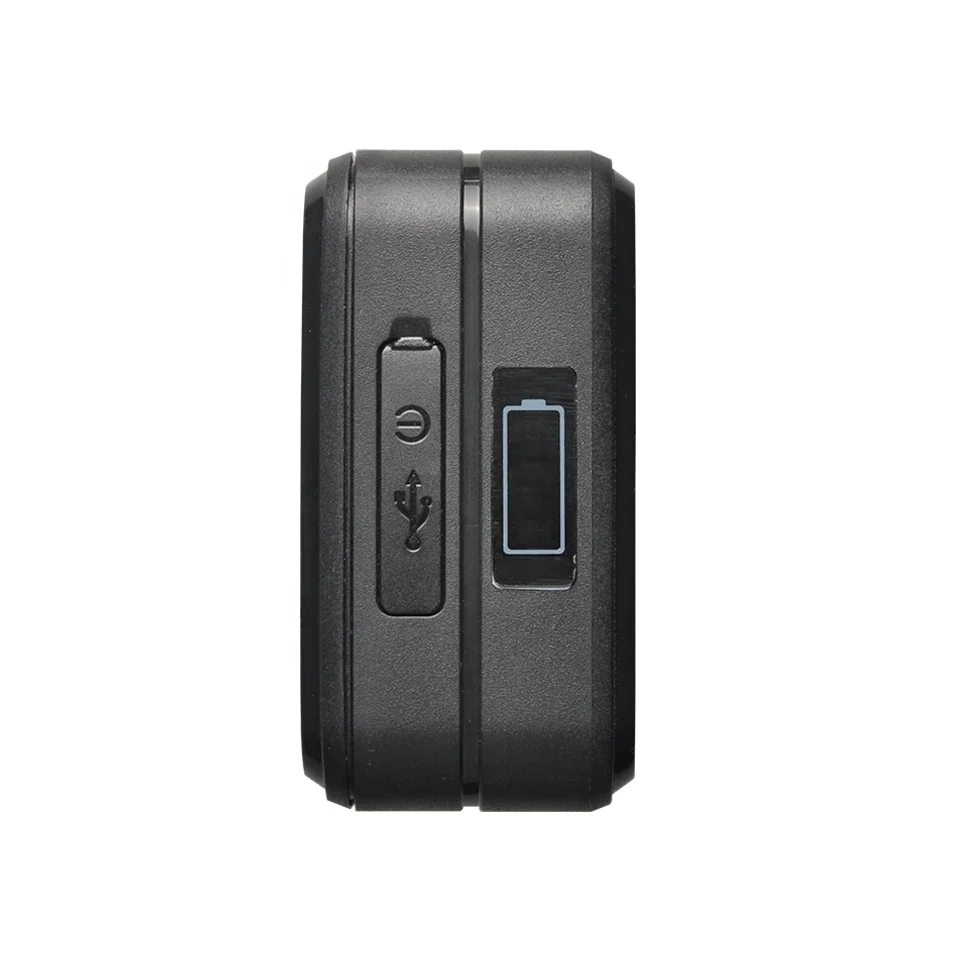

USB port	Micro 5 Pin
Device weight	286g

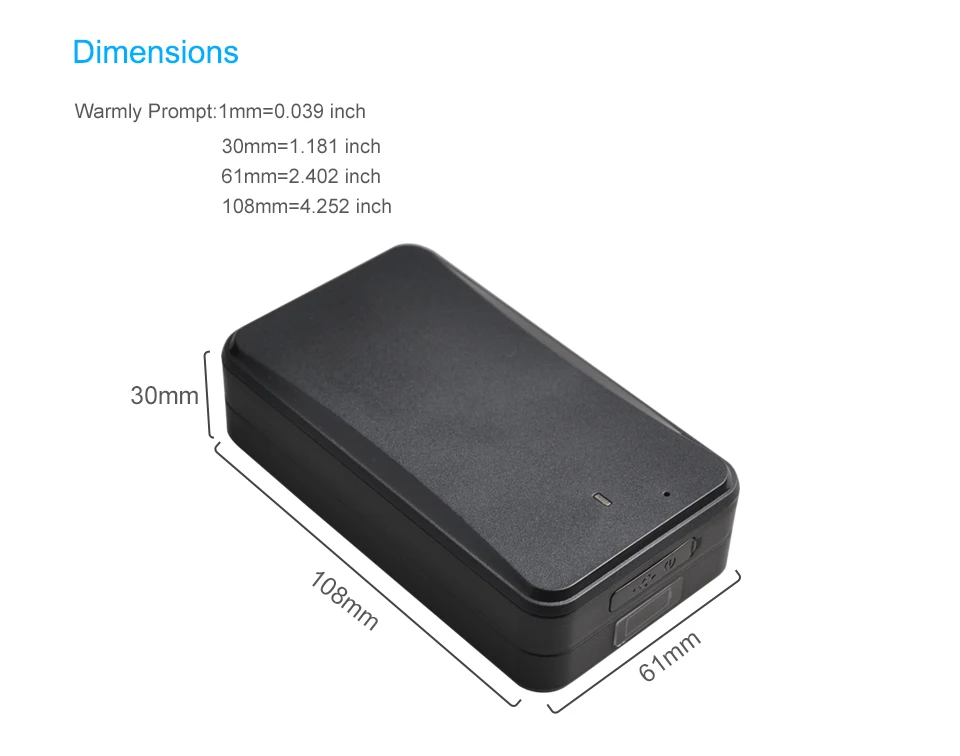

Device dimension	108.0 x 61.0x 30.0mm
