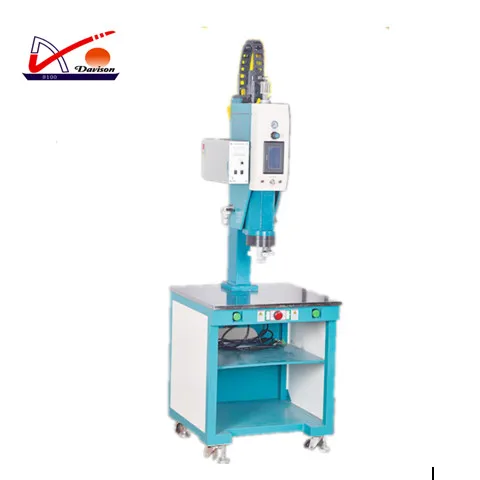

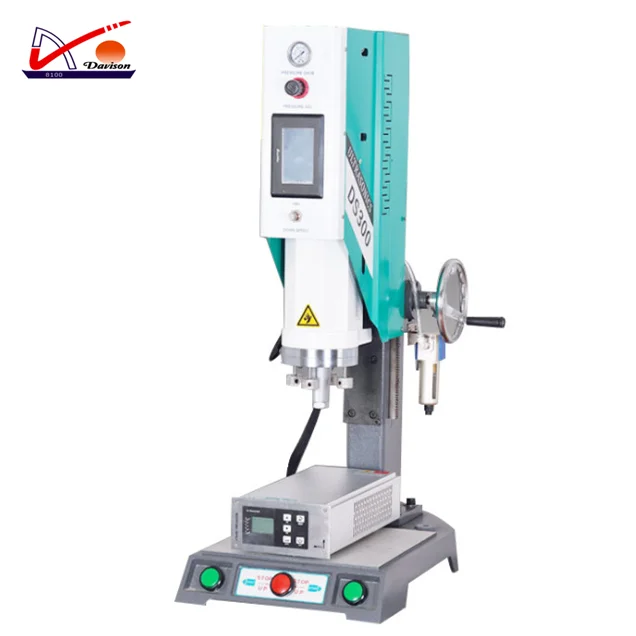

vertical blind ultrasonic welding equipment

Product Overview

Description







Working principle:



        When ultrasonic wave works on the surface of thermoplastic, it would cause thousands of vibration per second. The vibration which reaches certain degree will transfer the power to the welding area. High temperature will be caused at this moment. Due to the bad conductivity for heat, it can not dissipate the heat in time, so the contact surface will be melted quickly and welded together by some pressure.



Components:

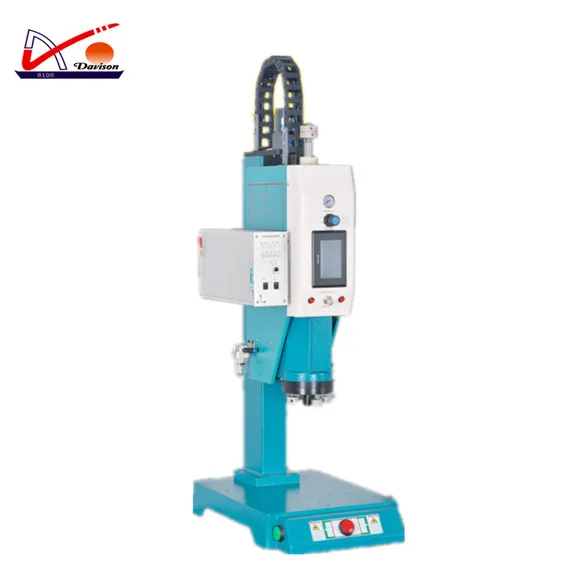

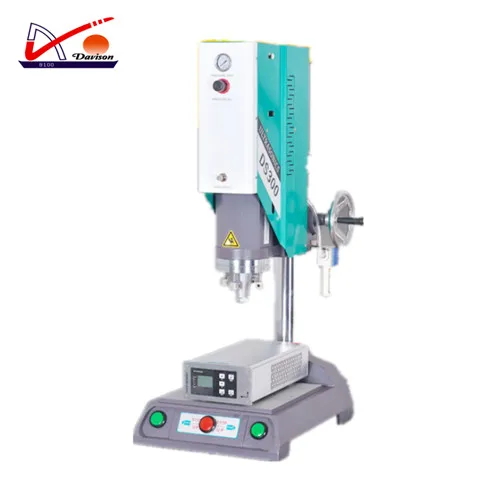

       Ultrasonic welding machine is composed of air pressure drive system, control system, ultrasonic generator, transducer, tools and mechanism etc.



Models & Specifications:



        There are various kinds of ultrasonic welding machine for different applications, materials and size. The out power is from dozens of watts to kilowatts, and the frequency is from 15KHz to 40KHz.



Model	Frequency	Power	Delay time	Weld time	Hold time	G.W	Machine size
DXCS1020	20Khz	1000W	0.01-9.99S	0.01-9.99S	0.01-9.99S	100kg	660x390x1150mm
DXCS1220	20khz	1200W	0.01-9.99S	0.01-9.99S	0.01-9.99S	100kg	660x390x1150mm
DXCS1520	20Khz	1500W	0.01-9.99S	0.01-9.99S	0.01-9.99S	100kg	660X390X1150mm
DXCS2215	15khz	2200W	0.01-9.99S	0.01-9.99S	0.01-9.99S	100kg	660x390x1080mm
DXCS2615	15khz	2600W	0.01-9.99S	0.01-9.99S	0.01-9.99S	100kg	660x390x1080mm
DXCS4215	15Khz	4200W	0.01-9.99S	0.01-9.99S	0.01-9.99s	100kg	660x390x1080mm



 Please tell us what product will you weld .

We will offer you the most suitable ultrasonic welder.

welcome to contact with us.









Applications:

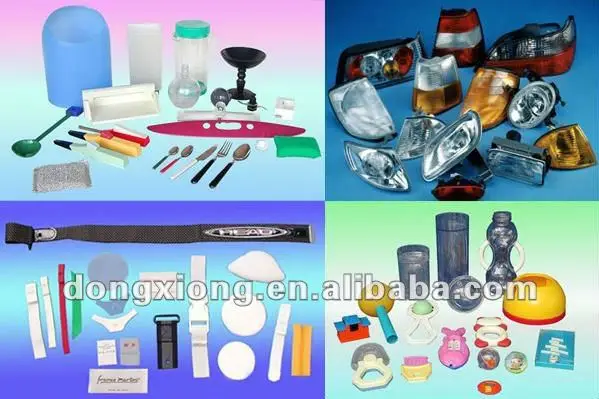

         Ultrasonic welding machine is widely used in auto industry, electron industry, medical treatment industry, office supply, packaging industry, and toy industry, etc. For example,

Plastic parts of automobile body: car door, automobile instrument, car light and mirror, sun visor, interior trim part, filter, etc.

Reflectorized material: reflectorized spike, fender-guard, inhaul cable, plastic filter for motorcycle, radiator, oil reservoir, oil cup, water tank, fuel tank, air hose, exhaust purifier, and tray filter board, etc.

Plastic electron: prepayment water meter, ammeter, communication apparatus, cordless telephone, accessories of mobile phone, cover of mobile phone, battery case, charger, valve controlled seal maintenance lead-add battery, 3-inch floppy, USB flash disk, SD card, CF card, USB plug-in board, etc.

Toy & stationery: documents folder, photo album, folding box, PP cavity board, pen cover, ink box, toner cartridge, etc.

Medical & daily use: watch, kitchen ware, oral liquid bottle cap, drip bottle cap, anti counterfeit bottle cap, cosmetic bottle cap mobile phone accessories, gold soft brush, toilet articles, children appliance, air mattress, hanger, knife handle, gardening appliance, sanitary fittings, sprinkler, shower head, coffee pot, washing machine, air dryer, electric iron, electric kettle, cleaner, metal cover of loudspeaker box, construction grating, etc.
