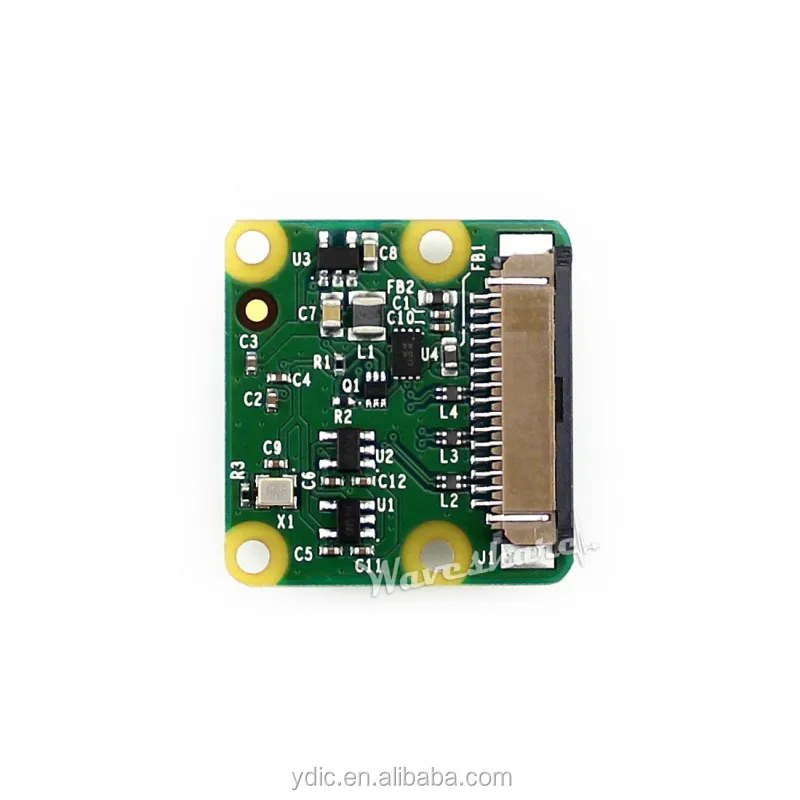

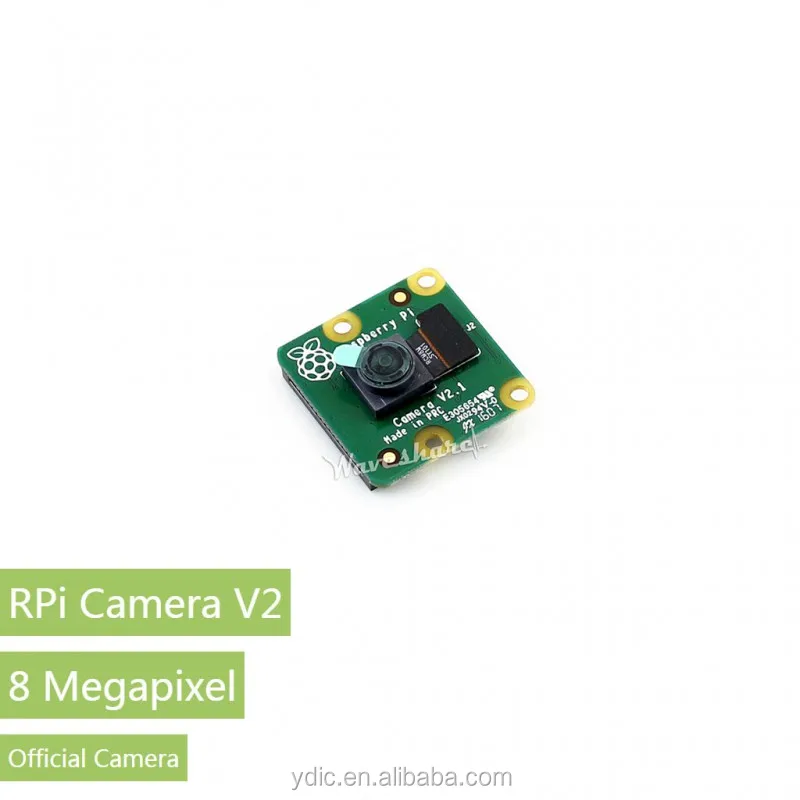

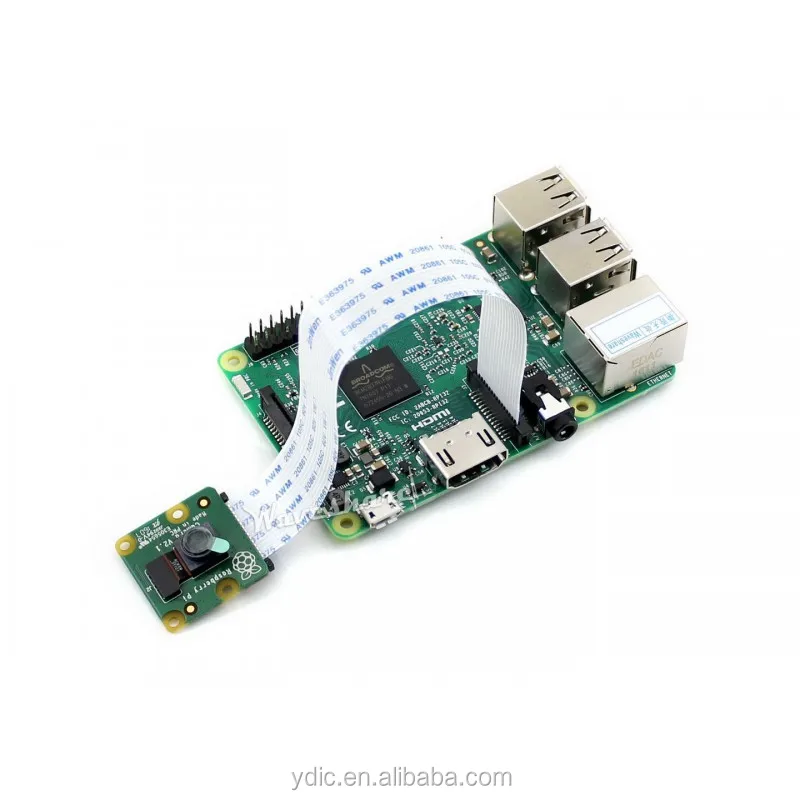

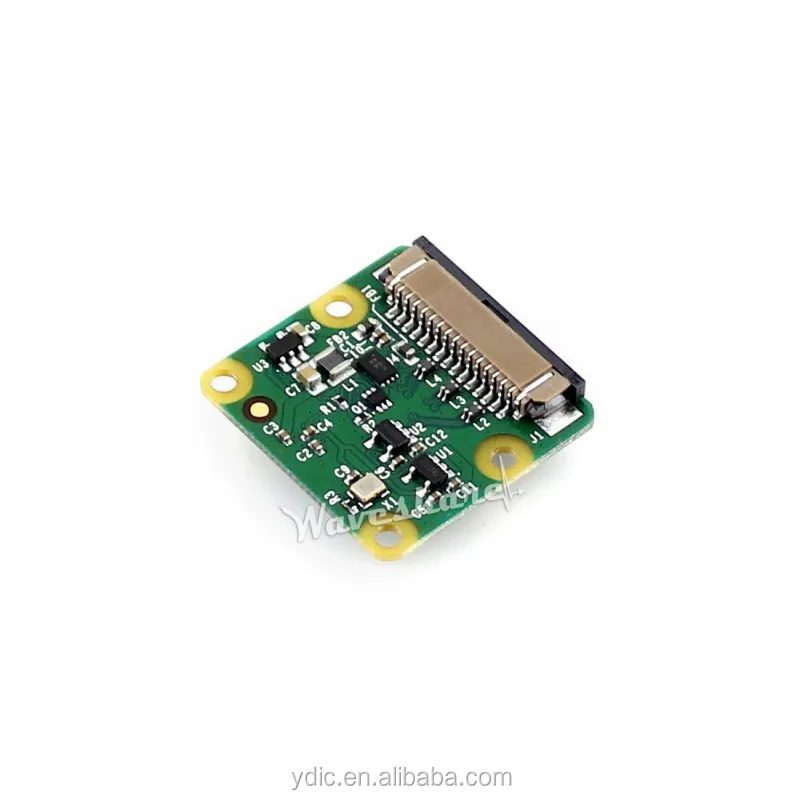

Официальная плата камеры Raspberry Pi V2, поддерживает Raspberry Pi и Jetson Nano

Product Overview

Description

Features

• Official Raspberry Pi Camera Board, supports Raspberry Pi and Jetson Nano


• Sony IMX219 8-megapixel sensor


• Camera specifications



  • CCD size : 1/4inch


  • Aperture (F) : 2.0


  • Focal Length : 3.04mm


  • Angle of View (diagonal) : 62.2 degree






• 3280 × 2464 still picture resolution


• Support 1080p30, 720p60 and 640x480p90 video record


• Dimension: 25mm × 24mm × 9mm

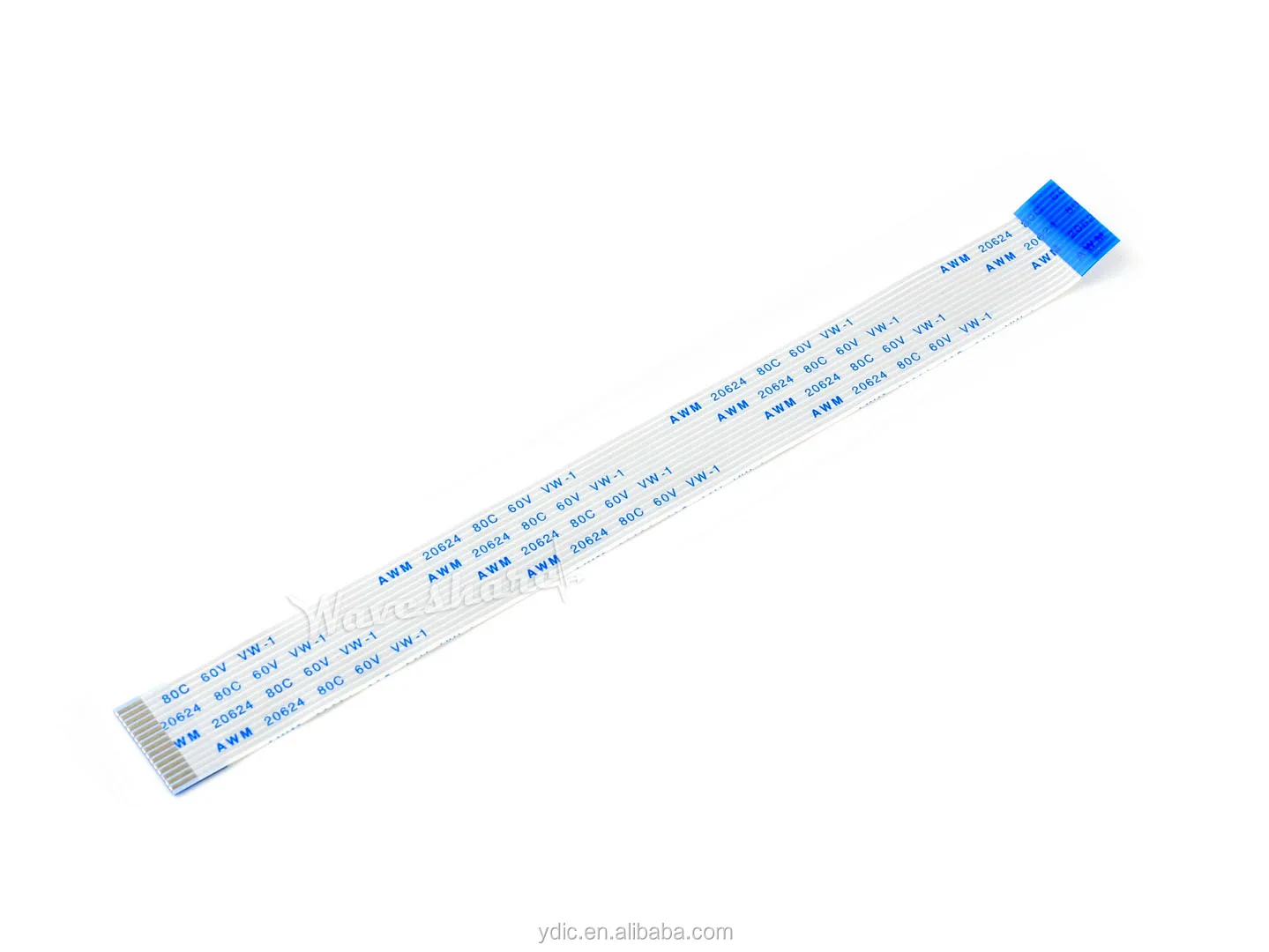

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

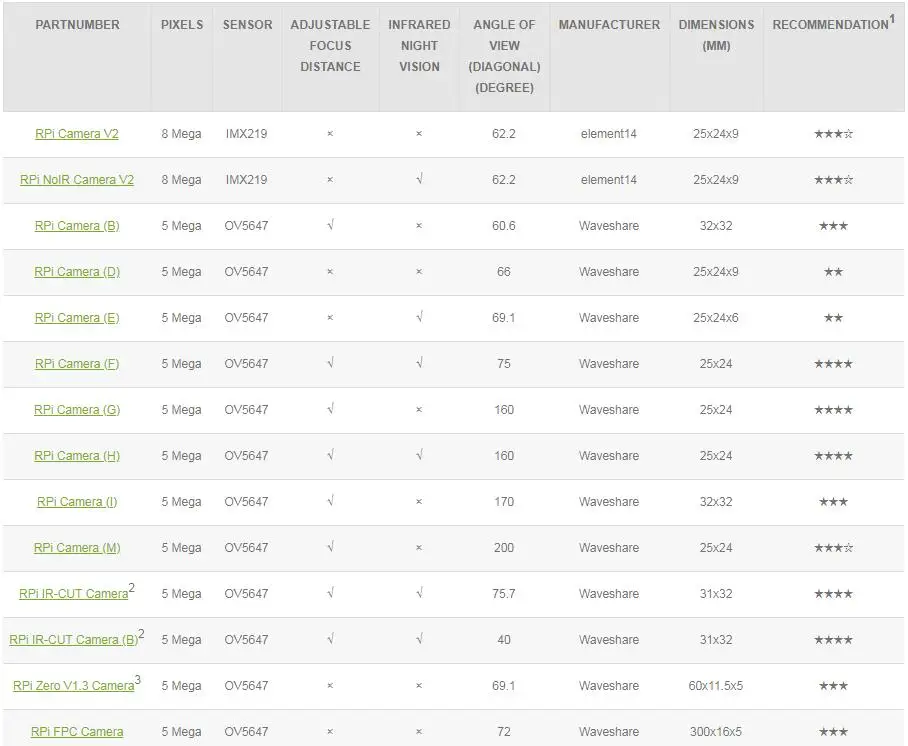

Selection Guide

1. Weight: 0.028 kgThe recommendation is considered from sales report and cost performance.


2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.


3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3, Raspberry Pi Zero W, and Raspberry Pi Zero WH
