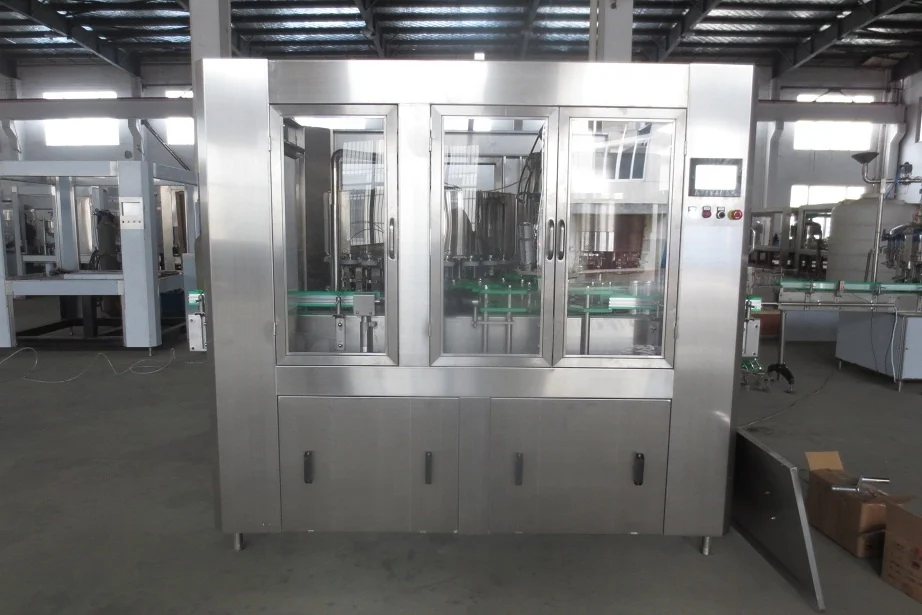

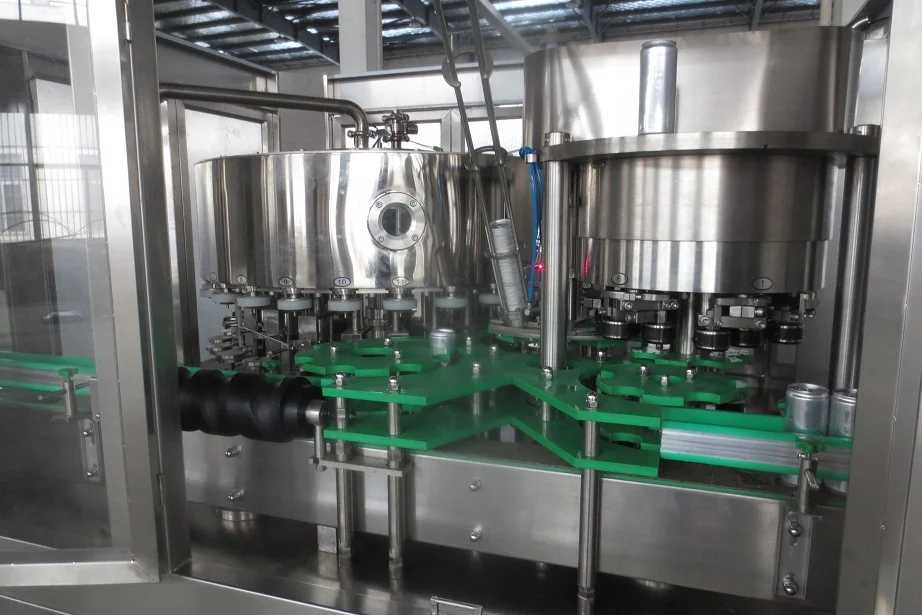

Gravity filling type full automatic aluminum plastic Can juice tin packing machine
- Category: >>>
- Supplier: Zhangjiagang Twelve Wei Machinery Co. Ltd.
Share on (62313302402):
Product Overview
Description
Product Description
The machine is fit for filling and sealing of soft drinks and fruit juice.
It also has many bellow advantages: filling rigidly, deduce loss and fast facility for adapting advanced electric and pneumatic.
It also has many bellow advantages: filling rigidly, deduce loss and fast facility for adapting advanced electric and pneumatic.
Main body is structure steel, whose surface is packed by stainless steel.
The machine window's frame is from SUS304 stainless steel. The feet of stand is from SUS304 also, and its height is adjustable.
It is applicable for pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent envelopment of the can filling, sealing unit.
It is applicable for pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent envelopment of the can filling, sealing unit.

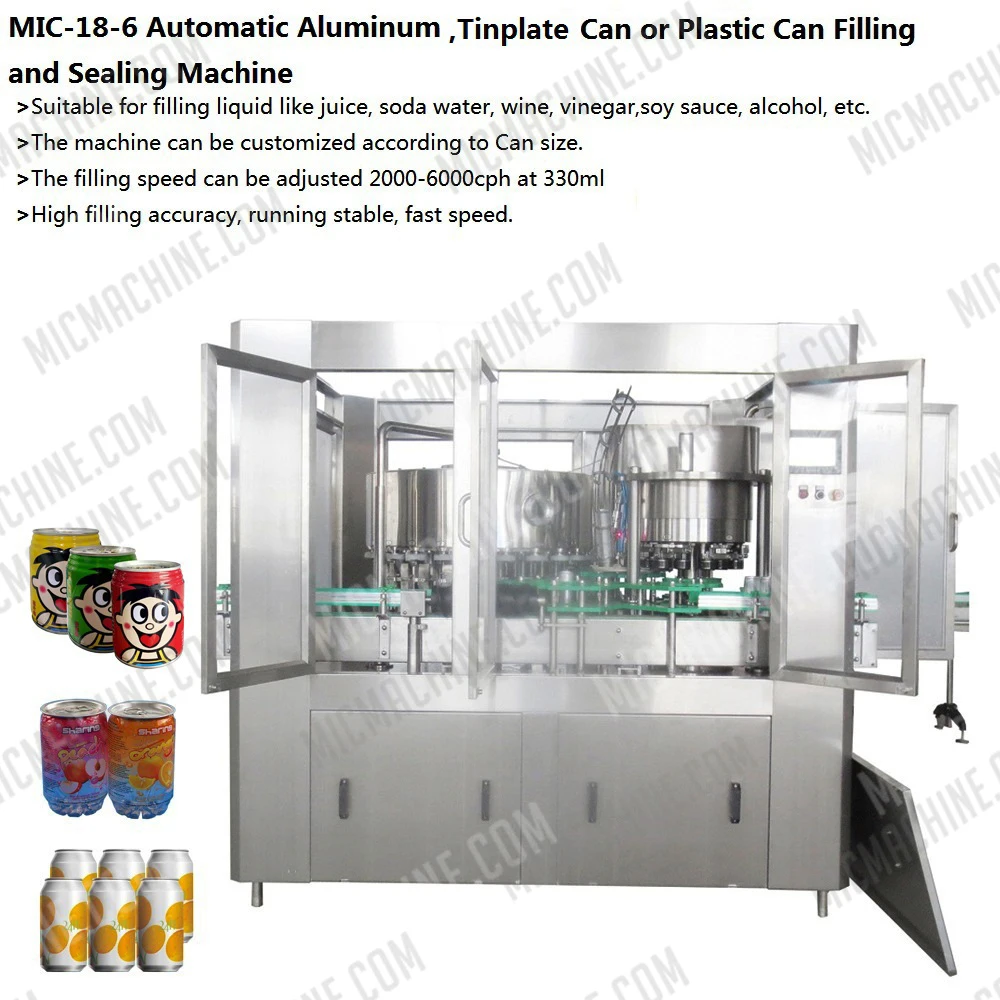

Des. | MIC-18-6 | |||
Power | 5.5Kw | |||
Filling heads | 18piece | |||
Sealing heads | 6piece | |||
Main material | SUS304 | |||
Production capacity | 2000-6000CPH at 330ml | |||
Can diameter range | Ф50-90MM | |||
Bottle height | 39-170MM | |||
Filling pressure | 0.2～0.3 Mpa | |||
Dimension | 2200*1200*1900mm | |||
Weight | 3100Kg |

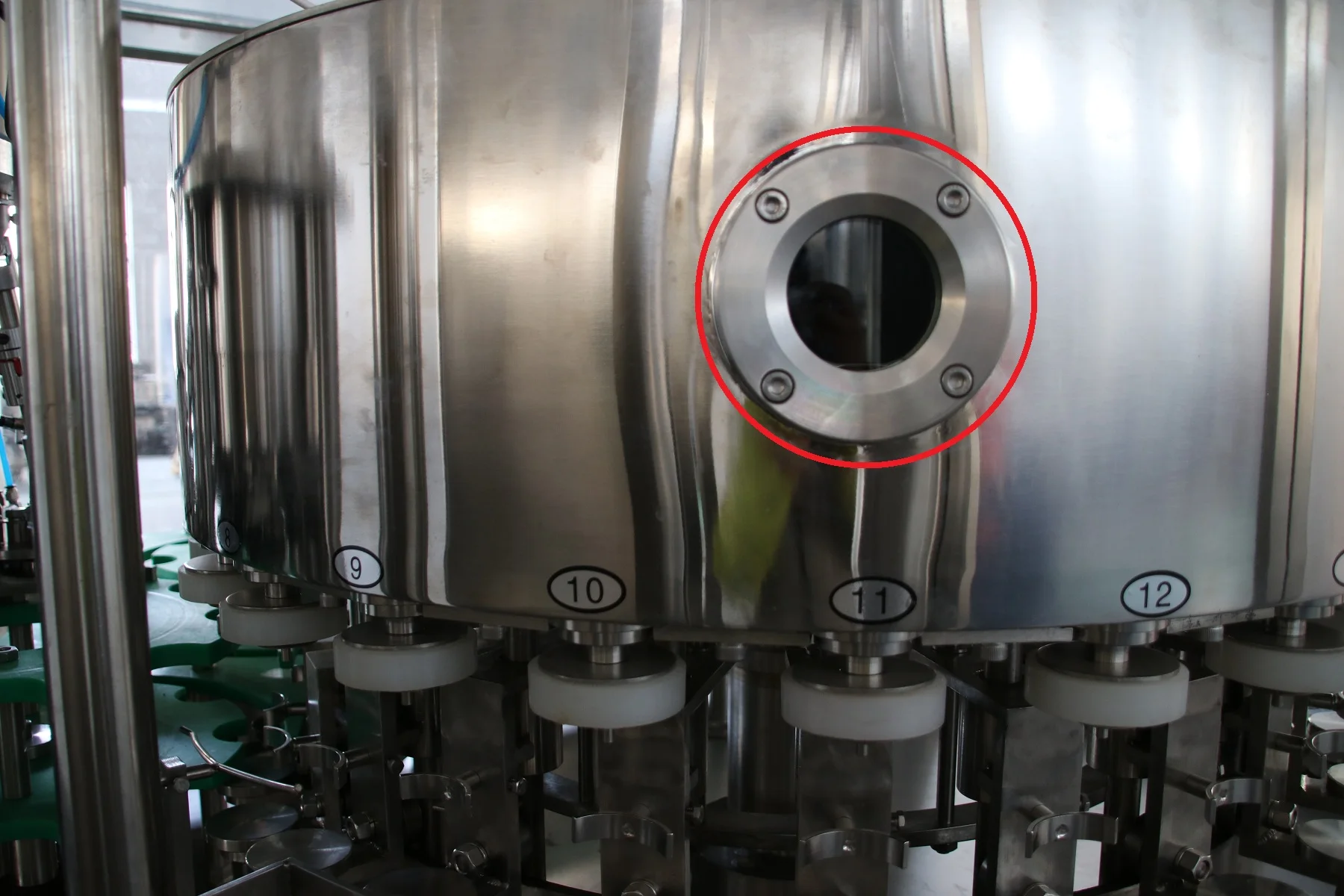

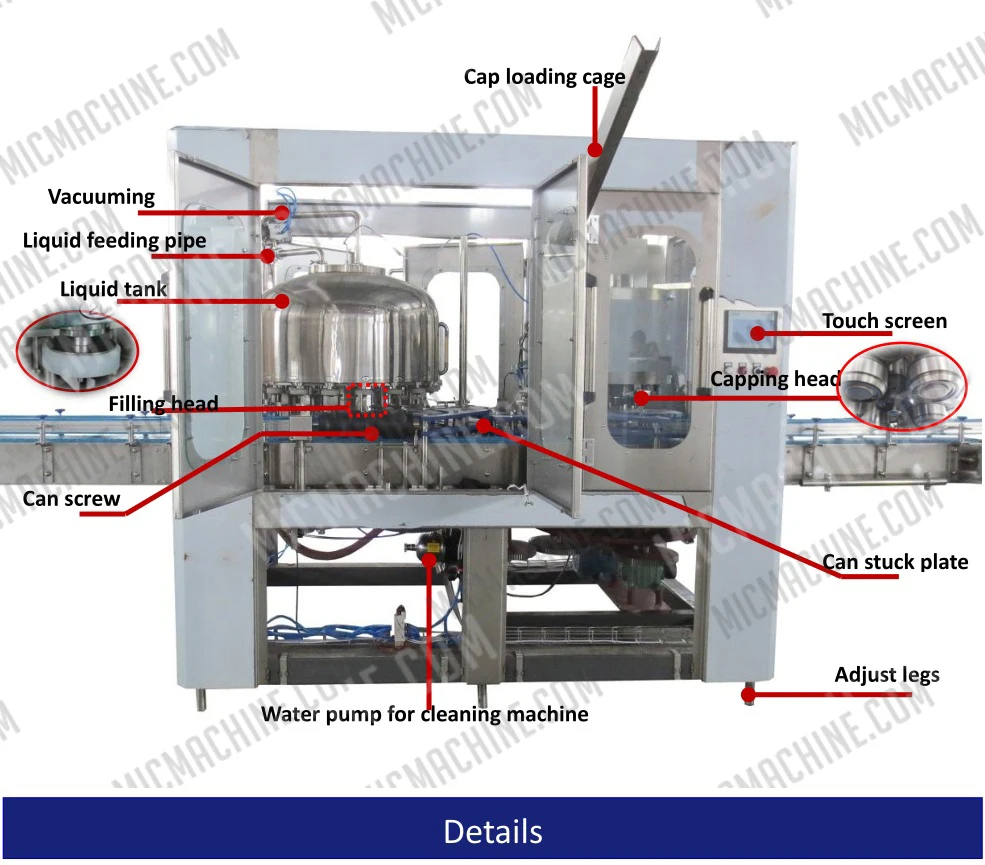

This is the liquid level checking window, customers can check the liquid level situation form this window.

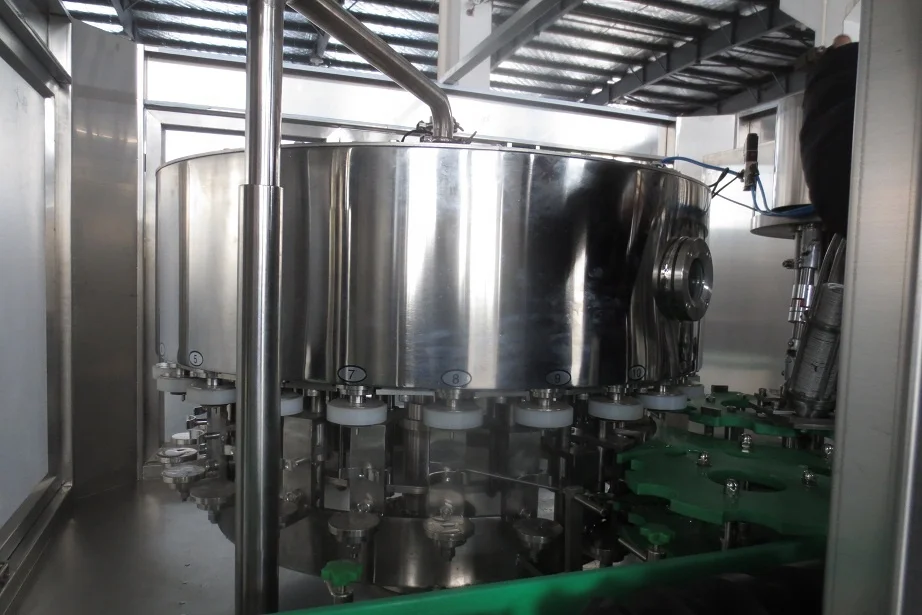

Filling valves take hi-precision mechanical valve, with the features of fast filling speed, high liquid level precision. Filling valve adopts 316 materials to airproof to realize the constant pressure filling.

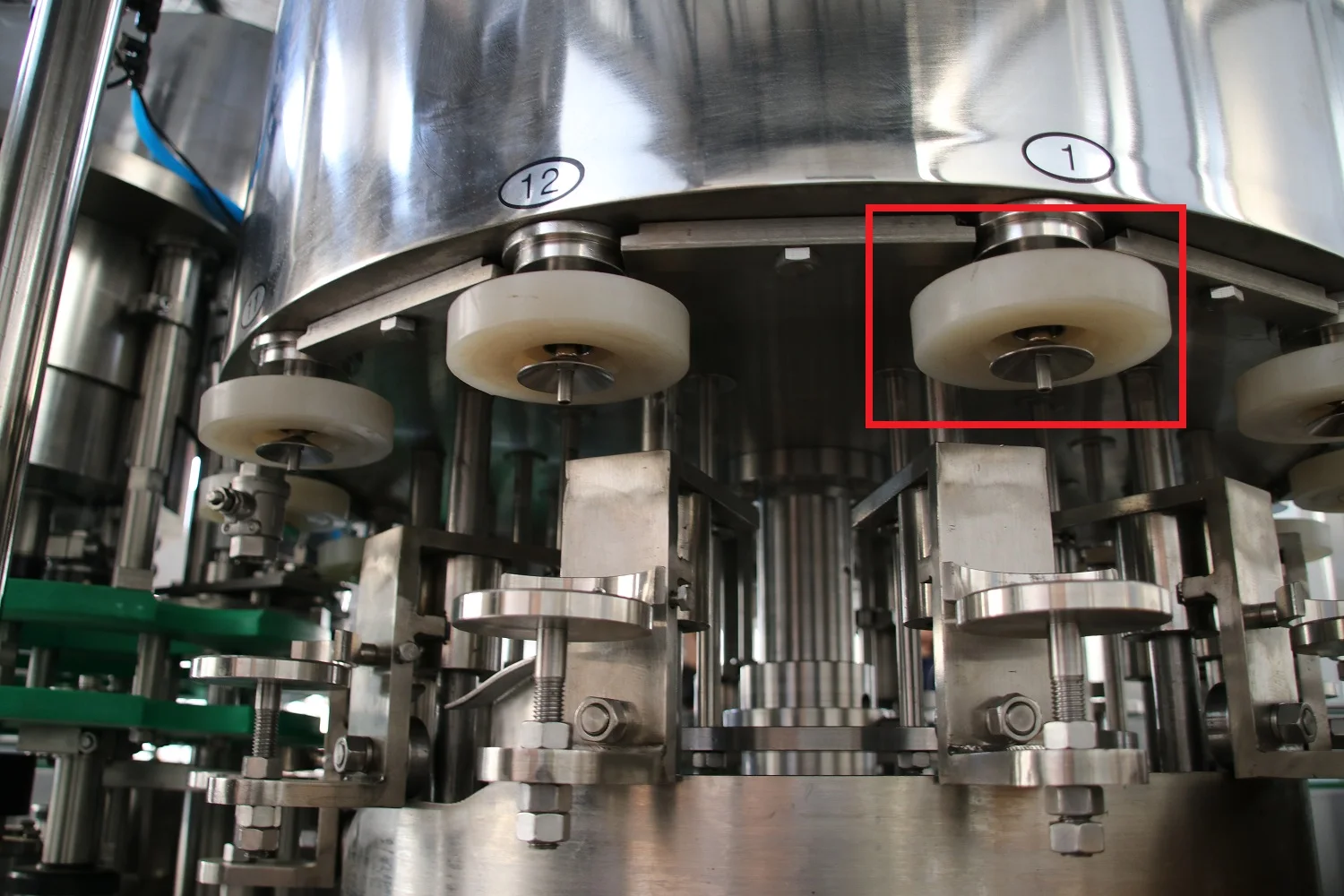

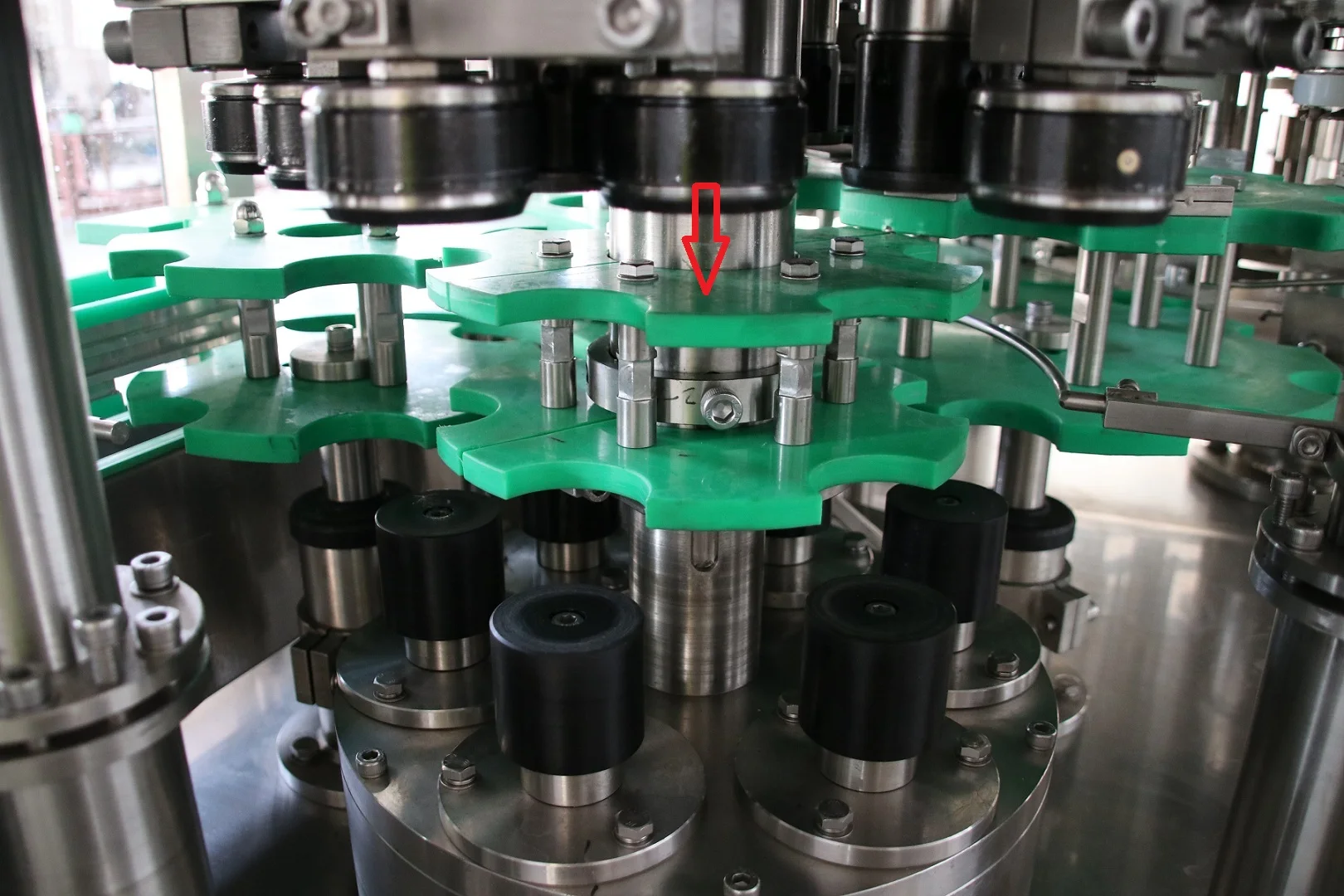

This is Can stuck plate, it will be 4 half-circle structure, it can stuck Can tighten, keep the Can will not move when filling.
For filling machine, we recommend NON-SUS304 material stuck plates.

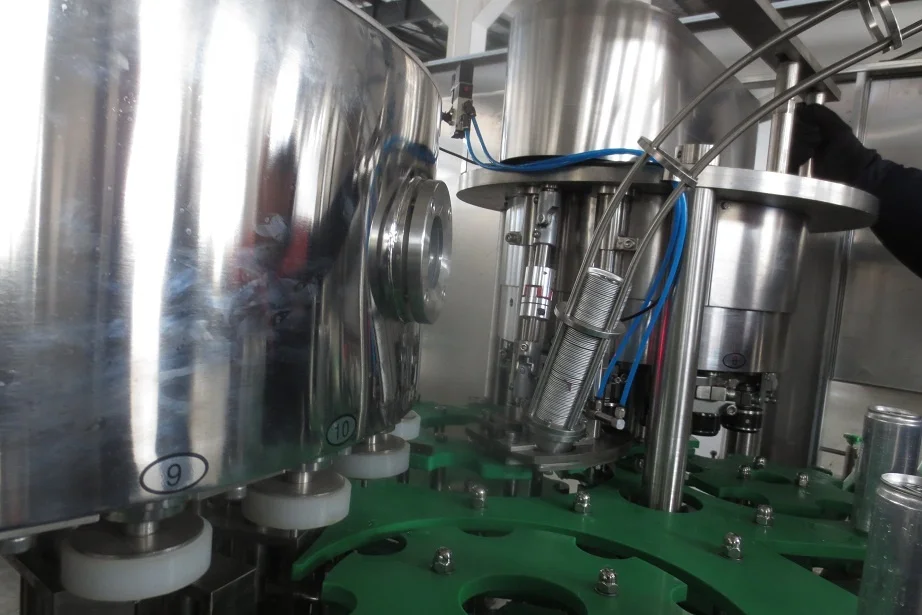

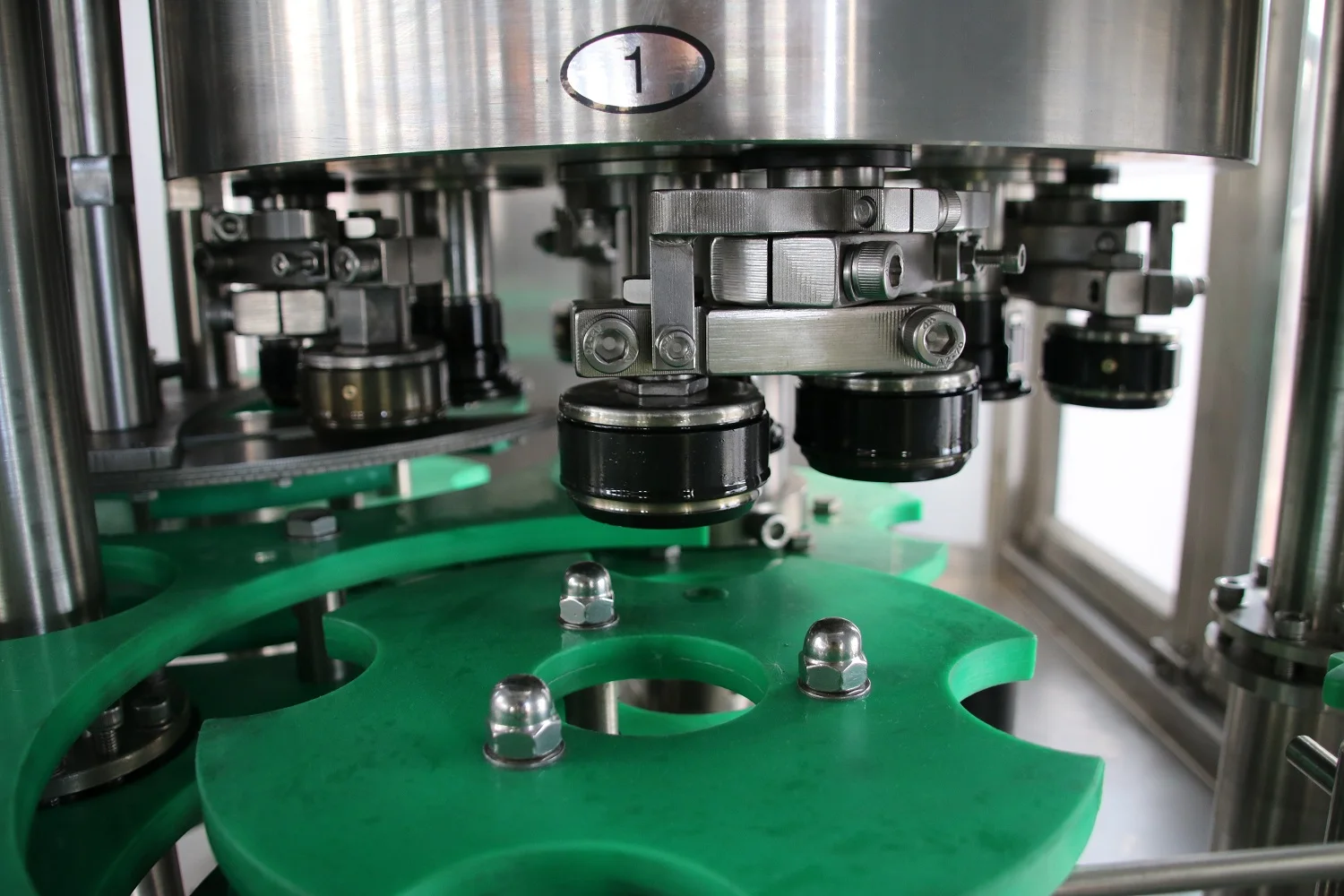

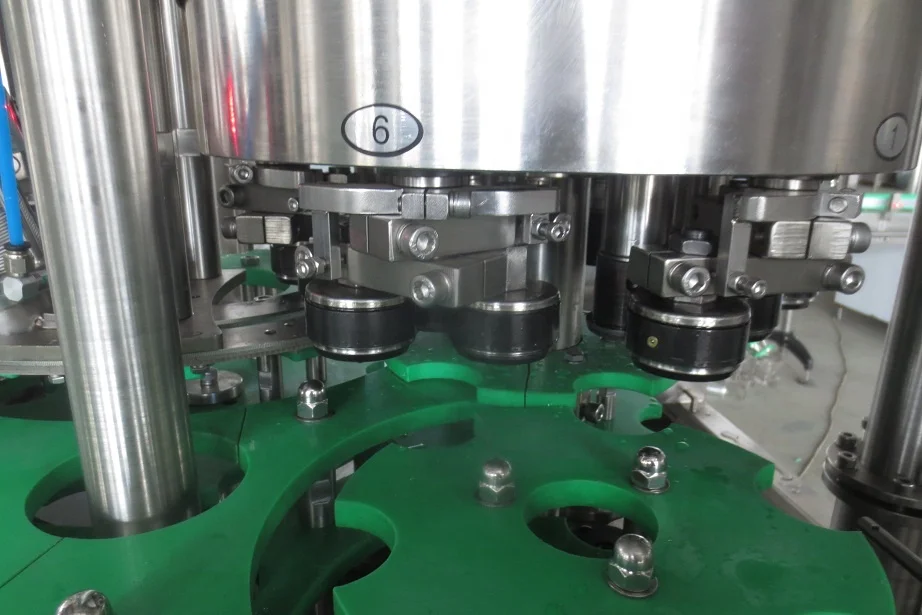

Sealing head of four roller design, can let cans uniform stress, not crushed cans and will not damage the lid, the lid scratches, no leak after sealing.
Please send us your request, we can help you customize a suitable machine!

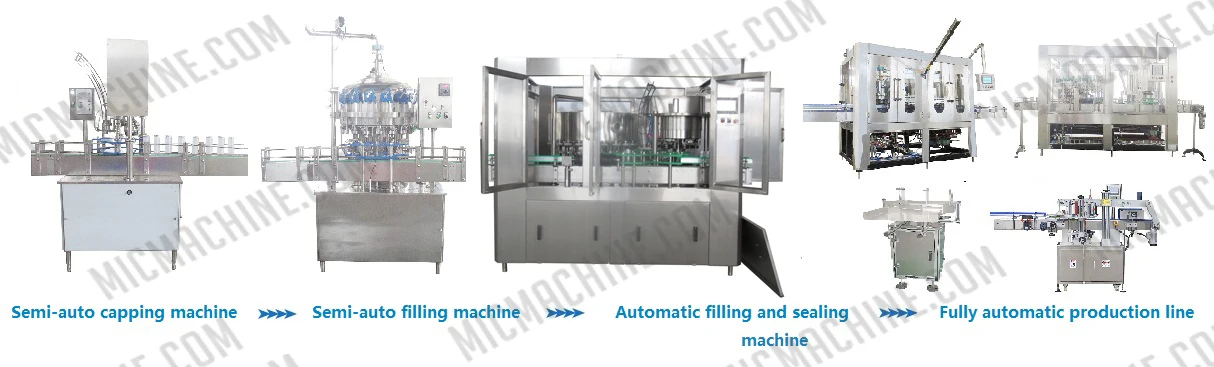

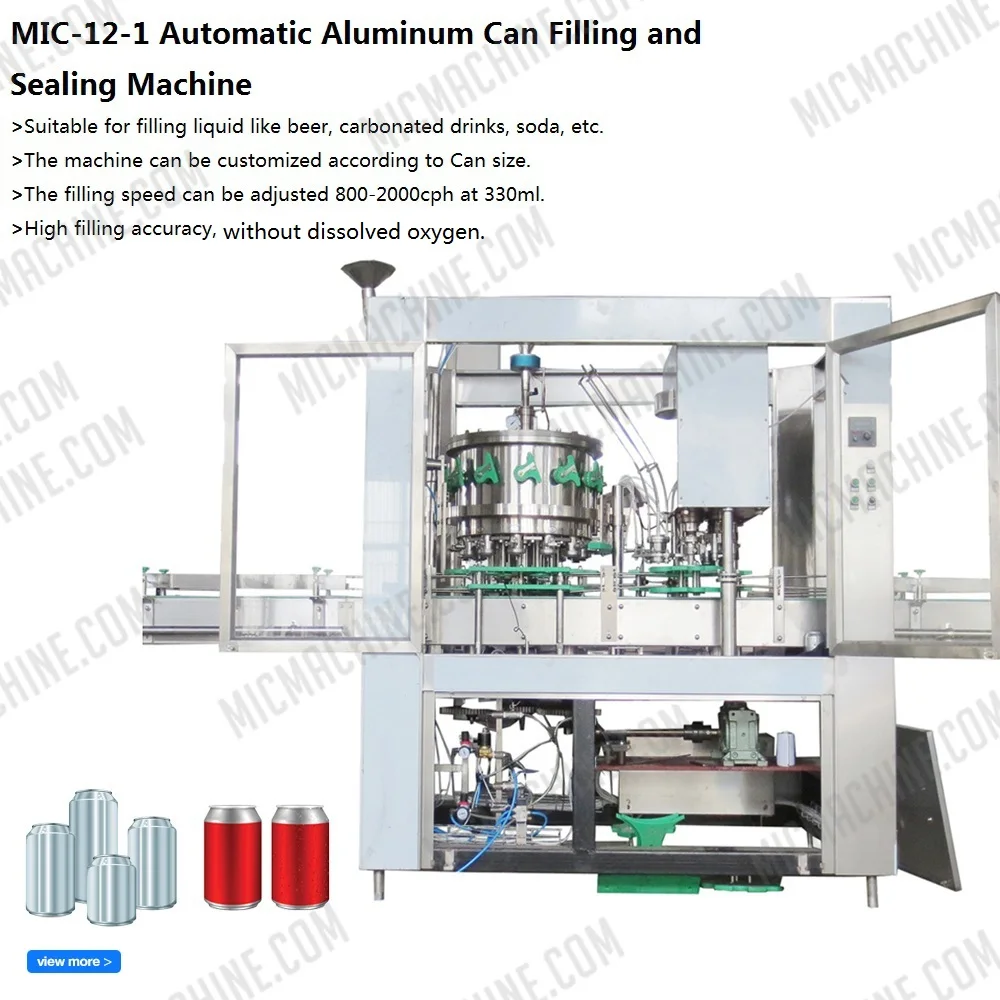

We have other machine, if you want to know, please send us your request, we can help you customize a suitable machine !
Related Products
Company information

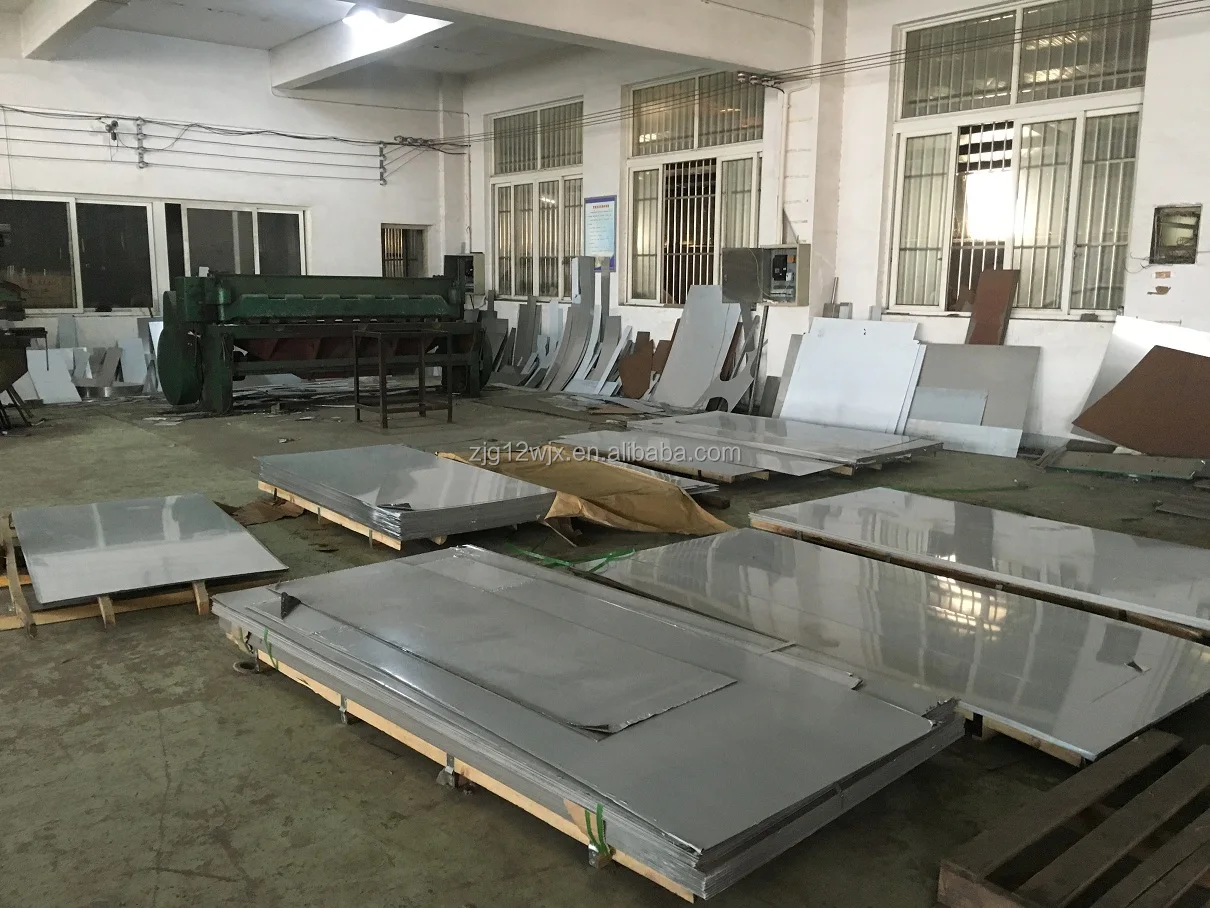

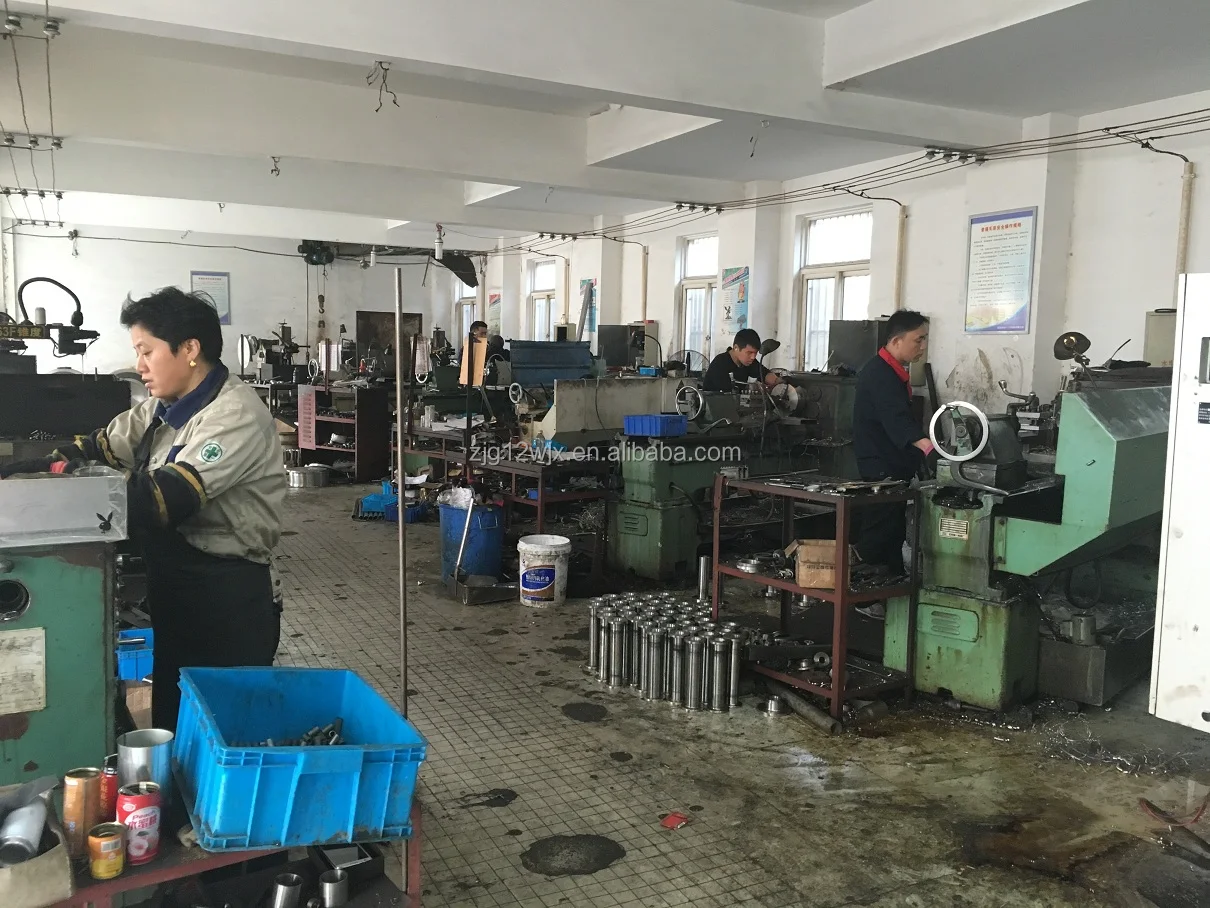

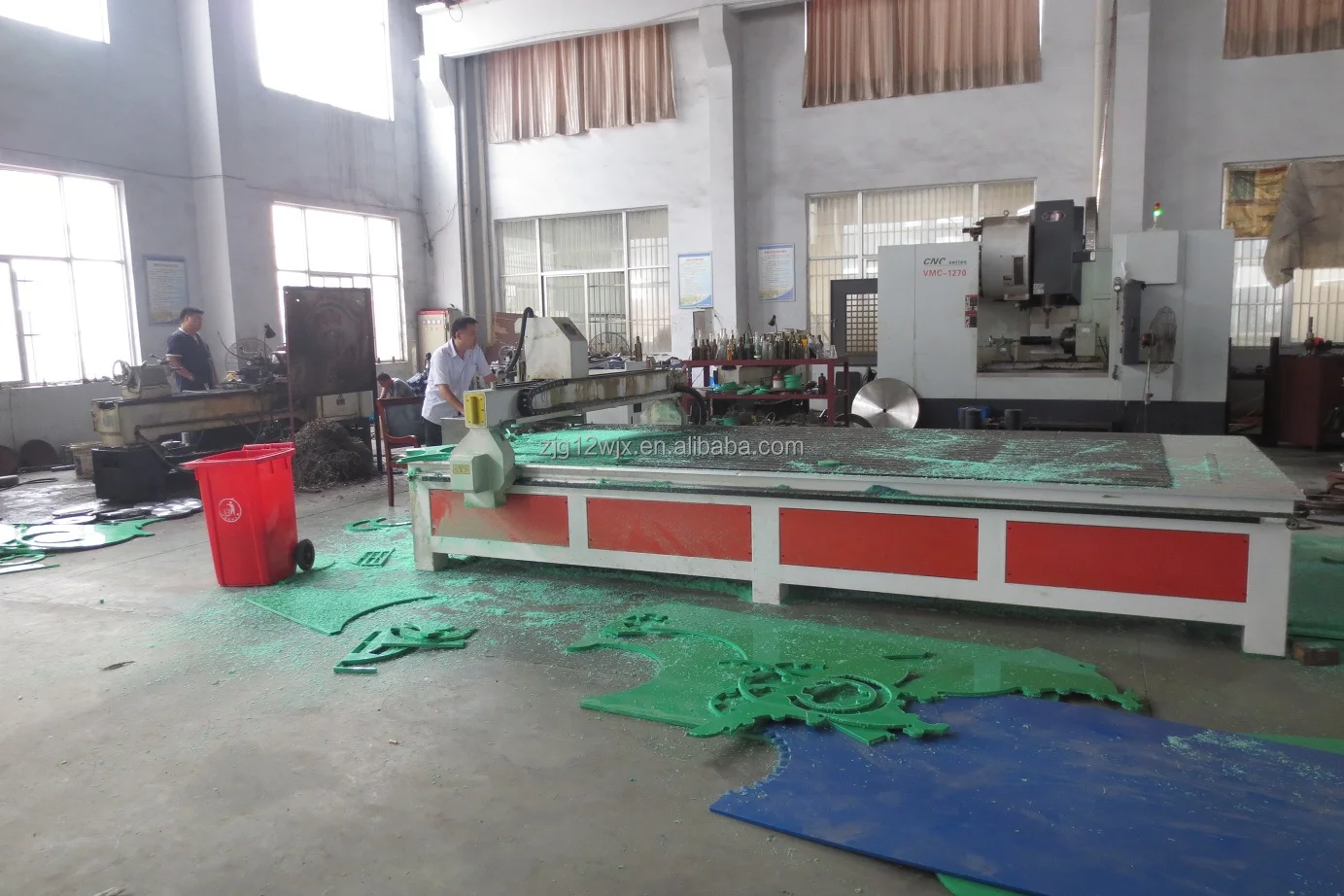

Our factory
