Product Overview

Description



Product Description

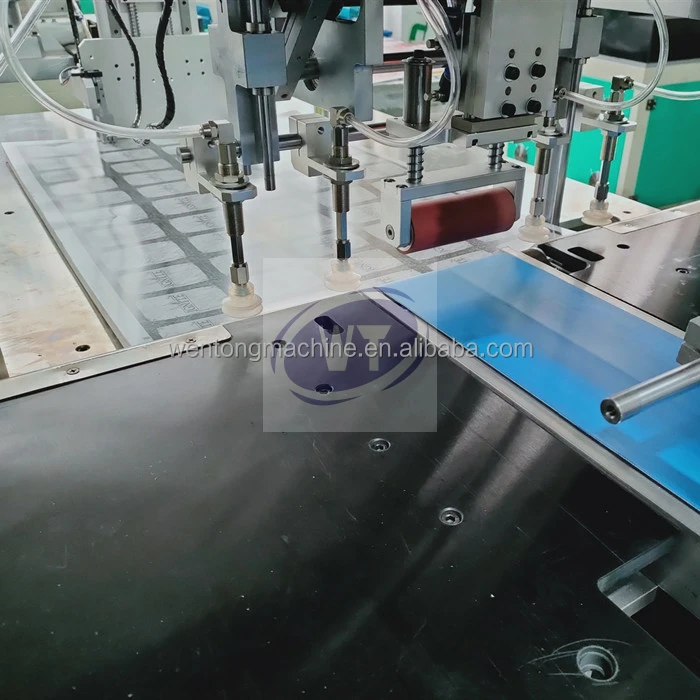

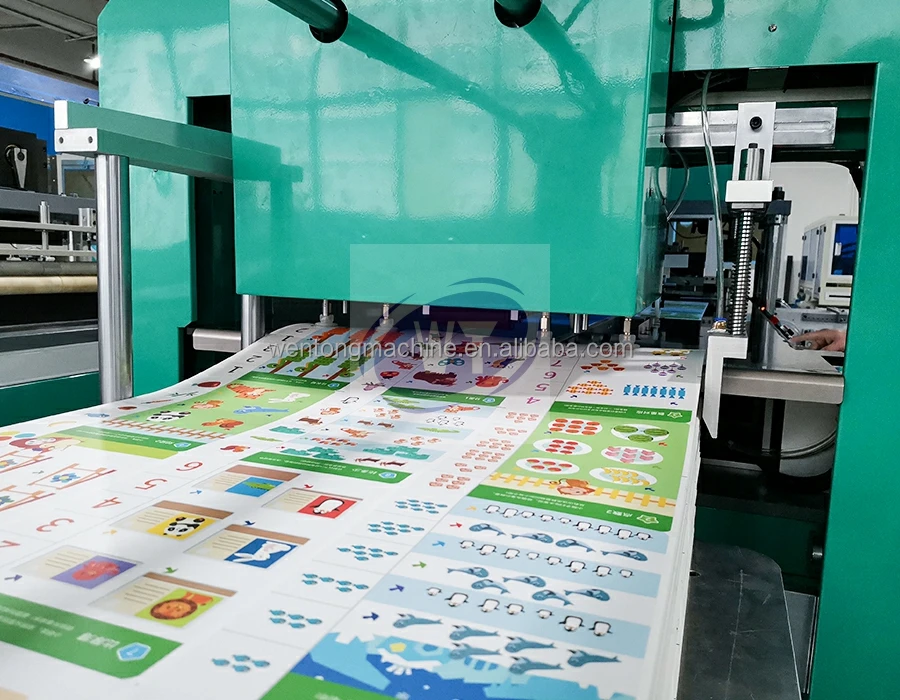

This machine consists of PLC program control system, double screw servo feeding part, hydraulic system, punching system, receiving part of product, and collecting waste. The high-sensitivity sensor is matched with two sets of stepping systems to realize vertical search and positioning, and then the dual-servo motor drives the imported high-precision ball screw module for lateral positioning and feeding. Fast and high precision (not affected by material size).



Power Supply
AC380V/50HZ
Air Supply
6kg/cm²（anhydrous）
Dimension(L*W*H)
3200x1500x1750(mm)
Production ability
About 28000PCS/H
Cutting Precision
±0.1mm
Product thickness
0.25-1.20mm
Materials
PVC，Paper， Mixed material
Control Mode
PLC program ＆ Servo system
Power Source
Hydraulic/Servo system


Product features

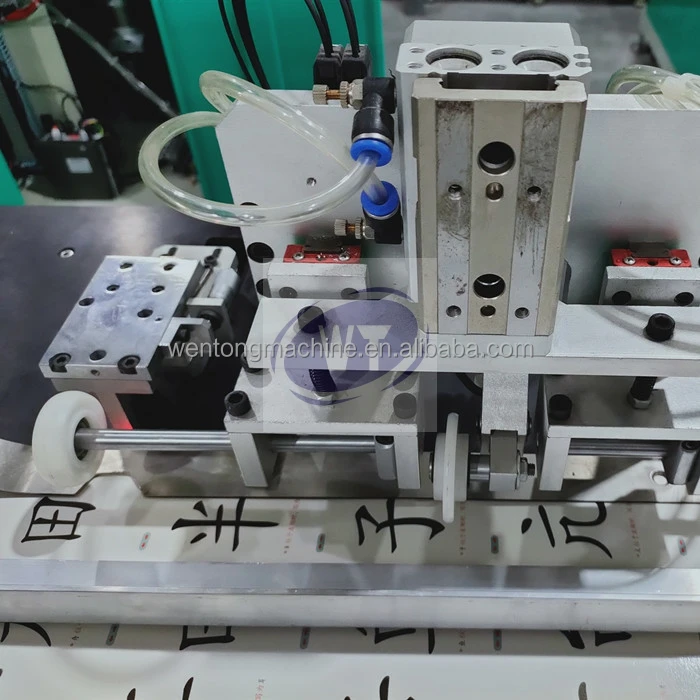

A: The servo motor drives the screw to feed automatically, and the sensor is accurately positioned.

B: The servo motor cooperates with the synchronization to achieve fast and stable card collection. Punching and card collection can be performed simultaneously.

C: The machine integrates feeding, punching, collecting and discharging waste, realizing automatic production.

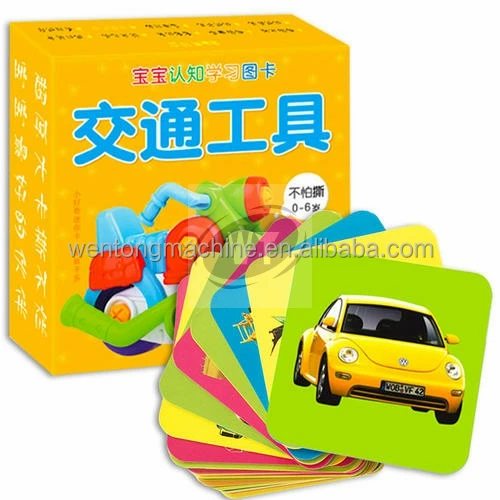

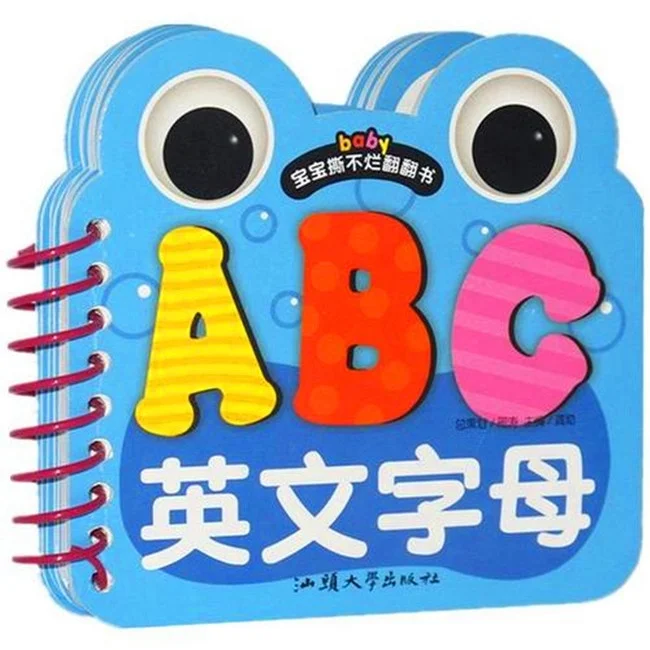

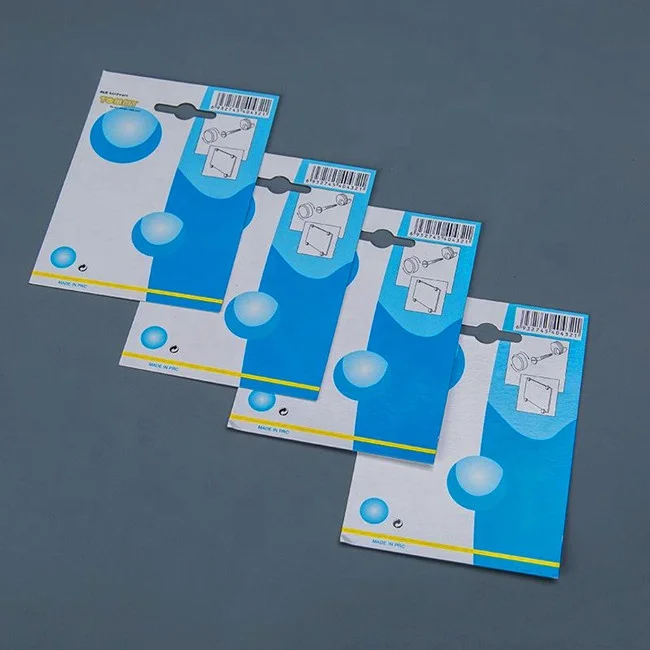

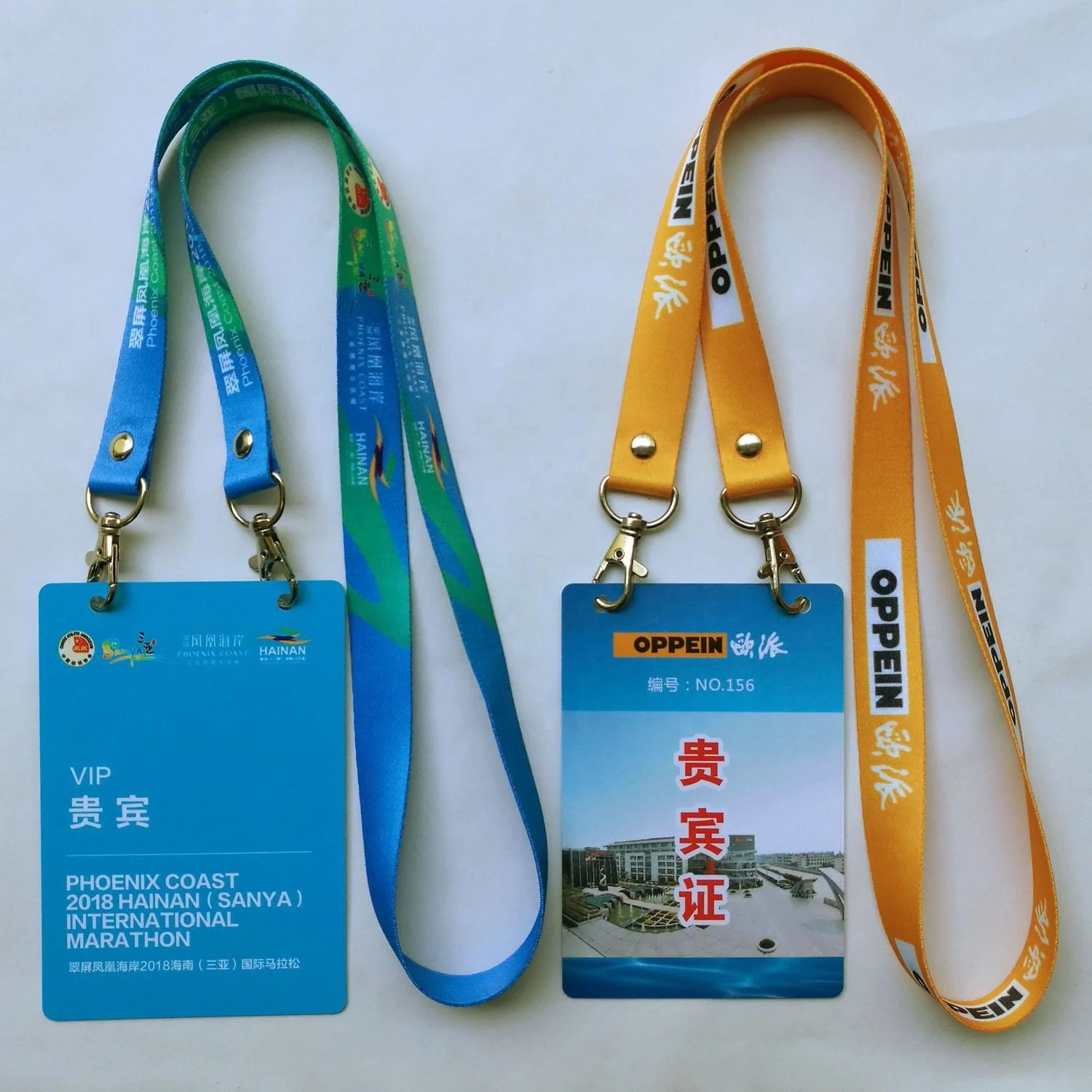

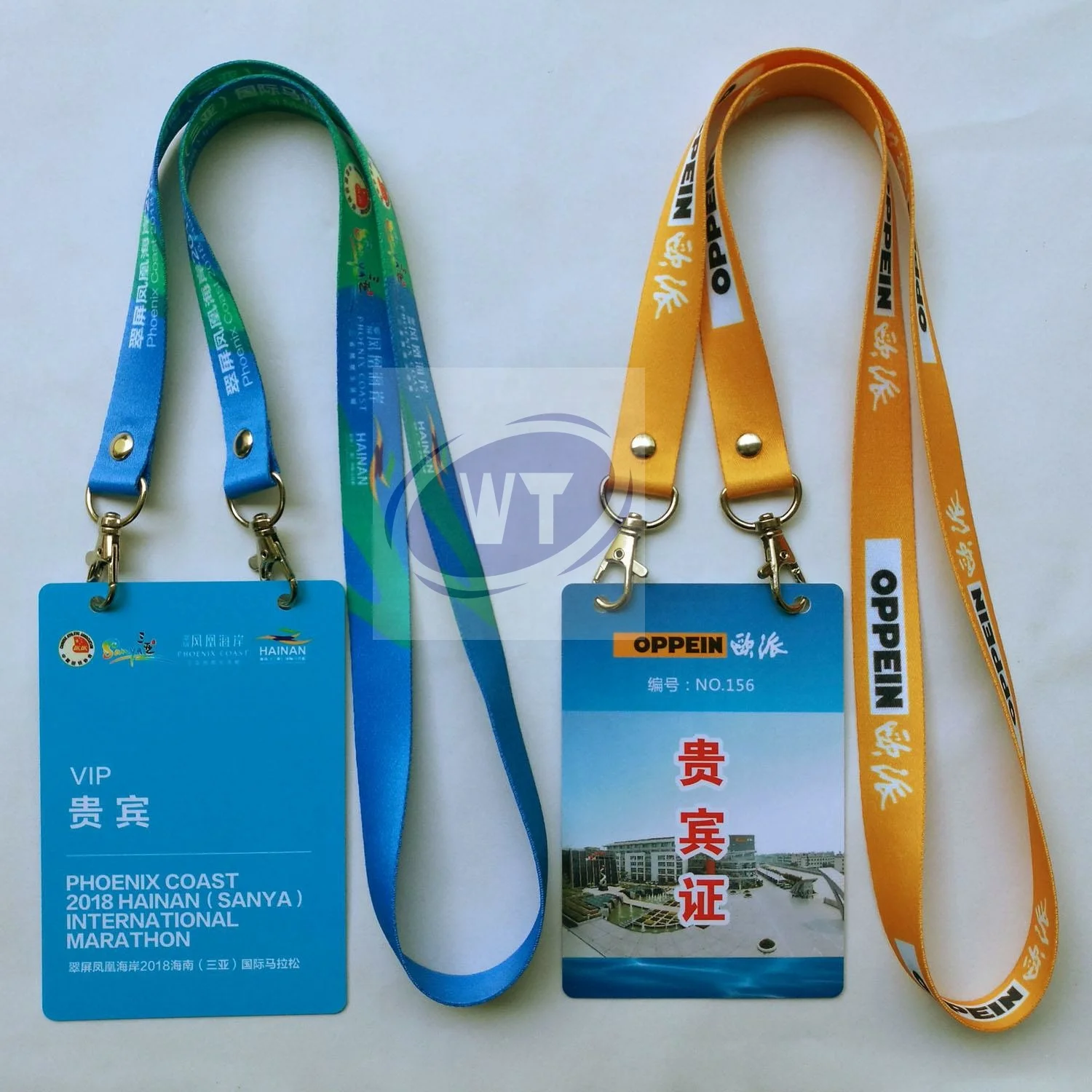

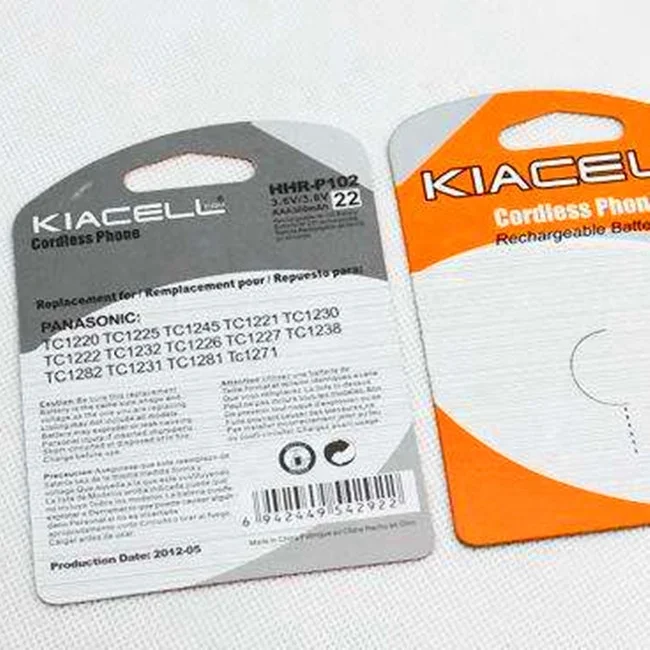

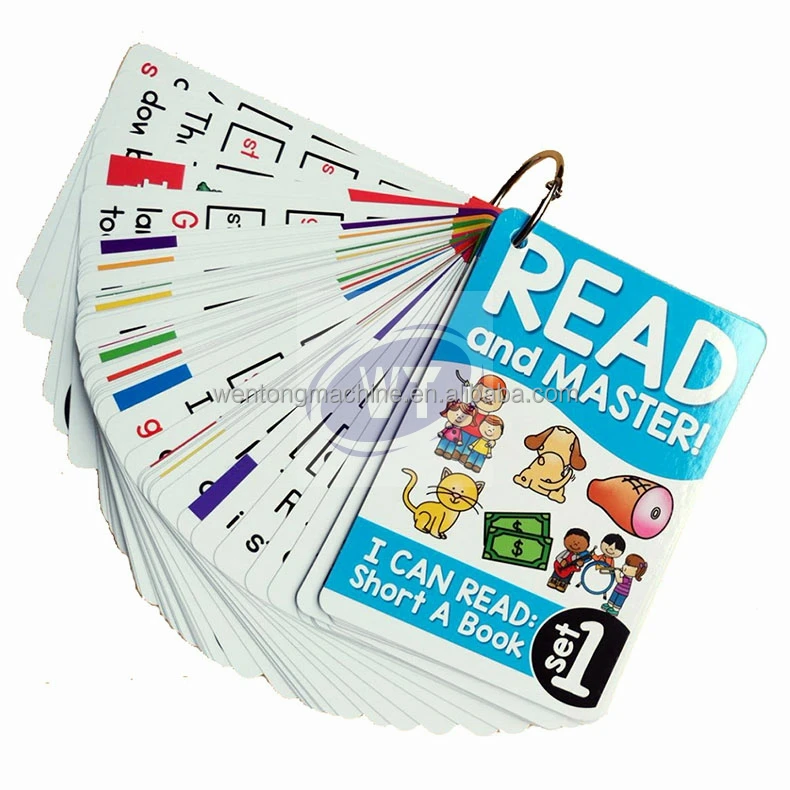

Finished Cards Sample




Packing&Shipping








Packaging and shipping methods
1. First wrap the machine with a plastic protective film;
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.

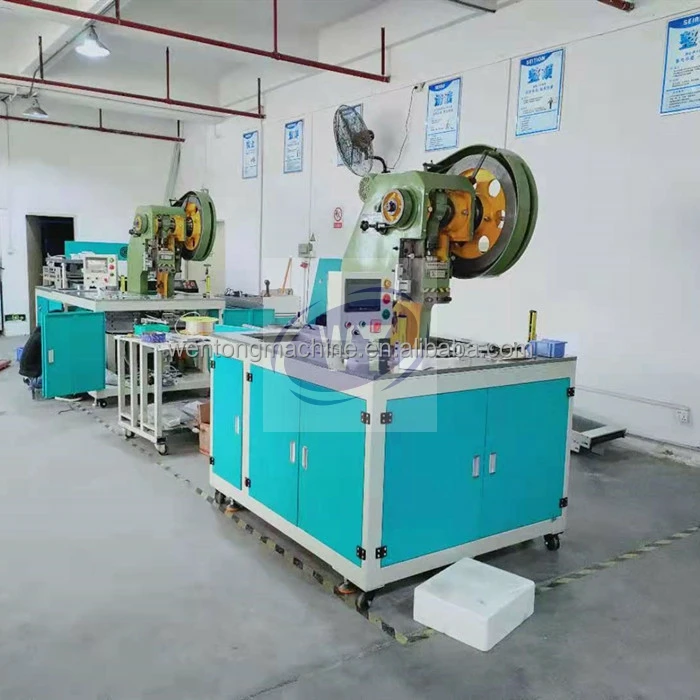

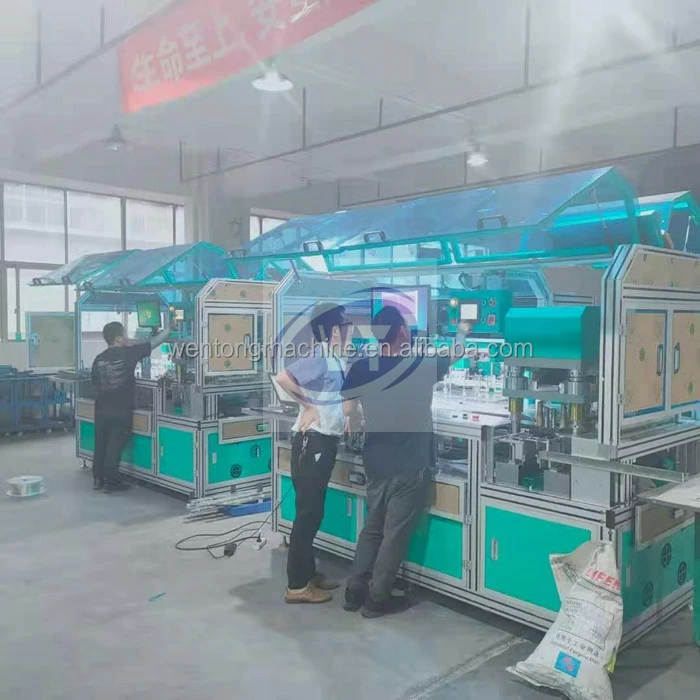

Exhibition

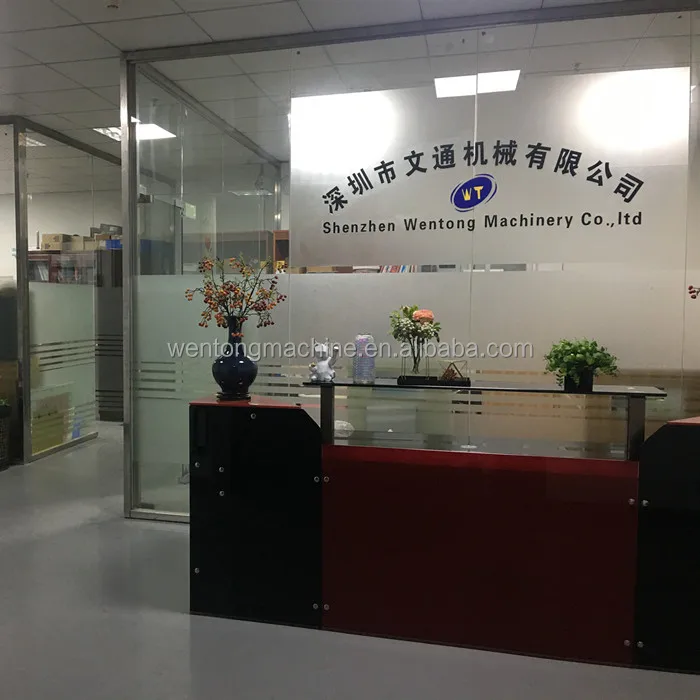

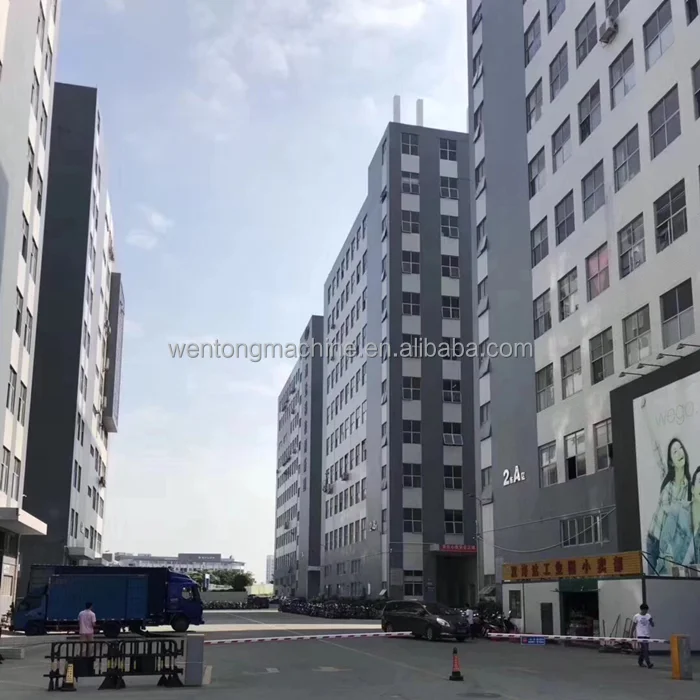

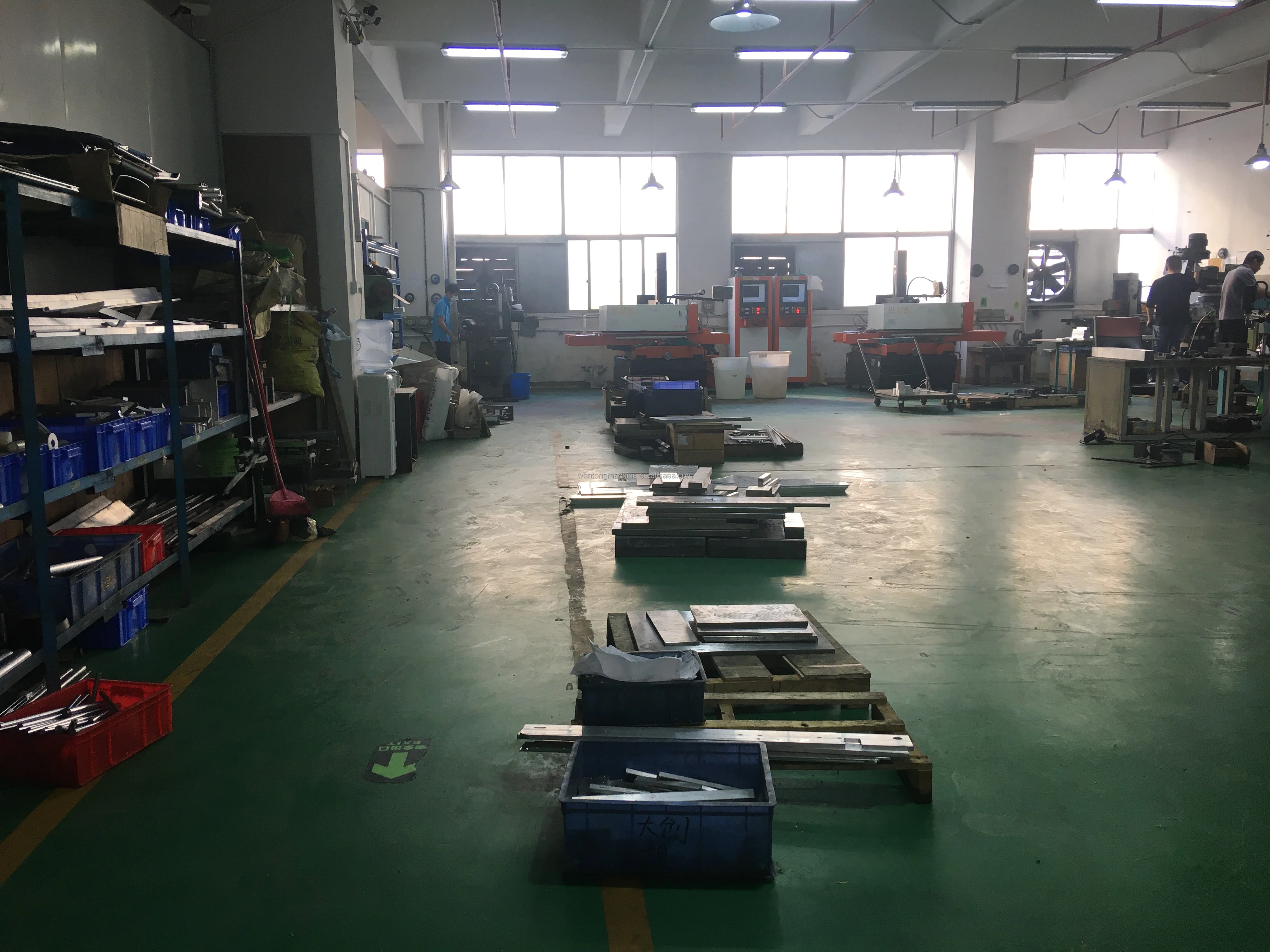

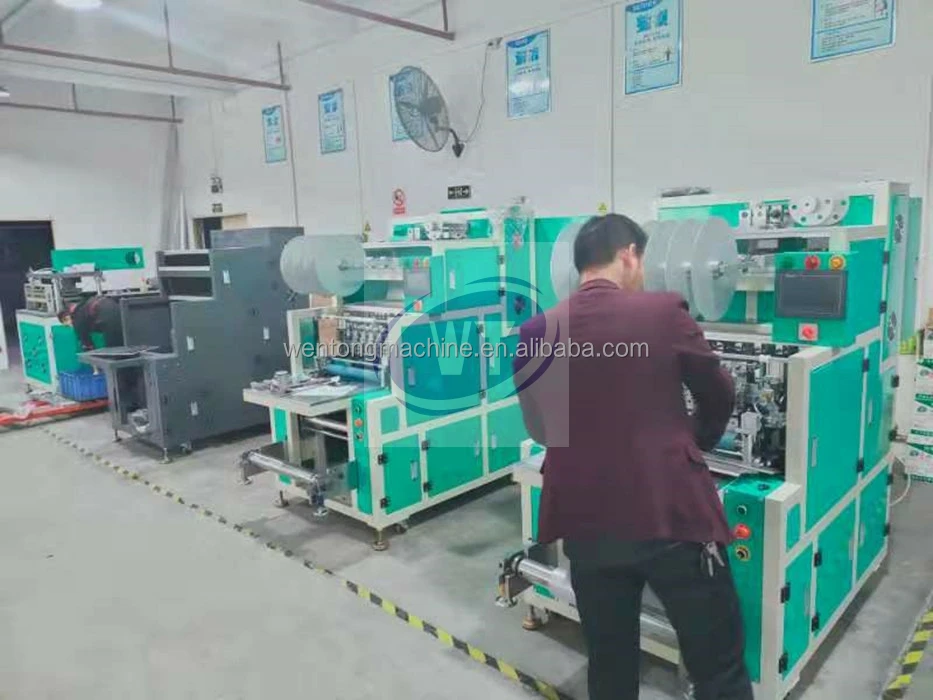

Company Profile


Established in 1996, Wentong has over 20 years of experience in developing and manufacturing of smart card machines and post-press equipment. We have been committed to constantly growing and improving our products and service to meet all our customer’s requirements for production of children’s books, board books, paper cards and plastic cards. Our wide range of products includes die cutting machine, card collating machine, card punching machine, SIM card production machine, board book mounting and gluing machine, automatic packaging machine, ultrasonic welding system, magnetic tape laying machine, sheet cleaning machine, etc. which are widely applied in a variety of industries such as card production, printing & packaging, children’s book, paper products, etc.






FAQ


1.Q: How to order a card punching machine?

A:If you want to order a machine ,You need to provide some of the following information

               1: Maximum and Minimum size of product

2: Thickness and specification of materials

3: The layout of the product


 2.Q: Can you provide on-site installation services for your machine?

A: Yes, we have professional engineers to provide on-site training and commissioning services until you learn how to operate the machine. If you have any questions, we will have a technician to answer your questions.
