12inch Midbass Neodymium Woofer 1400Watt Outdoor Sound System
4 INCH COPPER VOICE COIL
99.8 dB/SPL SENSITIVITY
1400 WATT PROGRAM POWER HANDING
FEM OPTIMIZED MOTOR AND SUSPENSIONS
OPTIMIZED COOLING SYSTEM
DOUBLE SPIDER
RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
IDEAL FOR TWO-WAYS AND LINE ARRAY APPLICATION
GENERAL SPECIFICATIONS

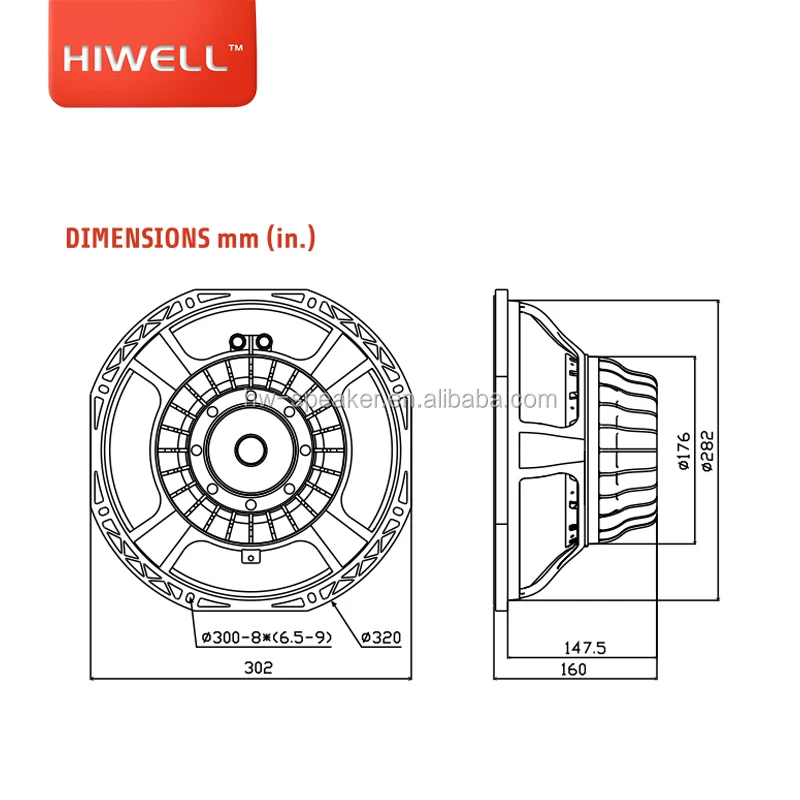

| Nominal diameter | mm (in.) | 320(12) |
| Nominal impedance | Ω | 8 |
| Minimum impedance | Ω | 5.8 |
| Program power (1) | W | 1400 |
| AES Power rating(2) | W | 600 |
| Sensitivity (3) | dB | 99.8 |

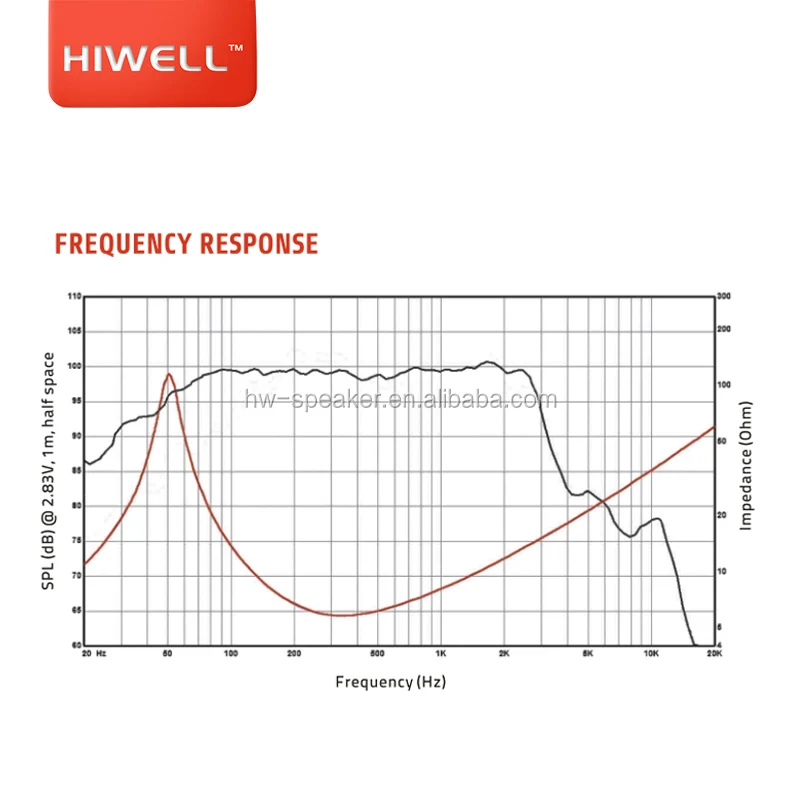

| Frequency range | Hz | 50 ~ 3000 |
| Voice coil diameter | mm (in.) | 100(4) |
| Chassis material | Aluminium | |
| Magnet material | Neodymium | |
| Magnet dimensions (ODxIDxh) | mm | 97 x 25 x 10 |
| Coil material | ALR | |
| Former material | Glass Fiber | |
| Xmax(4) | mm | 6 |
| Xmech(5) | mm | 13 |
| Gap height | mm | 12 x 2 |
| Voice coil Wingding height | mm | 40 |
SMALL SIGNAL PARAMETERS
| DC resistance | Re | Ohm | 5 |
| Resonance frequency | Fs | Hz | 50.7 |
| Moving mass | Mms | g | 61.8 |
| Compliance | Cms | mm/N | 0.15 |
| Force factor | BL | N/A | 23.9 |
| Mechanical Q-factor | Qms | 6.1 | |
| Electrical Q-factor | Qes | 0.25 | |
| Total Q-factor | Qts | 0.24 | |
| Equivalent air volume | Vas | I | 73.8 |
| Voice coil Inductance | Le | mH | 1.5 |
| Diaphragm area | Sd | cm² | 572 |
| Reference efficiency | Eta 0 | % | 3.6 |
SHIPPING INFORMATION
| Net weight | Kg | 3.8 |
| Multipack size (1) (W x D x H) | mm | 320x320x190 |
| Multipack weight | Kg | 4.3 |



1. By T/T or Western Union
2. T/T 30% deposit, T/T balance before delivery
1. Packaging: Export Carton box
2. Shipping method:
Sample order by express
Produciton order by sea

1.Great CUSTOMER SERVICE and COMMUNICATIONS
2.Fair price & durable quality we provide
3.More than 15 years' R&D team experience

Q: How to order?
Please send us your purchase order by mail or fax with below information:
1) Product information:Quantitiy,Model number,Specification.
2) Delivery time required.
3) Shipping information:Company name,Address,Phone number,Destination:seaport/airport.
4) Forwarder's contact details if you have.
1) Details of the products are needed for quotation.
2)we provide Proforma Invoice to arrange payment for sample order
3) For bulk production, we will arrange production at once after we get 30% deposit.
4) We will send photos of all goods,packing,details,and B/L copy for client when goods finished.We will
arrange shipment and provide original B/L after balance.
