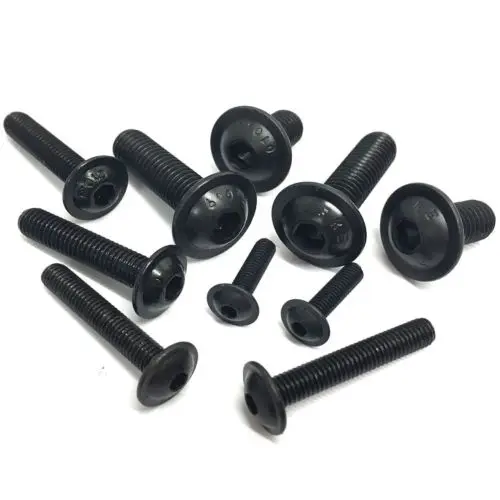

4mm Socket Flange Button Head Bolts Hex Socket Hexagon Screws 10.9 High Tensile Black Allen Bolts M4 M5 M6 M8 GB7380.2

Product Overview

Description

M4 M5 M6 M8 Socket Flange Button Head Screws

10.9 Grade High Tensile Steel



Product Name	4mm Socket Flange Button Head Bolts Hex Socket Hexagon Screws 10.9 High Tensile Black Allen Bolts M4 M5 M6 M8  GB7380.2
Material	stainless steel
Color	white
Standard	DIN GB ISO JIS BA ANSI
Grade	10.9
Thread	coarse, fine
Used	building industry machinery

**Please note the image is for illustrative purposes only**

Description

This listing is for Socket Flange Button Head Screws in sizes of Metric Coarse Thread M4, M5, M6, and M8 in 10.9 Grade High Tensile Steel. These are an ISO 7380-2. There are various Thread Diameters, Lengths and Pack Sizes available, please choose using the drop down menus. The length of the socket flange button head screw is measured excluding the head to the end of the thread. Further details are as follows:



M4

Thread Size - M4 (4mm)

Thread Pitch - 0.7mm

Head Depth including Flange - 2.2mm

Flange Diameter - 9.4mm

M5

Thread Size - M5 (5mm)

Thread Pitch - 0.8mm

Head Depth including Flange - 2.75mm

Flange Diameter - 11.8mm

M6

Thread Size - M6 (6mm)

Thread Pitch - 1.0mm

Head Depth including Flange - 3.3mm

Flange Diameter - 13.6mm

M8

Thread Size - M8 (8mm)

Thread Pitch - 1.25mm

Head Depth including Flange - 4.4mm

Flange Diameter - 17.8mm
