Electro Synchronized Advanced Delem DA66t Controlled Hydraulic CNC Press Brake with 5 Axis
- Category: >>>
- Supplier: Jiangsu Hairui CNC Machine Tool Co. Ltd.
Share on (62313485025):
Product Overview
Description
Product Description
1--PR Series machines redesigned based on users preferences to become a unique machine with its individual electronic and Mechanical features.
2--PR Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level
3--With its user friendly CNC controller and low cost hydraulic maintenance.
4--New PR is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are Paramount.
5--High quality and repetitive bending is obtained by using synchronized cylinders and valves.
6--Automatic utilization of all axes on startup.
7--Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.
8--Well-known top and bottom tool brands are long lasting hardened and provide precise bending.
9--All machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest Technology.
Model | PR100-32 |
Nominal Pressure | 1000KN |
Length of Worktable | 3200MM |
Capacity | 4mm*3200mm Steel Plate |
Accuracy | 0.05mm |
Size(L*W*H) | 3200mm*1750mm*2530mm |
For more models, please refer to the table below:
The machine has been shakedown test in the factory, after the machine arrives at the customer's factory. Only need to add 46 # hydraulic oil, and after electrification, do a simple test, it can work. Along with the machine are operating system instructions and machine instructions, installation video, operation video and so on.
Description of application effect
PR Series CNC press brake machine is suitable for various fields of sheet metal processing. Different molds can be selected. Through programming in the operating system, various shapes of product bending can be realized.
Detailed Images
Four-level Stop Finger
The Four-level stop finger refers to the more extensive use,
Using 2, 3, 4-level stoppers refers can play a supporting role in thin sheet metal workpiece.
Solid Backguage
The use of HIWIN precision linear guideway, exquisite encirclement, can effectively avoid damage to the equipment

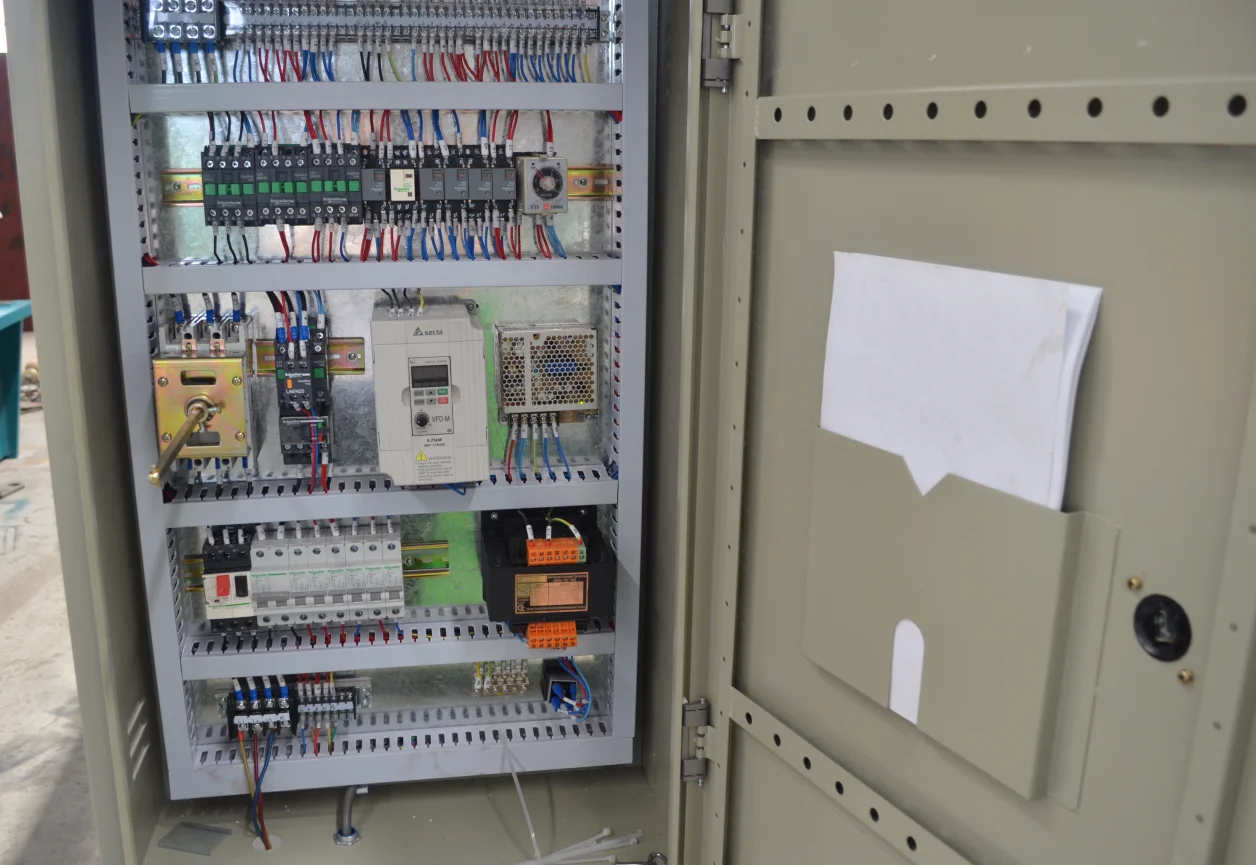

The distribution box has scientific design and radiator. With grounding protection. Schneider Electric. Safety and efficiency

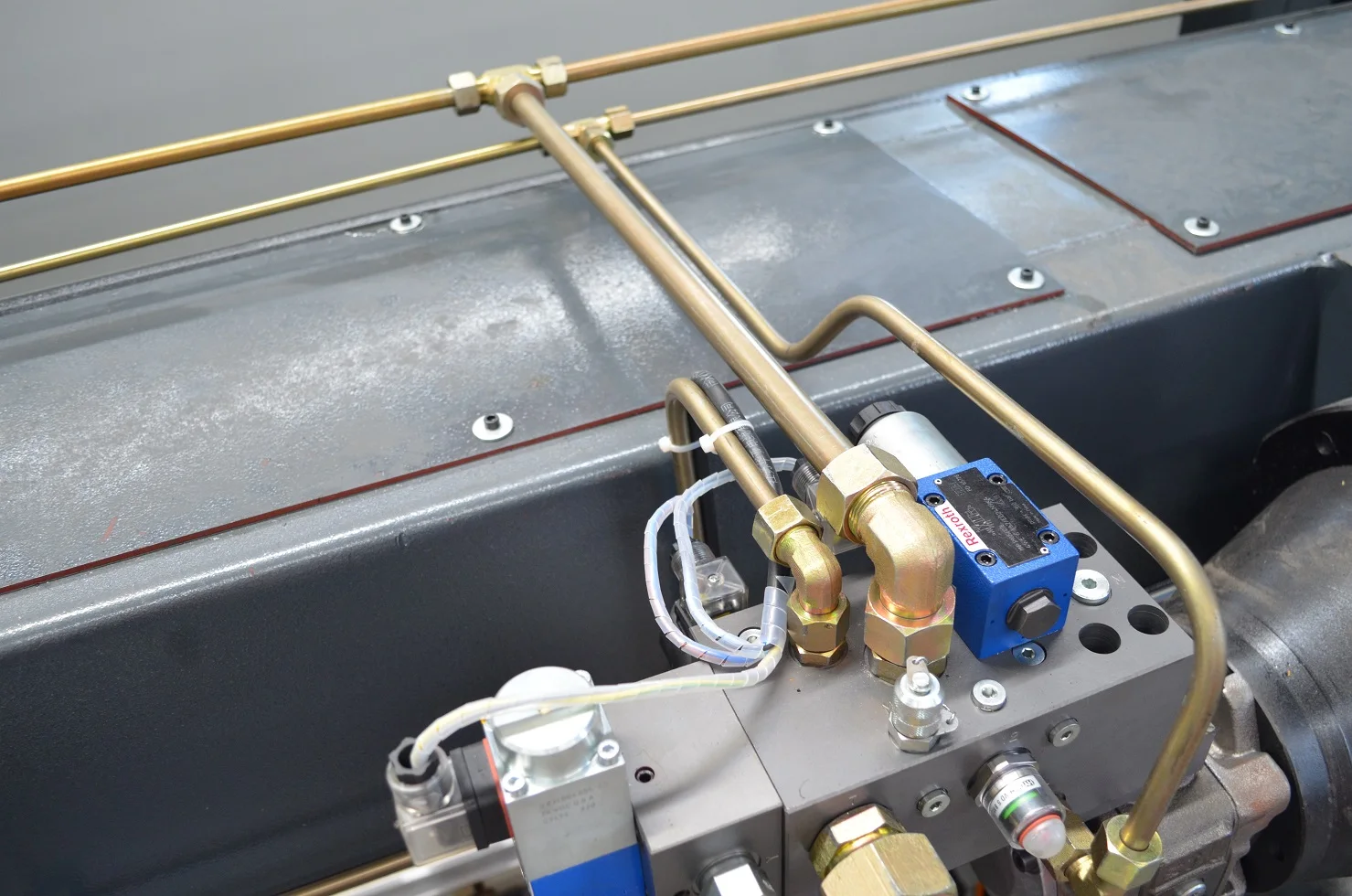

The high pressure tubing adopts a number of fixing devices. It has strong impact resistance. Effectively ensure the safety of oil roads.
Main Motor From Siemens

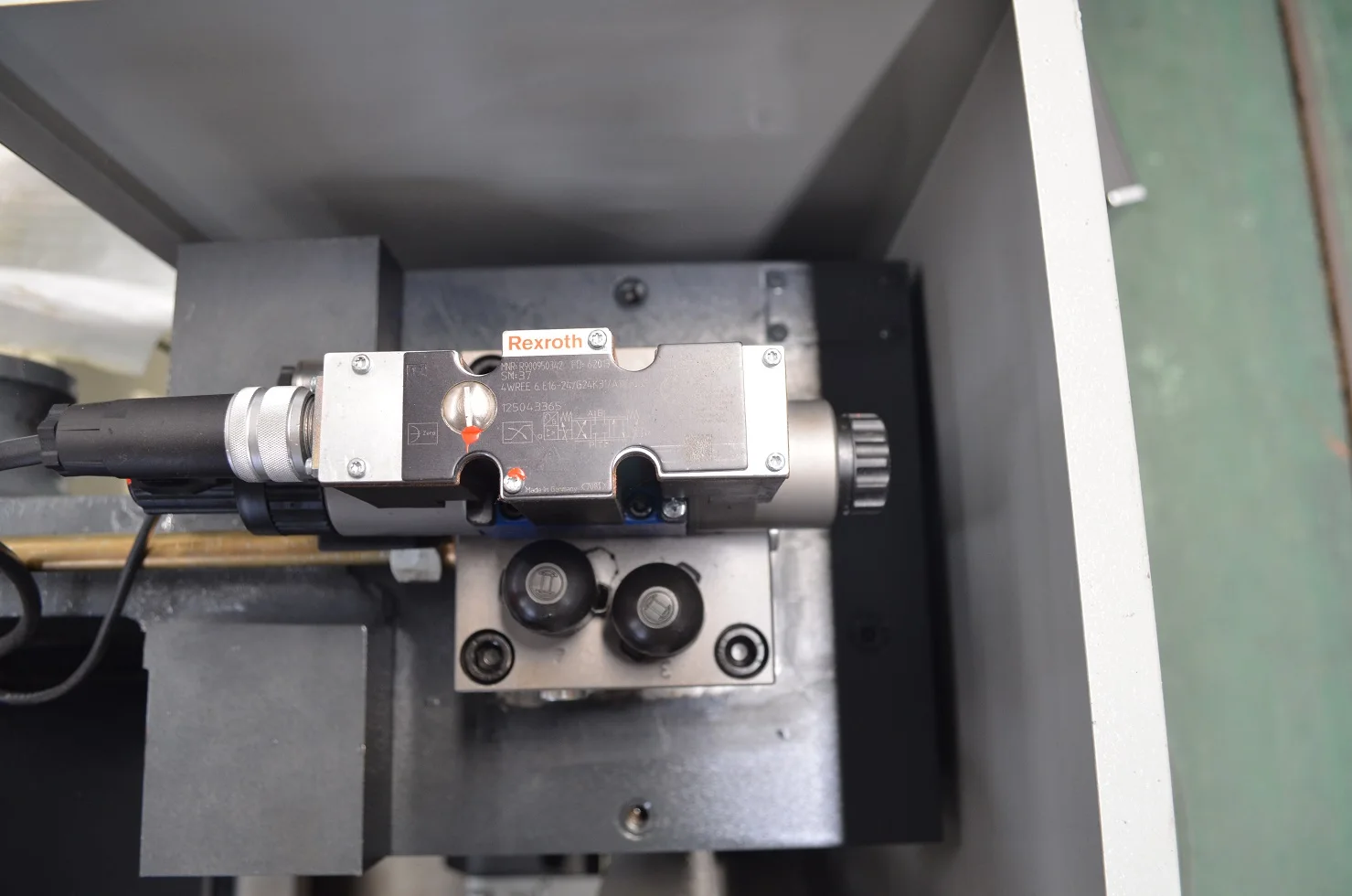

Hydraulic Valve from RexRoth
Servo proportional valve from RexRoth
Hydraulic Oil Pump from SUNNY
Grating ruler from Italy GIVI
Linear guider from HIWIN

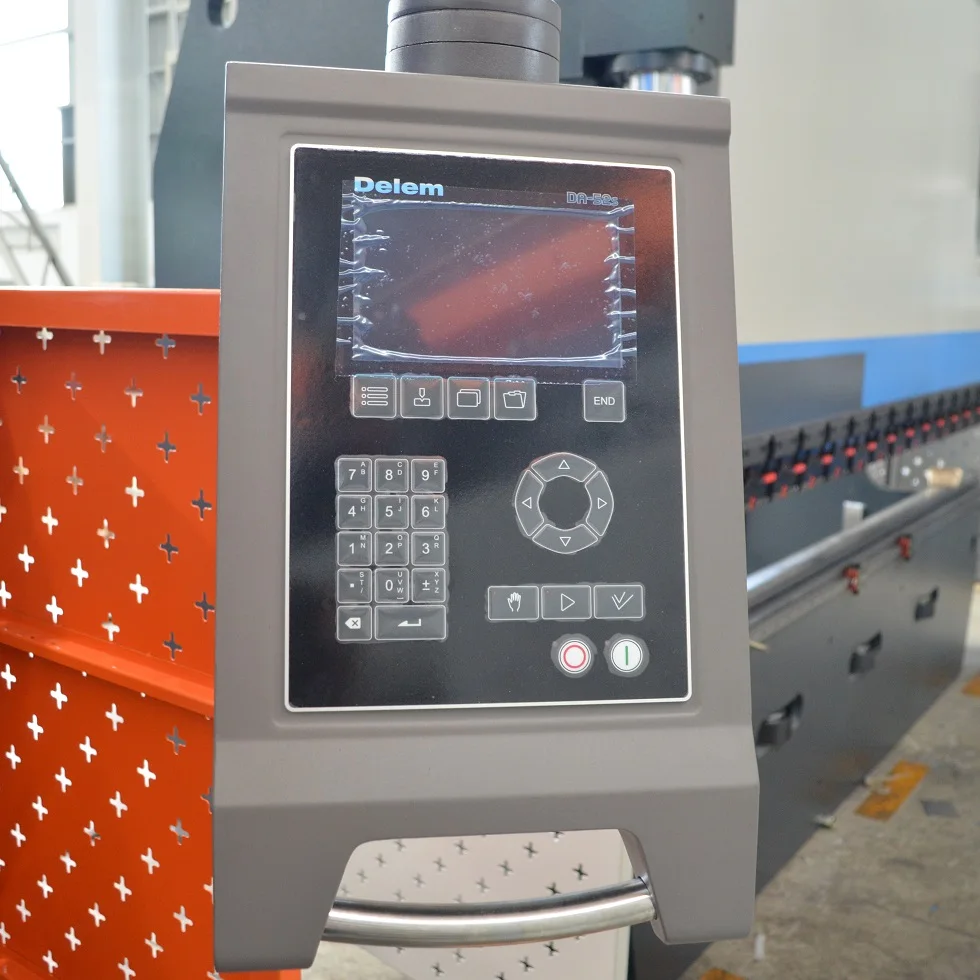

There are many Controllers from DELEM Company.
Packing&Shipping
Before the machine is shipped, the mould will be coated with antirust oil. Special and effective packing. The machine is transported by standard container, and the common ones are 40 OT / 20 OT / 40 HQ / 40 GP / 20 GP. Inside the container, there will be more wire rope and multiple angle fixing machines.
We will also make videos to let you know how the equipment is loaded into the container.
After Sales Service
SIX After-sale protection
1--Provide detailed operation and installation files and videos with the machine.
2--Free training for customers in the factory.
3--Engineers and sales consultants 24 hours online video with you, troubleshooting machine.
4-- Replace the problem accessories for you free of charge during the warranty period.
5-- The dealer goes to repair .
6-- The engineer goes to serve.
Accessory as follows:
Description | Qty |
Standard upper and lower mold | 1 |
Circuit diagram | 1 |
Operation manual | 1 |
hydraulic action sheet | 1 |
Valve block outline drawing | 1 |
Certificate of Compliance | 1 |
Grease gun | 1 |
hexagonal wrench | 1 |
Oil gun | 1 |
Anchor bolt | 1 |
Transaction security
We can guarantee the quality and the safety of the goods in the following ways:
1--The order is traded through Ali Trade Assurance.
2--Ask the authority to organize the inspection of the goods.
3--Come to the factory to inspect the goods, we will provide you with VIP reception.
Company Introduction
Jiang su Hairui CNC machine Tool Co.,Ltd ,is a mordern enterprise ,No adjustable plate shears blade clearance ,manufacturing ,sales and service of CNC shearing machines ,CNC hydraulic return Guillotine shear ,CNC press brake ,cnc Electro-hydraulic press brake ,Full CNC V grooving machine ,Hydraulic Angle Notching machine.
Our company has a group of knowledgeable and professional ,young team workers who are committed to cutting ,bending area development ,With three dimensional CAD,CAPP ,PDM .and other design software ,we can meet special order requirments of customers and provide an optimum plan for every customer.
Our company advocates"leading technology ,quality first ,honesty ,pragmatic and innovative"business philosophy .we had implemented ISO9001:2008 international quality system standards fully and manufactured our machine in strict accordance with user requirements .national standards and industry standards.We can guarantee the product quality and delivery by ensuring each process and checking every detail in the period.
