15 inch all in one IP65 industrial computer fanless Intel i5 industrial panel pc
- Category: >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62313494912):
Product Overview
Description
15 inch Intel i5 industrial panel pc all-in-one computer
Product Description
Main features:
« 15’’ industrial panel pc with Intel i5 3317U 1.7GHz~2.6Ghz.
« 15’’TFT LCD resistive touch screen , with 1024 x 768 resolution.
« 1*LAN port, 3* RS232 (max up 6x COM ).
« W/ Front meets IP65 rate .
« SSD 32GB, Memory DDR3 2GB ( 4GB/ 8GB optional ).
« Al-frame front panel+metal case with fanless design
« WIFI / 3G / LPT / GPIO / PS/2 /Speaker (optional ).
« W/12V DC input
« Support Win 7 / Win 8 / Win 10 / WES7 / Linux etc.
« Support Embedded and VESA installation etc.
Introduction:
« IPPC-P150-I5 is an industrial panel PC with 15″ high brightness LCD, the latest low-power motherboard, W/ Intel i5 3317U 1.7GHz~2.6Ghz, W/4G memory, 32G SSD, Max up to 256Gb SSD. It comes with 1*LAN, 4* USB 3.0 ports, 3*COM (max up 6x RS232 Optional ), 1*VGA, 1*HDMI, 1*DC power input, Smart fanless-design .
« It has Installation methods: panel type, Embedded , wall-mounted, VESA standard etc. and The product structure is very compact and robust with better vibration and resistance.
« IPPC-P150-I5 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
Specifications:
System | |
CPU | Intel i5 3317U 1.7GHz~2.6Ghz |
Chipset | Intel Ivy Bridge - NM70 Express |
Memory | 1x SODIMM DDR3 1333 / 1600Mhz 2GB / 4GB/ 8GB( optional ) |
Storage | Support 2.5’’ 500GB /1TB, mSATA 32GB/64GB/128GB/256GB |
Watchdog | 0~255 Second programmable |
Display | |
Display type | 15 ″ TFT LCD ( LED backlight ) |
Resolution | 1024 x 768 |
Brightness | 300nits |
View Angle | 85 / 85 / 85 / 85 |
Contrast ratio | 1500 : 1 |
Touch screen | |
Touch type | 5 wires resistive touch screen |
Light transmission | 85% at 550nm wavelength |
Controller | USB interface |
Durability | Great than 100 billions touches in one location without failure |
IO interface | |
I/O | 1x 100/1000Mbps Ethernet controller ( 2x LAN optional ) |
3x RS232 (max up 6x COM optional ) | |
4x USB3.0 | |
1x Line out | |
1x VGA | |
1x HDMI | |
1x 12V power input | |
Expansion function | |
3G / WIFI | Optional |
LPT / GPIO / PS/2 | Optional |
SSD / HDD | Optional |
Memory | Optional |
Speaker | Optional |
Power Supply and Environments | |
Operating Temp | -20℃~70℃ |
Storage Temp | -30℃~70℃ |
Relative humidity | 5~95%@10℃ (Non-condensing) |
Vibration | 5~500Hz,1.5G,0.15mm peak value |
Shock | 10G/peak(11ms) |
Power supply | 12VDC power input |
Power consumption | 30W |
Structure | |
Front material | Al-alloy front panel, Meets IP65 rate |
Case material | High strength metal case, High temp stoving varnish |
Heat scattering | Heat-sink onboard in Al. |
Installation | Embedded and VESA |
Dimension | 368mm ( L) x 303 (W) x 56.2mm (H) |
Case dimension | 505mm ( L) x 400mm (W) x202mm (H) |
Net weight | 4.83Kg |
Gross Weight | 7Kg |

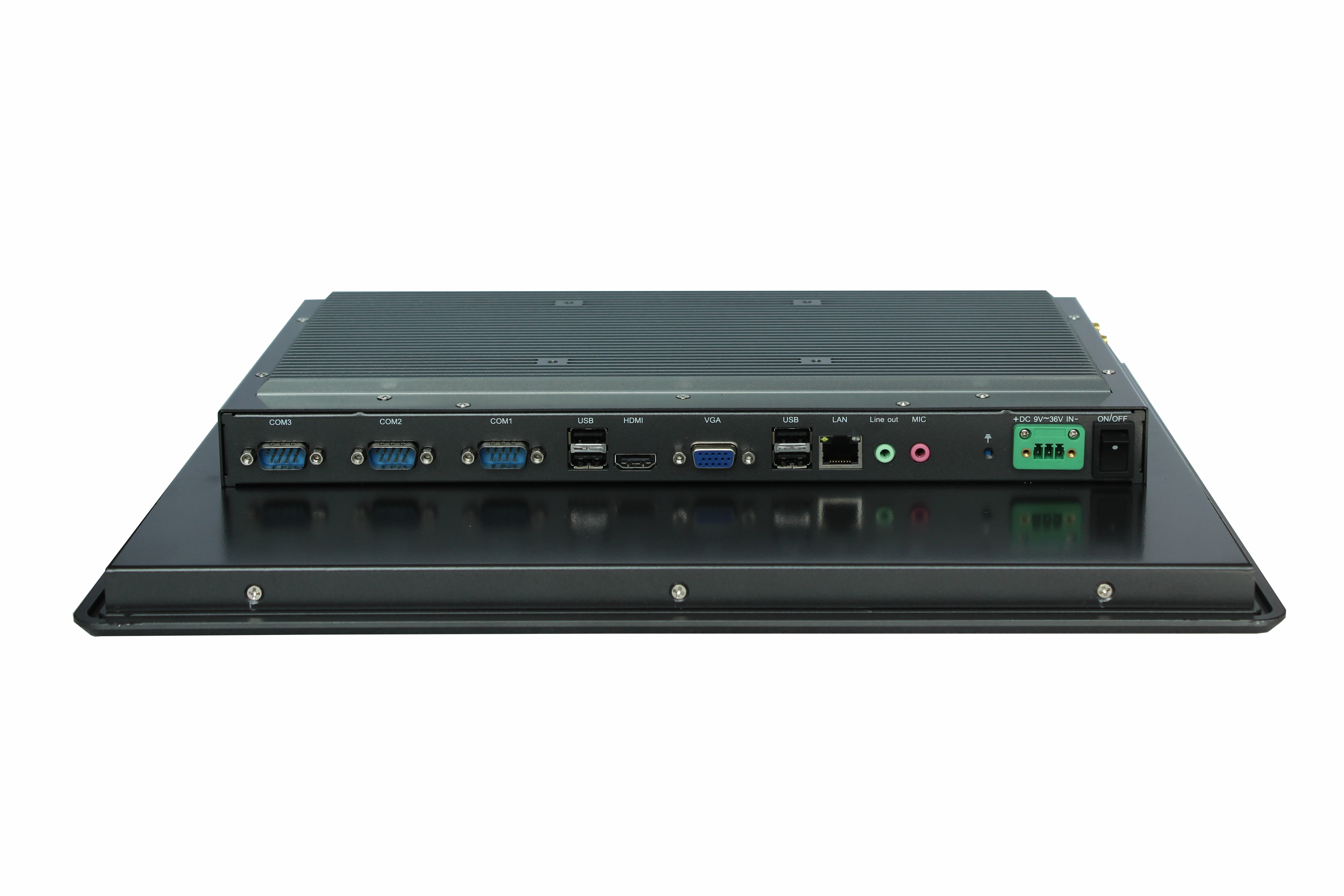

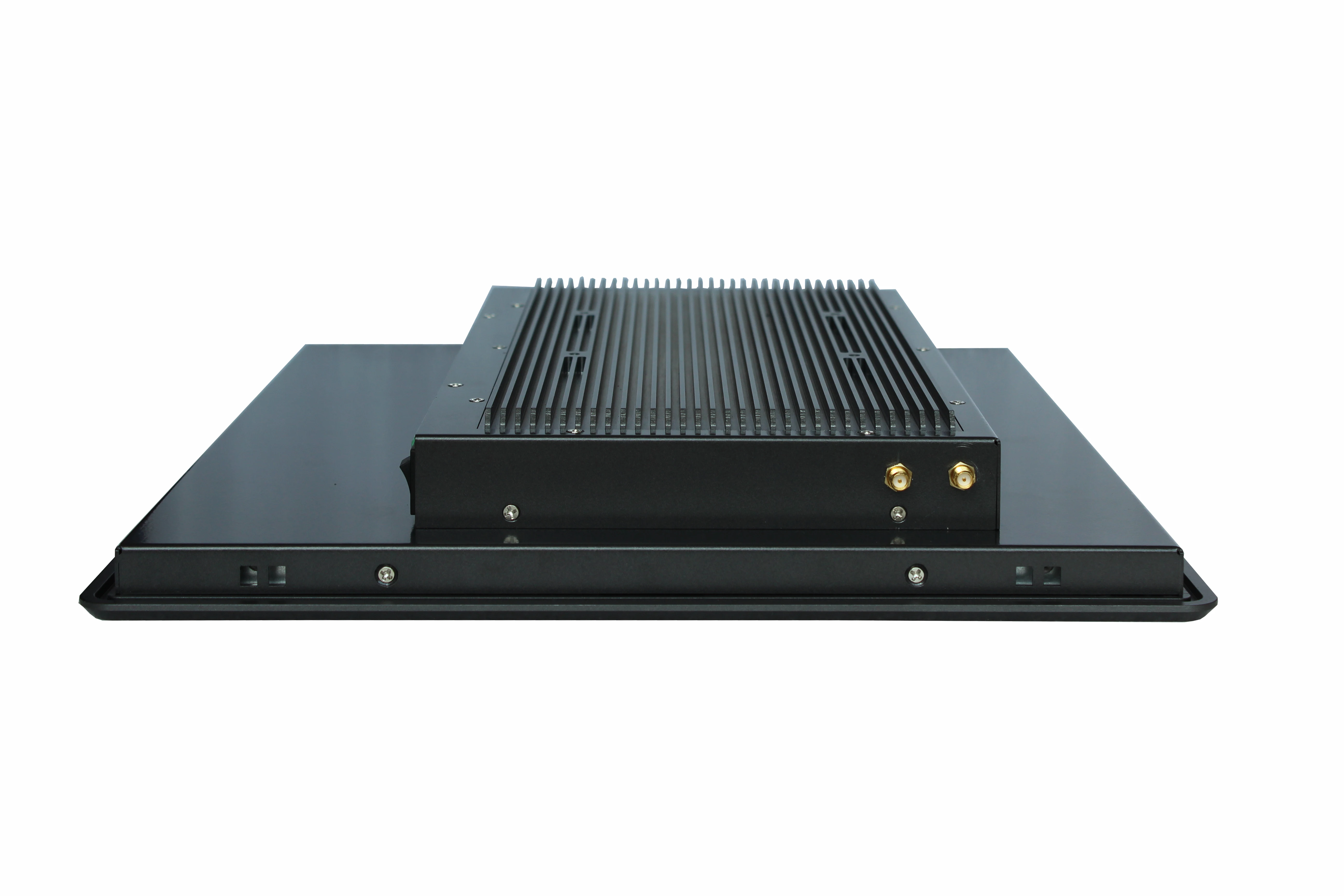

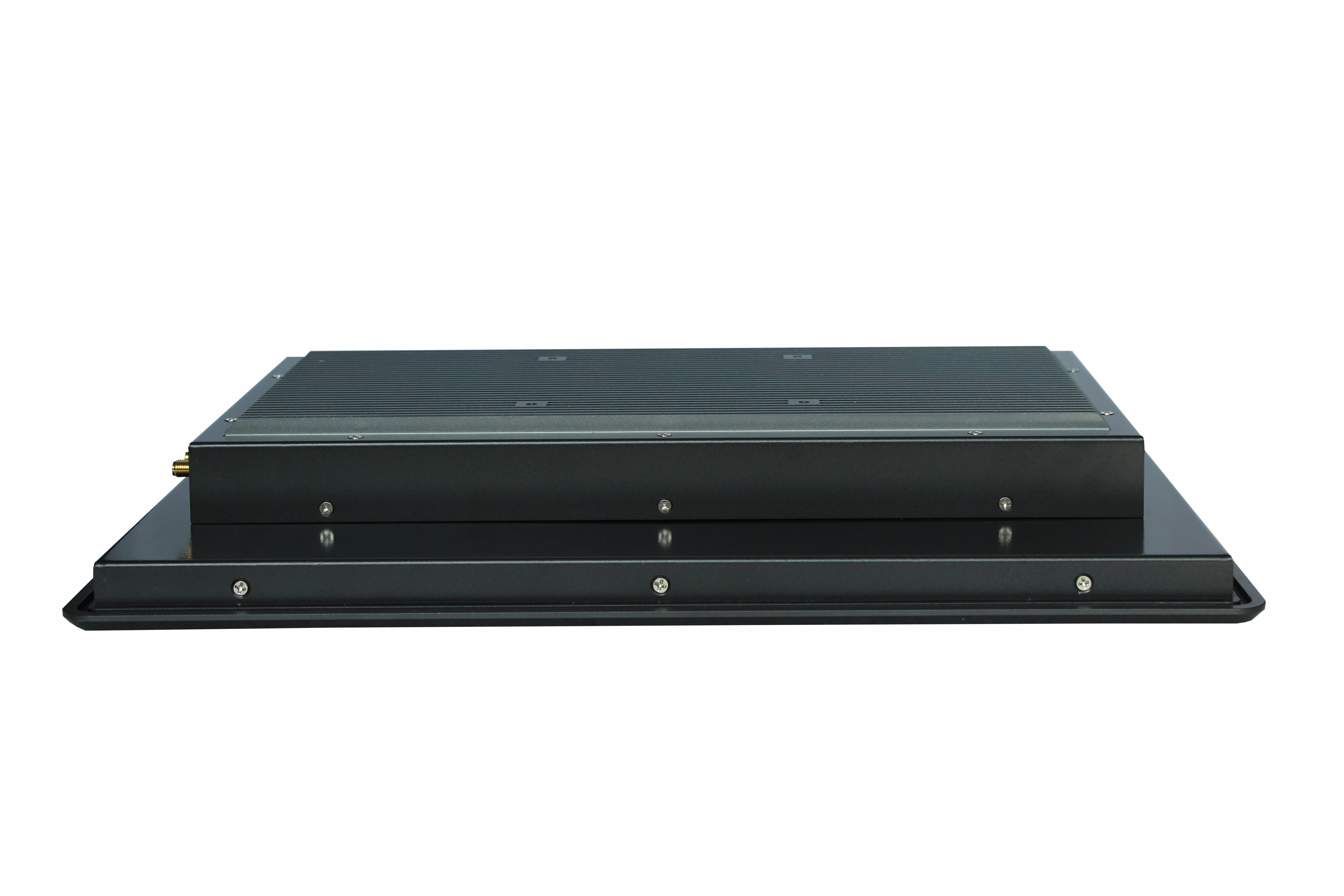

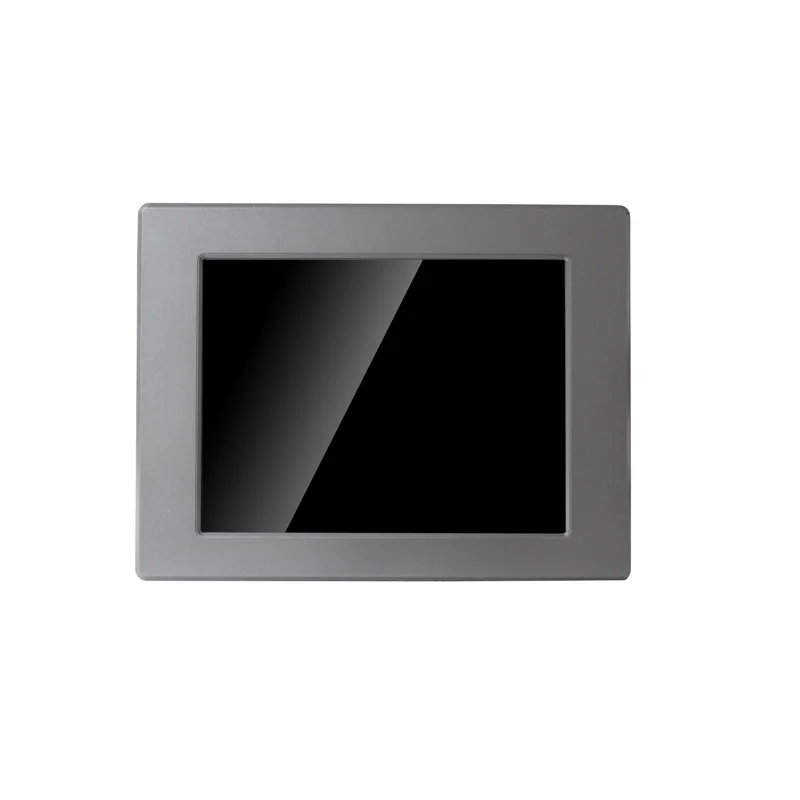

Product pictures:
Ordering information:
IPPC-P150-I5 | 15″Industrial Panel PC,w/CPU: Intel i5 3317U 1.7GHz~2.6Ghz ,W/RAM: 4G, W/SSD:32G,W/9-36VDC power input. |
IPPC-P150T-I5 | 15″Industrial Panel PC,w/CPU: Intel i5 3317U 1.7GHz~2.6Ghz, W/RAM:4G, W/SSD:32G,W/9-36VDC power input, W/W/Touch screen |
