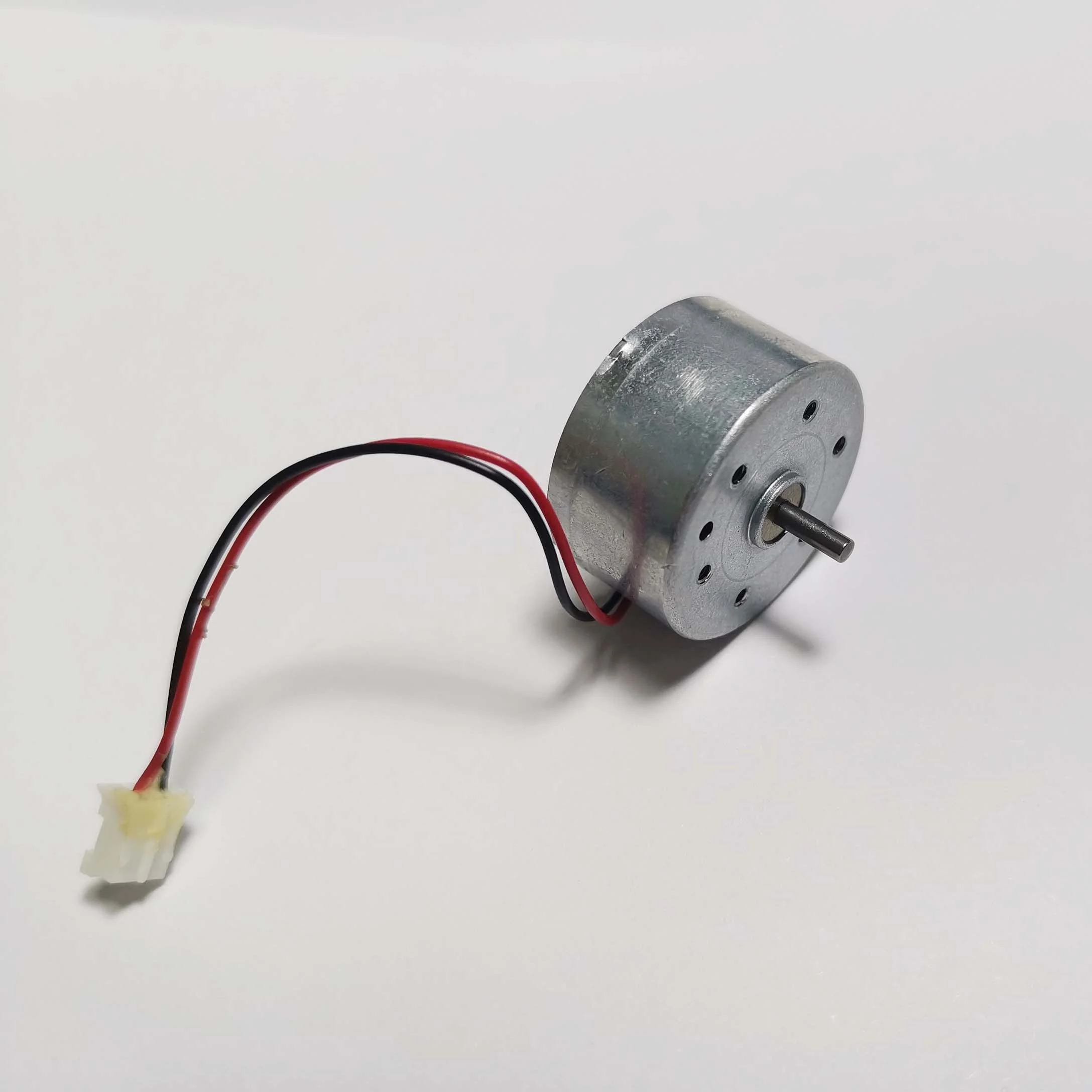

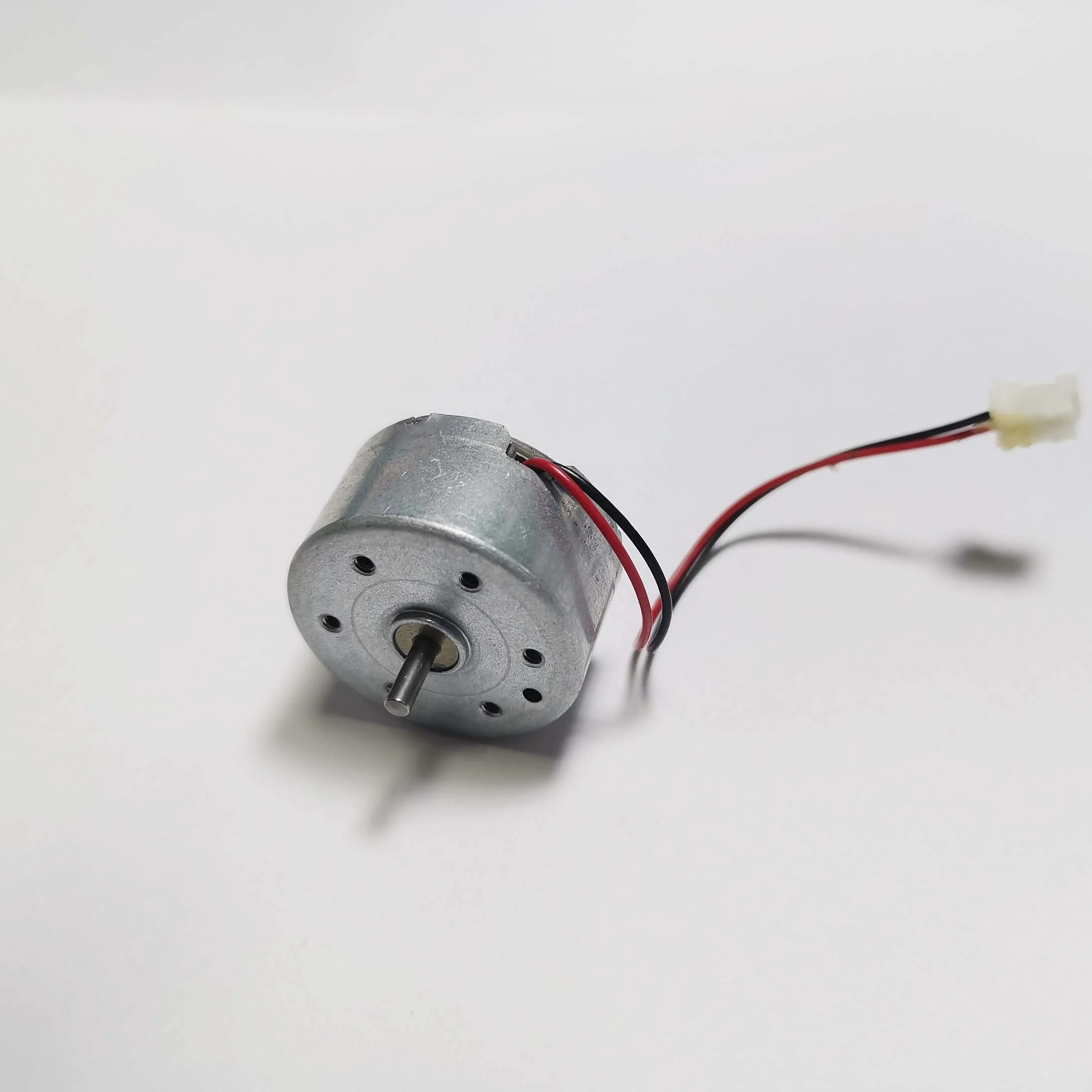

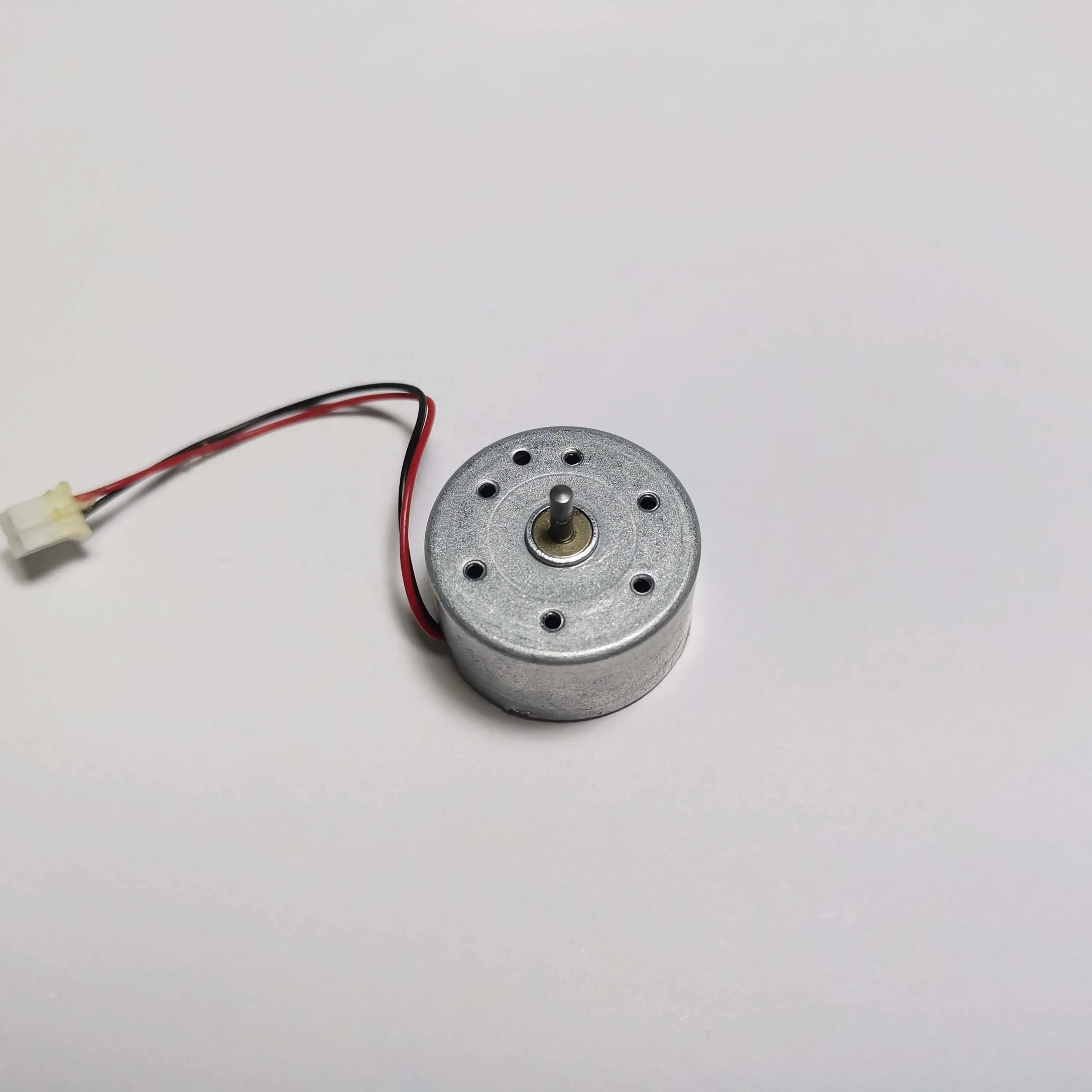

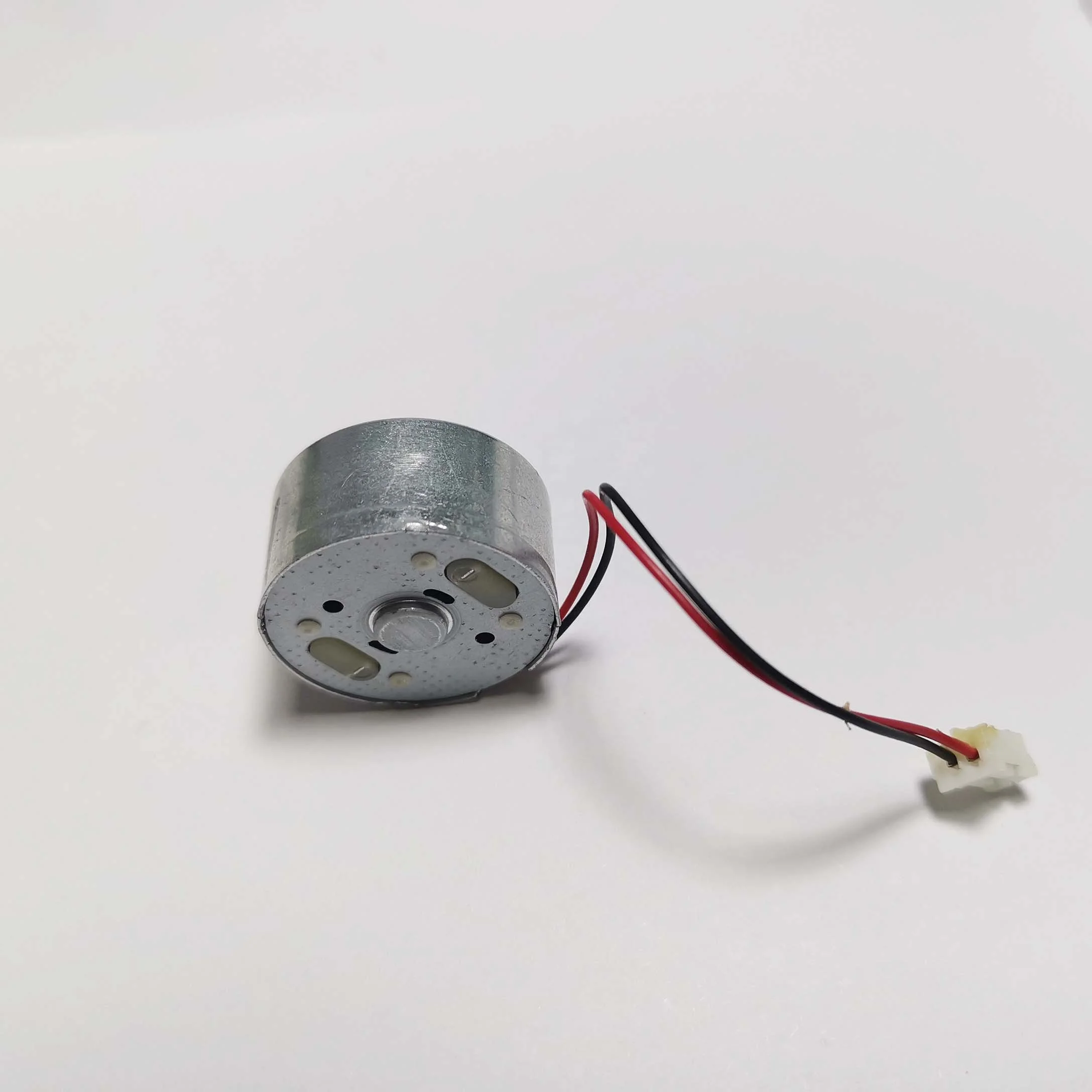

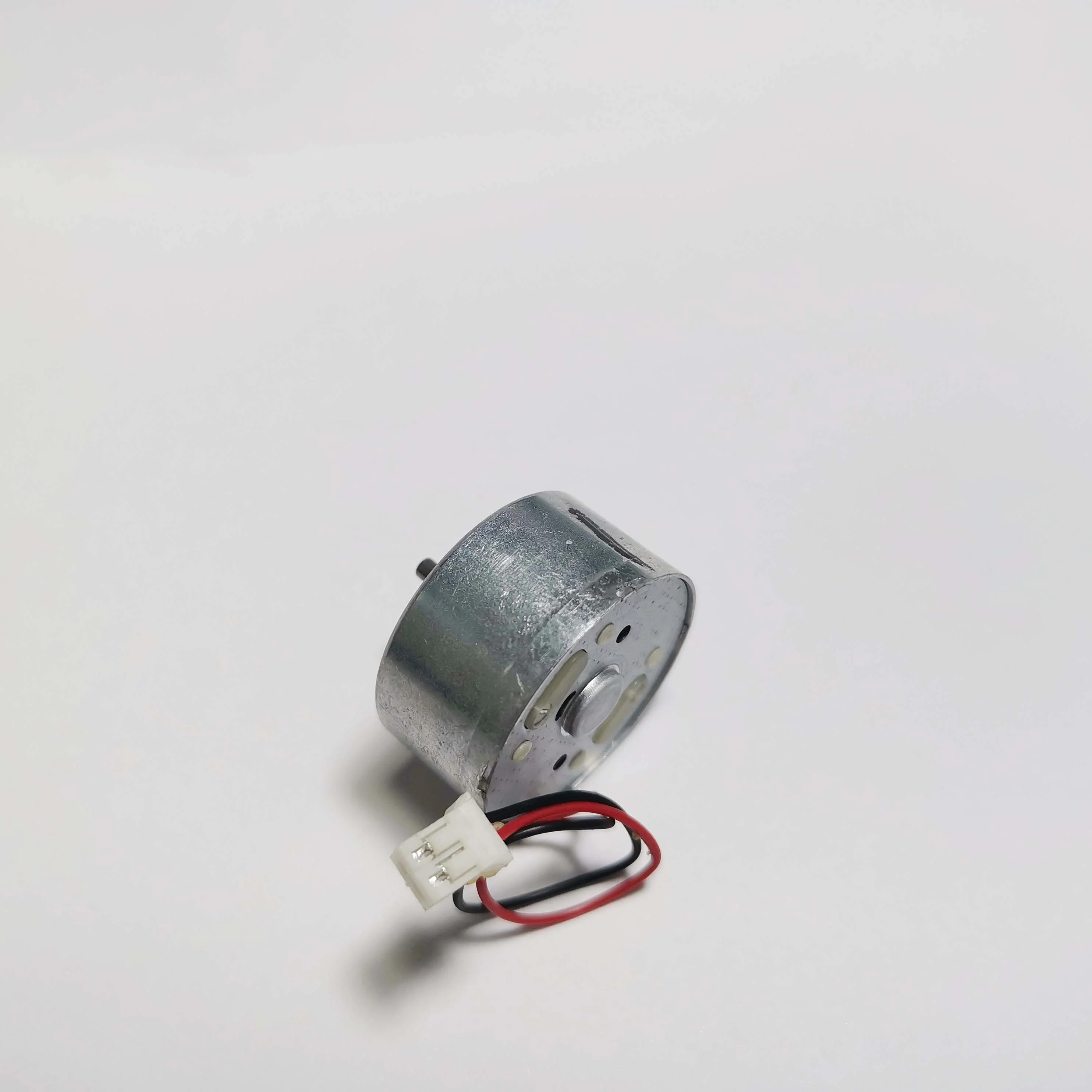

CA300 electrical home fan dc motor 3 volt
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62313542870):
Product Overview
Description
Product Description
Motor characteristic example:
| Model | Voltage | No load | At Mximun Efficiency | Stall | ||||||||
| CA300 | Operating Range | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | ||
| V | rpm | mA | rpm | mA | mN.m | g.cm | W | mN.m | g.cm | A | ||
| 0.7-5.0 | 2.0 | 2200 | 18 | 1660 | 55 | 0.3 | 2.9 | 0.25 | 1.2 | 12 | 0.17 | |
| 1.2-6.0 | 3.0 | 3700 | 28 | 2970 | 73 | 3.8 | 0.1 | 0.12 | 2 | 20 | 0.3 | |
Remarks:Other parameters: according to customer demand for design

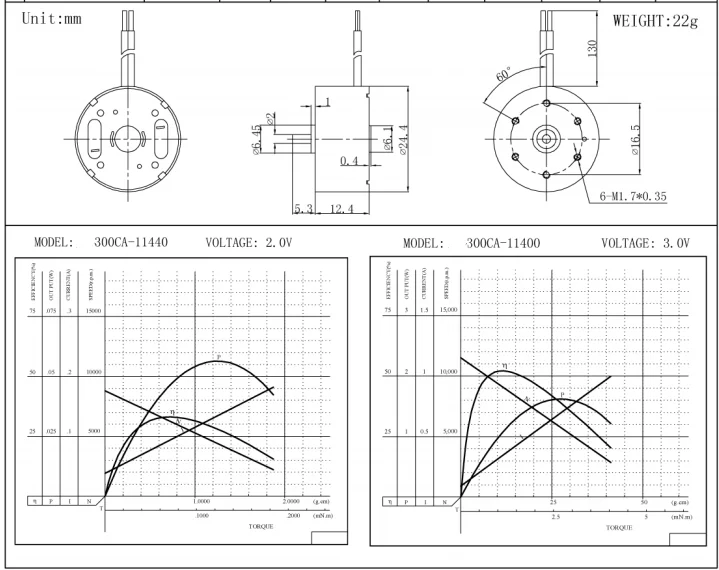

Appearance Size/ Unit: mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
