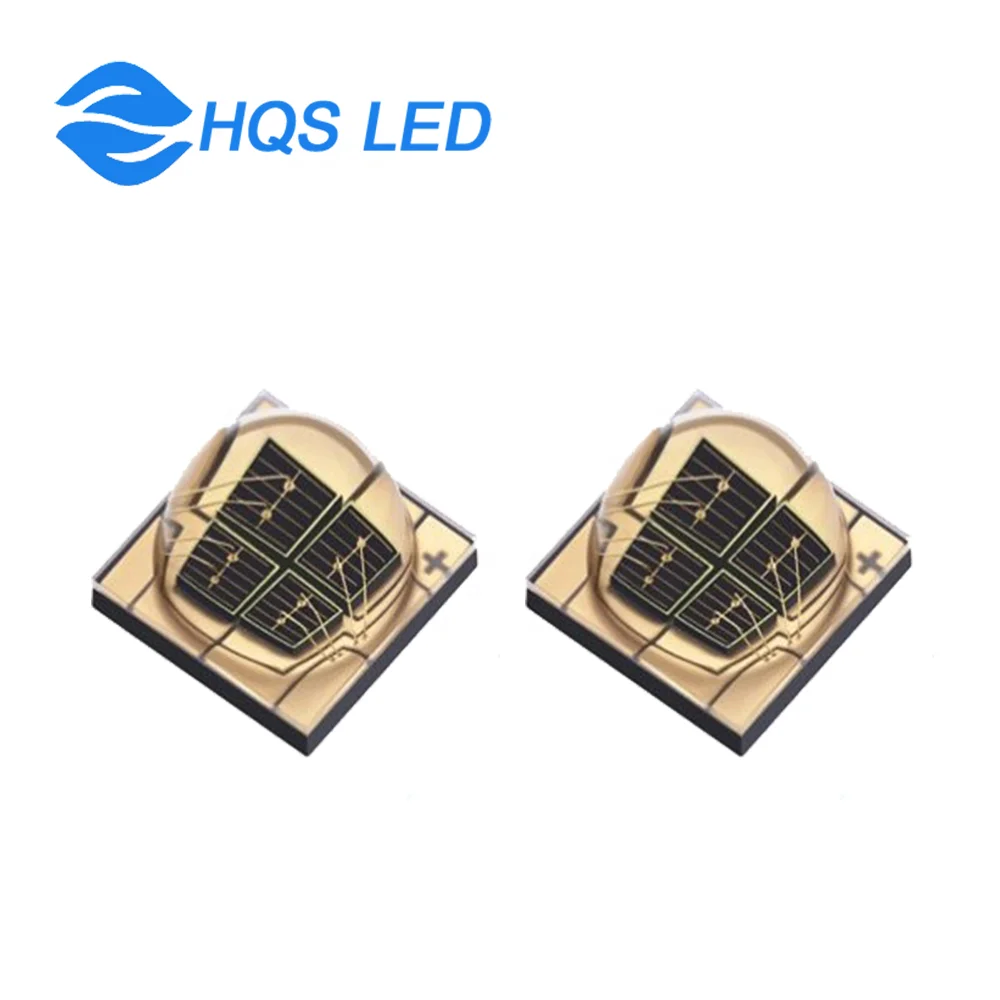

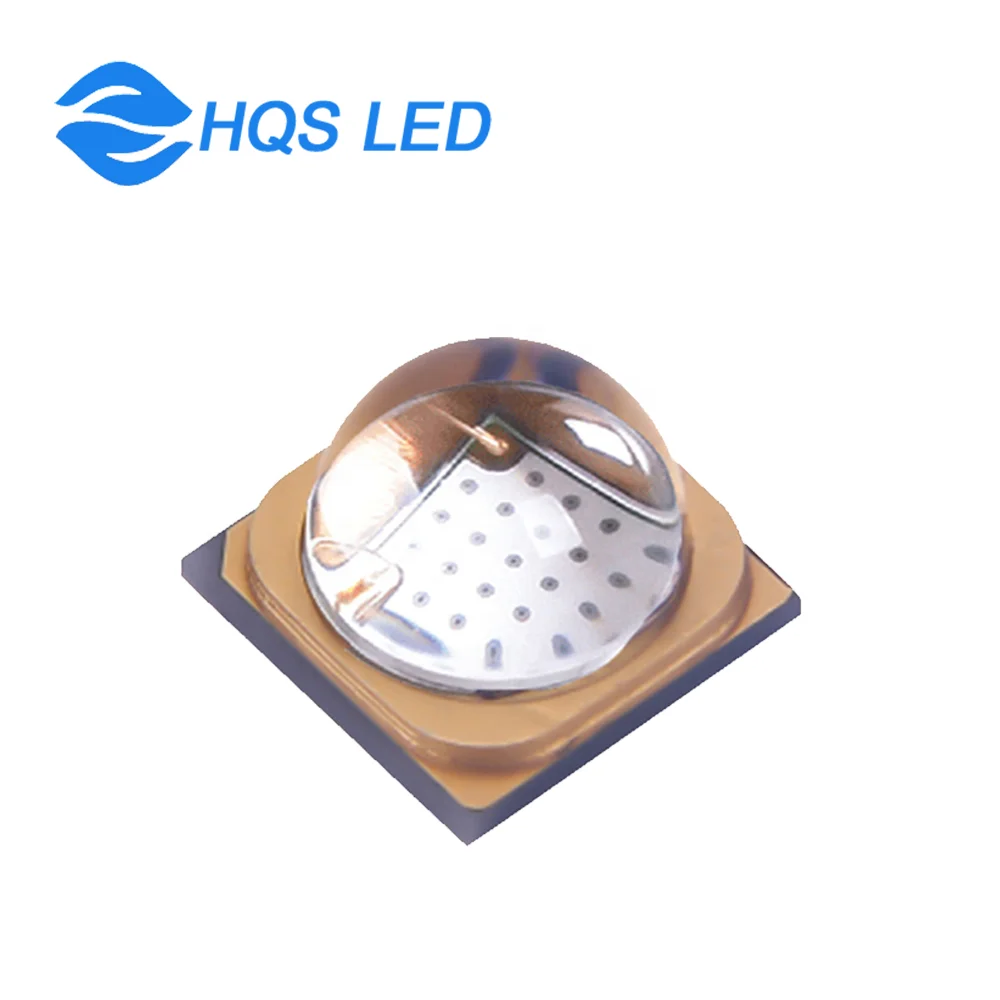

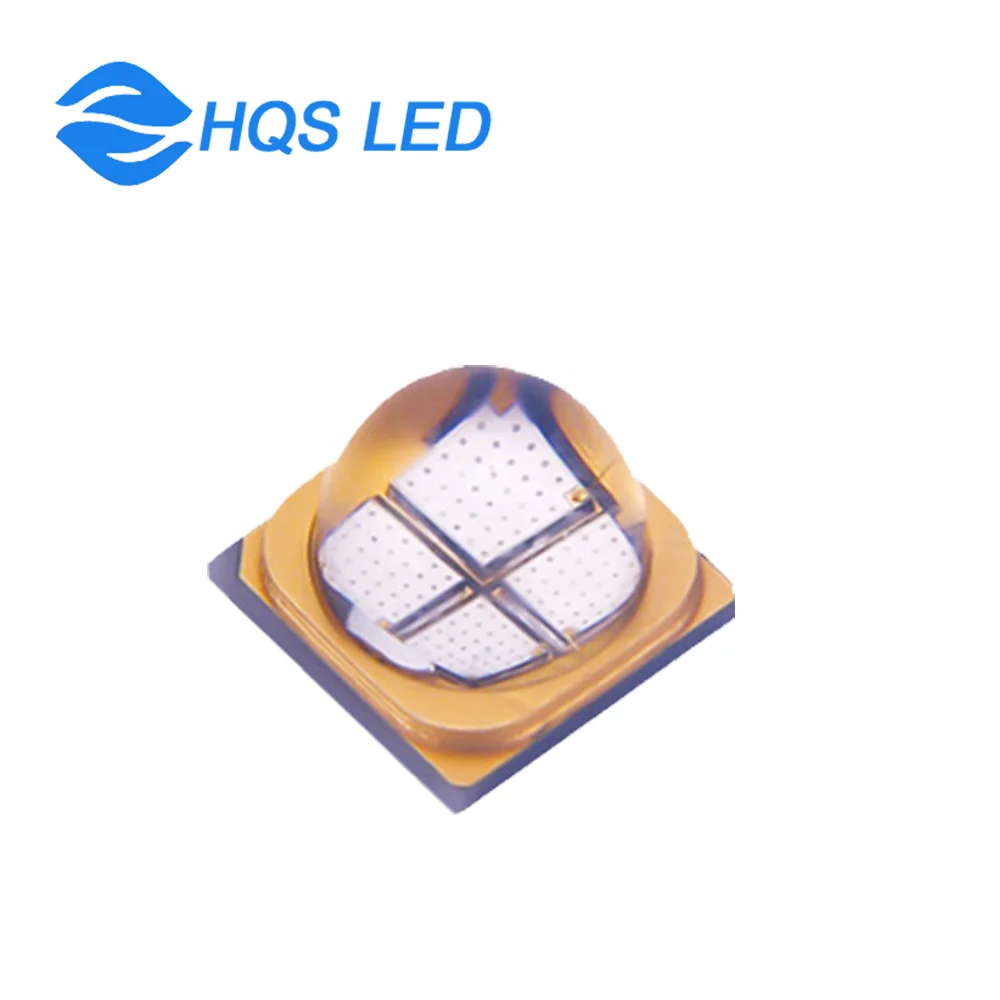

High Power Infrared LED 8W 5050 IR LED SMD 810nm 850nm 940nm

Product Overview

Description

Product Name	8W 5050 IR LED SMD	Product Model	HQS-5050IR1
Power Dissipation	8W	Light Color	Far Infrared Red
Forward Voltage	2.8-3.4V	Viewing Angle	60° /120°
Forward Current	4000mA	Operating Temperature	-40~+60 ℃
Radiant Flux	3000-4000mW	Storage Temperature	-40~+85 ℃
Wavelength	810nm 850nm 940nm	Soldering Temperature	260℃





IR SMD LED SERIES SPECIFICATION
Product Name	Wavelength	Voltage	Current	Radiant Flux	Viewing Angle

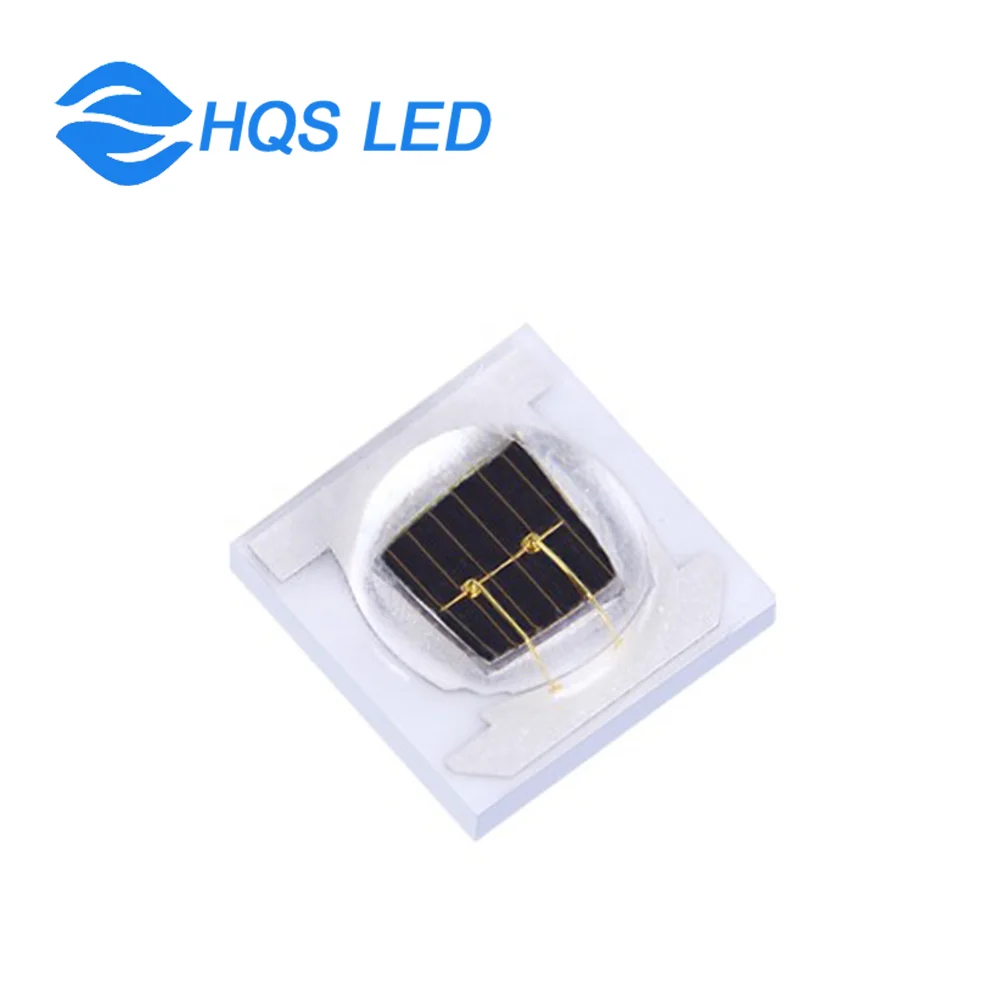

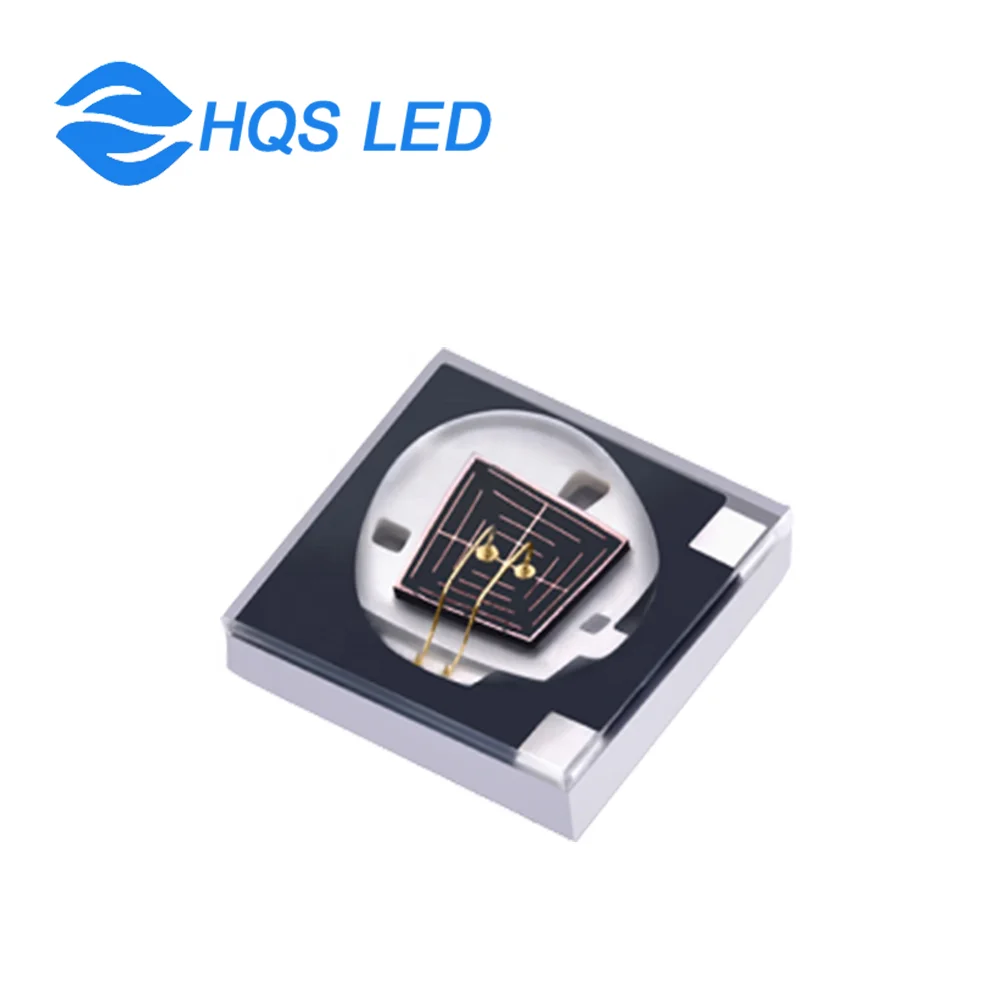

3535 IR LED	730nm	1.6-2.4V	350-700mA	350-450mW	120°
3535 IR LED	760nm	1.6-2.4V	350-700mA	400-500mW	60°/120°
3535 IR LED	810nm	1.6-2.4V	350-700mA	400-500mW	60°/120°
3535 IR LED	850nm	1.6-2.4V	350-1000mA	250-800mW	60°/120°
3535 IR LED	880nm	1.6-2.4V	350-700mA	350-450mW	60°/120°
3535 IR LED	940nm	1.4-1.6V	350-1000mA	130-600mW	60°/120°
3535 IR LED	980nm	1.2-1.8V	350-700mA	250-350mW	60°/120°
3535 IR LED	1020nm	1.2-1.8V	350-700mA	150-350mW	60°/120°
5050 IR LED	760nm	3.0-3.2V	1500mA	2000-2500mW	60°
5050 IR LED	800nm	3.0-3.2V	1500mA	2000-2500mW	60°
5050 IR LED	830nm	2.8-3.2V	1000mA	1500-2000mW	60°
5050 IR LED	850nm	1.4-3.2V	1000-2000mA	1500-4000mW	60°
5050 IR LED	880nm	2.8-3.2V	1500mA	2000-2500mW	60°
5050 IR LED	940nm	2.8-3.2V	1000mA	1500-2000mW	60°
5050 IR LED	980nm	2.8-3.2V	1500mA	1500-2000mW	60°



Product Features:

High Radiant Power max to 5000mW, High Light Intensity

IR Wavelength Range: 730nm, 740nm, 810nm, 850nm, 940nm..

Molding Encapsulation Technology

Lower Light Decay less than 3% after 1000hrs

IEC62778, EN62471, RoHS, LM-80 certificate

Application: Light Medical Beauty, TOF Radar & Ranging, Security Monitor, Infrared Camera,

Remote Controller, IRIS Recognition, Unmanned, Industrial Inspection...







The accurate application for different wavelength

730nm: For Plant Growing Lighting...

800-810nm: For Medical Beauty Equipment, Space Optical Communication, Infrared Lighting...

830nm: For ETC System...(best night vision effect)

840nm: Special for Camera Changes Color to Double Infrared Waterproof.

850nm: For Camera Digital Photography & Monitoring, Apartment Building Intercom, ATA...

870nm: For Mall Camera, Intersection Camera...

900nm: For Detecting Instrument to Detect the Body Blood Glucose and PCO...

940nm: For Remote Control, Position Lock...

>1000nm: For Detecting Instrument to Detect the Body of Alcohol, Fiber, Carbon Monoxide, Carbon Dioxide...
