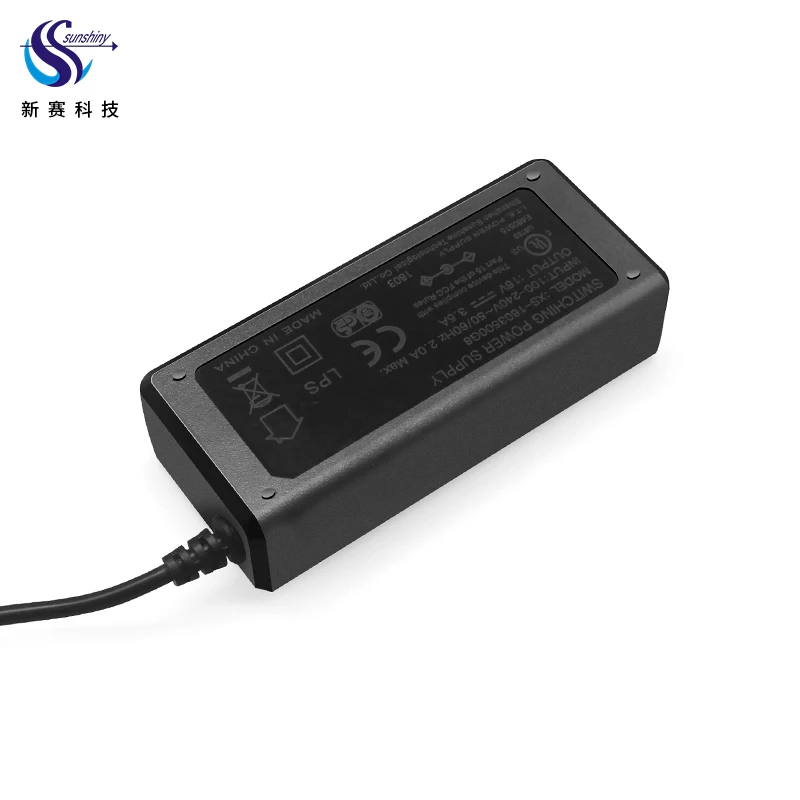

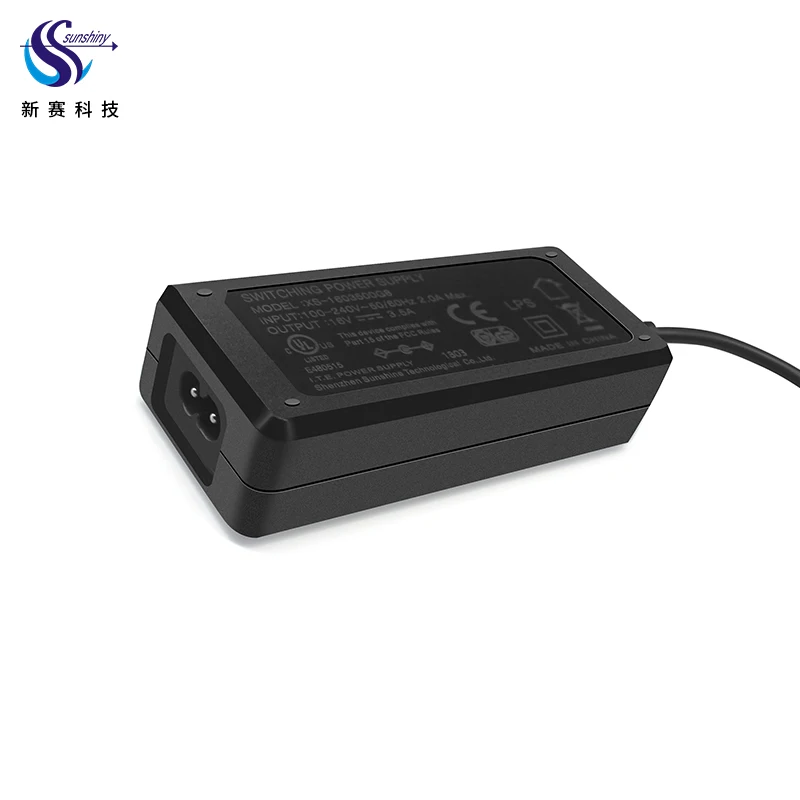

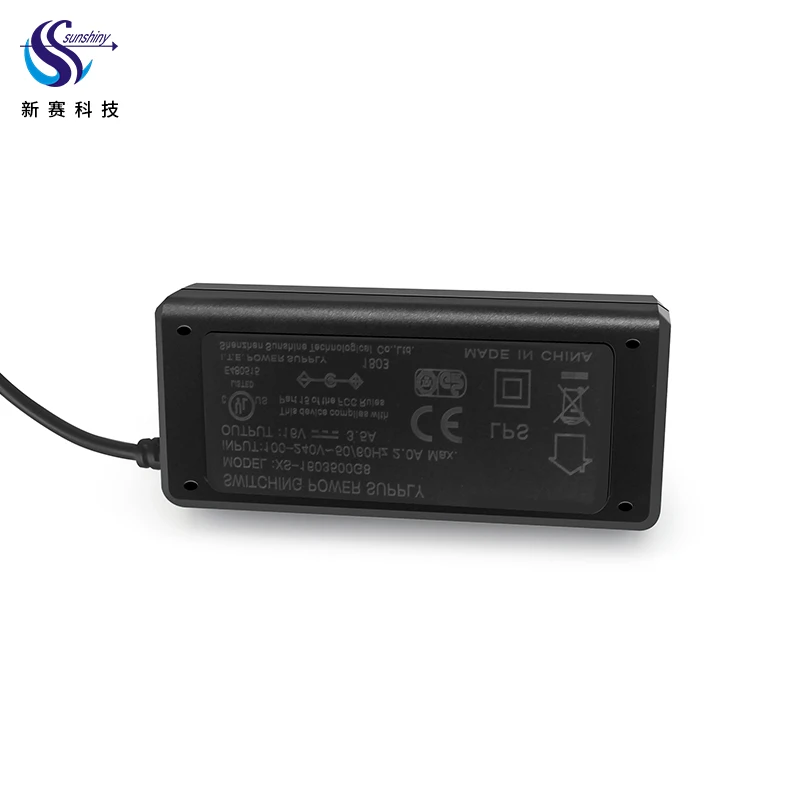

12vdc 96w 100w laptop desktop adaptor power adapter US CUL CE KC PSE 12 volt ac dc 12v 8amp power supply
- Category: >>>
- Supplier: Shenzhen Sunshine Power Supply Technology Co. Ltd.
Share on (62313564568):
Product Overview
Description
Product Description

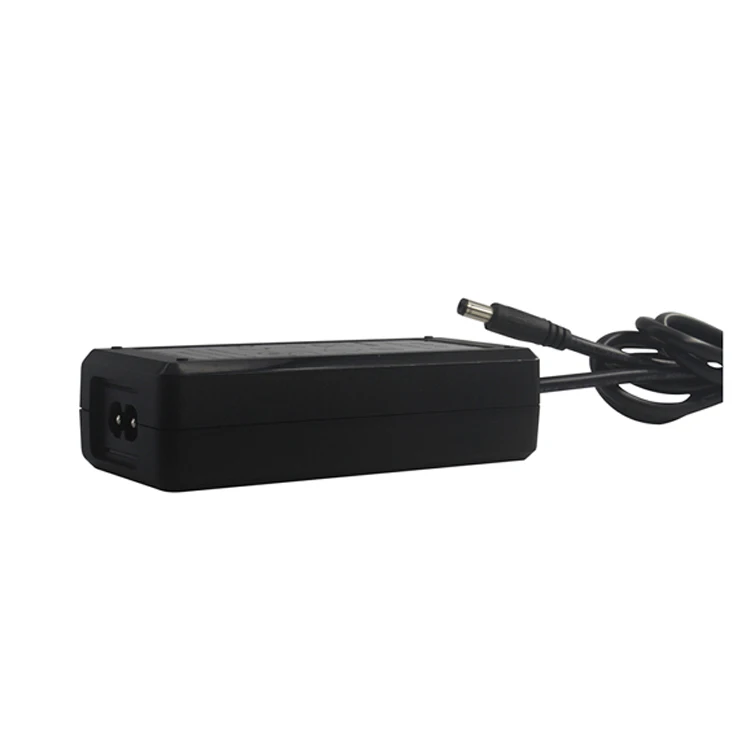

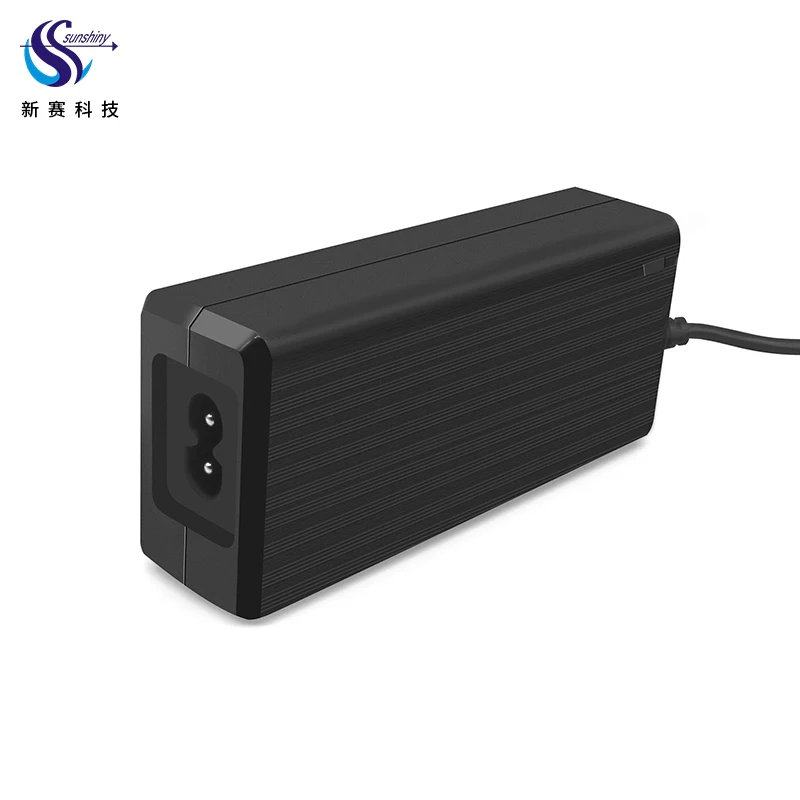

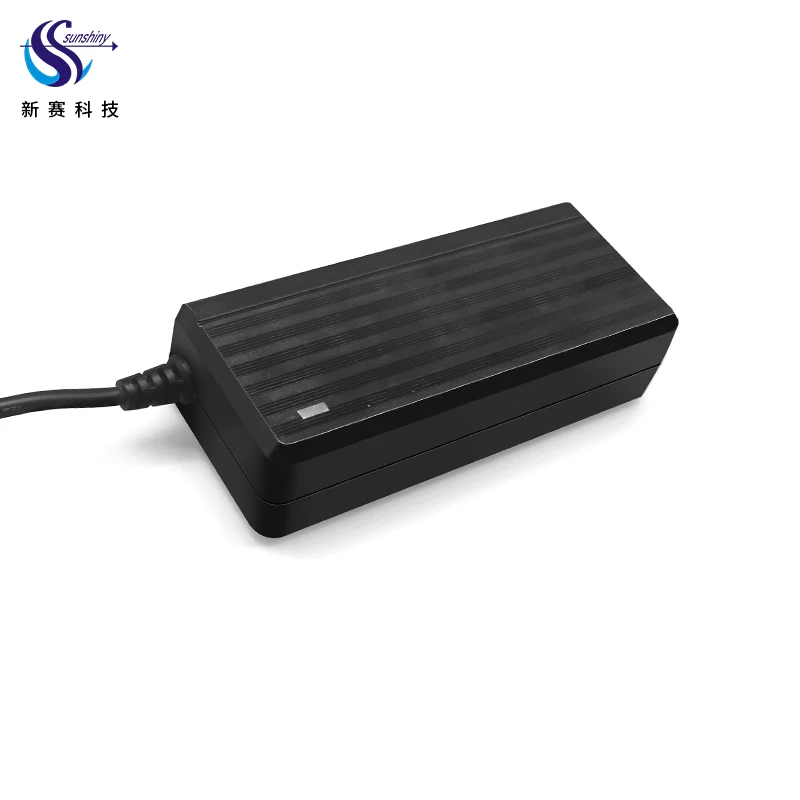

12vdc 96w 100w laptop desktop adaptor power adapter UL CUL CE KC PSE 12 volt ac dc 12v 8amp power supply 12v 8a 8.3a dc adapter
Input | Rated Input Voltage | 100Vac To 240Vac | Rated Input Frequence | 50/60HZ | |||
Input Voltage Range | 90Vac To 264Vac | Inrush Current | 60A Max At 100-240Vac Input For A Cold Start At 25 ℃ | ||||
Input Current | 0.3A max At 100-240Vac Input | Leakage Current | 0.25mA Max | ||||
Efficiency | Meet Average Efficiency Achieves ES Level VI | ||||||
Output | Voltage(VO) | DC 12V 5A | |||||
Output Regulation | ±5%@constant Voltage Mode | ||||||
Ourrent Regulation | ±5%@constant Current Mode | ||||||
Ripple and Noise | 300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap | ||||||
Maxinum Power(PO) | 60W Max @ DC12V 5a | ||||||
Hold-UP Time | 10ms Typical At Full Load | ||||||
Protection | Over-Current Protection(OCP); Short-circuit Protection(SCP); Over-voltage Protection(OVP) | ||||||
AC Plug | US, JP plug(other plug available) | ||||||
USB | 1 USB-A Port | ||||||
DC Cable | 2464/2468 22AWG L=1.2/1.5/1.8m | ||||||
DC Connector | DC Jack: 5.5*2.5/5.5*2.1*3.5*1.35/4.0*1.7mm or other Micro USB Type Type C Type | ||||||
DC Plug Type | Right angle / 90° angle | ||||||
AC Inlet | C6 C8 C14 | ||||||
EMC | EMI | FCC CLASS B; CISRP22 CLASS B; EN55022 | |||||
EMS | IEC61000-4-2,3,4,5,6,8,11 | ||||||
Safety | LVD, EN60950,EN61558,UL60950,UL61558 | ||||||
Environmental | Operation Temperature | 0℃ to 40℃ ambient | |||||
Stotage Temperature | -10℃ to 70℃ | ||||||
MTBF: >30,000 hours At Full Load And 25℃ Ambient Temperature MIL-HDBK-217F | |||||||
Color | Black, white | ||||||
Application:
• LED strips/ mobile phone
• CCTV cameras
• ADSL AP/ MP4/ MP3 player
• Wireless LAN stations LCD monitors
• Booster pumps
• Communication terminals
• Various portable device of machines
Safety Specifications:
• Universal Input 100~240VAC 50/60Hz
• Over voltage protection: 120%min
• Over current protection: 120%min
• Over protection
• Short-circuit protection: automatic recovery
• Load regulation: ±5%
• Green Circuit Design
• High Efficiency
Click on the different images
get more products you are interested in.

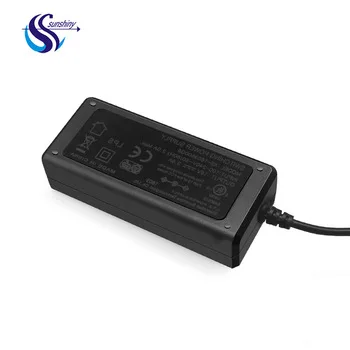

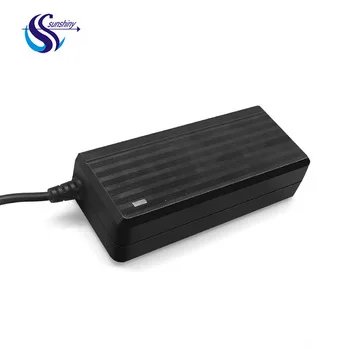

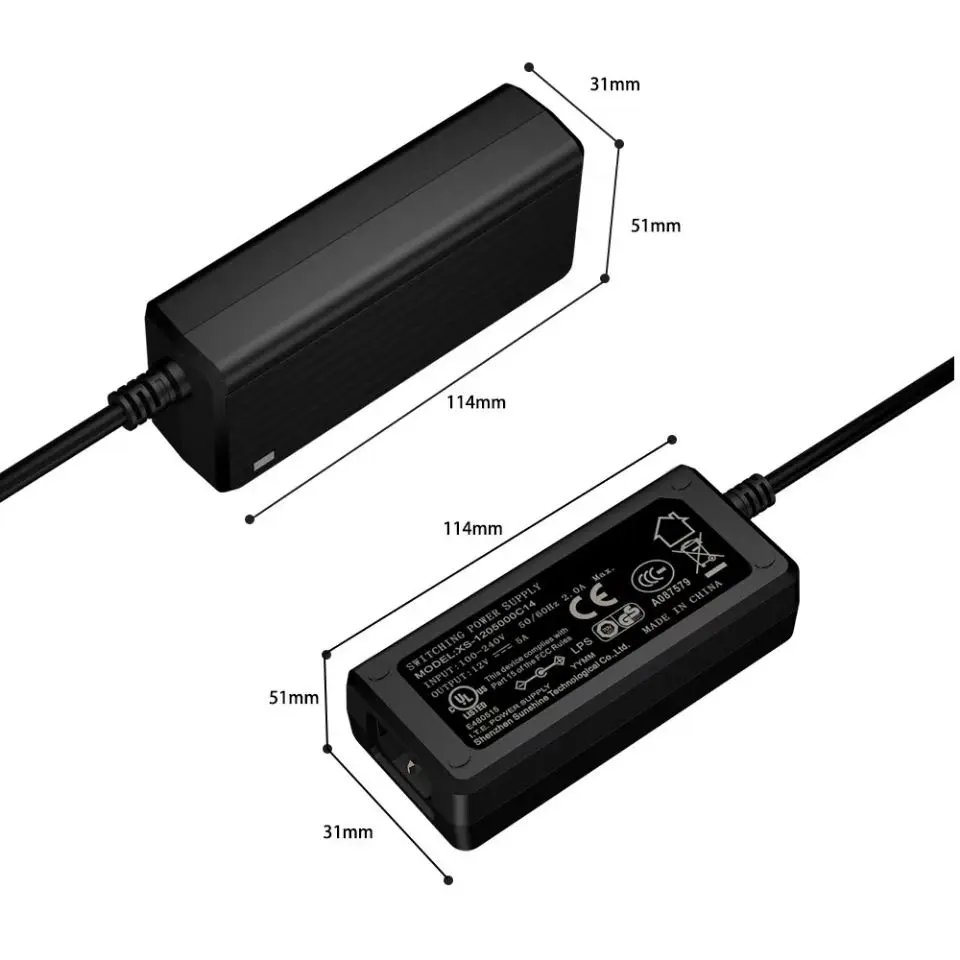

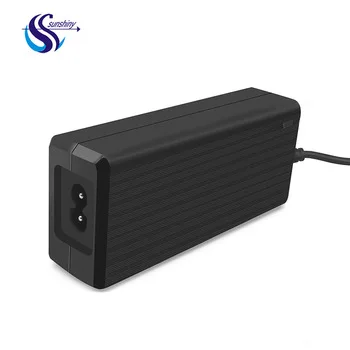

Product Images

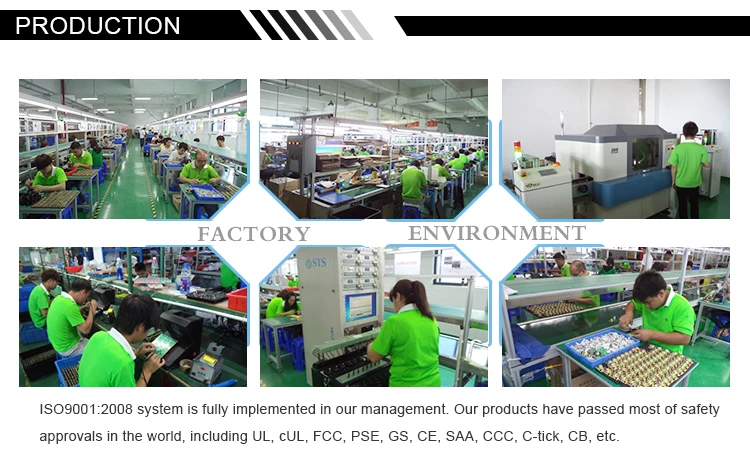

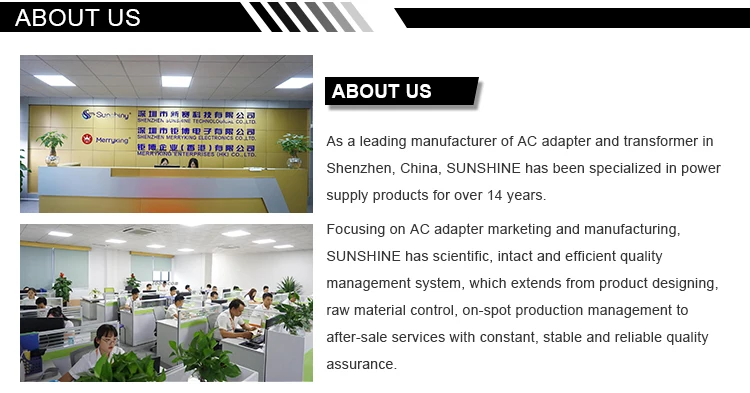

Our Company
Exhibition
Certifications

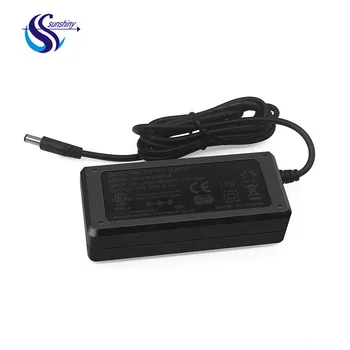

Related Products
click on the different images
get more information

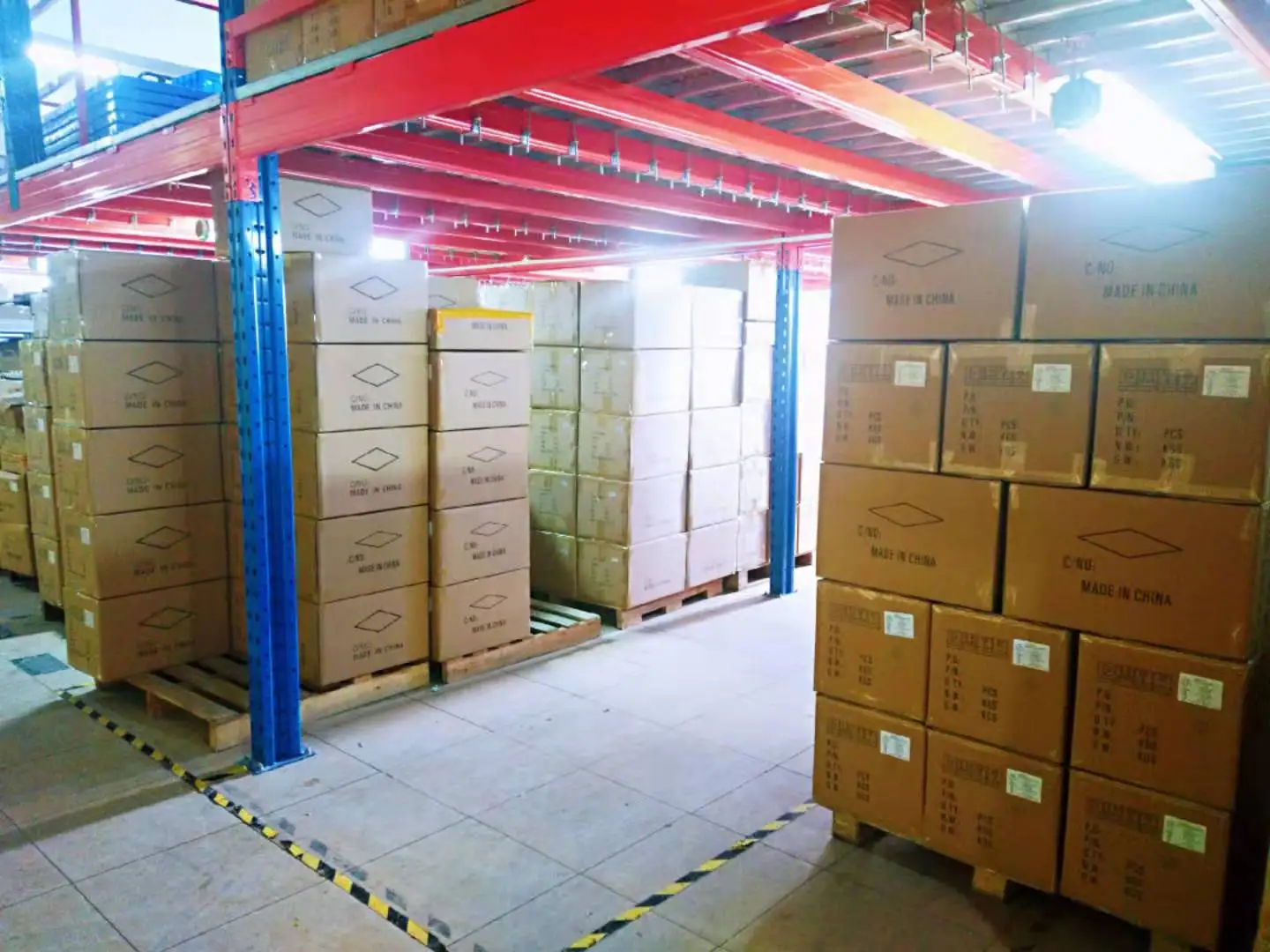

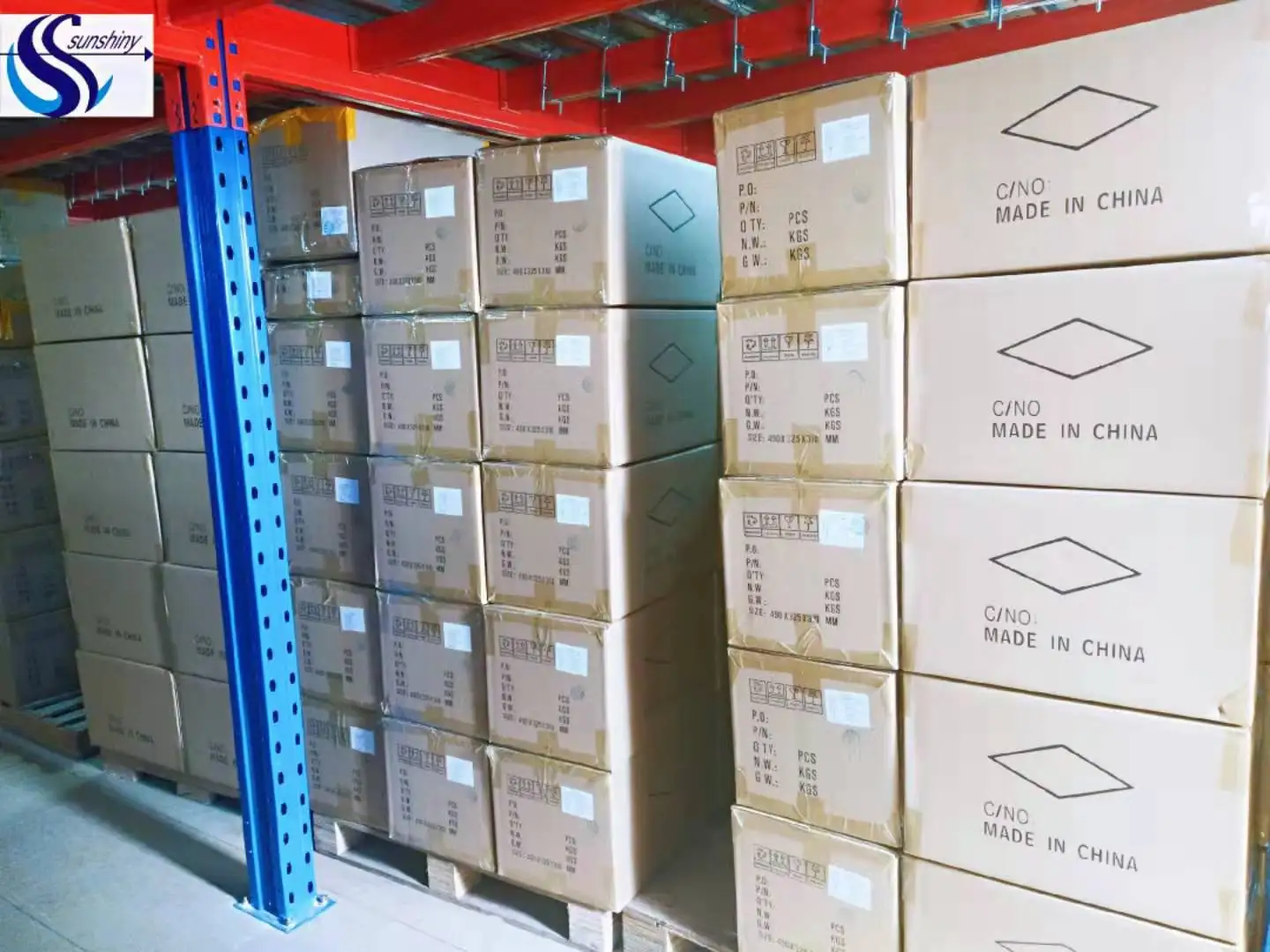

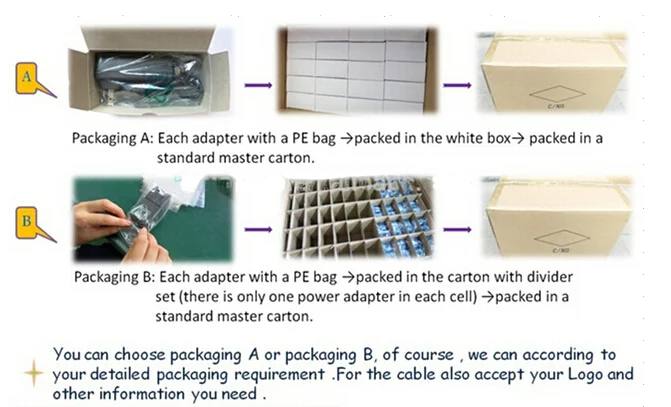

Packing & Delivery
Our services
1. We will reply you in detail within 12 hours for all your inquiries!
2. Free samples can be shipped out within 4-5days for your test.
3. Logo imprint support, customised retail packaging available!
4. Strict quality control system to ensure you get quality products!
5. Senior R&D engineers in this industry.
6. OEM/ODM accepted.
7. 100% Customer Satisfaction Guarantee!
FAQ
Q:What are the main products in your company?
A:Our main products include switching power supply, power adapters, lithium battery chargers.
Q:How about the protection of product?
A:Most of our products have protection of short-circuit, overload, over voltage,over current and reserve polarity. About the specific product, please consult our sales stuff.
Q:What certificates do you have?
A: CE, FCC,UL, SAA, GS, PSE, CB, GOST, KC and CCC.
Q:What's your MOQ for OEM order ?
A: MOQ for OEM orders is 1000pcs.
Q:Do you accept small quantity orders?
A: Yes, we accept. But no doubt that the more the amount of your order, you will get more discounts. If you have a regular monthly order volume, we also would like to give you the appropriate discount.
Q:Can you provide sample?
A.Yes, Free sample can be oftered . And freight collect.
Q:Can I print my brand logo on the chargers?
A:Sure, OEM is available. Laser printing and silk printing can be offered.
Q:What can you do if the product is broken?
A.We promise to replace new ones to you if there is any defective happen during the warranty period, but we need pictures orvideo to prove the defective comes from our quality problem.
Q:Which shipment available?
A:Normally, we ship goods by sea, air and express (DHL,UPS,FEDEX,TNT,EMS.....) Q:What's the Payment do you have?
A:Currently, you can pay via T/T, L/C, WestemUnion, paypal. More payment options will be added in the near future.
