CE Certification 360 Outlet Round Shape Fan Coil Unit card Wind Outlet FCU Air Conditioner Cooling Fan Coil Unit Ceiling
- Category: >>>
- Supplier: Shenzhen Monchrui Industrial Development Co. Ltd.
Share on (62313607641):
Product Overview
Description
Product Overview

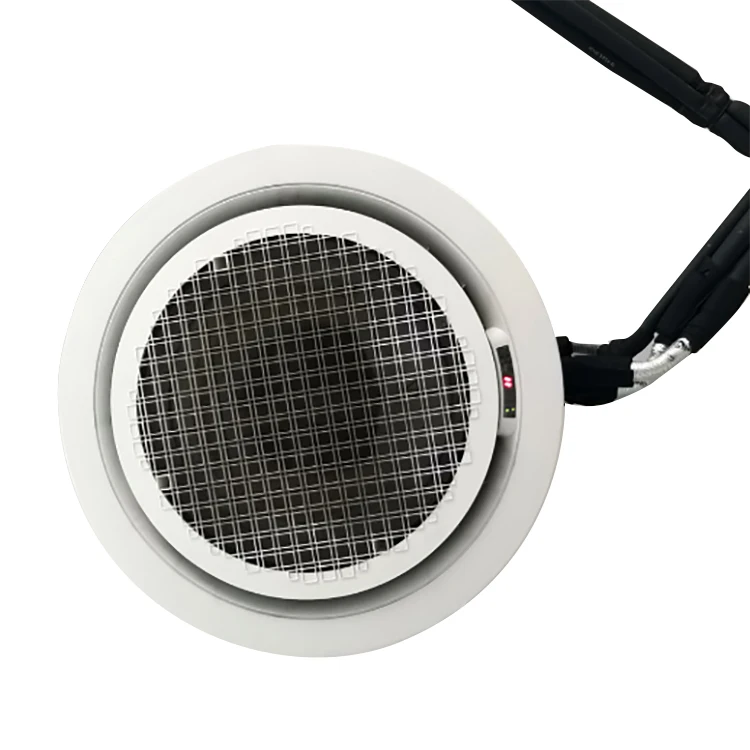

M0KM500V 360 Round Cassette FCU

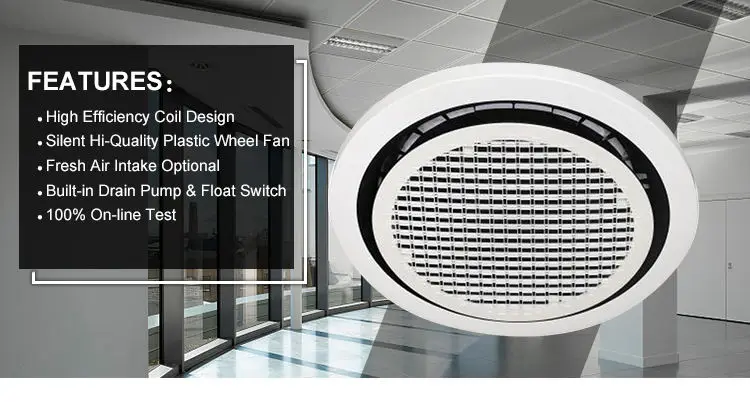

High-efficeiency coil design. Silent hi-quality plastic wheel fan. Fresh air intake optional. Built-in drain pump & float swith.100% on-line test

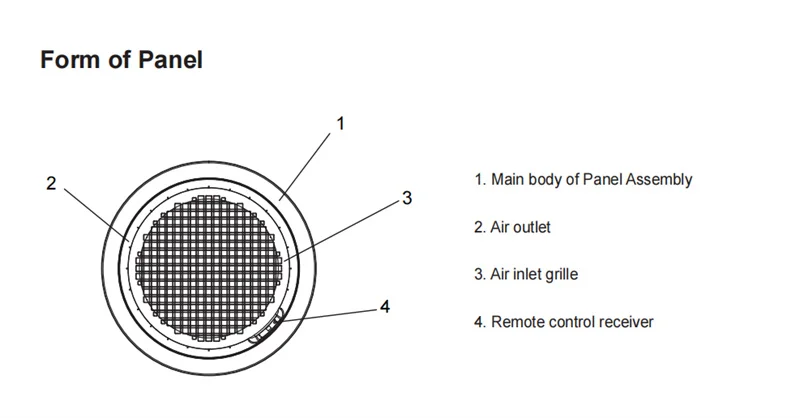

Form of panel
1. Main body of panel assembly. 2. Air outlet. 3.air inlet. 4.Remote control receiver
Design Features

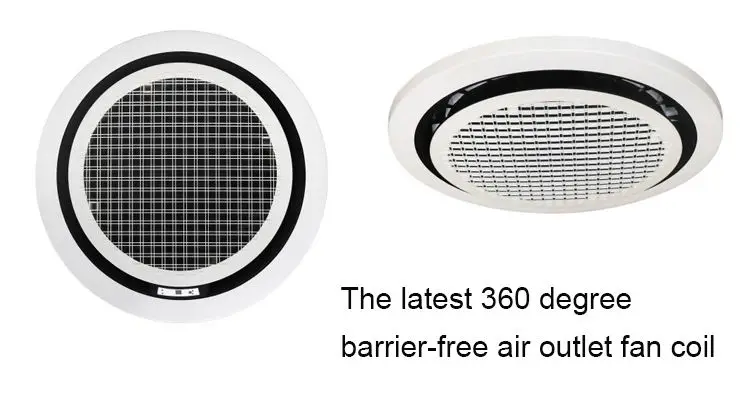

Round Cassette with an innovative 360 airflow ensures optimal air conditioning which also eliminates dead zones. 360 degree directional wind coming out from circular heat exchanger can deliver air evenly throughout every corner in any space

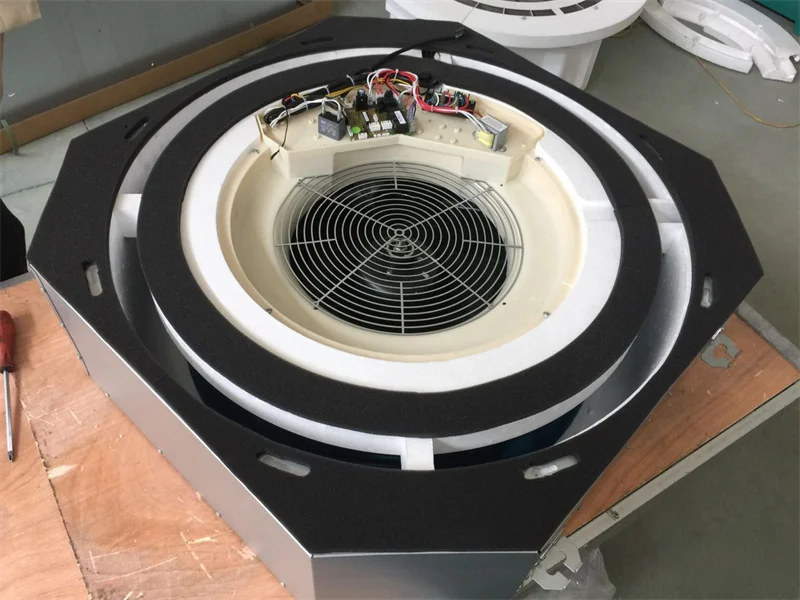

1 Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation

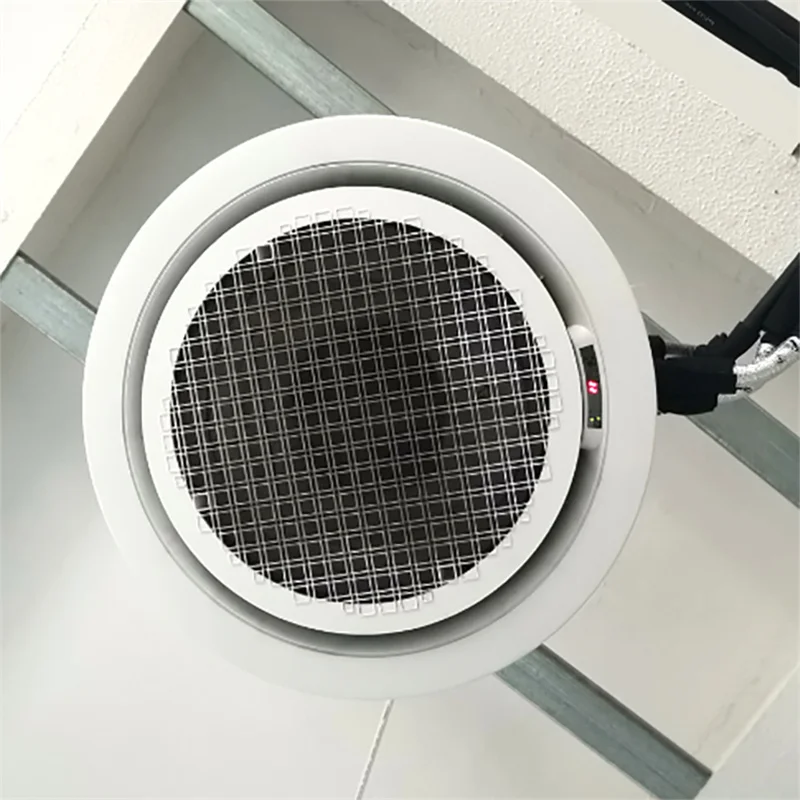

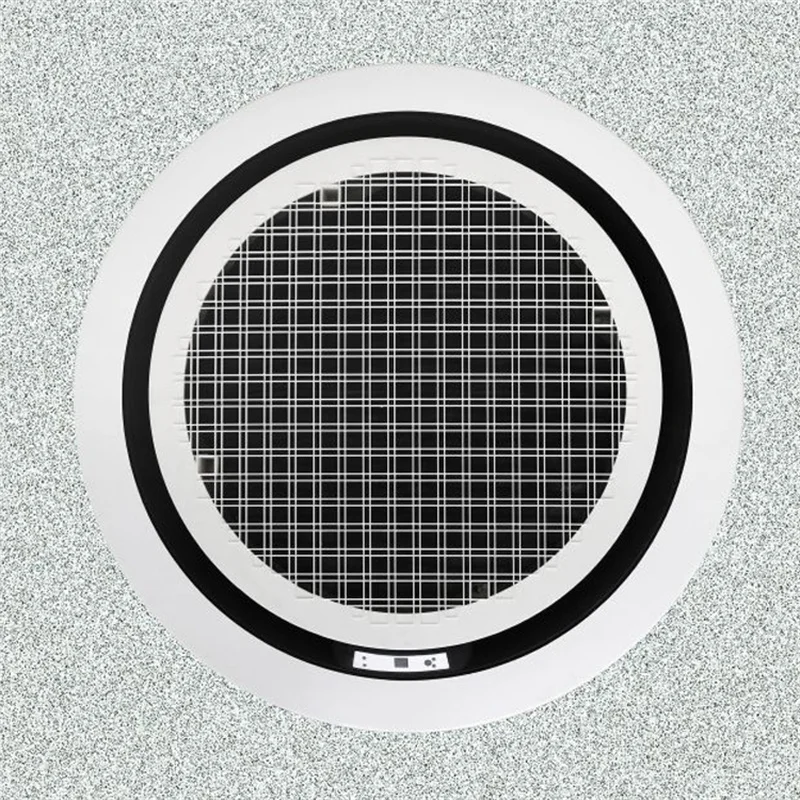

2 Panel Assembly-with Digital LED Display
Aesthetic panel design, in ABS material with synthetic washable and removal air filter and equipped with digital LEd display
3 Plastic Wheel-Quiet Running
One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration low noise on the wheels and motors Each wheel will be balanced under G 0.5mm/s
4 Fresh Air Intake
Fresh air intake is sandard for for the unit
5 Circular Heat Exchanger
High efficiency circular coil are made of copper tubes and high exchange surface area aluminum blue fins. With built-in EEV,external EEV is optional
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a conden-sates draining pump and a safety float
7 Drain Pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor
1 Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation
2 Panel Assembly-with Digital LED Display
Aesthetic panel design, in ABS material with synthetic washable and removal air filter and equipped with digital LEd display
3 Plastic Wheel-Quiet Running
One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration low noise on the wheels and motors Each wheel will be balanced under G 0.5mm/s
4 Fresh Air Intake
Fresh air intake is sandard for for the unit
5 Circular Heat Exchanger
High efficiency circular coil are made of copper tubes and high exchange surface area aluminum blue fins. With built-in EEV,external EEV is optional
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a conden-sates draining pump and a safety float
7 Drain Pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor

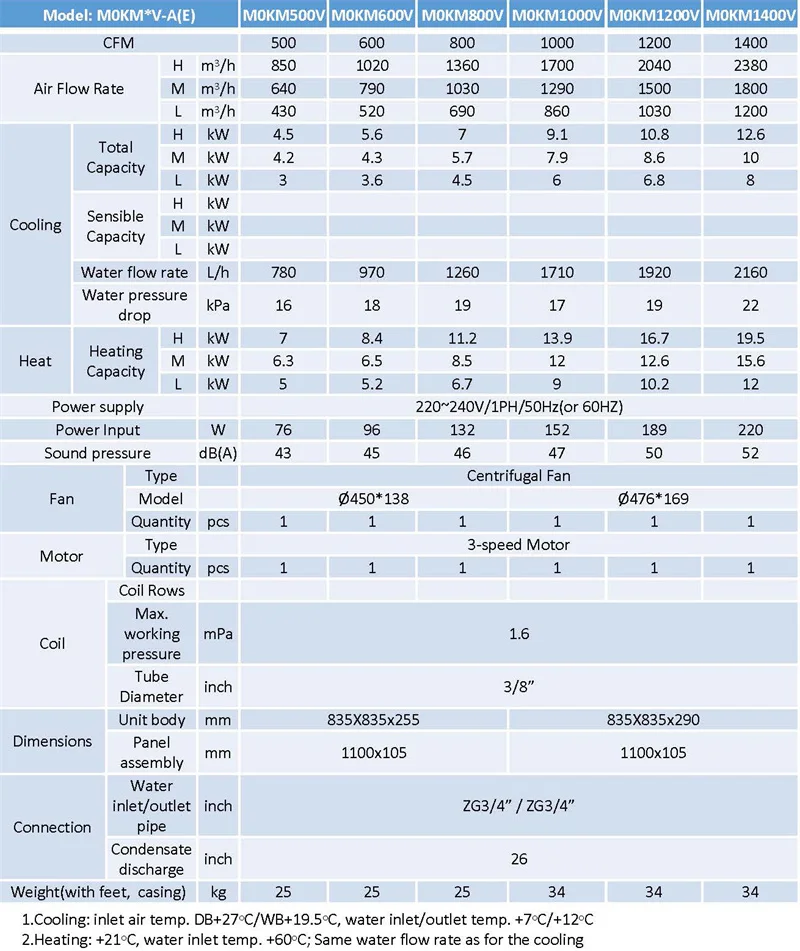

PRODUCT SPECIFICATIONS
Model: M0KM*V-A(E) | M0KM500V | M0KM600V | M0KM800V | |||||||||
CFM | 500 | 600 | 800 | |||||||||
Air Flow Rate | High | m3/h | 850 | 1020 | 1360 | |||||||
Medium | m3/h | 640 | 790 | 1030 | ||||||||
Low | m3/h | 430 | 520 | 690 | ||||||||
Cooling | Total Capacity | High | kw | 4.5 | 5.6 | 7 | ||||||
Medium | kw | 4.2 | 4.3 | 5.7 | ||||||||
Low | kw | 3 | 3.6 | 4.5 | ||||||||
Sensible Capacity | High | kw | ||||||||||
Medium | kw | |||||||||||
Low | kw | |||||||||||
Water Flow Rate | L/H | 790 | 970 | 1260 | ||||||||
Water Pressure Drop | kPa | 16 | 18 | 19 | ||||||||
Heating | Heating Capacity | High | kw | 7 | 8.4 | 11.2 | ||||||
Heating Capacity | Medium | kw | 6.3 | 6.5 | 8.5 | |||||||
Heating Capacity | Low | kw | 5 | 5.2 | 6.7 | |||||||
Power Supply | 220~240V/1PH/50Hz(or 60HZ) | |||||||||||
Power Input | kw | 76 | 96 | 132 | ||||||||
Sound Pressure | dB(A) | 41 | 42 | 43 | ||||||||
Fan | Type | Centrifugal Fan | ||||||||||
Model | mm | Ø450*138 | ||||||||||
Quantity | 1 | |||||||||||
Motor | Type | 3-speed Motor | ||||||||||
Quantity | 1 | |||||||||||
Coil | Coil Rows | 2 | ||||||||||
Max. Working Pressure | mPa | 1.6 | ||||||||||
Tube Diameter | inch | 3/8” | ||||||||||

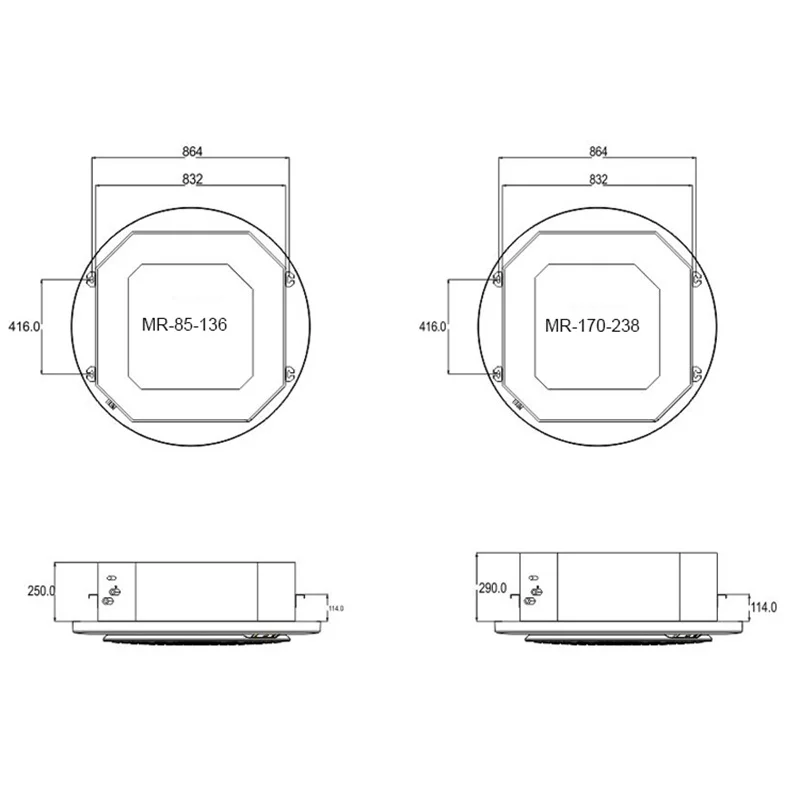

Dimensions | Unit Body | mm | 835X835x255 | |||||||||
Panel Assembly | mm | 1100x105 | ||||||||||
Connection | Water Inlet/Outlet Pipe | inch | ZG3/4” / ZG3/4” | |||||||||
Condensate Discharge | inch | 26 | ||||||||||
Weight(with feet, with casing) | kg | 25 | 25 | 25 | ||||||||
1.Cooling: inlet air temp. DB+27oC/WB+19.5oC, water inlet/outlet temp. +7oC/+12oC 2.Heating: +21oC, water inlet temp. +60oC; Same water flow rate as for the cooling | ||||||||||||

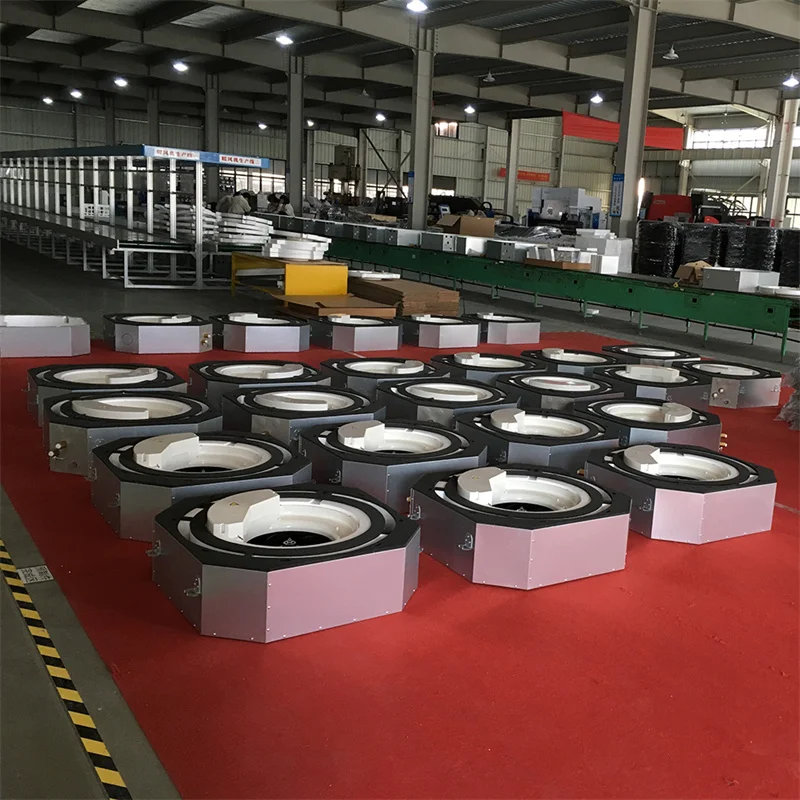

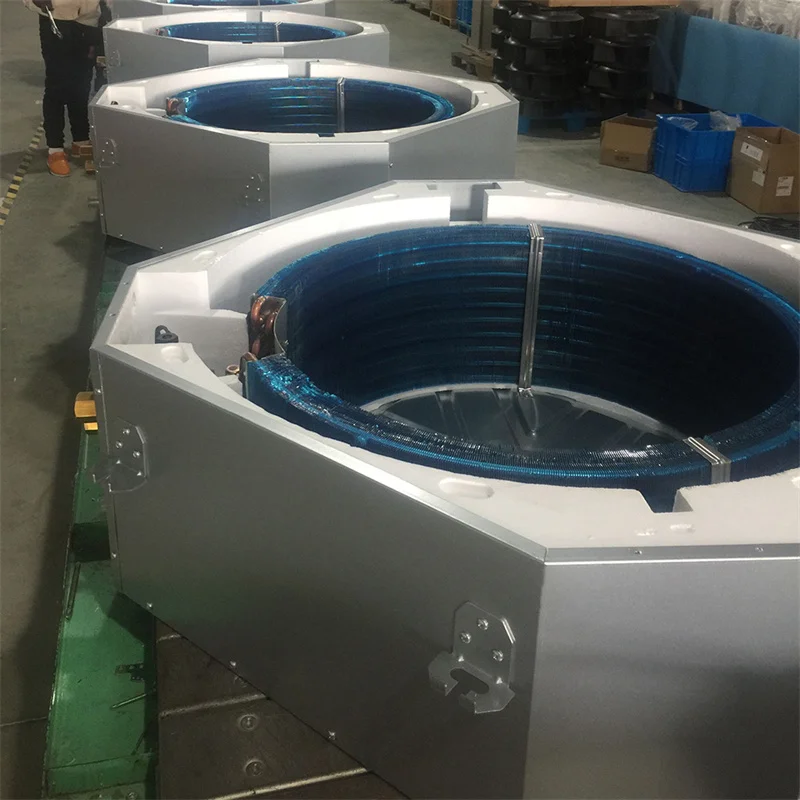

Manufacturing

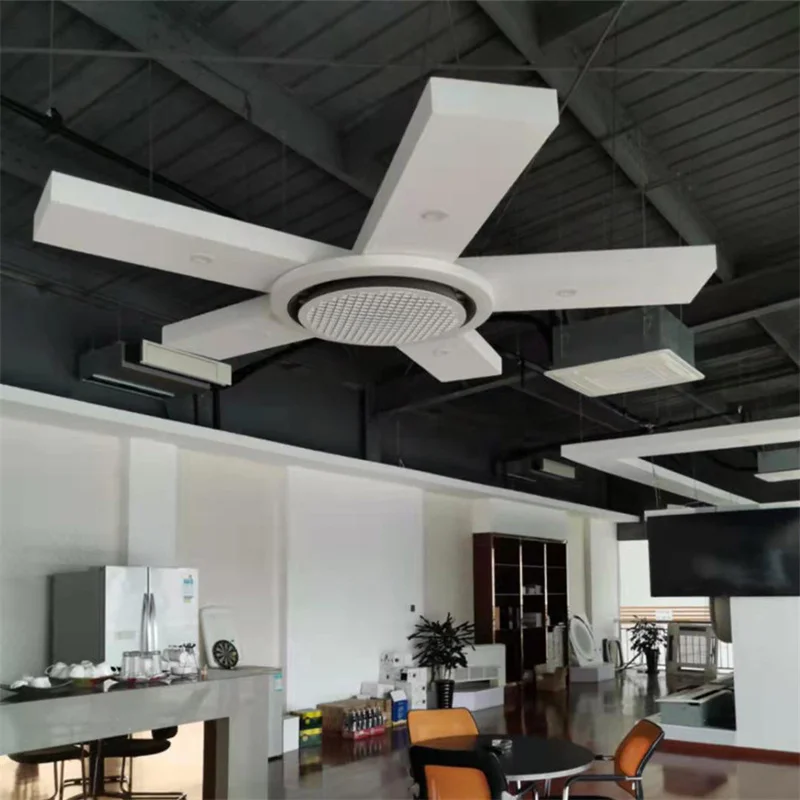

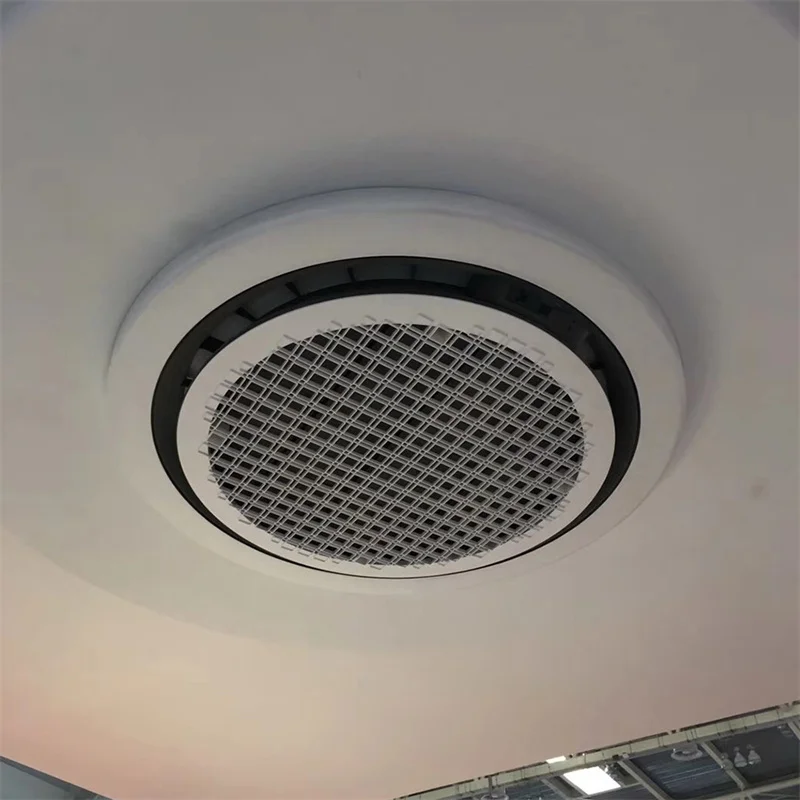

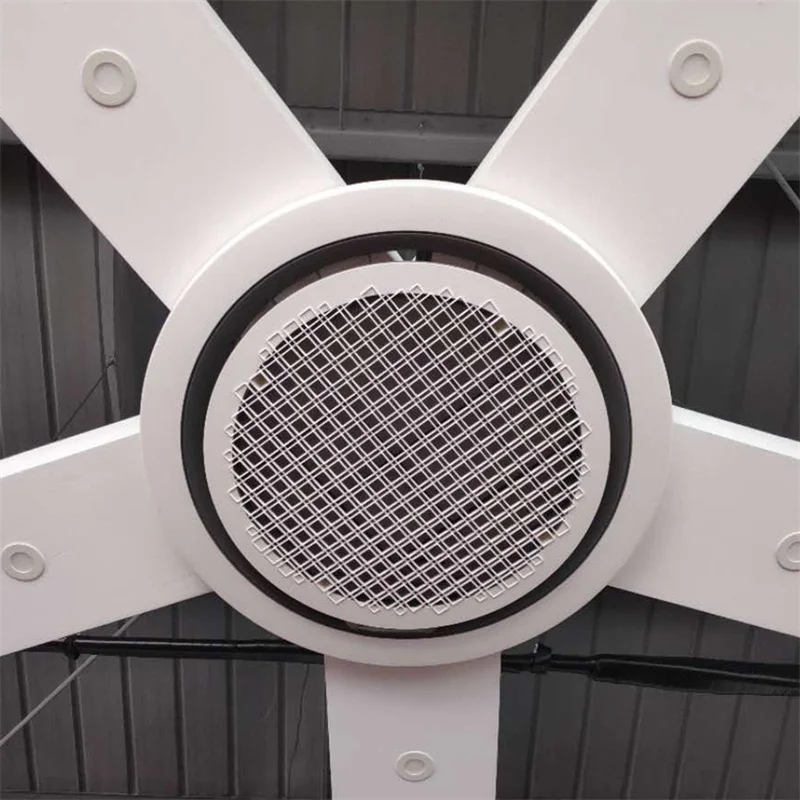

Hidden installation

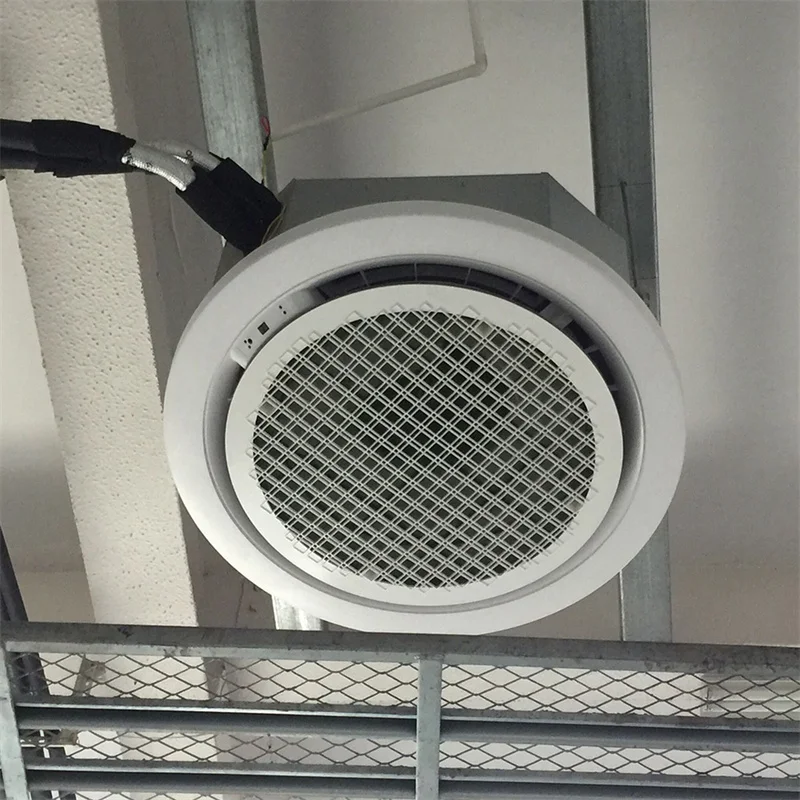

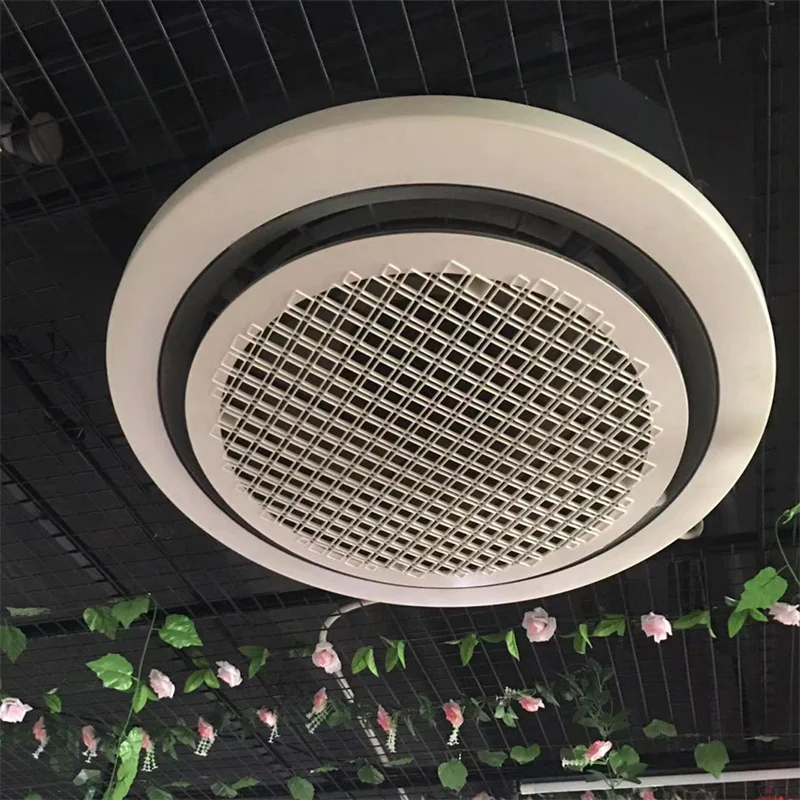

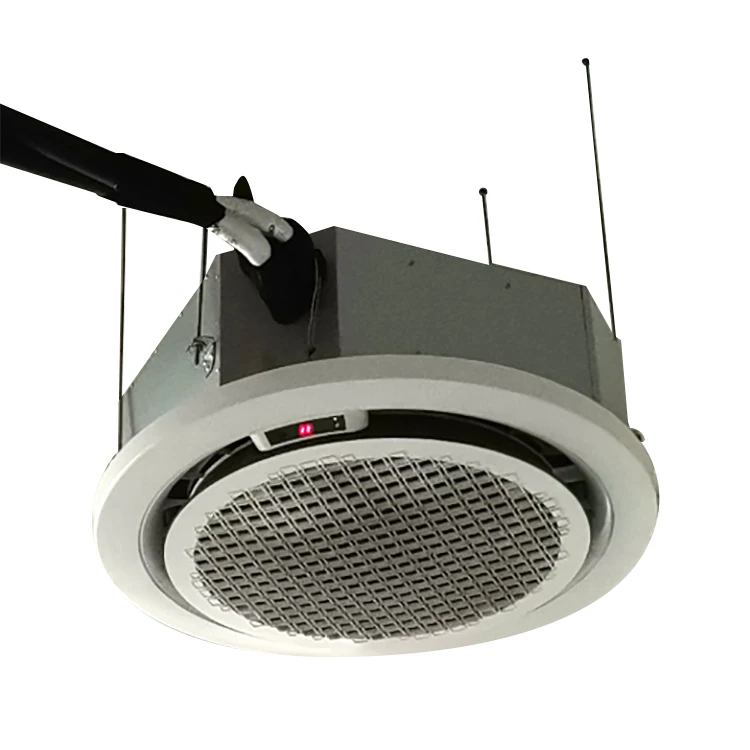

Exposed installation
