Electric 2 seater mini fire electric car/Trojan Battery/Curtis Controller

Product Overview

Description

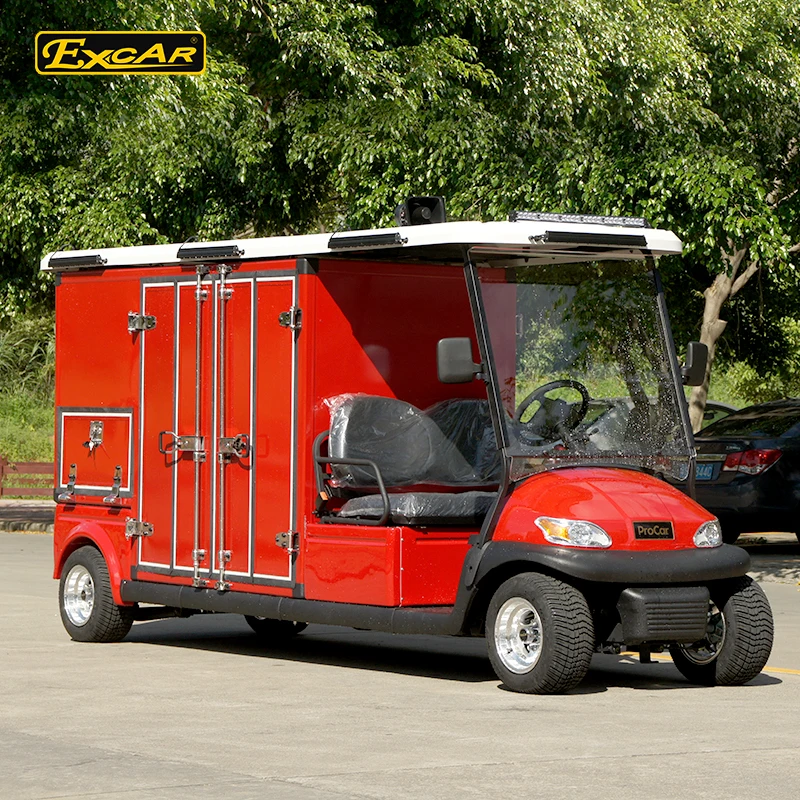

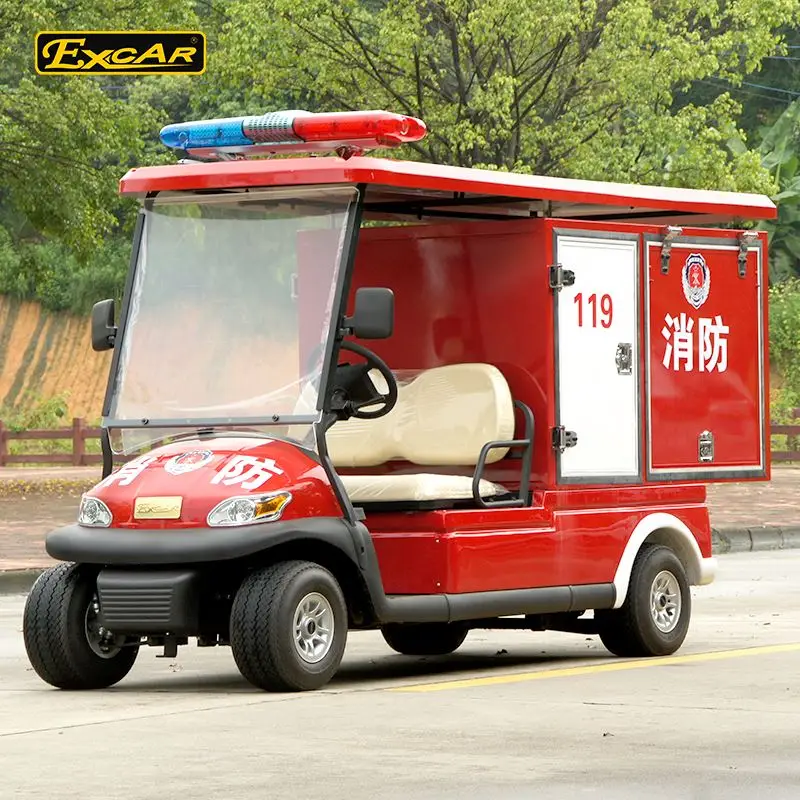

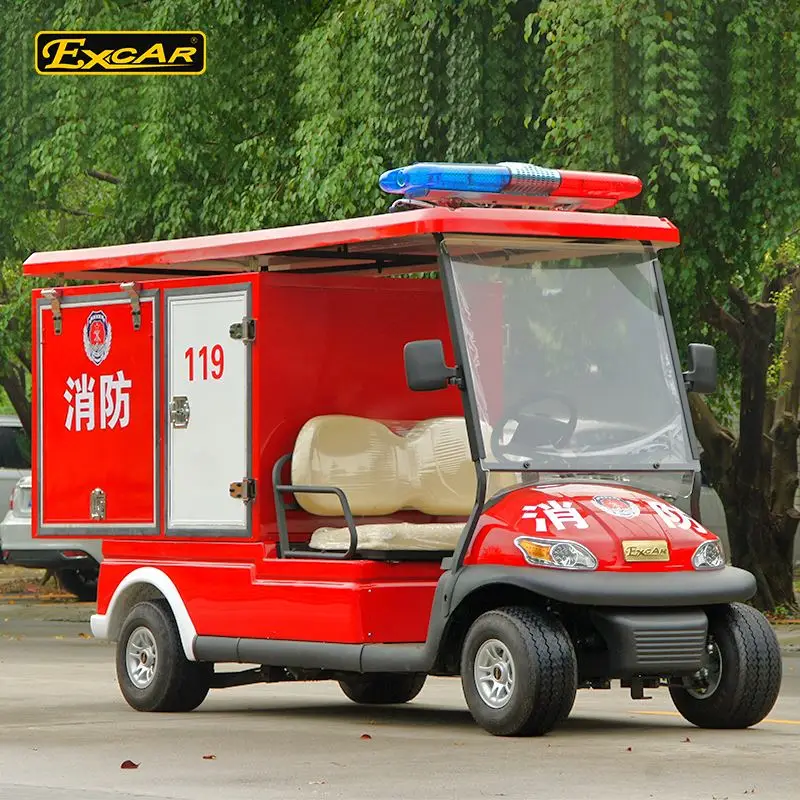

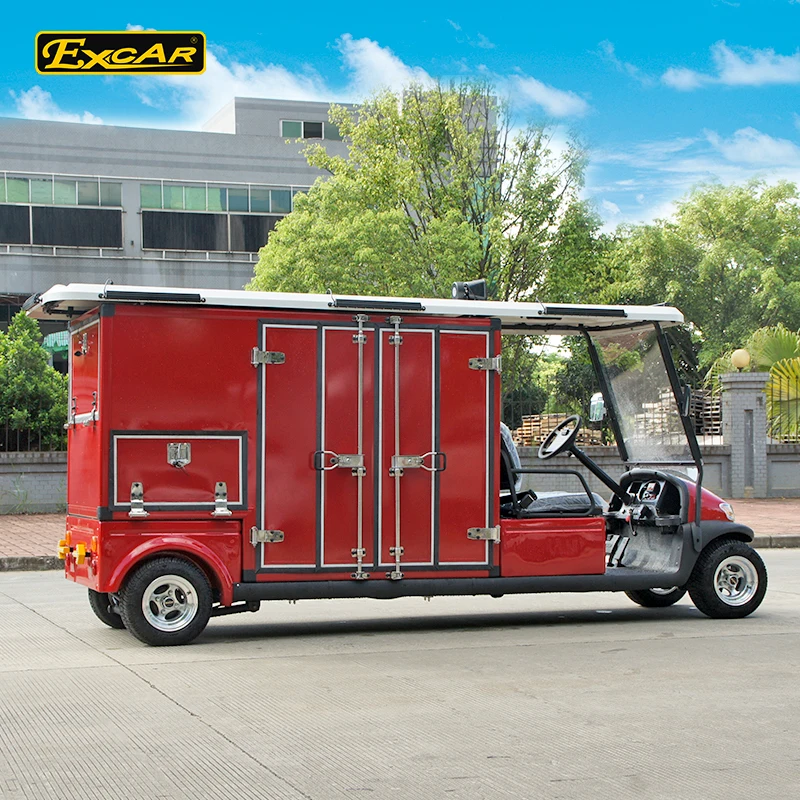

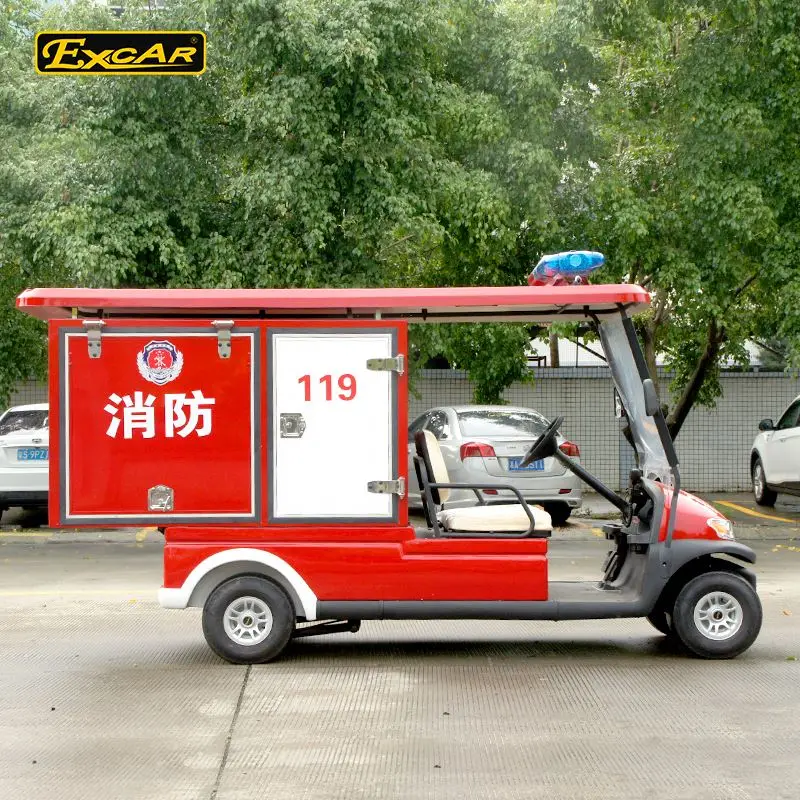

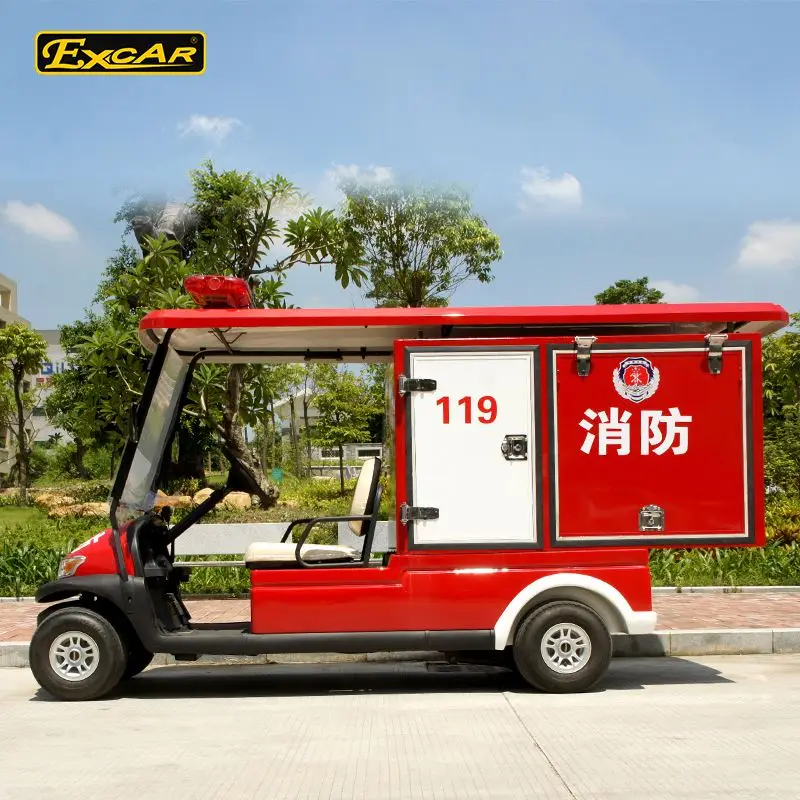

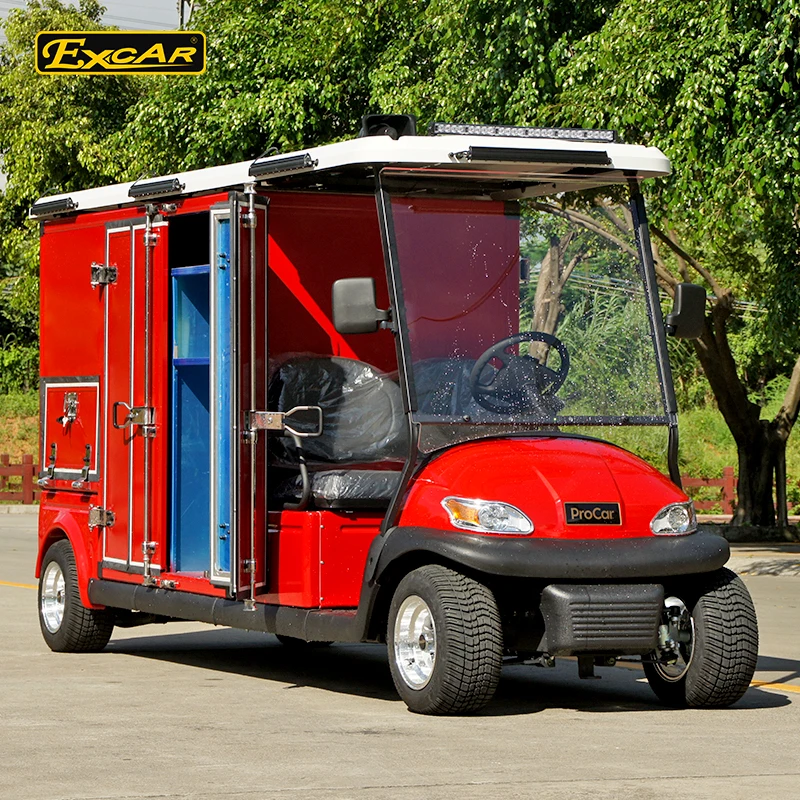

 Electric 2 seater mini fire electric car



Product features



Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.

The outside cover of this golf cart made of aluminum, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We always insist to use the best parts to construct our cart. We’ re a more reliable partner.



Feather of golf cart:

   1, Excar company has 10 years experience for golf cart,sightseeing bus,patrol cart etc

2, Excar company got CE certificate,ISO9001 certification,manufacture license of special equipment

3, Excar company introduced Dual-braking system which combined of EMB and mechanical brake system doubles driving safty factor and

 improves operating reliability.

4, Excar golf cart has good waterproof performance.We use sealed waterproof accelerator,sealed waterproof

connector,moisture proof motor,corrosion-proof aluminum alloy chassis

5,Excar company has our own R&D department to develop and design the cart and make it more safty and beautiful.



POWER SUPPLY

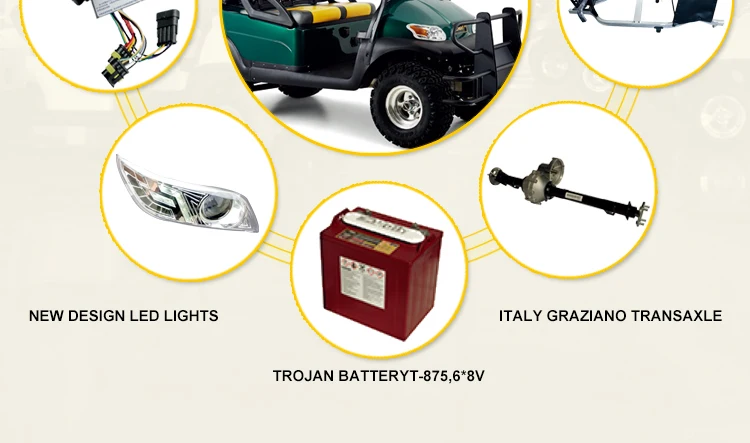

Battery	6*8V   275AH   Trojan T-875

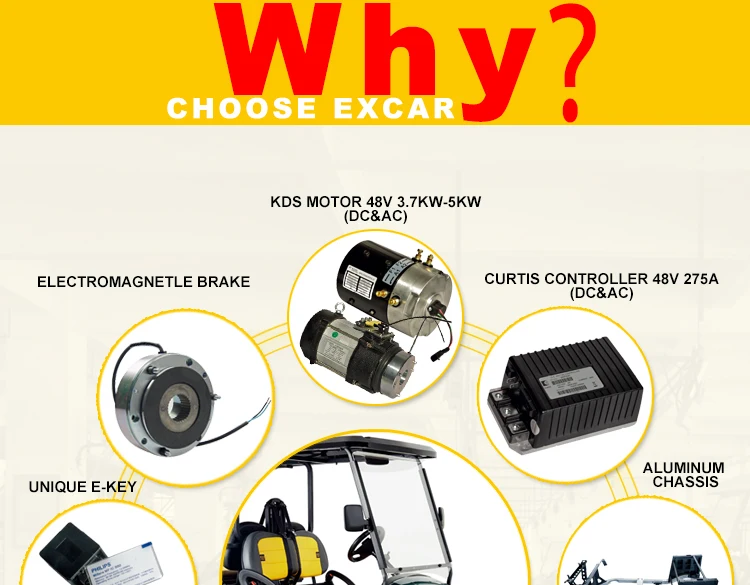

Power of Motor	48V   3700W
Controller	American Curtis Electronics Controller
Accelerator	Adjustable Inductive Accelerator Continuously Variable Speed System
Transaxle	Italy Graziano axle
Charger	Intelligent Onbaord Charger
SUSPENSION
Front-Suspension	Independent Spring Front Suspension
Rear-Suspension	Spring Hydraulic Shock Absorbers
Steering	Dual Self Adjusting "Rack&Pinion" Steetring
Brakes	Rear Wheel Mechanical Drum Brake and Regeneration Brake
PERFORMANCE		CHASSIS
Max Speed	25 km/h	Chassis	Aluminum
Max Travel Distance	80-100km	Wheelbase	1670mm
Slope Climbing Capacity	30%	Front Wheel Tread	860mm
Brake Range	≤3m	Rear Wheel Tread	970mm
Max Noise	<50dB	Tires	205/50-10
Carrying Capacity	600KG	Dimension	2900*1200*1900mm
Turning Radius	2900mm	Passengers	4 Person
Net Weight	460kg	Ground Clearance	114mm

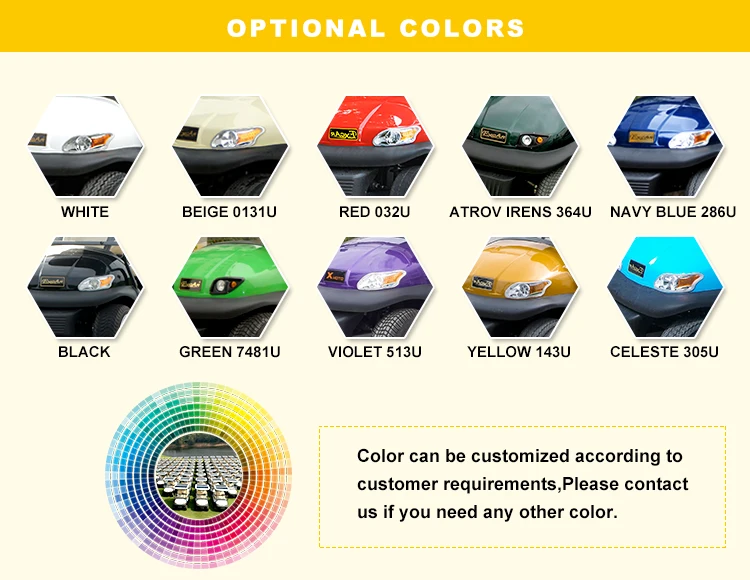

OPTIONAL COLORS



Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic  Red,Purple,Yellow,Green,Pink,Blue,Dark Blue

Seat Color:Black or Beige

 Roof Color:Black,White or Beige



Shipping & Package

20” container		40” container
With roof & windshield	Without roof & windshield	With roof & windshield	Without roof & windshield
4 units	8units	6units	12units
