Raspberry Pi Camera (F), Supports Night Vision, Adjustable Focus
- Category: Development Boards and Kits >>>
- Supplier: Shenzhen Mingshunxin Electronics Co. Limitd
Share on (62313624629):
Product Overview
Description

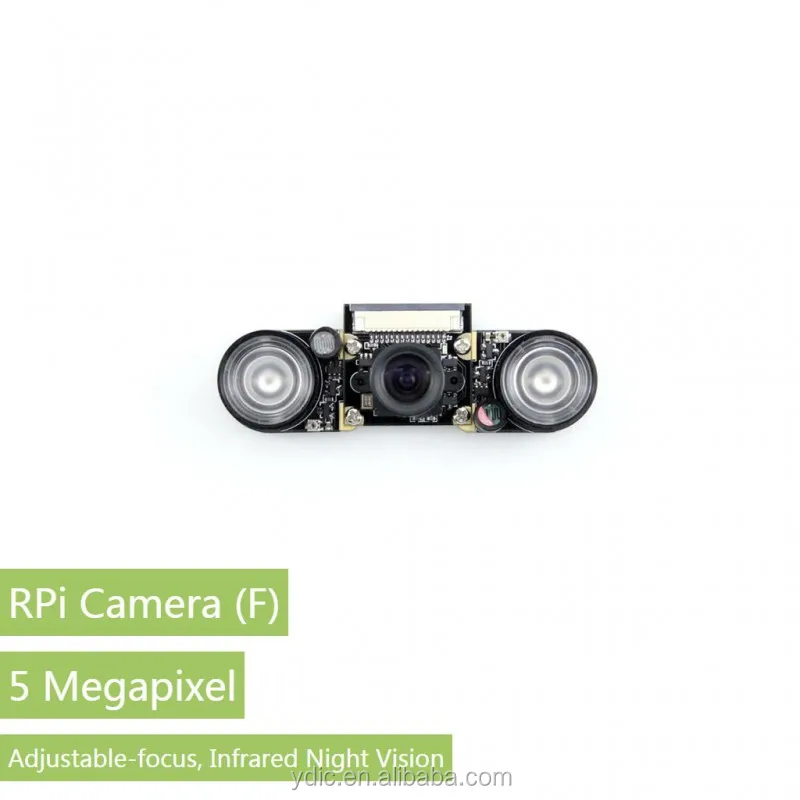

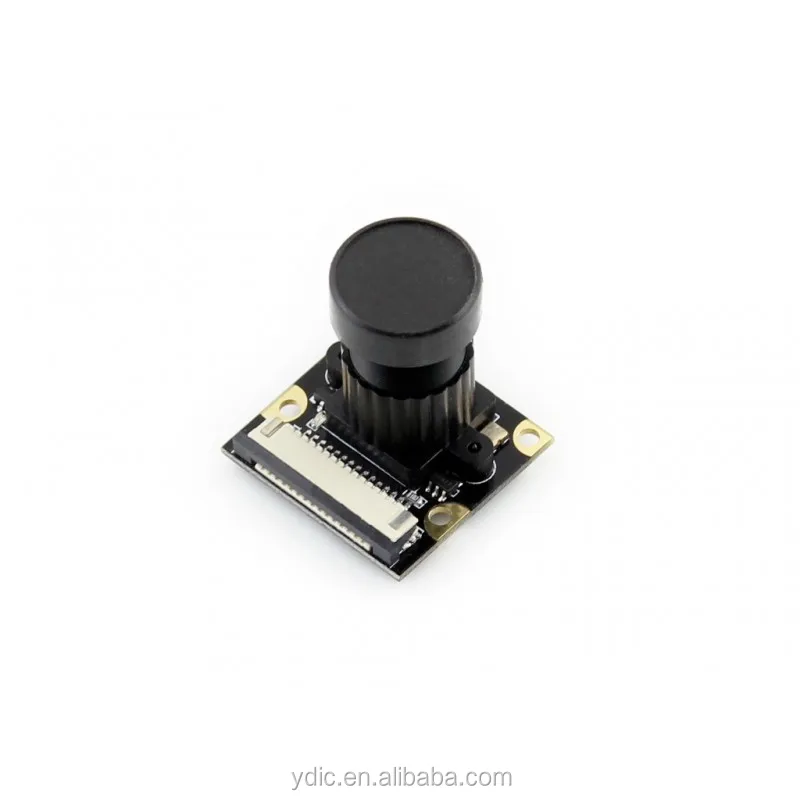

Raspberry Pi Camera Module, Supports Night Vision
Features
- Raspberry Pi Night Vision Camera, supports all revisions of the Pi
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 1.8
- Focal Length : 3.6mm
- Angle of View (diagonal) : 75 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension : 25mm x 24mm
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Downloads
Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(F)
Selection Guide
- The recommendation is considered from sales report and cost performance.
- While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
- RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3, Raspberry Pi Zero W, and Raspberry Pi Zero WH
Weight: 0.059 kg
Package Content:
The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- RPi Camera (F) x1

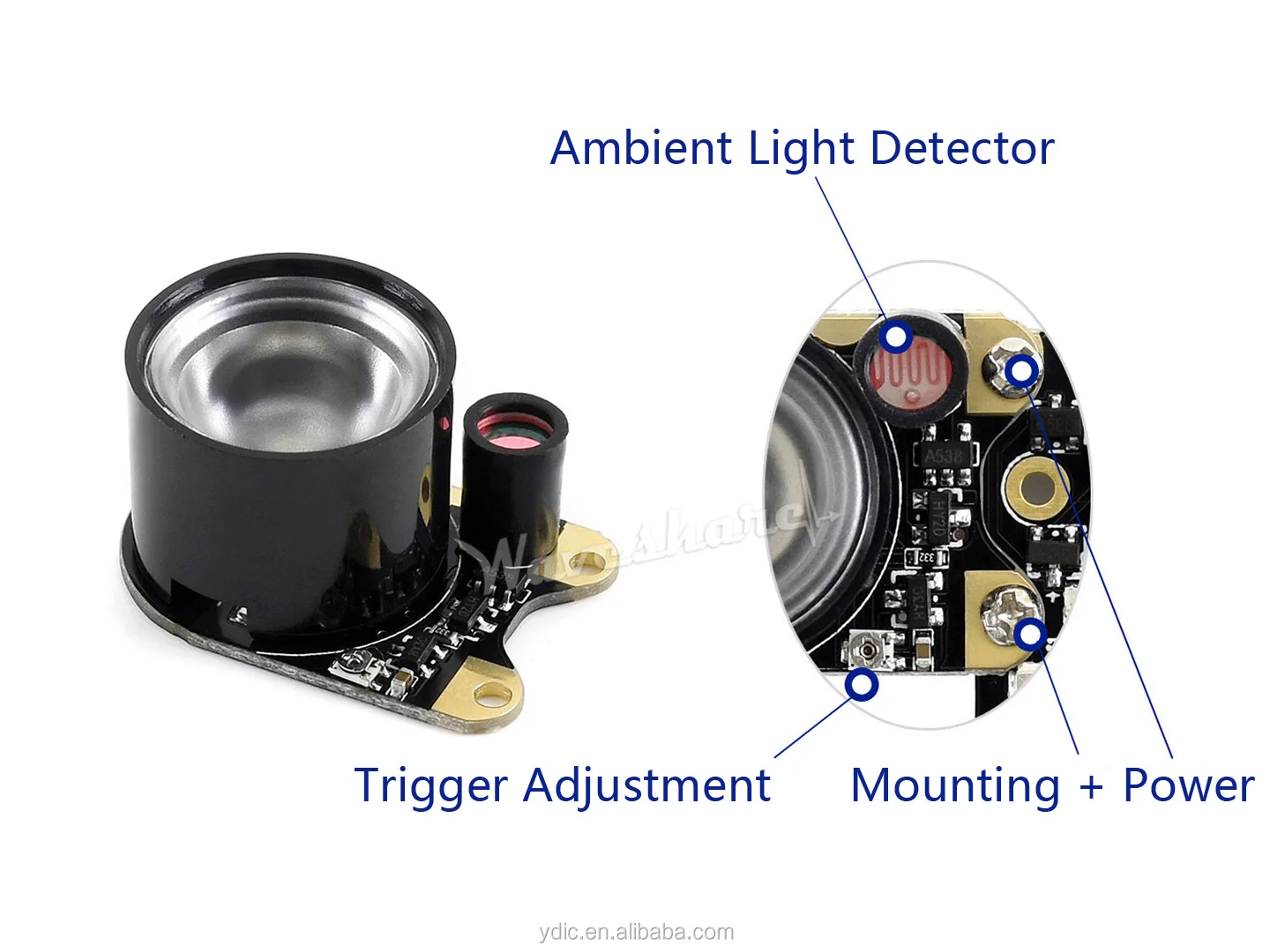

- Infrared LED Board (B) x2

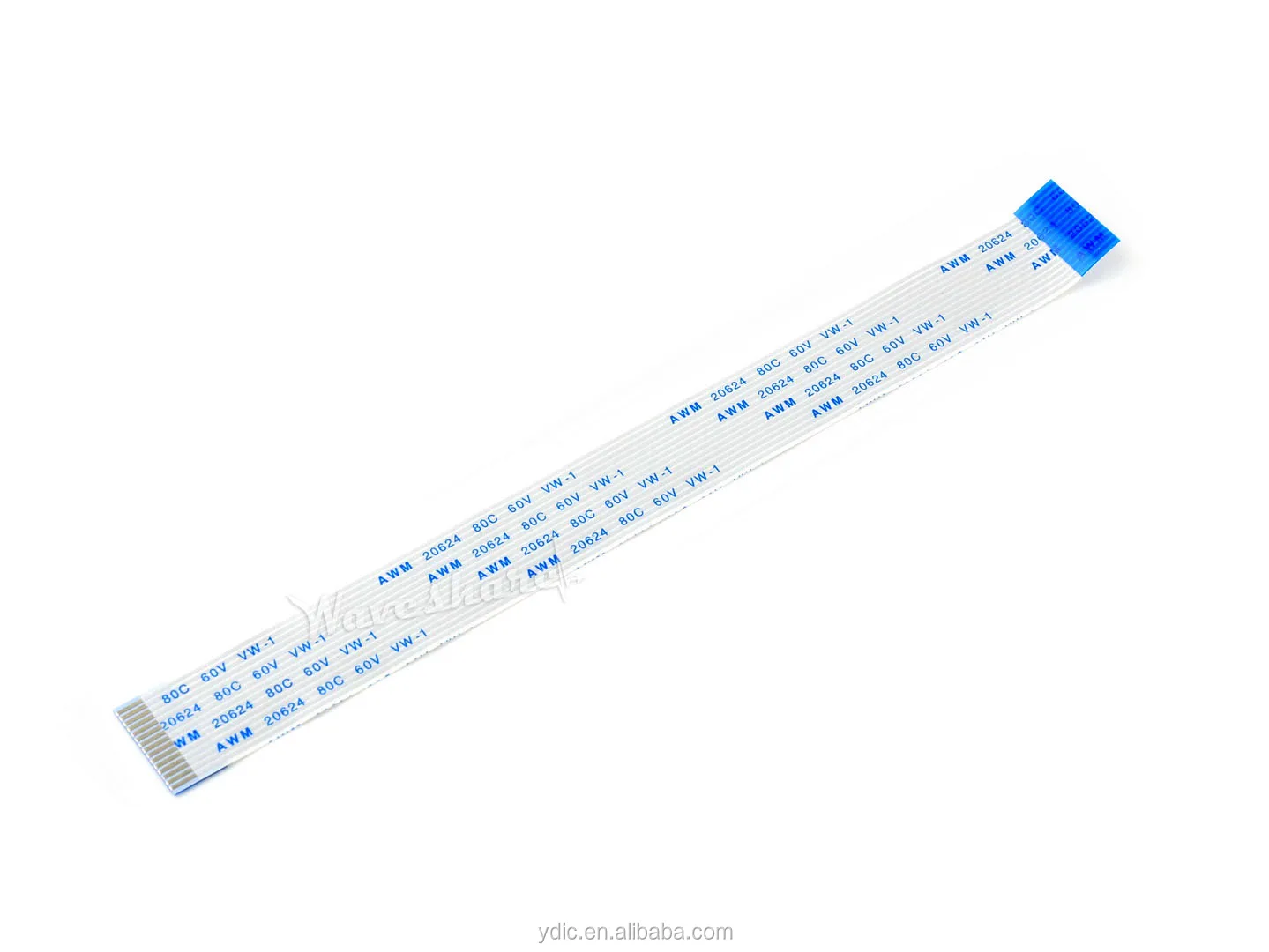

- 15-pin FFC (opposite sides contact) x1
