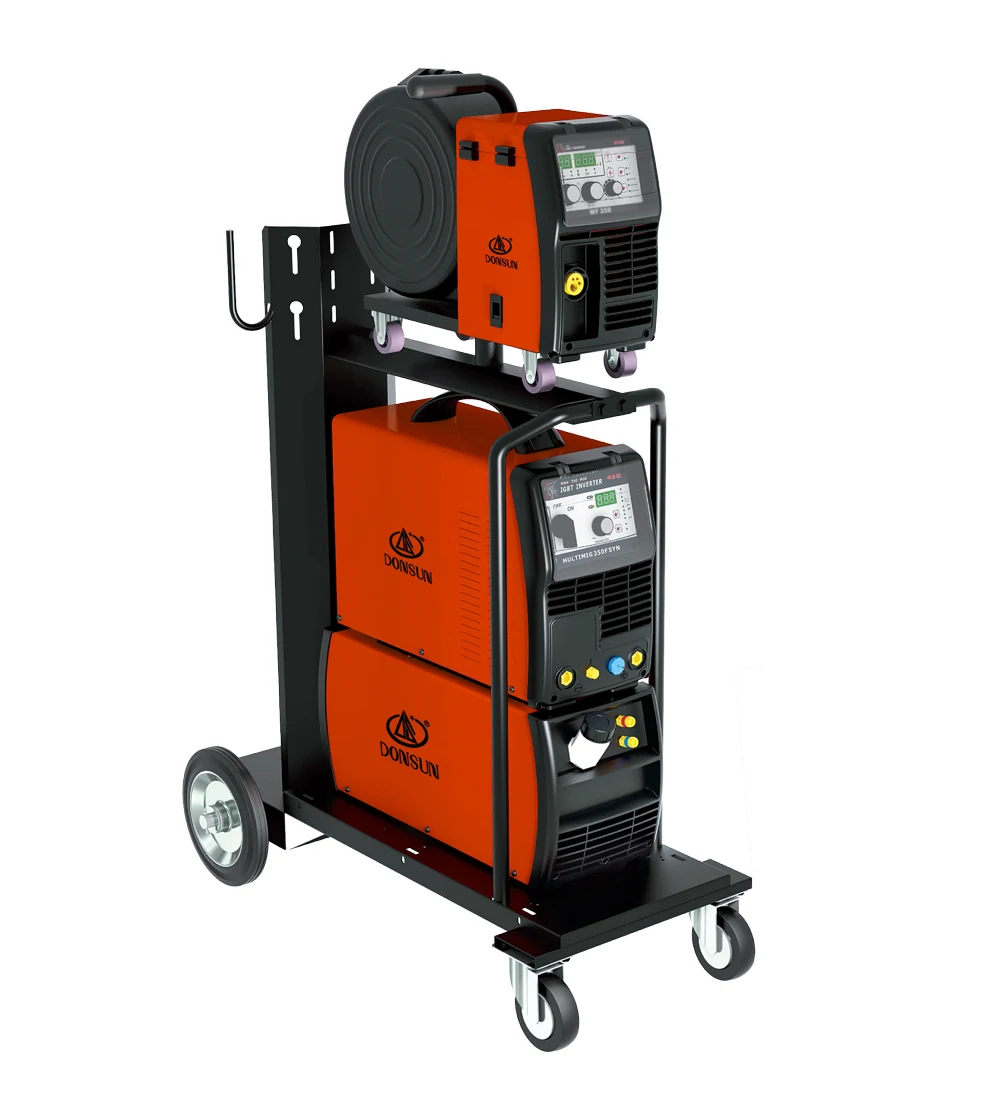

MULTIMIG 350F SYN, Industrial Use Normal Welding Generator Mig Welder
- Category: Manual Metal Arc Welder >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62313672290):
Product Overview
Description
Product Description
Features:
Arc Stability
Waveform control,for added stability of the arc,even at low current.
Digital display
Variable amperage control with digital meter,for a simultaneous welding current and tension display.
Protections
Equipped with temperature,voltage and current sensors for high protection.
Accessories
Optional trolley and water cooling unit.
| Model | MULTIMIG 350F SYN |
| power supply voltage(V) | 3~400 ±10% |
| Fre.(HZ) | 50/60 |
| Rated Input Power (KW) | MIG 12.8 TIG 10 MMA 14 |
| Rated input current(A) | MIG 23 TIG 20 MMA 26 |
| Duty Cycle(40℃ 10Min) | 60% 350A |
| 100% 275A | |
| No Load Voltage(V) | 67 |
| Welding Current Range(A) | 40~350 |
| Welding Voltage Range(A) | 14~35 |
| Wire Diameter(mm) | Fe:0.6/0.9/1.0/1.2/1.6 Ss:0.8/0.9/1.0/1.2/1.6 Flux-Cored:0.6/0.8/9.0/1.0/1.2/1.6 |
| Efficiency | ≥85% |
| Net Weight(Kg) | 22 |
| Dimensions(mm) | 525x240x445 |
| power factor | 0.95 |
| Insulation Class | H |
| Protection Class | IP23 |
| Cooling | AF |
