Mobile Payment Portable Barcode Scanner Android POS Terminal with Fingerprint Reader
- Category: >>>
- Supplier: Shenzhen Justtide Tech Co. Ltd.
Share on (62313681747):
Product Overview
Description

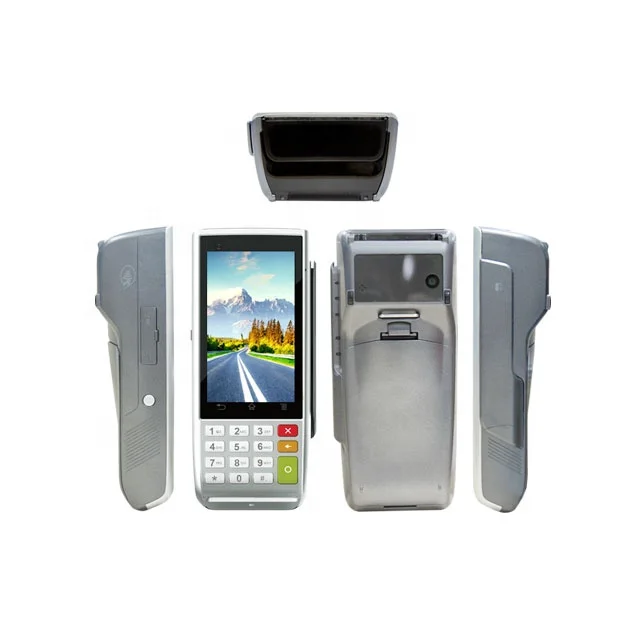

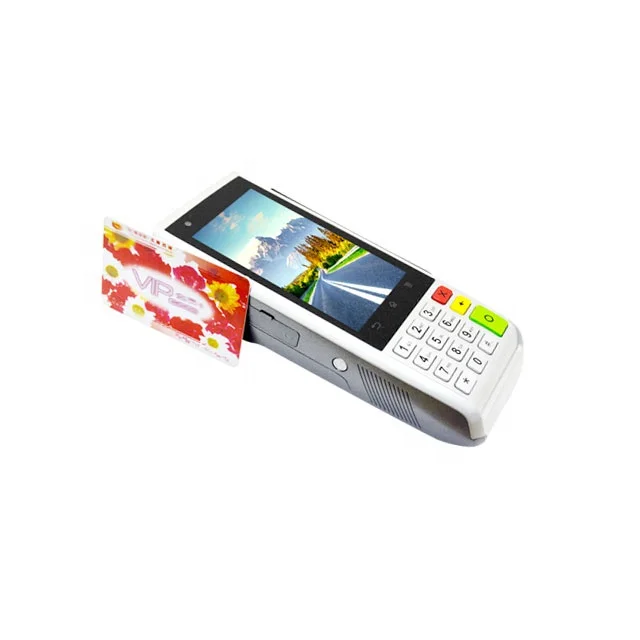

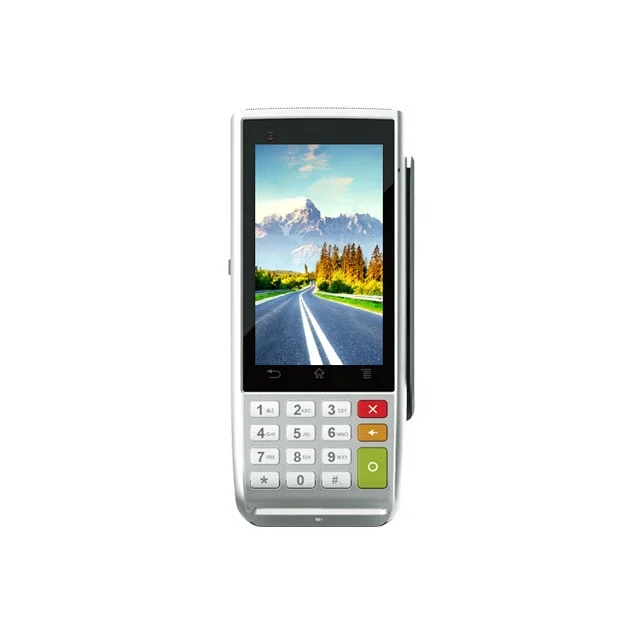

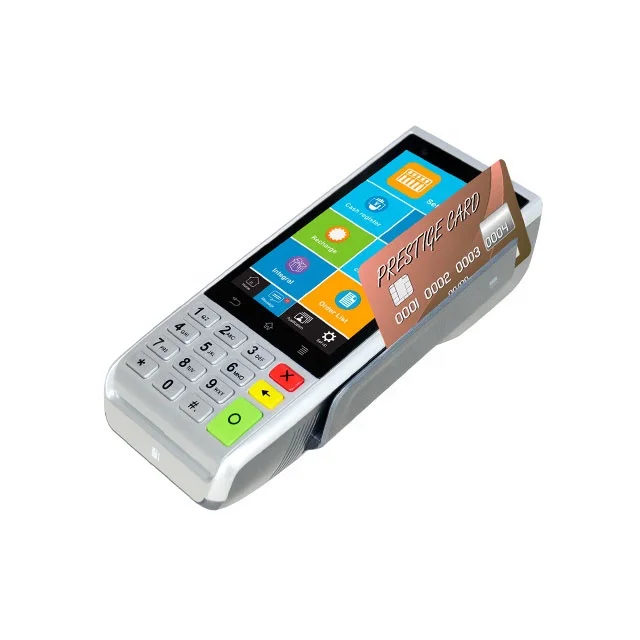

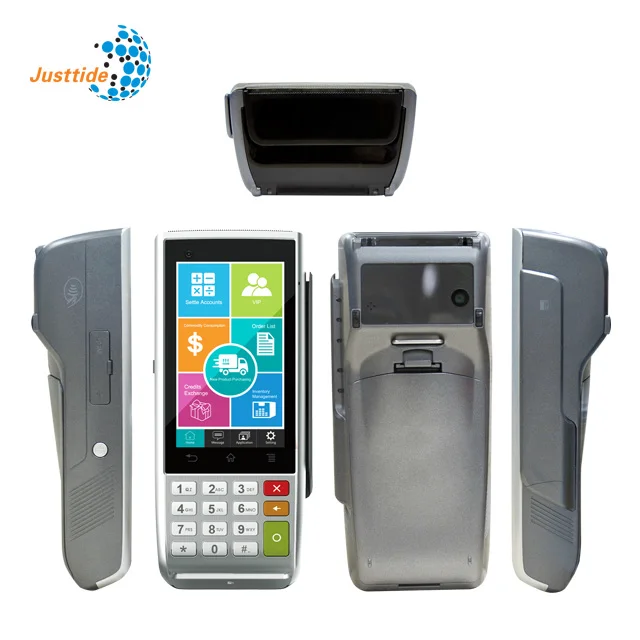

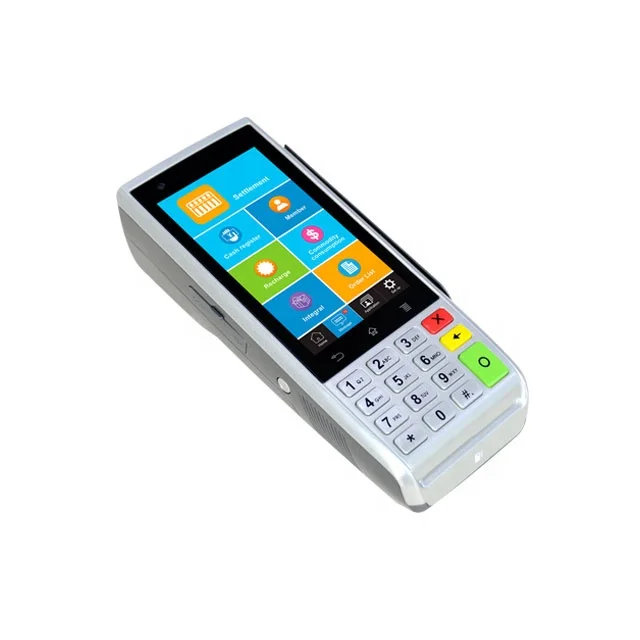

Mobile Payment Portable Barcode Scanner Android POS Terminal with Fingerprint Reader
Product Description
Justtide Handheld Android barcode Scanner POS with Magstrip/IC/NFC Card Reader
| S1000 Smart Terminal Data Sheet | |
| OS | Android 5.1 |
| Processor | ARM Cortex A7 1.1 GHz quad-core Main CPU(1.1G Hz) + secure CPU |
| Memory | MAIN SYSTEM: 1G byte DDR3 SDRAM 8G byte eMMC(iNAND), SD Card Socket (support up to 32G byte); SECURITY SYSTEM: 256KB flash 12KB SRAM 256-Bit, Battery-Backed, Flip-Flop-Based Secure Key Storage Dedicated Cryptographic Memory Space |
| Magstrip card reader | Track 1&2&3, bi-direction |
| IC card reader | ISO7816,EMV certification |
| NFC card reader | Support ISO14443 TYPE A&B, FELICA, MIFARE |
| LCD | 4.5 Inch Touch screen (capacitive) ,Resolution: 960x540, backlit |
| Keypad | 15 numerical physical keys + Virtual keyboard |
| Printer | thermal, 8dots/mm,70mm/s, roll paper 58*30mm |
| Communication | 2G: GPRS 850/900/1800/1900MHz 3G: WCDMA 1900/2100MHz; 4G: TD-SCDMA B34/39; LTE-FDD B1/B3; LTE-TDD B38/B39/B40/B41 |
| Wi-Fi | 802.11 b/g/n |
| Bluetooth | BT Class4.0-EDR |
| GPS | |
| Camera | 5M pixel(back) 0.3 mega-pixel(front) |
| Develop Language | JAVA , HTML(Free SDK) |
| Security | 3DES,Master/Session and DUKPT |
| Power | Adopter: AC input 100 - 240V, 50/60 Hz;DC Output 5V 1A (MICRO USB ); Battery: 3.8V 4500mAh Li-polymer battery |
| Card Slot | 2* SIM + 1*PSAM+1*SD |
| Interface | 1 USB Device, 1 Audio Jack,1 UART, support OTG |
| Biometric Fingerprint (optional) | Capacitive; Scan area size: 12mm*14.74mm; Active sensing area: 10.63mm*14mm; Fingerprint pixel: 152*200; DPI: 363; Spatial resolution: 363 DPI; Wear-and-tear:>1 million; |
| Barcode Scanner (optional) | 1D and 2D code both can read; 1D. EAN; 2D. QR |
| Dimension | 180 (L) x 81(W) x 49(D) mm |
| Environment | Operation Temperature:0 - 40℃ Storage Temperature: -20 - 60℃ Humidity:-10% to 90% |
2. Certifications
Patents: 5 Inventions, 19 Utility models and 38 Appearance Designs
5. Application
Jusittide POS Terminal applied in Financial POS System and Commerce POS System
Company Information
Shenzhen Justtide Tech Co., Ltd.
•Year Established:2004
•R&D Team:50% of the R&D staffs come from senior experts, the patent holders and oversea returnees over eight years experience in the field of secure payment.
•Main Business:Self-service Terminal, VTM, Smart POSTerminal, Encrypting PIN Pad, Smart Card Reader, ID verification Equipments, Mobile Internet O2O Service Solution, Prepayment Card Solution andVideo Banking Solution etc.
•History Background: In financial security payment industry, Justtide is the sole company invested by CHINA MERCHANTS GROUP , since 1872, which possesses dozens of the most known listed companies in China and Fortune Global 500, such as: CHINA MERCHANTSBANK CO.,LTD.(600036), PING AN BANK CO.,LTD.(000001),
2. Team & Exhibitions
3. Production Line
4. Our Customer
