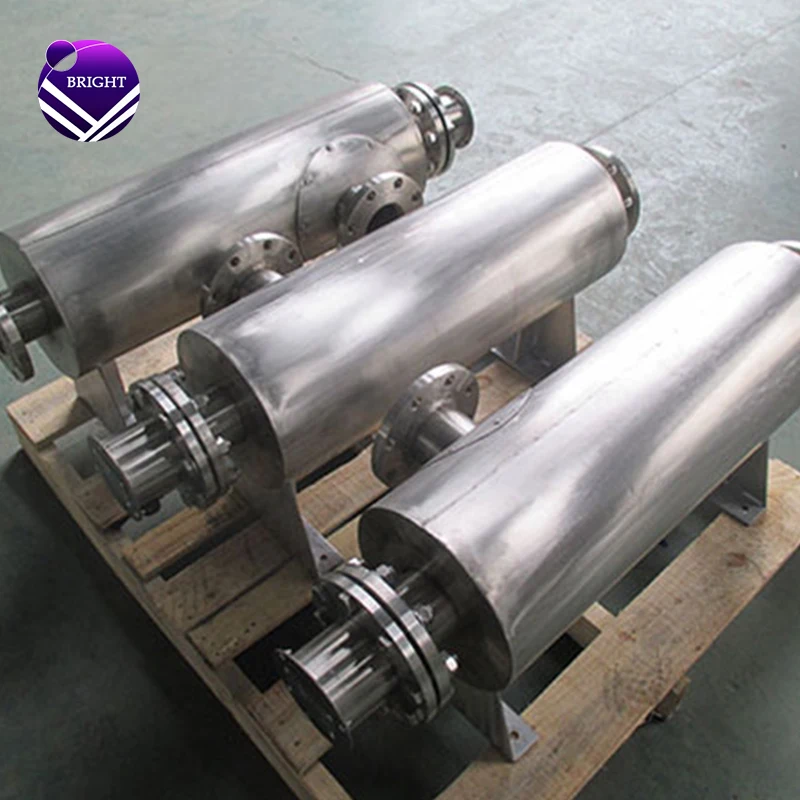

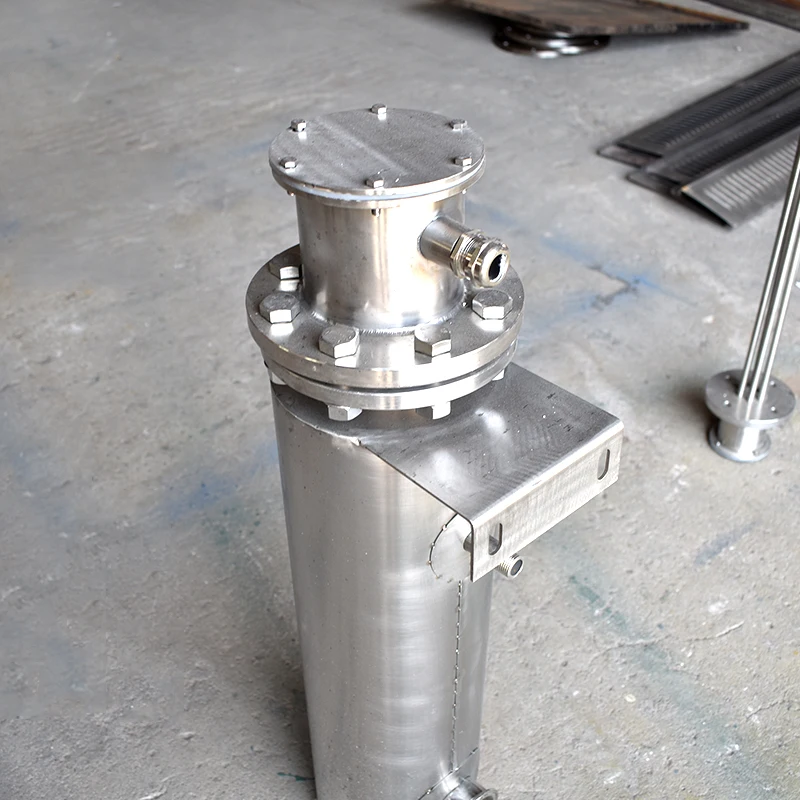

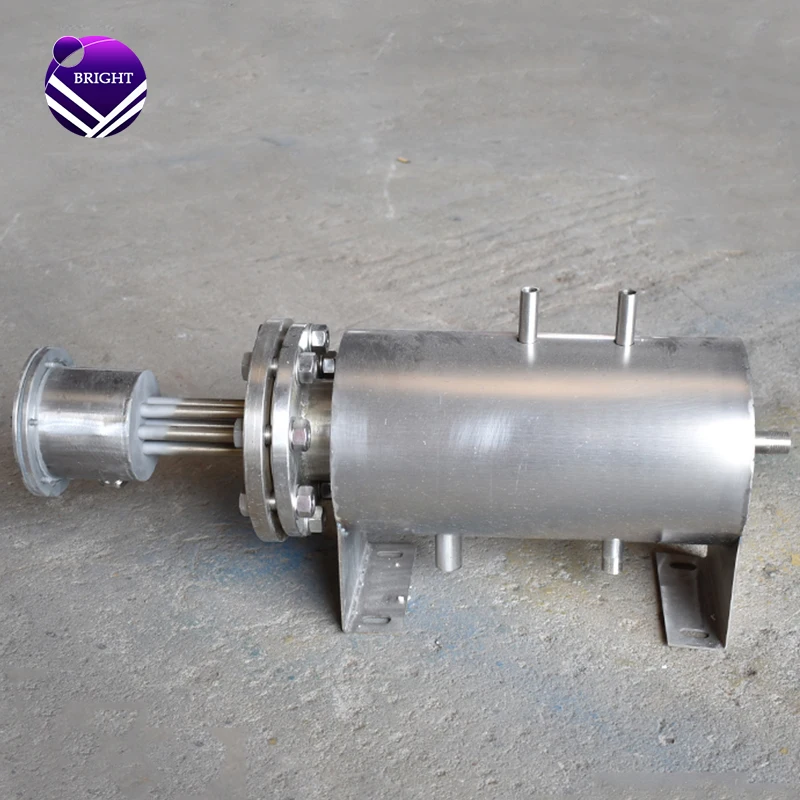

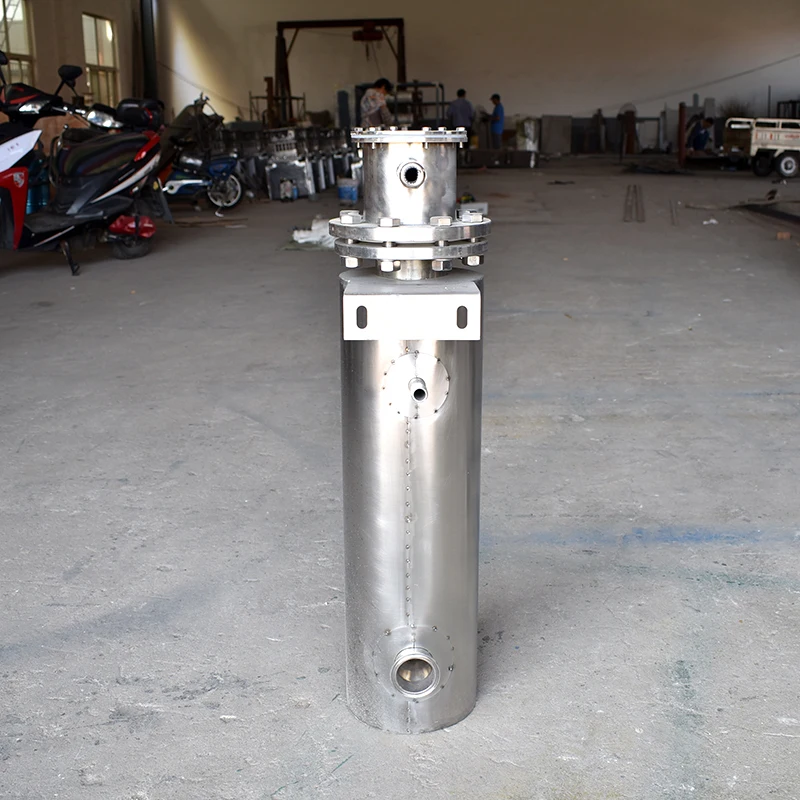

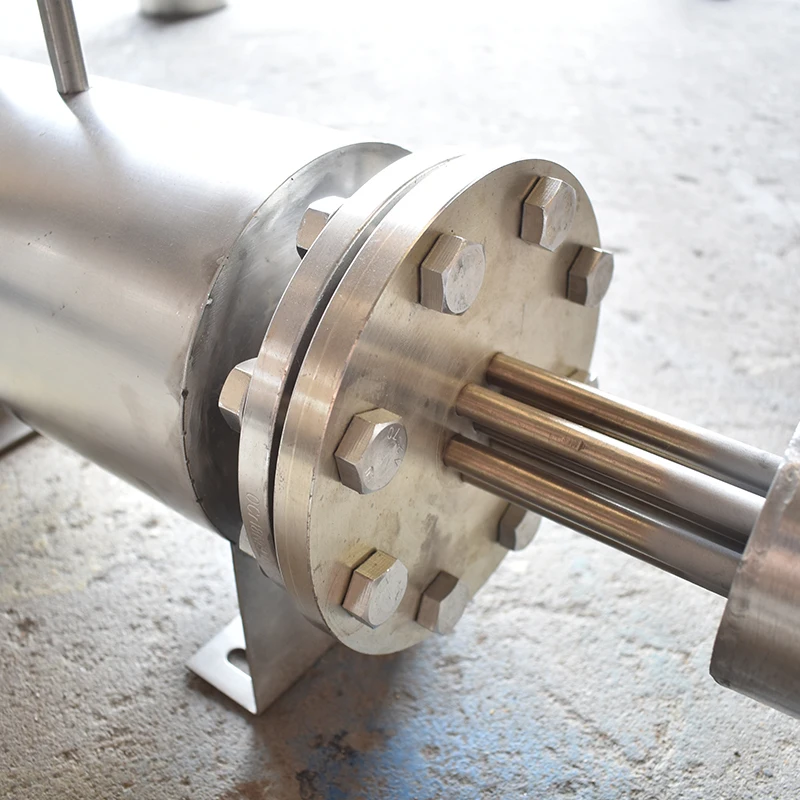

Bright custom 500kw Industrial Electric Air Circulating Heater, Non woven Cloth Pipeline Air Circulation Heater
- Category: >>>
- Supplier: Yancheng Bright Electric Heating Appliance Manufacturing Co. Ltd.
Share on (62313696567):
Product Overview
Description
Product Description
Inline heaters, sometimes referred to as circulation heaters, have a number of different industrial uses.
Inline heaters make use of heating elements that are covered with a special type of vessel chamber that has anti-corrosion properties. This type of heating is indirect. The fluid is circulated through a closed loop around the heating element until it reaches the correct temperature. Then it’s passed out of the tank through a nozzle. Different uses may require different flanged connections, sheath materials, or temperature ranges. These heaters are often insulated to help increase their efficiency.
Inline heaters make use of heating elements that are covered with a special type of vessel chamber that has anti-corrosion properties. This type of heating is indirect. The fluid is circulated through a closed loop around the heating element until it reaches the correct temperature. Then it’s passed out of the tank through a nozzle. Different uses may require different flanged connections, sheath materials, or temperature ranges. These heaters are often insulated to help increase their efficiency.
Technical Parameters

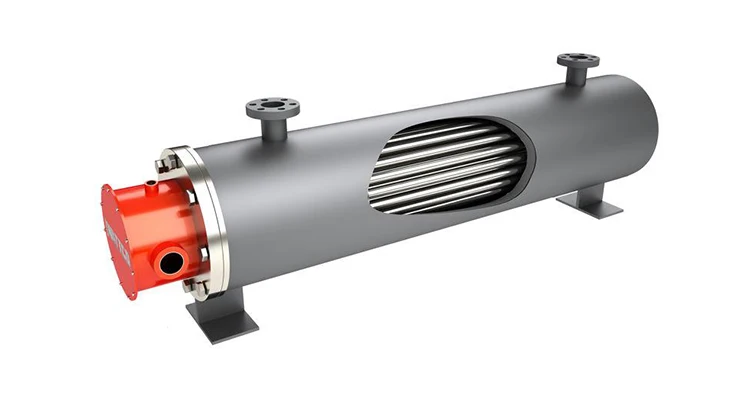

The Parts Of An Inline Heater
Inline heaters are made up of a number of different parts:
The heating element and its sheath and thermal insulation.
The pump unit that pushes the fluid to be heated through the system.
The fluid itself, which passes through a loop around the heating element, getting hotter with each pass.
The outlet nozzle where the heated fluid is pushed out of the system once it reaches the correct heat.
Thermocouple sensors that determine when the liquid has reached the desired temperature.
A control system that varies in its complexities – some allow the unit to be turned on and off, but have a set temperature, while others are more flexible and allow the user to change the temperature.
There are some optional components that can be added to an inline heater. These include stronger cases that are moisture resistant or are strong enough to contain an explosion. Additional flange types and mounting equipment are also available.
Inline heaters are made up of a number of different parts:
The heating element and its sheath and thermal insulation.
The pump unit that pushes the fluid to be heated through the system.
The fluid itself, which passes through a loop around the heating element, getting hotter with each pass.
The outlet nozzle where the heated fluid is pushed out of the system once it reaches the correct heat.
Thermocouple sensors that determine when the liquid has reached the desired temperature.
A control system that varies in its complexities – some allow the unit to be turned on and off, but have a set temperature, while others are more flexible and allow the user to change the temperature.
There are some optional components that can be added to an inline heater. These include stronger cases that are moisture resistant or are strong enough to contain an explosion. Additional flange types and mounting equipment are also available.
We usually send the drawing for last confirmation before production.
Watt | Size | Insulation Thickness | Control Cabinet |
10kw | Φ108*1000mm | 80mm | 400*500*200mm |
20kw | Φ133*1200mm | 80mm | 500*600*200mm |
30kw | Φ159*1200mm | 80mm | 500*600*200mm |
40-50kw | Φ219*1400mm | 80mm | 600*700*300mm |
60kw | Φ219*1500mm | 100mm | 700*800*300mm |
70-80kw | Φ273*1500mm | 100mm | 700*800*300mm |
90kw | Φ273*1500mm | 100mm | 700*900*300mm |
100kw | Φ325*1500mm | 100mm | 750*900*300mm |
120kw | Φ325*1500mm | 100mm | 1600*600*450mm |
140kw | Φ325*1800mm | 100mm | 1600*600*450mm |
160kw | Φ325*1800mm | 100mm | 1800*800*500mm |
180-200kw | Φ377*2000mm | 100mm | 1800*800*500mm |
240-270kw | Φ377*2500mm | 150mm | 2200*800*600mm |
300-360kw | Φ426*2500mm | 150mm | 2200*800*600mm |
400-450kw | Φ426*2500mm | 150mm | 2200*1200*800mm |
Main Features
1.The electric circulation heating ring is equipped with a drain valve for easy installation and maintenance of the heater.
2.Equipped with a moisture-proof and explosion-proof junction box for use in hazardous environments.
3.The maximum temperature can reach 1000 °F.
4.Suitable for heating gas, liquid and dangerous goods
5.Design insulation layer to prevent frost.
6.Thermal efficiency exceeds 95%.
7.Provide design solutions and drawing services.
8.Free configuration of 10% spare tube
9.The operating temperature is comfortable, the interior is heated to 500 degrees Celsius and the surface temperature is only 50 degrees Celsius.
10.The heating element is made of high temperature alloy and has good mechanical properties.
Applications
Water Heating: Inline heaters are often used for heating clean water for a number of uses, such as industrial washing. These heaters may be mounted either vertically or horizontally. If the water is being heated for washing food, it makes use of a stainless steel flange and makes use of an Incoloy sheath. Selecting the correct inline heater depends on the desired water flow rate and on the specifications provided on the heating element (its wattage, the area it can heat, etc.). The ease of cleaning and maintaining inline heaters make them especially attractive to those in the water heating industry.
Steam Heating and Gas: Inline heaters are used in the steam heat and gas industry to heat a number of different gases for various applications. They are mainly used for heating these three gases:
1. Argon, which is used for welding, heat processes, and to prevent oxidation during a number of other processes.
2. Helium, which is used to fill airbags, balloons, and to create a protective environment for the manufacturing and production of electronics.
3. Nitrogen, which is used in pipelines to push liquids forward and in laser cutting.
Heated steam can be used in atomization, sterilization, and in propulsion.
Construction: In the construction industry, inline heaters are used to provide indirect heat to steam and different gases at various wattages and power ranges. They can be used with different sheaths, flanges, and terminal enclosures as well. For heating gas, most use a steel or a stainless steel flange along with Incoloy sheaths. They may be mounted vertically or horizontally with the valve located in anywhere on the tank. Many choose inline heaters for construction needs because of how efficiently they heat steam and gas and because they are easy to maintain. Selecting the right size inline heater depends on the desired flow rate and the size of the area to heat.
Steam Heating and Gas: Inline heaters are used in the steam heat and gas industry to heat a number of different gases for various applications. They are mainly used for heating these three gases:
1. Argon, which is used for welding, heat processes, and to prevent oxidation during a number of other processes.
2. Helium, which is used to fill airbags, balloons, and to create a protective environment for the manufacturing and production of electronics.
3. Nitrogen, which is used in pipelines to push liquids forward and in laser cutting.
Heated steam can be used in atomization, sterilization, and in propulsion.
Construction: In the construction industry, inline heaters are used to provide indirect heat to steam and different gases at various wattages and power ranges. They can be used with different sheaths, flanges, and terminal enclosures as well. For heating gas, most use a steel or a stainless steel flange along with Incoloy sheaths. They may be mounted vertically or horizontally with the valve located in anywhere on the tank. Many choose inline heaters for construction needs because of how efficiently they heat steam and gas and because they are easy to maintain. Selecting the right size inline heater depends on the desired flow rate and the size of the area to heat.
Circulation heaters, also known as electric flow and process heaters, are used for direct heating of:
Water
Circulation water
Marine water
demineralised water
domestic or drinking water
Oil
Thermal oil
Nitrogen
Hydraulic oil
Turbine oil
Heavy fuel oil and lube oil
Heat transfer fluid, such as diphyl
Alkali/lyes and different industrial liquids
non-flammable gases
Air
After-sale
When order, pls supply us follows data ( standard voltage 380V)
1. Air flow rate
2. Temperature range
3. Heating time
4. Usage environment
Package: Plywood or wooden case packaging
Delivery: By sea
After-sales service:
(1) The equipment has one year wa-rranty and starting from the acceptance date. After the warranty, supplier still provide long-term after-sales service, in time to meet the buyer requirements.
(2) During warranty period if equipment is failed (except for the normal replacement of wearing parts) are all responsible for the supplier.
(3) During warranty period if equipment is failed (except for the normal replacement of wearing parts). After buyer informing by telephone or describing in writing to the supplier technician, we will provide solving solutions within 4 hours. If the problem is still not resolved, we will arrange technician to arrive the site within 72 hours.
(4) After warranty period if equipment is failed. After buyer informing by telephone or describing in writing to the supplier technician, we will provide solving solutions within 4 hours. If the problem is still not resolved, we will arrange technician to arrive the site within 72 hours and charge the relevant fee.
(5) After warranty period wearing parts can be provided at cost price from supplier.
(7) Our duct heaters' efficient design and construction, they are easy and safe to remove and inspect. If you have identified the problem, We can supply replacement components and provide further information.

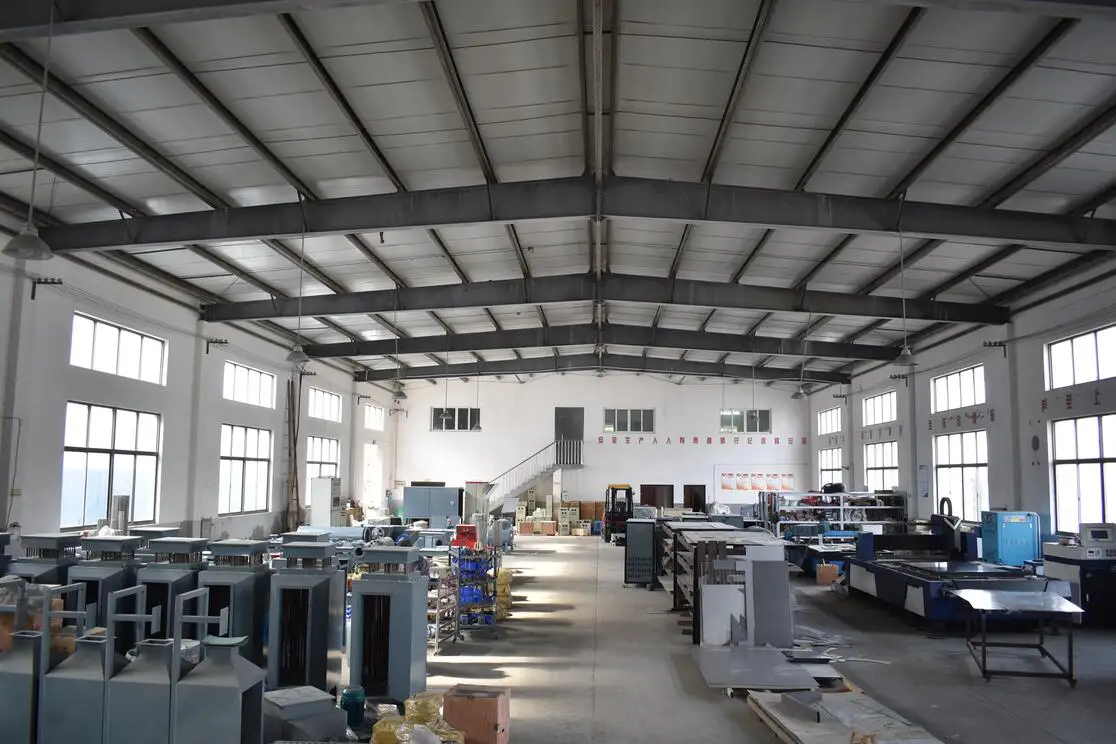

Our Company
