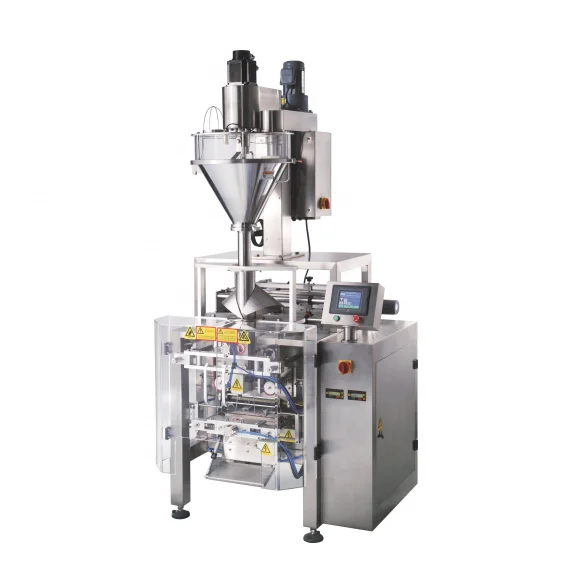

Maca/Raw/Spirulina/Wheatgrass/Goji/Rose/Broccoli/Spicy/Nutmeg/Cranberry/Lucuma/Kale Powder Packing Machine

• Apply packing powder dosing and packaging

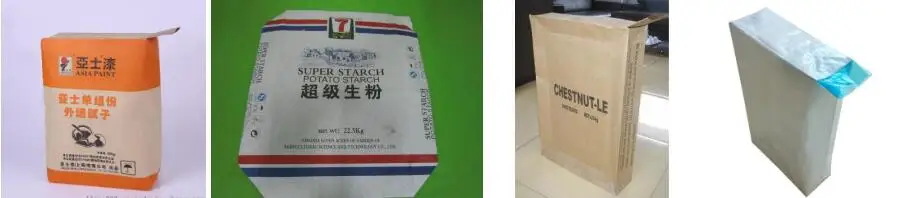

• Type of pouch to be formed : back sealing pillow pouch as the standard , side gusset pouch as the option
• Dosing device : Auger
• PLC & HMI Control, easy for parameter setting and troubleshooting
• Intelligent temperature controlling configuration, ensure the artistic and neat sealing
• Stainless steel 304 structure and surface
• Configure with packaging film pre-pulling device, to enable stable pouch making
• Smaller size , flexible for space adaption

• Auger Type : Servo Motorized
• Filling Range: 10-5,000gram
• Filling Accuracy: <100g,<±2%;100 ~ 500g, <±1%;>500g, <±0.5%
• Volume of Hopper: 75 Liter
• Type of Hopper: Quick disconnecting as the standard, split type as the option
• Max Film Width(mm):800
• Pouch Size-Length(mm):60-400
• Pouch Size-Width(mm):50-400
• Max Packing Speed (Pouches/min):30
• Power Consumption(kW):6.0
• Power Requirement(V/Hz):AC 220V 50/60HZ
• Vertical Sealing Method:Servo Motor
• Horizontal Sealing Method:Pneumatic
• Compress Air Requirement:0.6 Mpa
• 15) Compress Air Consumption:0.5m3/min

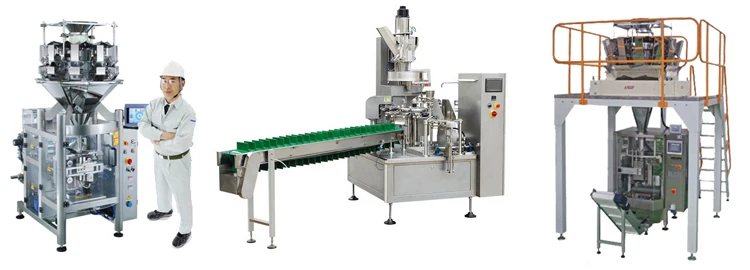

If you think the above machine can't fulfill your requirement , please click the following link to get more machine demostration, like:

• Linear Type Automatic Premade Pouch Packaging Machine
• Weighing and Pacaking Integrated pouch packaging machine
• Pouch packaging machine for spout pouche
• Other pouch forming and sealing packaging machines

In order to enable you understand our products conveniently, following documents are available, but not limited,  to be provided upon the stage of purchasing:

Customization Philosophy

The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:

• Products to be packed
• Type of pouch to be used , flat, gusset , or stand up pouch and its specification.
• Packing volume per pouch, ml or gram per pouch
• Capacity requirement, namely how many pouches per hour
• Automation requirement
• Protection requirement, details refer to the optional features above
• Other specific requirement

Selection Guide

Selection Guides are available for circulation, contact us to get products selection and customization support.

Statement

• The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
• Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
• The features or functions appear in this profile subject to the additional description of quotation
