ATV modify car racing car brake part hydraulic brake hose
- Category: Rubber Hoses >>>
- Supplier: Qingdao Guosong Machinery Parts Co. Ltd.
Share on (62313869120):
Product Overview
Description

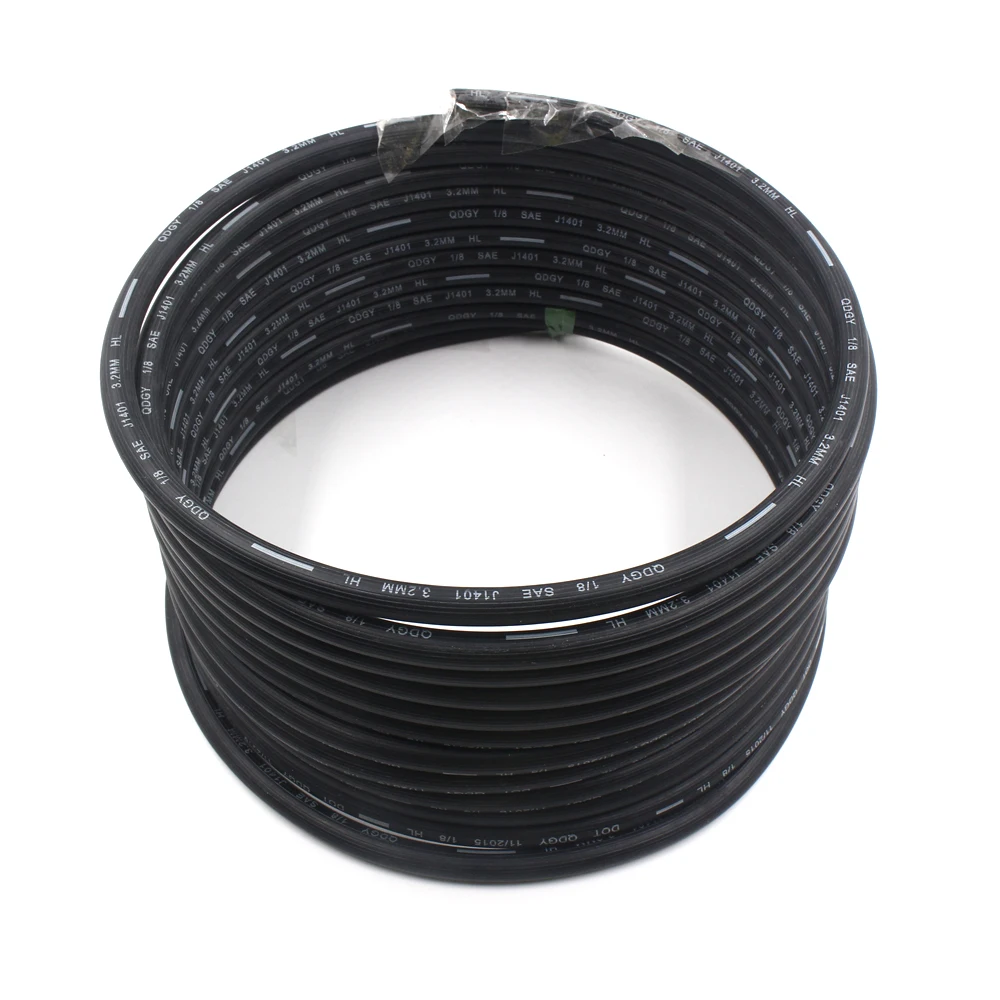

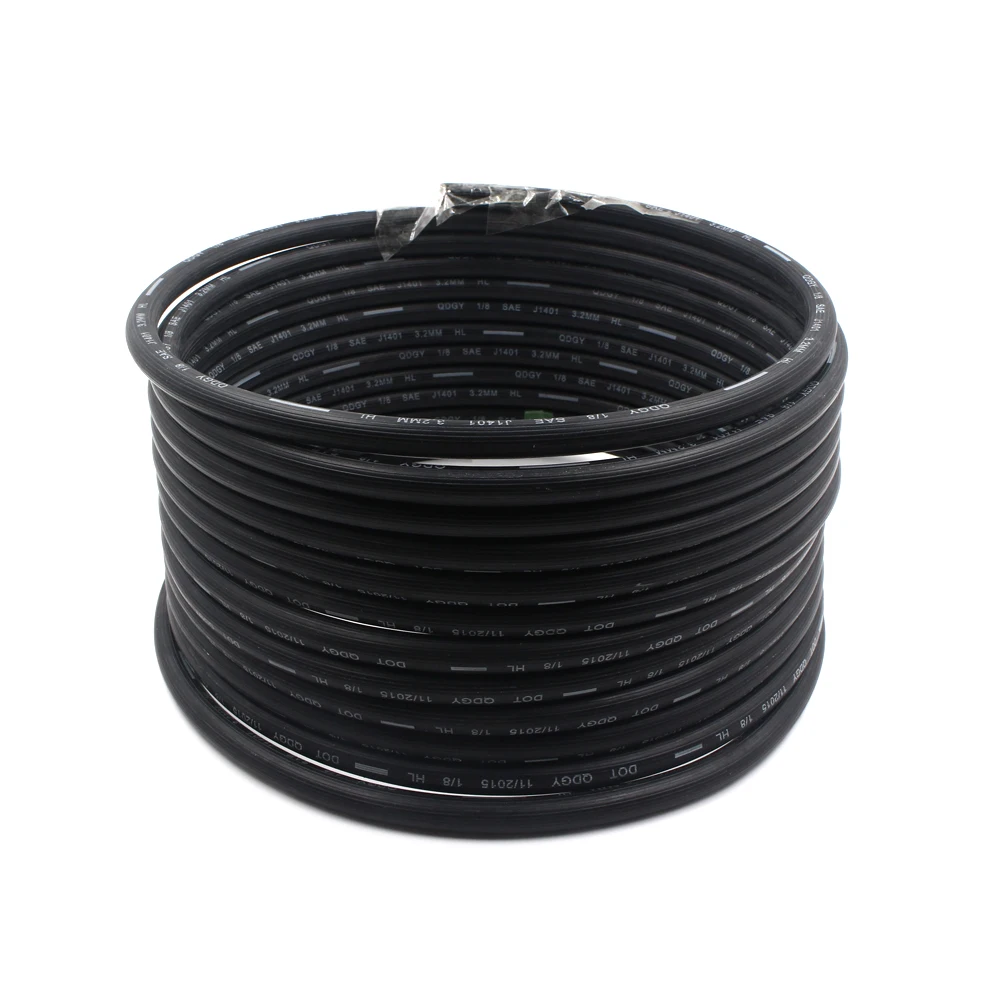

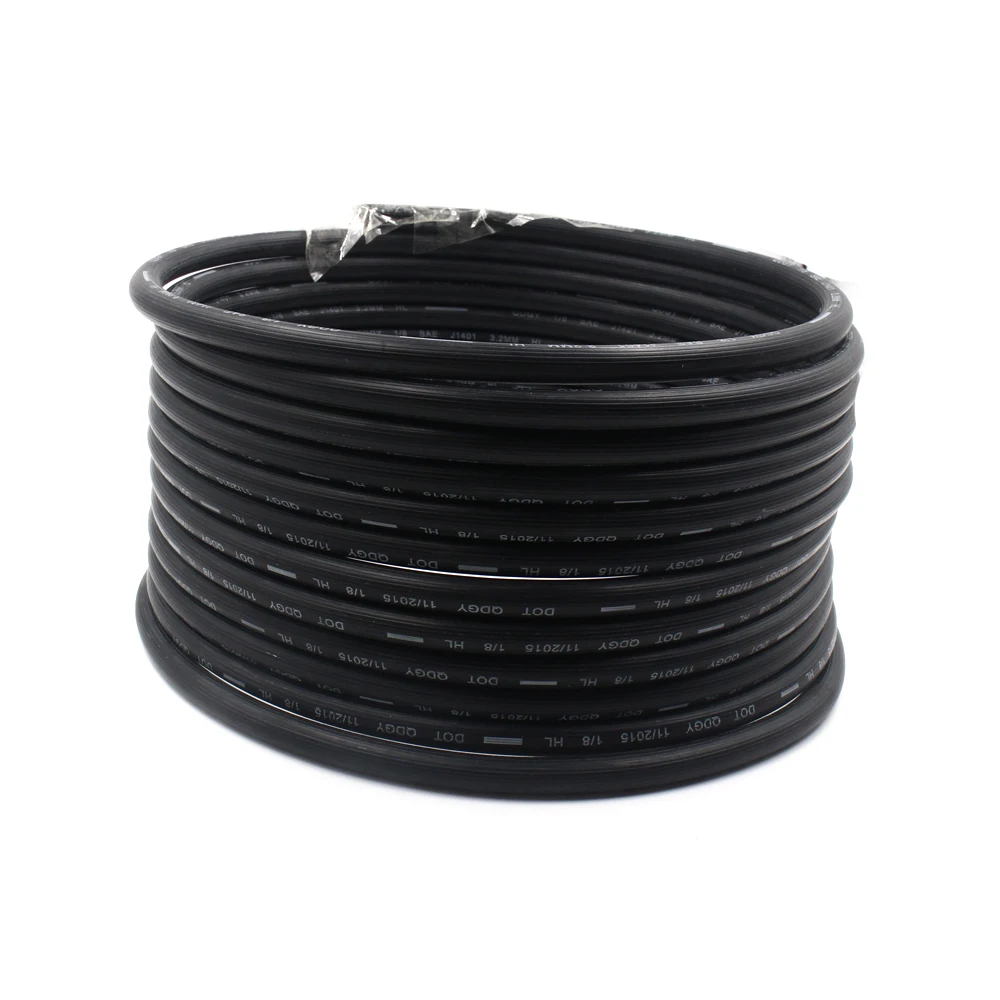

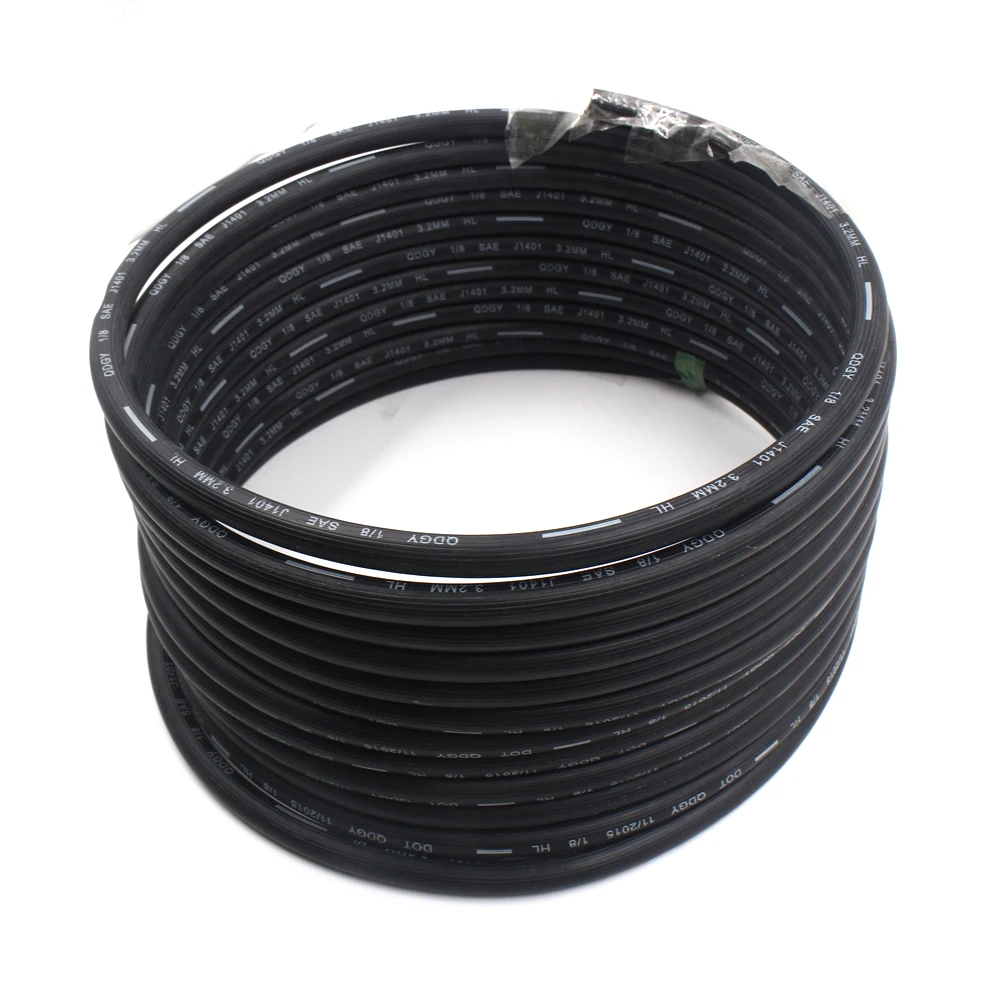

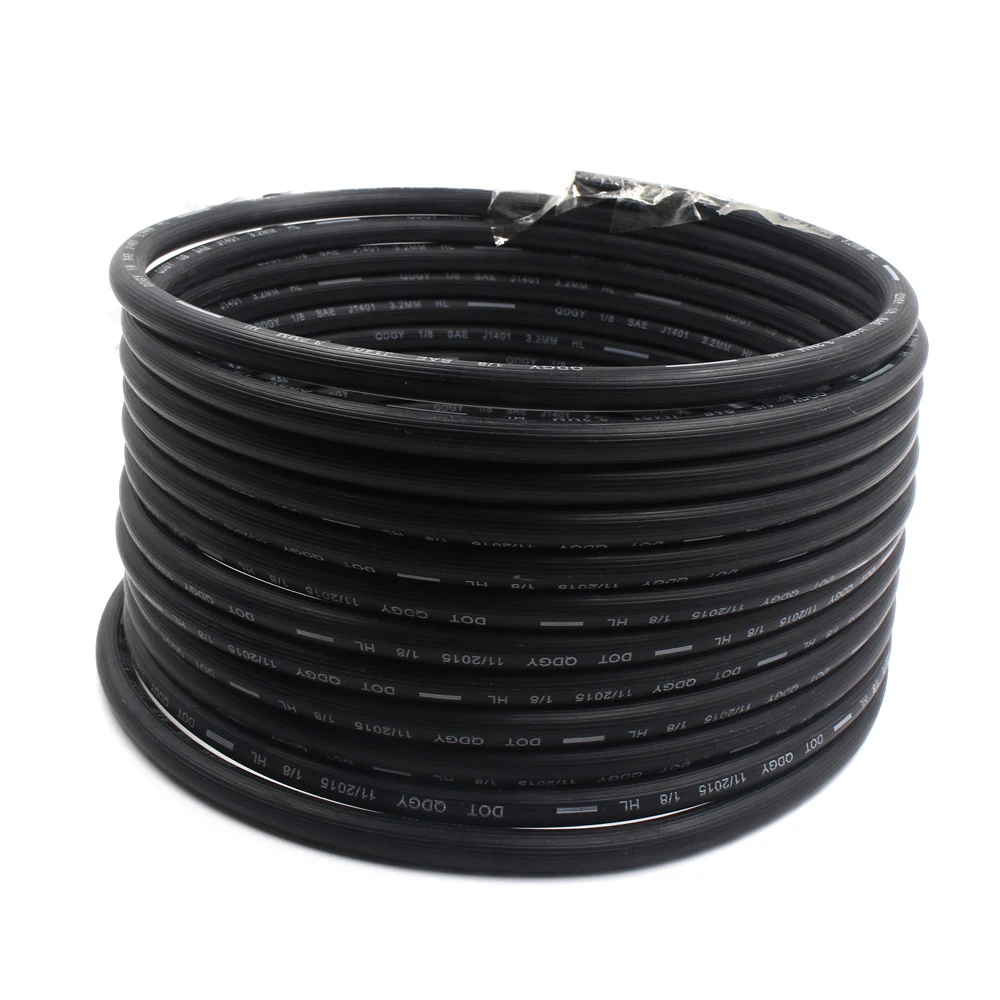

ATV modify car racing car brake part hydraulic brake hose
rubber brake hose
BRAKE HOSE application & function:
BRAKE HOSE: used in auto / car / motor / motorcycle / vehicle / truck / braking system, to transfer the braking medium in the automobile brake, the braking force is guaranteed to be transmitted to the automobile brake shoe or brake clamp to generate braking force, so that the brake is effective at any time.
Rubber Brake Hose Specifications:
| Inner Diameter | Outer Diameter | Outer layer | Double braid | Inner layer |
| 1/8" (3.2mm) | 0.413" (10.5mm) | EPDM | PVA reinforcement | EPDM |
| 3/16" (4.8mm) | 0.492" (12.5mm) |
Rubber Brake Hose Features:
- Two braid PVA reinforced hose
- Meets FMVSS-106 and SAE J1401 specifications
- Every brake hose pressure tested to 3500 psi( 240 bar or 24Mpa )
- Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
- Temperature range -50°C to 121 °C
- Compatible with DOT3,DOT4 and DOT4+ brake fluides
Technical Specification:
Performance | Test Condition | International standard | Production standard |
ID | Normal | 3.2mm | 3.15~3.45mm |
OD | Normal | 10.5mm | 10.30~10.70mm |
Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft |
1500psi | 0.42cc/ft max. | 0.20~0.22cc/ft | |
2900psi | 0.61cc/ft max. | 0.41~0.43cc/ft | |
Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | >10,500psi |
Whip | 235~250psi | >35h | >70h |
Tensile | tensile speed:218±3mm/min | >1446N | 2400N |
Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No cracking |
Ozone | 100pphm×70h×40°C, 7X | No cracking | No cracking |
Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi |
Compatibility | 120°C × 70h | >7000psi No seepage | >8800psi |
Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust |
Water Aging | Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min | >7000psi; >35h; >1446N | >10250psi;>60h; >2200N |
Certifications
Certifications:
Company Information
QDGY hose factroy:
Rubber hose test lab:
QDGY team:
QDGY freinds:
Packaging & Shipping
Rubber brake hose Packaging:
Productivity:
500,000 meter / month
6,000,000 meter / year
Shipping:
Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Conveniently by air or by ocean with cheaper freight fee.
QDGY brake hose main market:
