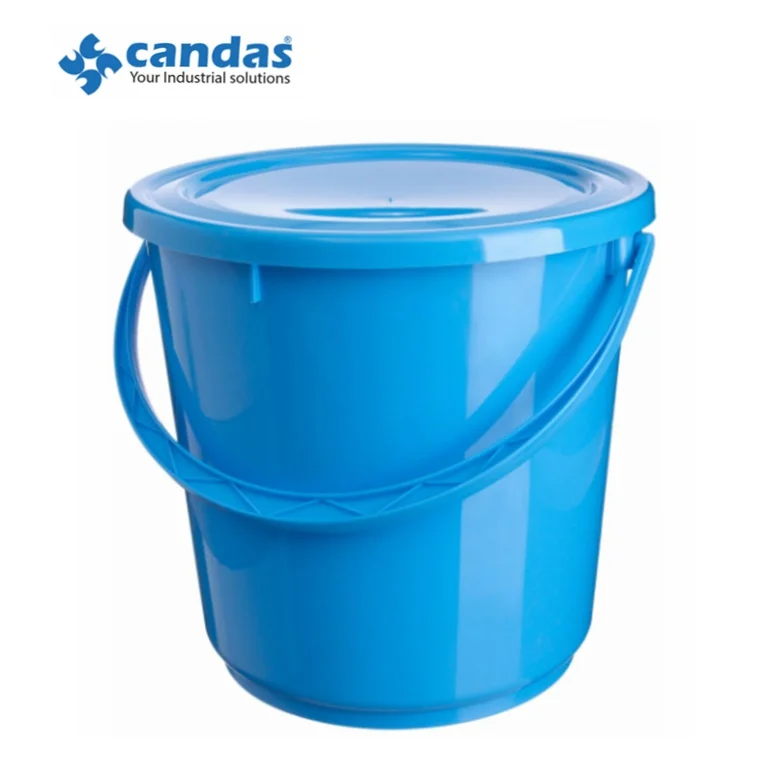

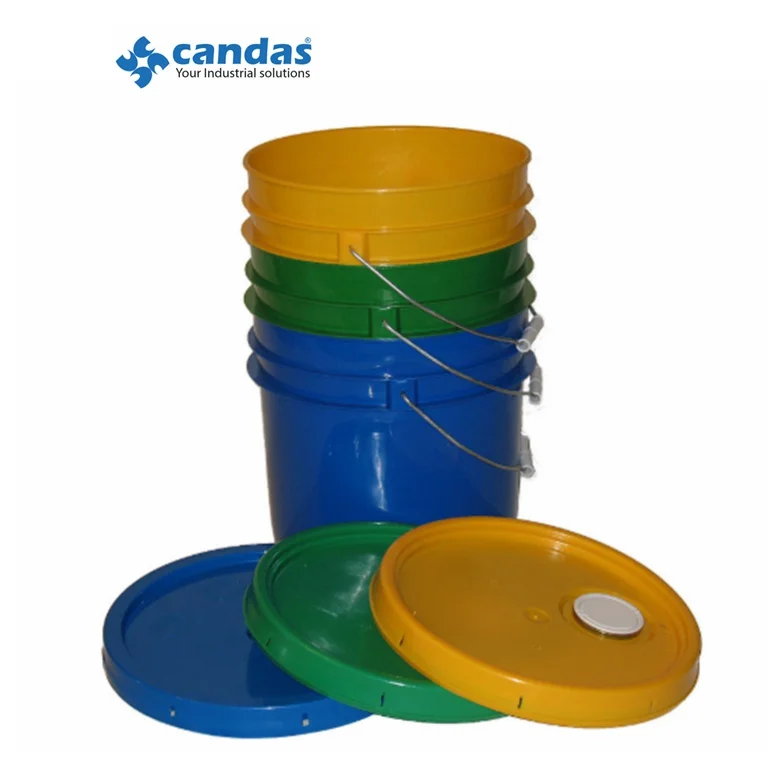

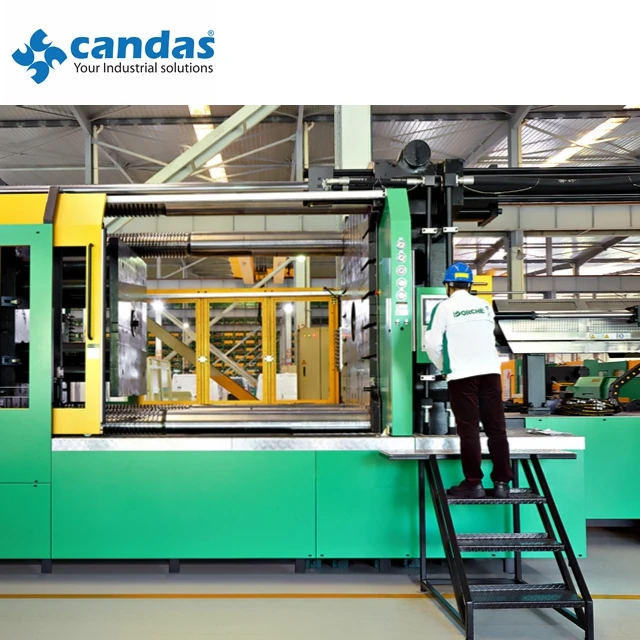

Candas BS500 III automatic injection molding machine 500ton plastic paint bucket making
- Category: >>>
- Supplier: Suzhou Candas Import And Export Co. Ltd.
Share on (62313924304):
Product Overview
Description
Product Description
DESCRIPTION OF BS500 | ||||
MODEL INTERNATIONAL CLASS NO. | UNIT | BS500 | ||
INJECTION UNIT | ||||
SCREW DIAMETER | MM | 85 | ||
SHORT VOLUME | cm³ | 2411 | ||
SHOT WEIGHT(PS) | g | 2267 | ||
SHOT WEIGHT(PS) | OZ | 80.1 | ||
INJEDTION PRESSURE | MPa | 163 | ||
SCREW L/D RATIO | L/d | 21 | ||
INJECTION STROKE | mm | 425 | ||
SCREW ROTARY SPEED MAX. | rpm/min | 144 | ||
NOZZLE CONTACT FORCE | KN | 80 | ||
NOZZLE STROKE | mm | 450 | ||
CLAMPING UNIT | ||||
CLAMPING FORCEclamping force | KN | 5000 | ||
OPENING STROKE | mm | 755 | ||
PLATEN SIZE | mm×mm | 1175*1145 | ||
SPACE BTW.TIE BARS | mm×mm | 830*830 | ||
DAYLIGHT MAX. | mm | 1555 | ||
MOLD THICKNESS(MIN~MAX) | mm | 265~800 | ||
EJECTION STROKE | mm | 250 | ||
EJECTOR FORCE | KN | 111.3 | ||
EJECTOR PIN | nuit | 8+4+1 | ||
POWER UNIT | ||||
SYSTEM PRESSURE | Mpa | 17.5 | ||
PUMP MOTOR | KW | 22+30 | ||
HEATING CAPACITY | KW | 31.7 | ||
NO.OF HEATER ZONES | uint | 6 | ||
GENERAL UNIT | ||||
OIL TANK CAPACITY | L | 1300 | ||
MACHINE DIMENSIONS | m×m×m | 9.09*2.22*2.47 | ||
MACHINE WEIGHT | KG | 24000 | ||
Machine Features
Injection Unit
Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail
Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail
Electric and control part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage
Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √
Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √
Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication
component brand list
Hydraulics
Internal gear pumps
Pressure Sensor
Hydraulic valve
Plasticizing Motor
Hydraulic motor for clamping
High pressure hydraulic Hoses
Electrics/Electronics
Servo Motor
Servo Driver
Proximity Switch
Photoelectric Switch
Position Switch
Three Phase Automatic Breaker
AC Magnetic Contactor
Heater Relay
Solid state reply
Intermediate relay
Linear Transducer
Computer Controller
Others
Screw &barrel
Platen
Lubrication System
Hydraulics
Sunny
Danfoss / IFM
Yuken / TOKIMEC
Calzoni/Rivazzi /STF
Ji Ning Li Ke /Dali
Alfagomma
Electrics/Electronics
BORCHE
Inovance
Sick/ Omron
Sick/ Omron
Nais/ Schneider
ABB/Schneider
Siemens/Schneider
Siemens/Schneider
Carlo/Crydom
Carlo/Schneider
TTC/Vishay
KEBA
Others
Material : 38CrMoAl
QT500
Herg
Hydraulics
US/made in China
Demark/Germany
Japan/USA/Germany
Italy/China
China
Italy
Electrics/Electronics
China
China
Germany/Japan
Germany/Japan
Japan/France
Sweden-Swiss J.V/Germany
Germany/France
Germany/France
Swiss&USA
Swiss
USA
Austria
Others
China
China-Hong Kong J.V
Japan
Detailed Images
MOVING PLATEN CLAMPING
1-Tie bars move across clamping cylinder, no touch with seals, lessen pressing leakage; Module type clamping cylinder, can be assembled and disassembled together, easy for maintenance.
2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast and precise locking.
3-Clamping cylinder assembled in the moving platen can balance the load of mold, avoiding mold forward, improve stability of moud open and clamping movement.

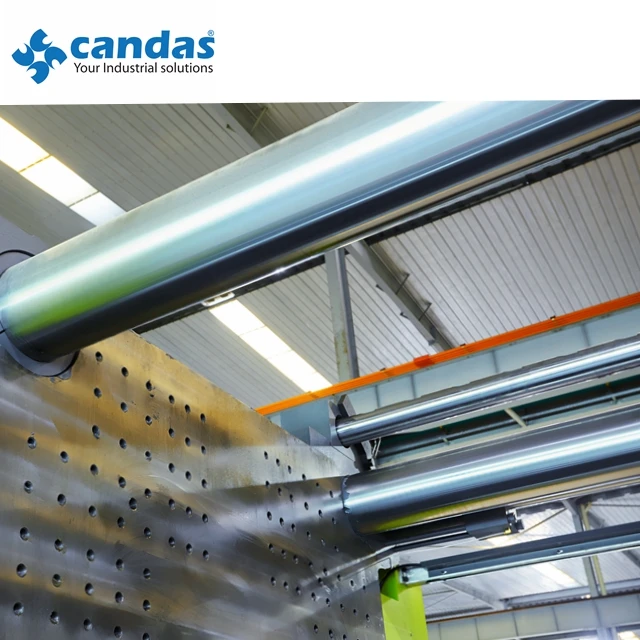

SUPER LONG LASTING TIE BAR
1-During high pressure locking, four tie bars under equal force, no unbalance loading occured, avoiding tie bar broken theoretically.
2-Adopt transparent front safety door design, equipment monitoring is more intuitive
3-The machine is equipped with more than 20
nameplates, humanized design, always remind the operator to pay attention to safety
INNOVATED INJECTION STRUCTURE

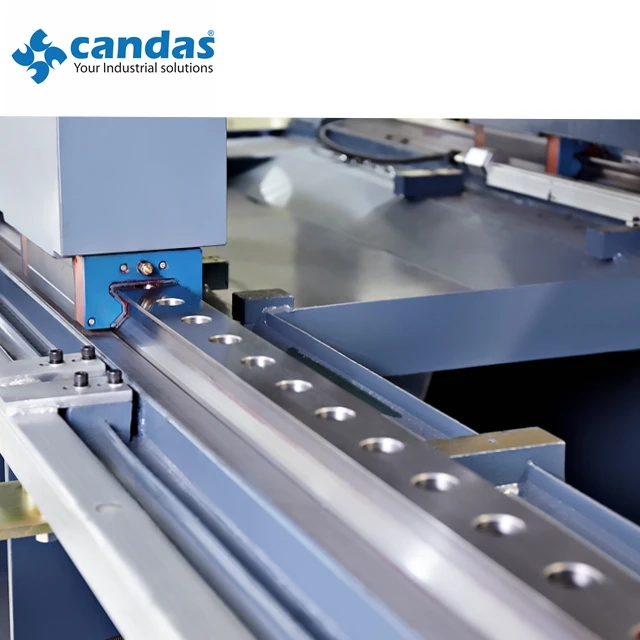

1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection supporting made by one piece casting, is rigid and compact.
2-Double carriage cylinder insures injection unit better centering, and movement stable.
3-Adopt double - beam - shift structure, the
platform is good to the neutral, the work is more stable
platform is good to the neutral, the work is more stable
MACHINE SIZE
1-The machine shape is designed according to ergonomics, the machine appearance and operation performance is more humanized
2-After optimization, the rigidity of machine structure is greatly improved
3-The clamping frame is fully hollowed-out, which can adapt to the full automatic production system of three conveyor belts at the same time
Packing & Delivery
Packaging | ||
Size | 710×240×210 | |
Weight | 1.9T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Service
Packaging | ||
Size | 710×240×210 | |
Weight | 1.9T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
