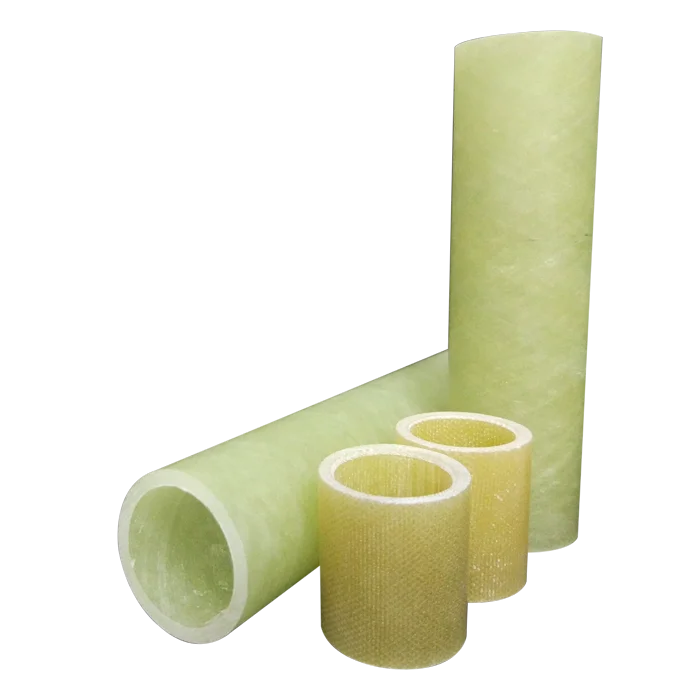

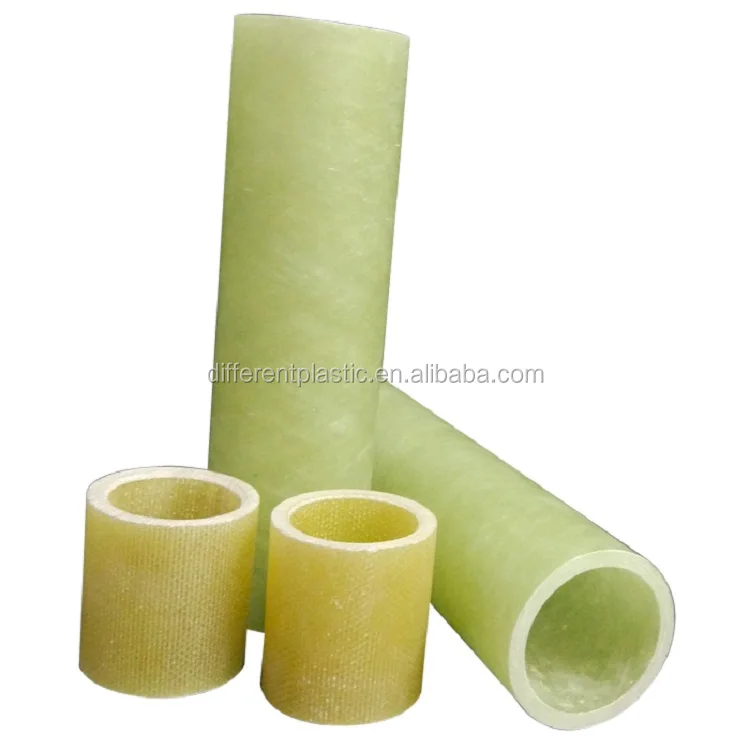

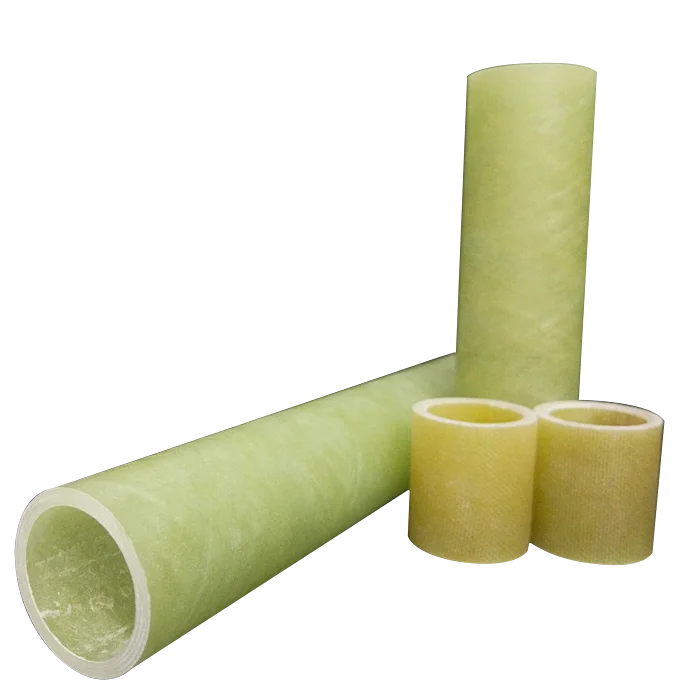

FR4,G10,3240 Epoxy Resin Fiber glass Laminated Electrical Insulation Tube
- Category: >>>
- Supplier: Wuxi Different Plastic Co. Ltd.
Share on (62313931890):
Product Overview
Description

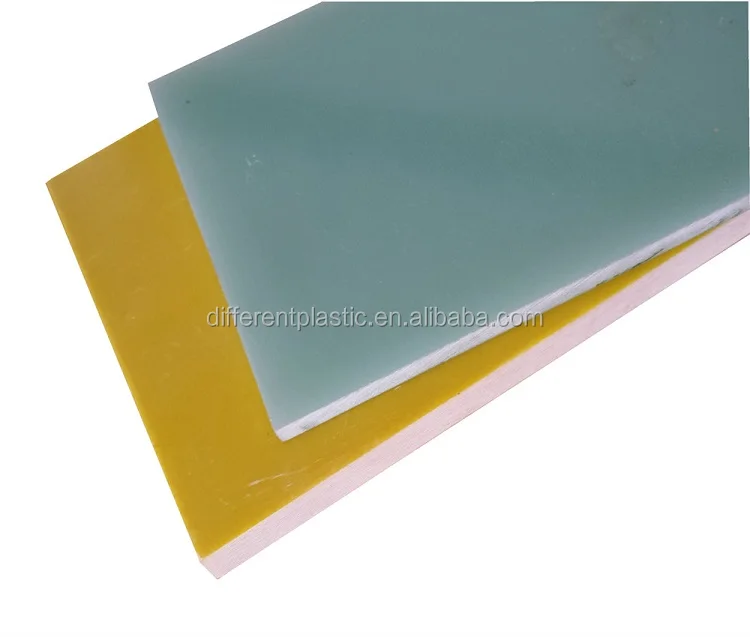

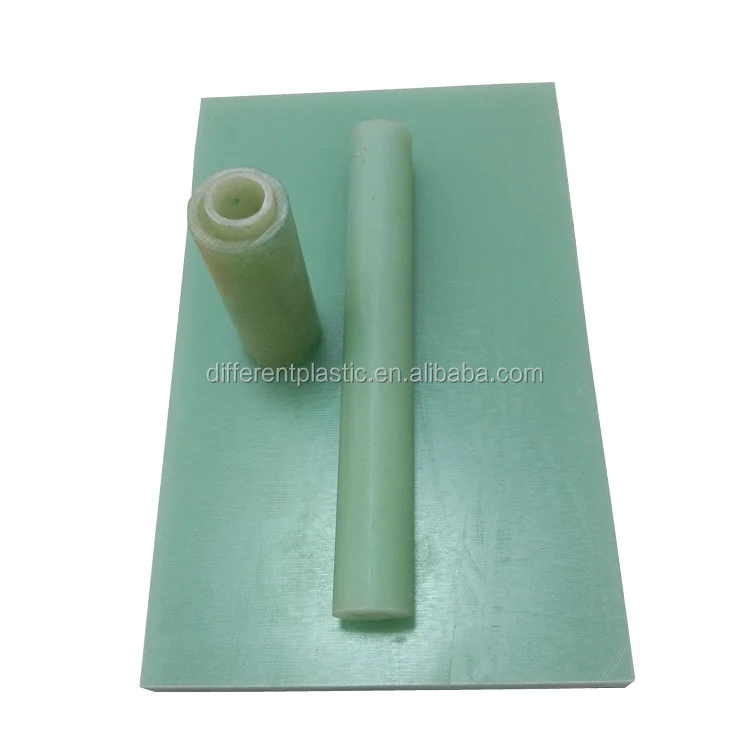

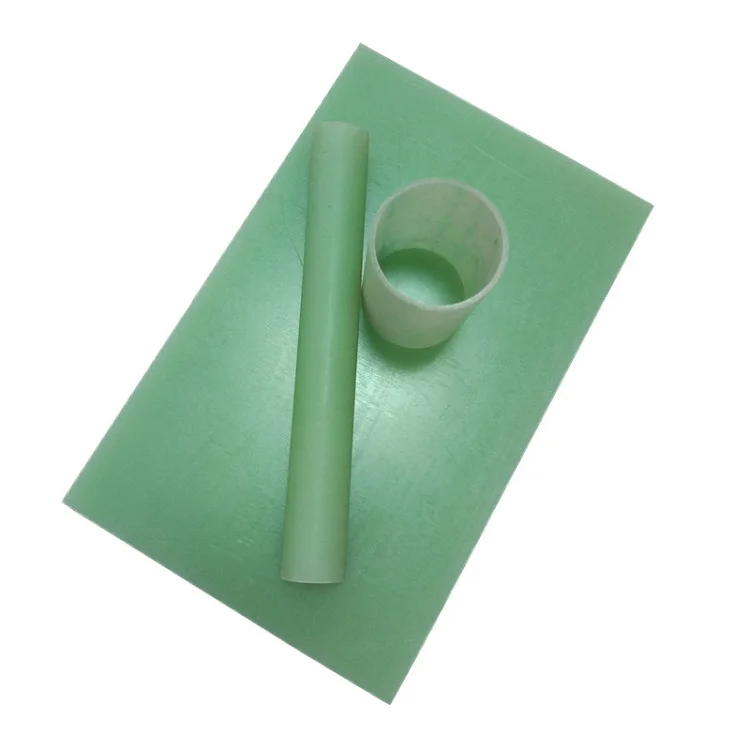

Fiberglass Laminate Sheet/Rod/Tube
Brief Introductions:
Epoxy fiberglass laminated sheet can be divided into two types: fresh sheet and joint sheet, fresh sheet is made of whole prepreg laminating by heat and press after impregnated with epoxy resin.
application:
Glass-textolite is designed for fabrication of sheets and products for structural purpose. It is characterized with excellent thermal conductivity, moist resistance, biological resistance and high endurance. Furthermore, it has small weight and has good electric insulating specifications; it is non-toxic and stands out with high inflammation temperature.
| Fr4 ,G10 ,G11 | 3240 | 3025,CE,LE,XXX | G7,G9 |
1.Material | Composite polymer (flame-retardant epoxy resin, E-glass fiber cloth) | Composite polymer (flame-retardant epoxy resin, alkali glass fiber cloth) | Phenolic (cotton) (Canvas) (Linen) (Paper) | Glass (SILICONE) (MELAMINE) |
2.Color | Nature color(Light green)/yellow/ black | Yellow | Dark Brown or brown | Yellow (light yellow)/ black/ |
3.Thickness | 0.1mm-50mm | 0.1mm-40mm | 2mm-50mm | 1mm-50mm |
4.Technics | Mixing ,Coating,Folding,Laminate fiber d,Return Line,Cutting, Packing | |||
5.Measurement | 1020mm*1220mm(40 "×48 " ) / 1220mm*2440mm(48 ”×96 ”) | |||
6.Feature | Flame retardant, thermal reliability, lower warpage, moisture resistance. | |||
7.Using scope | Instruments and apparatuses, mobile communication , electrotechnics FPC reinforcement,testing bed,etc. | |||
8.Packing | Carton packaging / 500 sheet per pallet | |||
9.Certification | ISO9001,ISO14001,CQC,UL | |||
10.Technological requirements | For your choices | |||

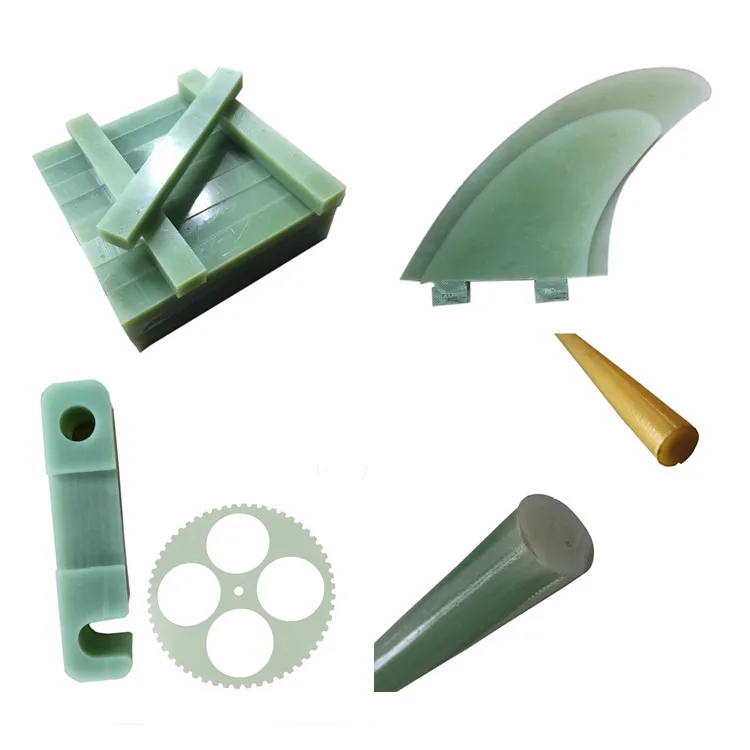

Product Show:
Our Factory:
FQA:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20 days if the order qty less than 20 tons, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.Or L/C
