CPE 350D is an 5.8G 300Mbps 3KM distance outdoor CPE/Wi Fi Bridge support PoE in and PoE out,ptp wireless bridge
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. Ltd.
Share on (62313936247):
Product Overview
Description
CPE-350D is an 5.8G 300Mbps 3KM+ distance outdoor CPE/Wi-Fi Bridge support PoE in and PoE out,ptp wireless bridge
Product Description
Description:
CPE-350D is an 5.8G 300Mbps 3KM+ distance outdoor CPE/Wi-Fi Bridge support PoE in and PoE out, It with LED display to show the Channel, IP address and Signal Strength, then with slide switch to change the operation mode, easy to configure the PTP/PTMP connection, advised to install for long range data transmission like CCTV/wireless security/village wireless coverage.
Besides the data transmission, it work as an outdoor PoE switch as LAN port support PoE out for CCTV/IP Camera. Cost saving and easy to find a place to install CPE350D itself and save device cost in long range wireless security.
Main Features:
ABS weather-proof shell, temperature adaptive and board protective .
CPE-350D with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Then PCB board with ESD and port protection, adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.
300Mbps high speed, Atheros industrial chipset, wider application
CPE-350 comply with IEEE 802.11a/n standard, 300Mbps high speed, with Atheros industrial CPU, it is a Wi-Fi bridge with low power consumption, strong security. With PTP, PTMP, bridge operation mode, widely be used in voice, video, data transmission in long range wireless monitor industrial.
High Power, 13dBi High Gain Antenna, Long Range Wi-Fi Device in market.
CPE-350D with external power amplifier, 300mW true power, 14dBi high gain antenna, the Wi-Fi range is more than 3000 meters, it is the device with most stable performance in long range, max load users, longest Wi-Fi range.
Simple to Configure

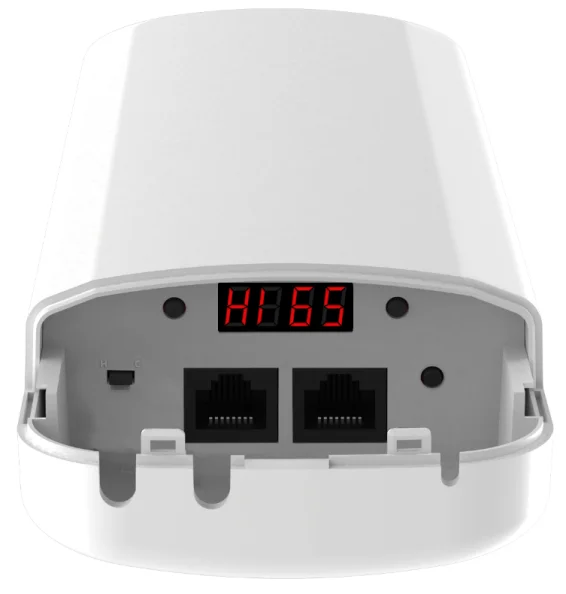

It with slide switch to change the operation mode; then with LED display to show and configure the IP address, channel,no need to access into GUI, avoid the complex setup program, simple to check the working status.
Support Power over Ethernet, including PoE in and PoE out
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost. The WAN port support 24V/48V PoE in, make device can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure; The LAN port support 24V/48V PoE out, work as a passive PoE switch, easy to provide PoE power for IP Camera/CCTV, saved much material cost and human cost. (Mark: LAN port can’t connect to NON-POE device)
Spec:
Model | CPE350D | ||||
Chipset | AR9344 | ||||
Flash | 8MB | ||||
RAM | 64MB | ||||
Standard | IEEE802.3, IEEE 802.11n, IEEE 802.11a | ||||
5.150GHz-5.825GHz | |||||
Channel | CH36 ~CH165 | ||||
Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK | ||||
Data Rate | 11n: up to 300Mbps(dynamic) 11a: up to 54Mbps(dynamic) | ||||
Protocol | CSMA/CA, CSMA/CD, TCP/IP, ICMP, NAT,PPPoE, DHCP , Wired static , Wi-Fi Client , UDP, DDNS, | ||||
Security | OPEN,WPA,WPA2,WPA-PSK,WPA2-PSK | ||||
RF Output Power | 802.11a | 54M | 22±2dBm | 6M | 24±2dBm |
802.11n HT20 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
802.11n HT40 | MCS7 | 21±2dBm | MCS0 | 23±2dBm | |
Receive Sensitivity | 802.11a | 54M | -72dBm | 6M | -90dBm |
802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |
5G EVM | 802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB | ||||
PPM | ±20ppm | ||||
Antenna | 14dBi MIMO Panel antenna | ||||
Size(mm) | 261.9*88.2*58.2mm | ||||
Working Temperature | -30°C ~ 55°C Extreme Working Temperature can be -40°C ~ 70°C | ||||
Storage Temperature | -40°C ~ 70°C | ||||
Humidity | 5% ~ 95% (Non-condensing) | ||||
1 * RJ-45 WAN Port, support 24V or 48V PoE in (Based on the PoE adapter) 1 * RJ-45 LAN Port, support 24V/48V PoE out (Based on PoE in) 1 * Reset Button 1 * LED display 1 * slide Switch, to change the operation mode 1 * S(Select) button, press it to setup WDS PTP/PTMP connection | |||||
Power | Input: POE 24V/48V, 1A, 110V/220V | ||||

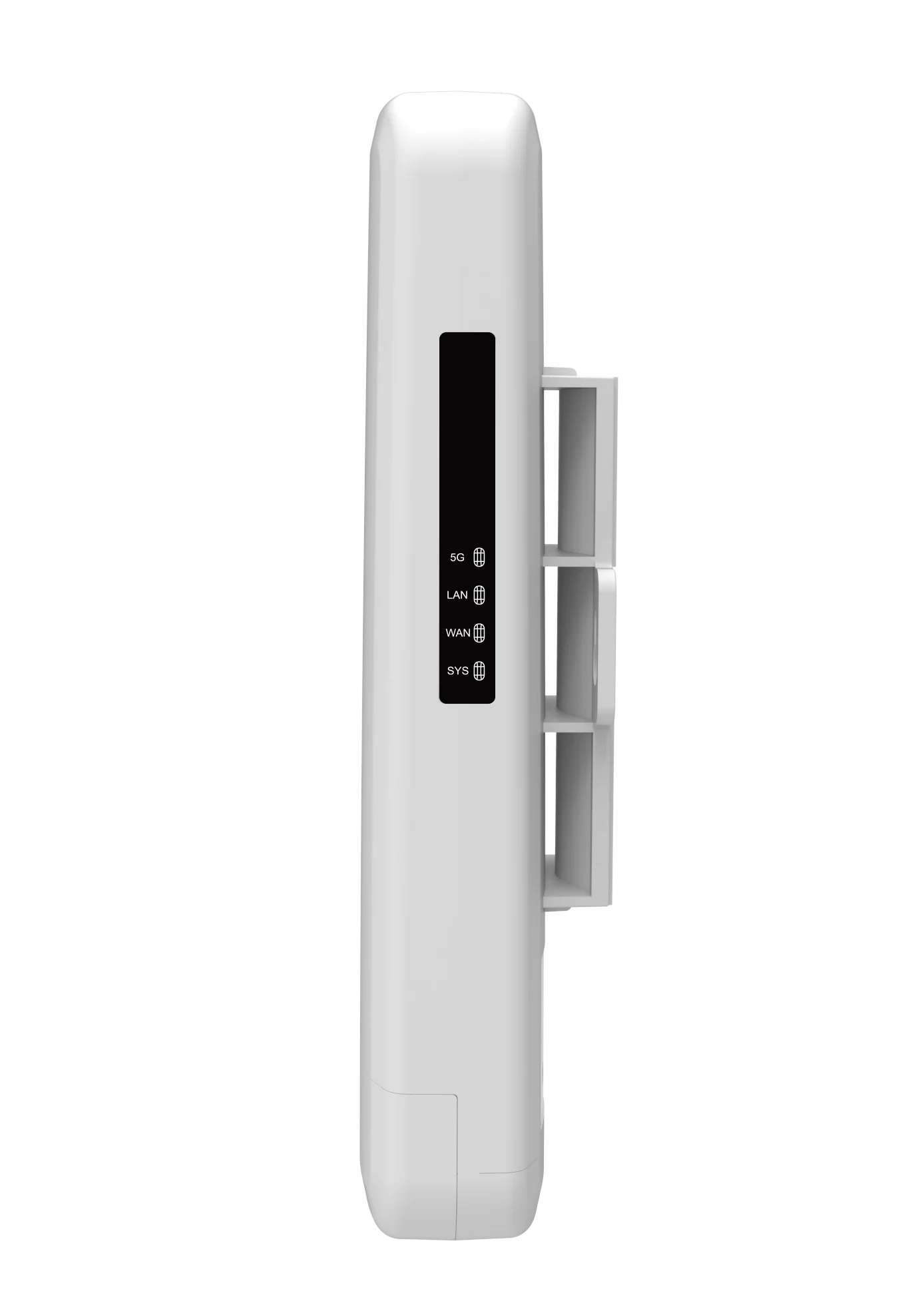

LED Light | Power, Wi-Fi, WAN, LAN | ||||
Operation Mode | AP, Repeater | ||||
Firmware Function | SSID broadcast | ||||
Multiple SSID up to 4 | |||||
SSID hide | |||||
MAC filter: support while/black list | |||||
WiFi Timed on/off | |||||
Multicast Acceleration | |||||
User Isolation | |||||
VLAN pass through | |||||

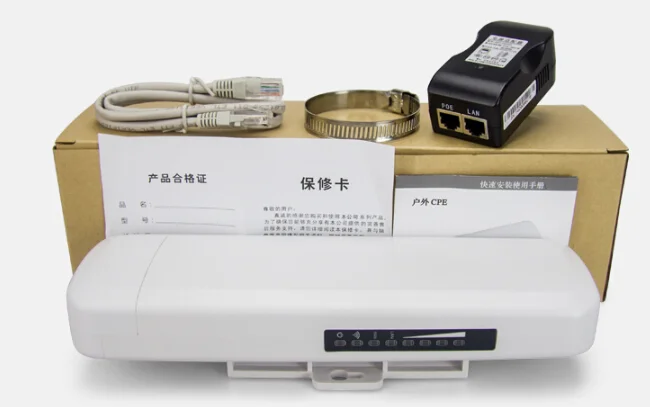

Accessory and Packing
PoE Adapter
Install Accessory
LAN Cable
User Manual
Brown box: 332*106*95mm
Carton box: 49.5*35*45.5CM, 20pcs/CTN
Caution Sticker
Product Stic
ker

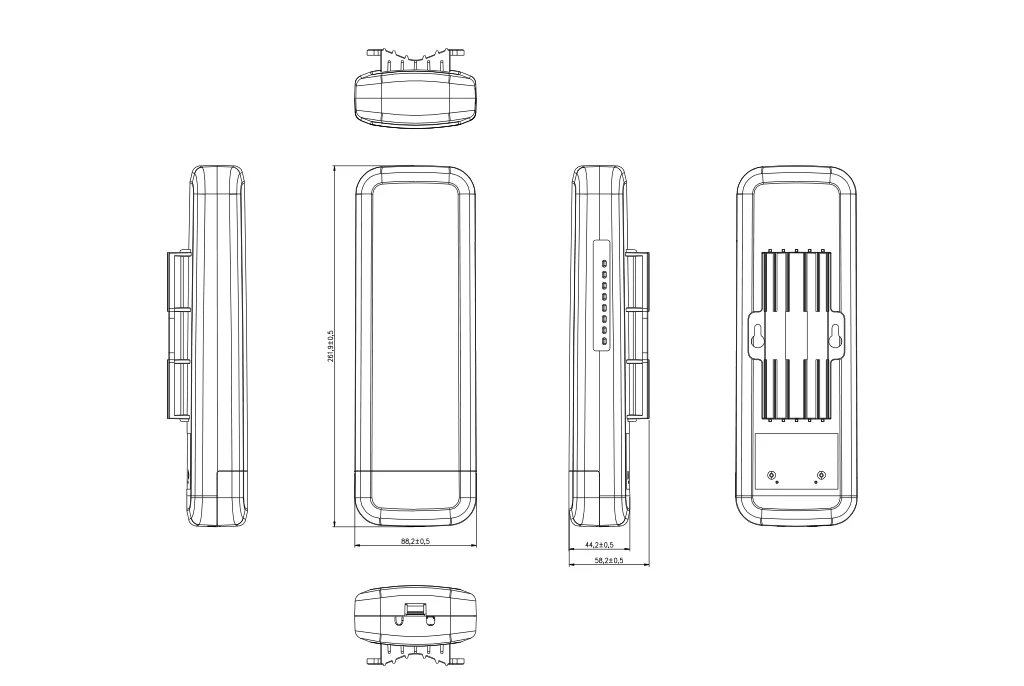

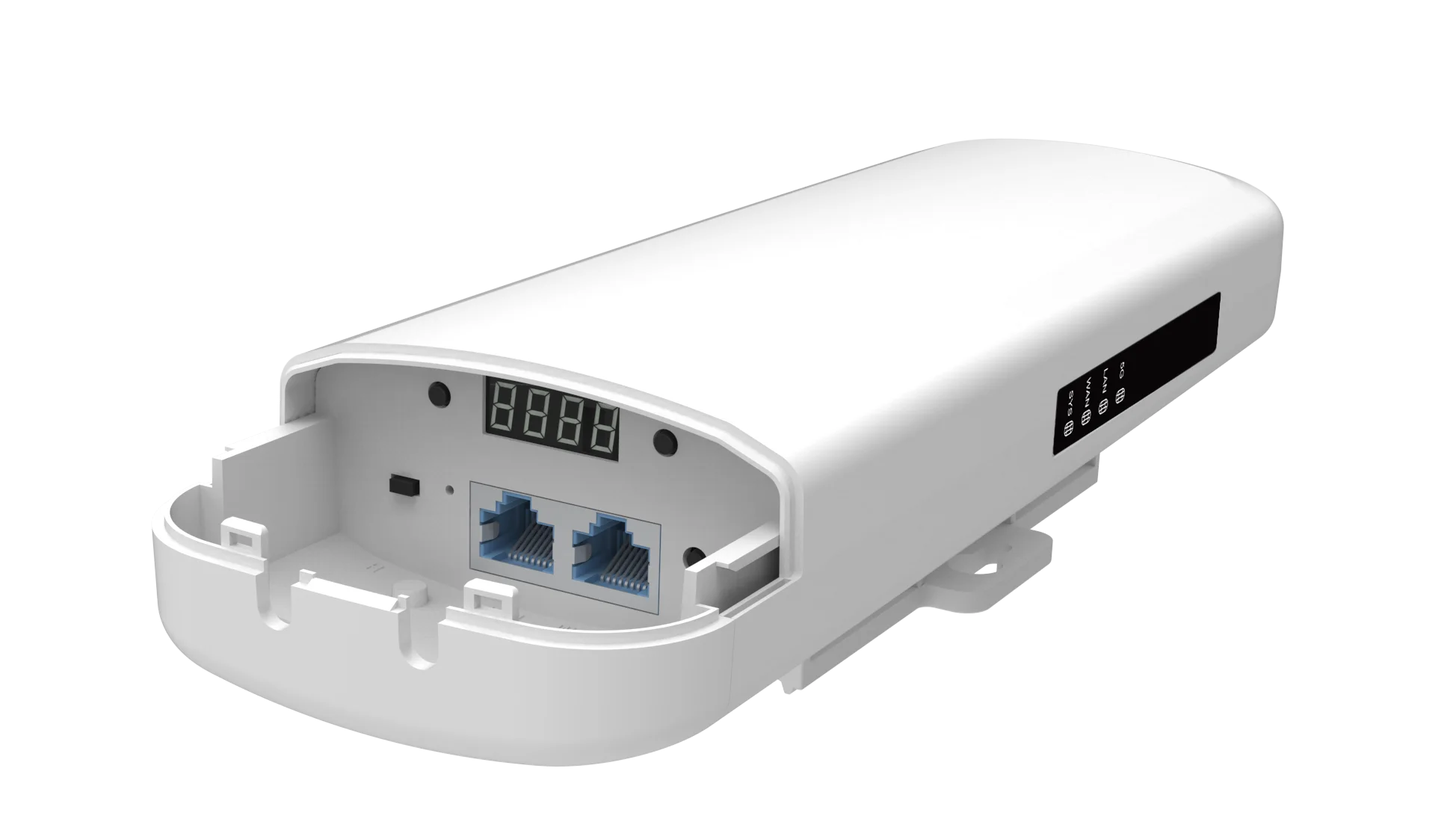

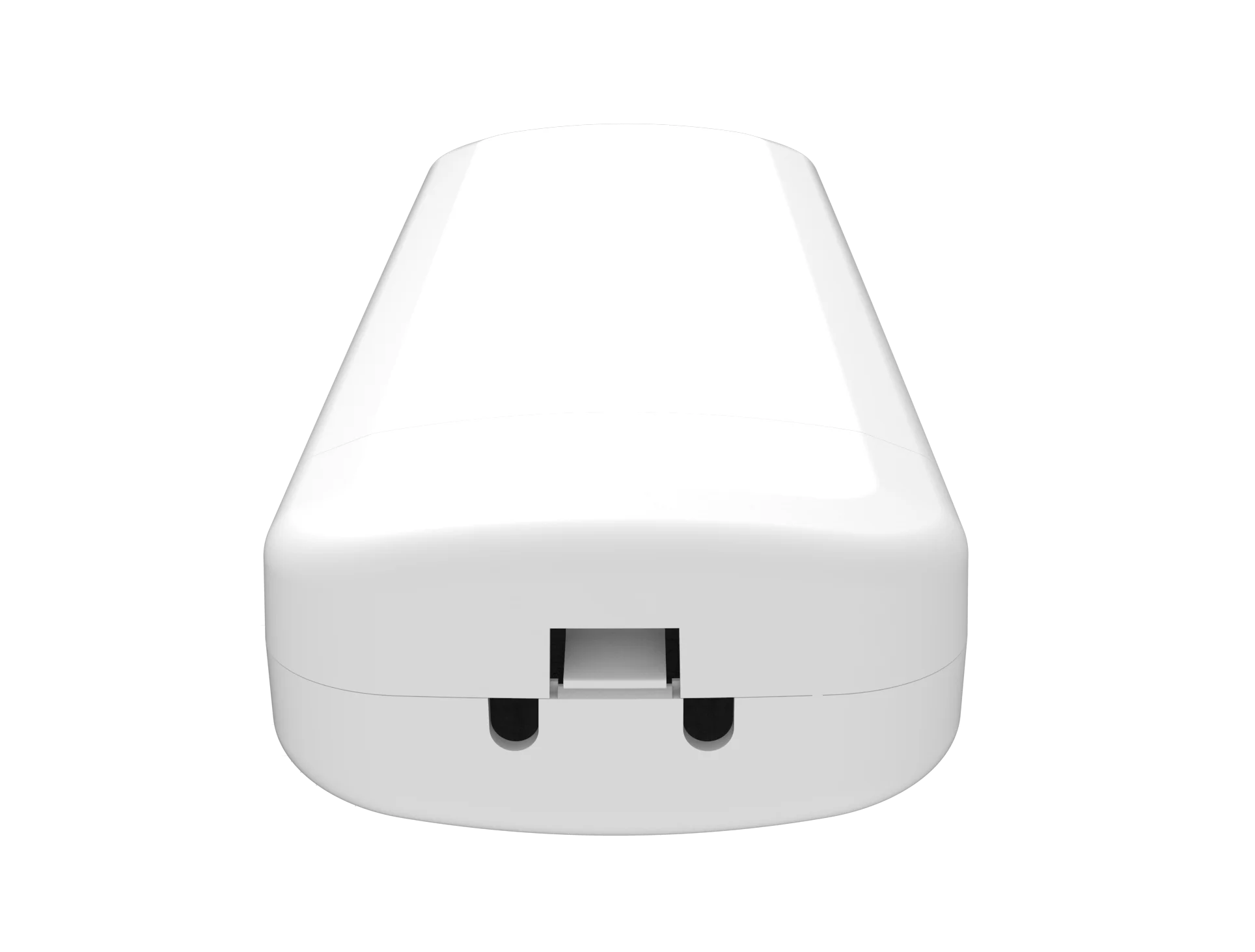

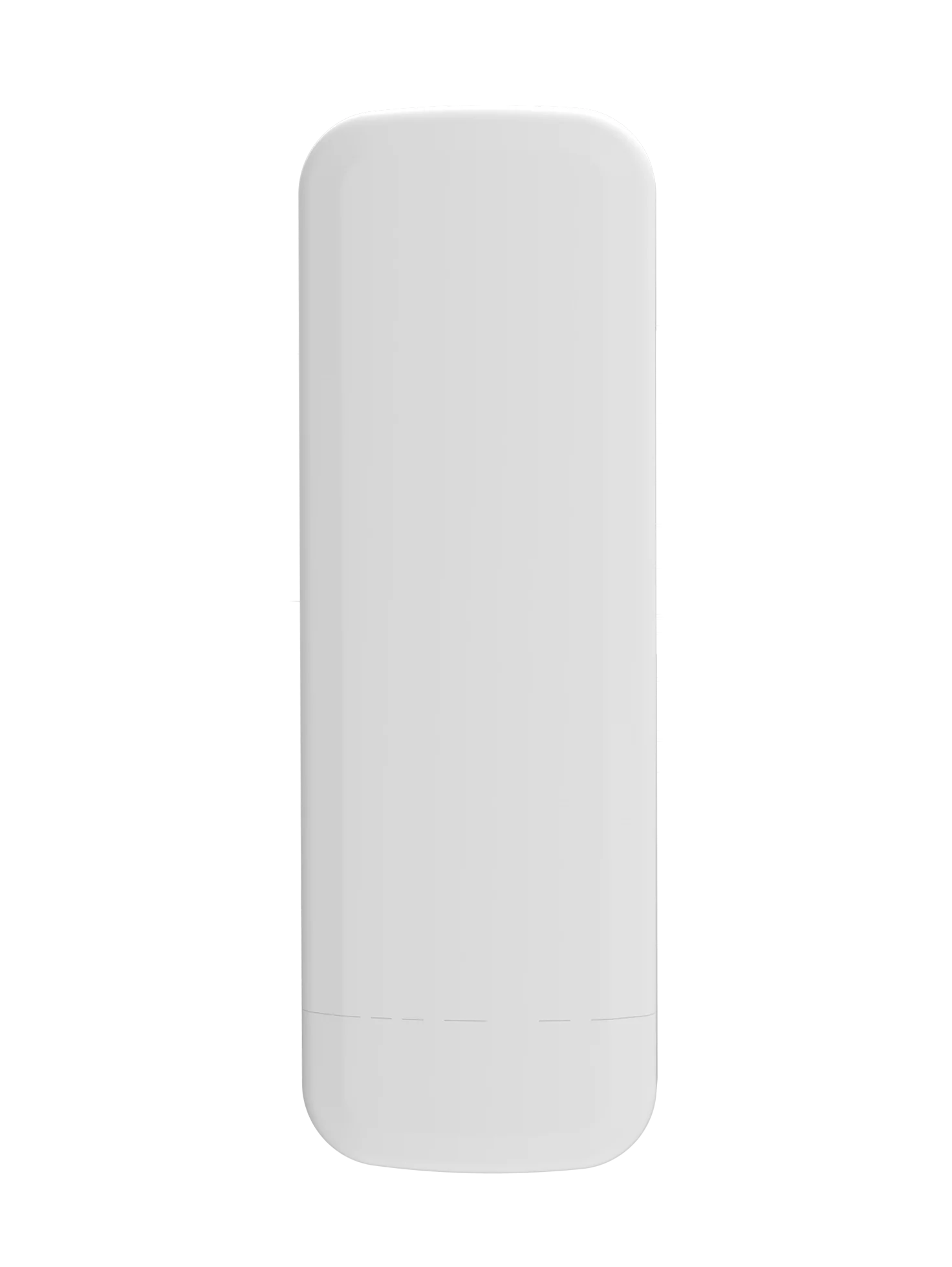

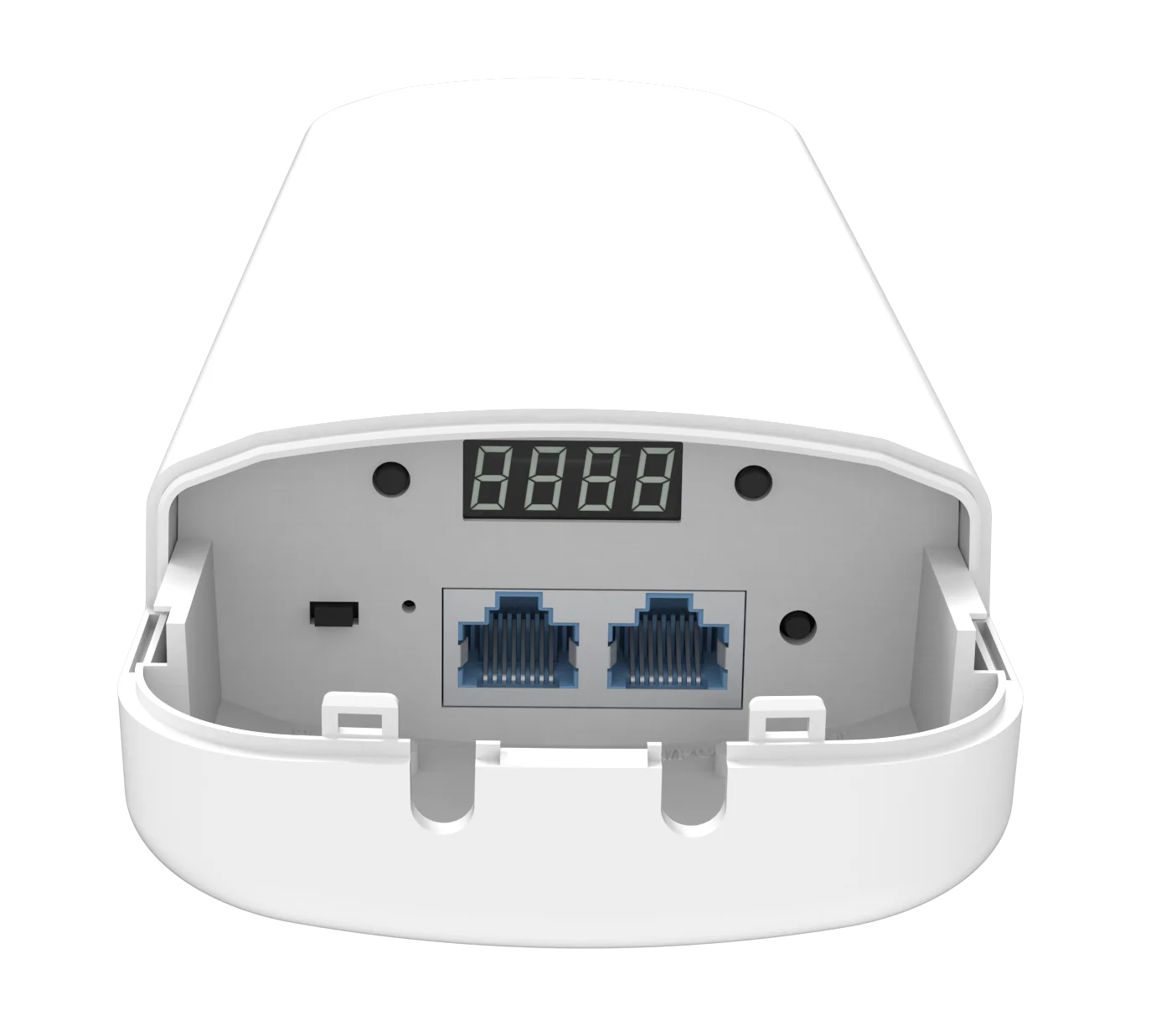

Port Pictures and Structural

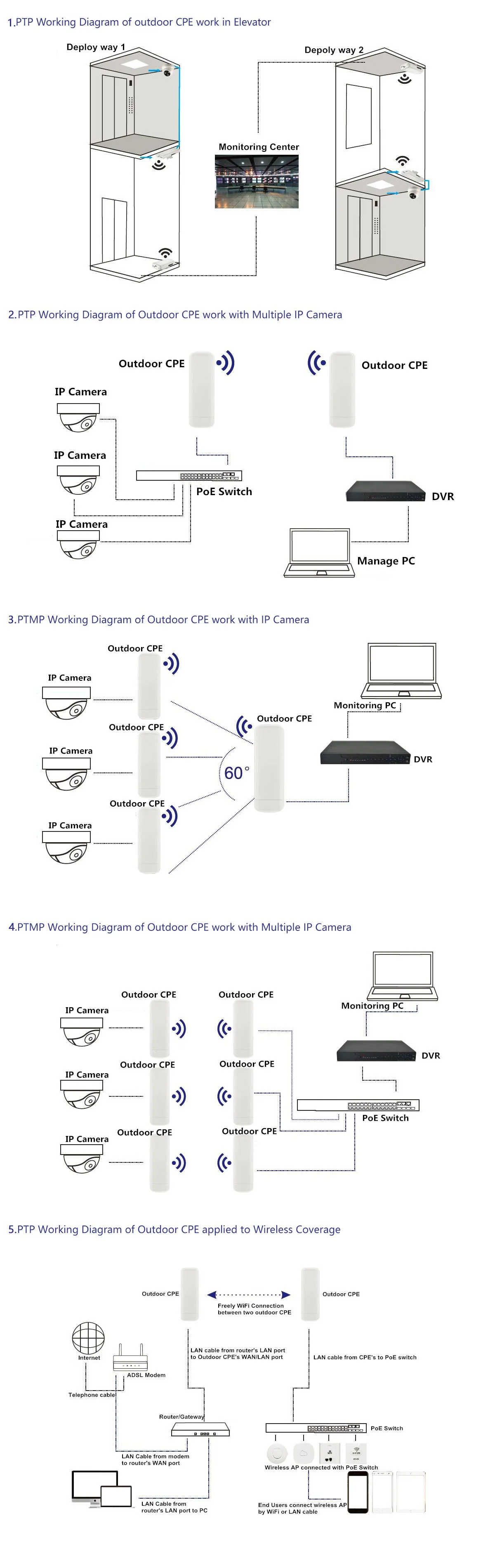

Application:

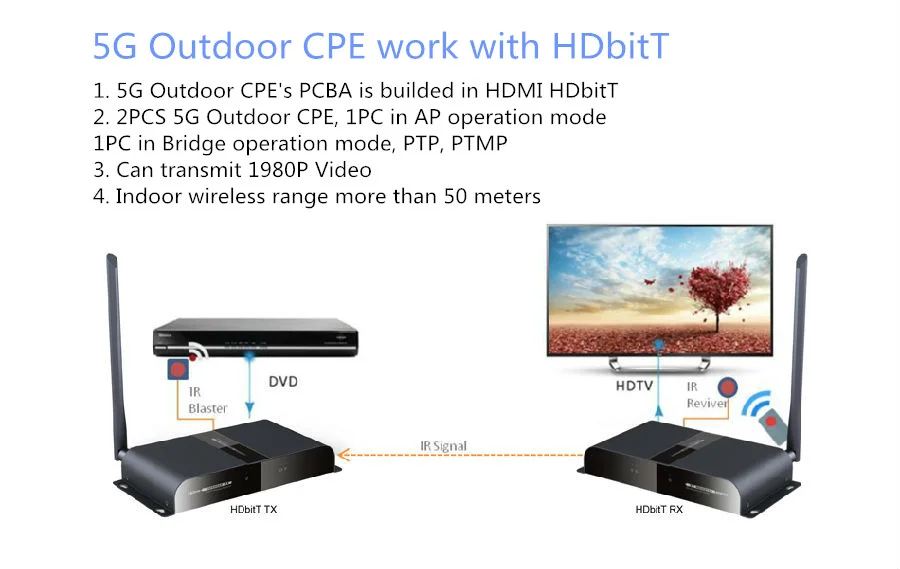

Work with HDMI device:
Work with IP Cameras:
