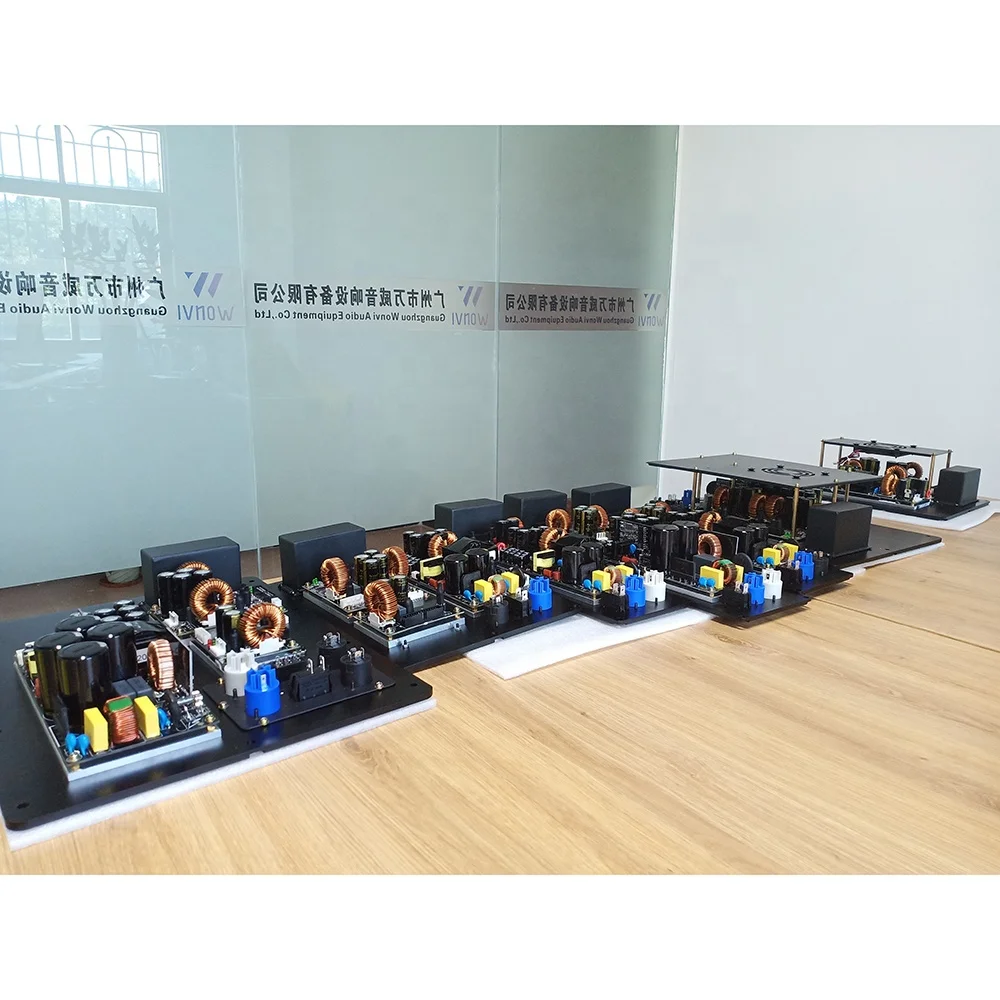

2 channel 600w class d dsp active speaker plate amplifier module with 110v/220v voltage switch for powered subwoofer line array

Product Overview

Description

Recommended Application:



1.    First channel for 15" full range speaker, the other channel for 15" full range speaker or 15" subwoofer

2.    When bridged into single channel of 1500W, mainly for 15" or 18" subwoofer



Product Features



1. It conforms to ROHS standard and has good electromagnetic compatibility.

2. Only one module can drive two channels which can be bridged into one super power amplification channel.

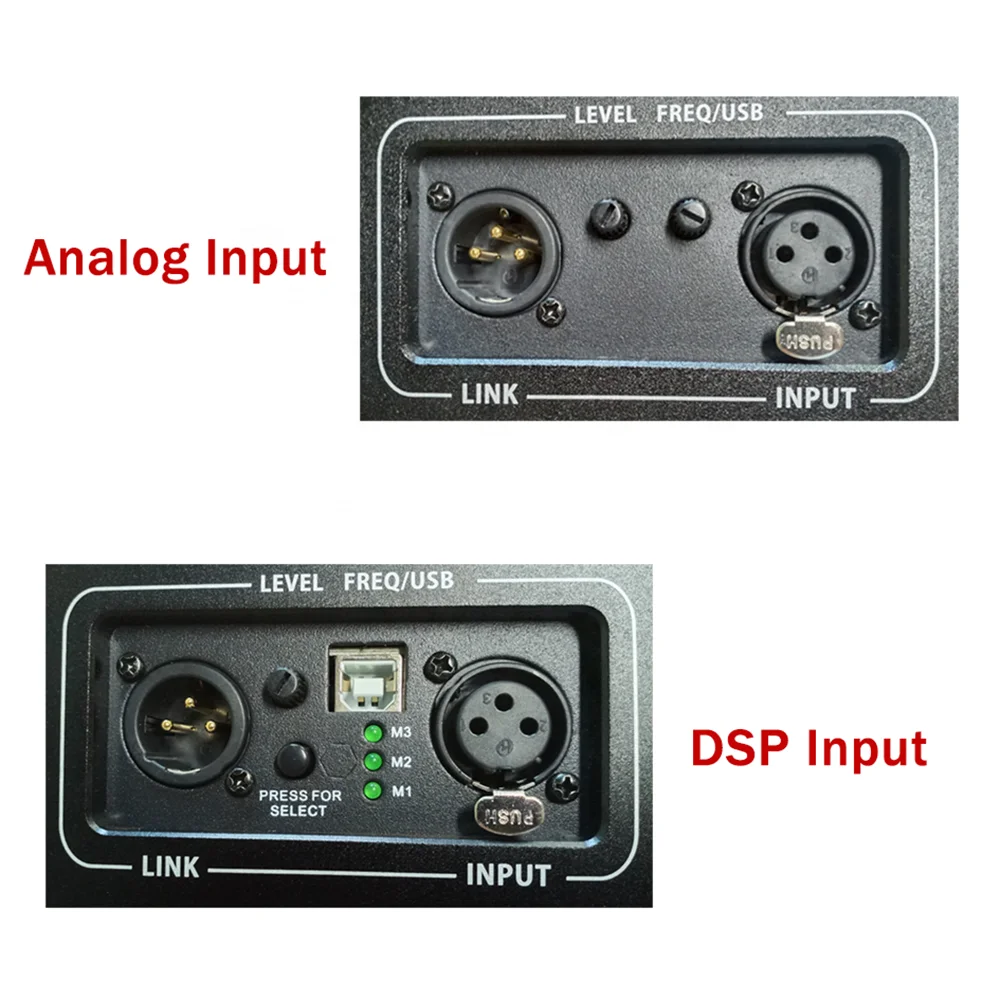

3. Optional built-in professional electro-acoustic technology optimizes “DSP” crossover network, 2-in 4-out can be preset;

4. Audio balanced/unbalanced input, audio output adopts professional SPEAKON four-core small square seat socket;

5. Flexibility: “One unit” version is available for maximum compact design and simplified mechanical integration operation;

6. Rich Power input and output interface;

7. The module provides various interface, convenient for use and second development;

8. Comprehensive intelligent protection: built-in input signal limiter, overheating, overcurrent, overload, short circuit protection measures;

9. The latest second generation CLASS-D audio power amplifier technology, frequency synchronization, high output power, low heat, strong anti-overload capability;

10. Temperature-controlled internal continuously variable speed fan, can automatically adjust acceleration range according to the temperature

11.With sweet output sound, clear sound playback, powerful dynamic range and high stability, the module can adapt to a variety of complex and extreme environments. The modular design provides maximum flexibility and scalability for each application;

12. Modules can be widely used in all kinds of active speakers and professional power amplifiers, match your design perfectly.





Technical Parameter:



THD	0.5 %
The number of channels	2
8 Ohm Stereo Power (RMS)	2 x 600W
4 Ohm Stereo Power (RMS):	2 x 900W
8 Ohm Bridged Power (RMS)	1 x 1500W



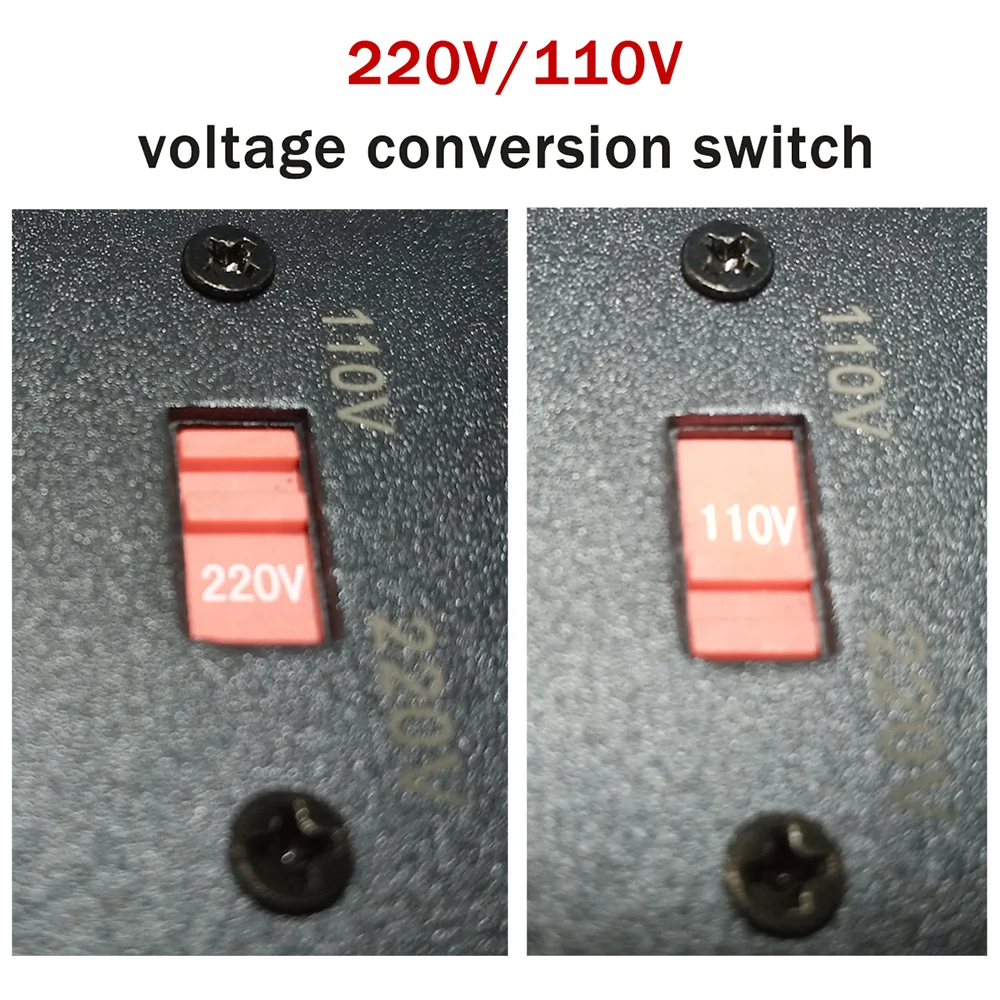

 AC MAIN POWER



Allowable operating voltage range	180-260 V / 50-60 Hz
Rated operating voltage	220V / 50 Hz
Static power	20W (0.23A @ 230V / 0.46A @ 115V)
Power consumption	625W (2.61A @ 230V / 5.22A @ 115V



Temperature



Allowable operating temperature range	-30°/+ 113°
Normal operating temperature range	-20°/+ 60°



Audio



Input Sensitivity(@8Ω) for DSP board	1V / 8.06 dBu
Input Impedance	20 kΩ balanced
Slew Rate	50 V/μs @ 8 Ω, input filter bypassed
Damping Factor	> 500 @ 1kHz
Frequency Response	20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω
Background noise	-80 dBV (20 Hz - 20 kHz, A weighted)
S/N ratio	>110 dB (20 Hz - 20 kHz, A weighted)
List All Isolation	> 80 dB @ 1kHz
THD+N	<0.08% from 1 W to half power (typically <0.05%)
IMD	<0.2% from 0.1 W to half power (typically <0.05%)



Dimension and Weight:

Product Dimensions(L x H x W)	420 x 120 x 62 mm
Shipping Dimensions(L x H x W)	440 x 150 x 115 mm
Gross Weight	3.0 kg
Net Weight	2.5 kg
