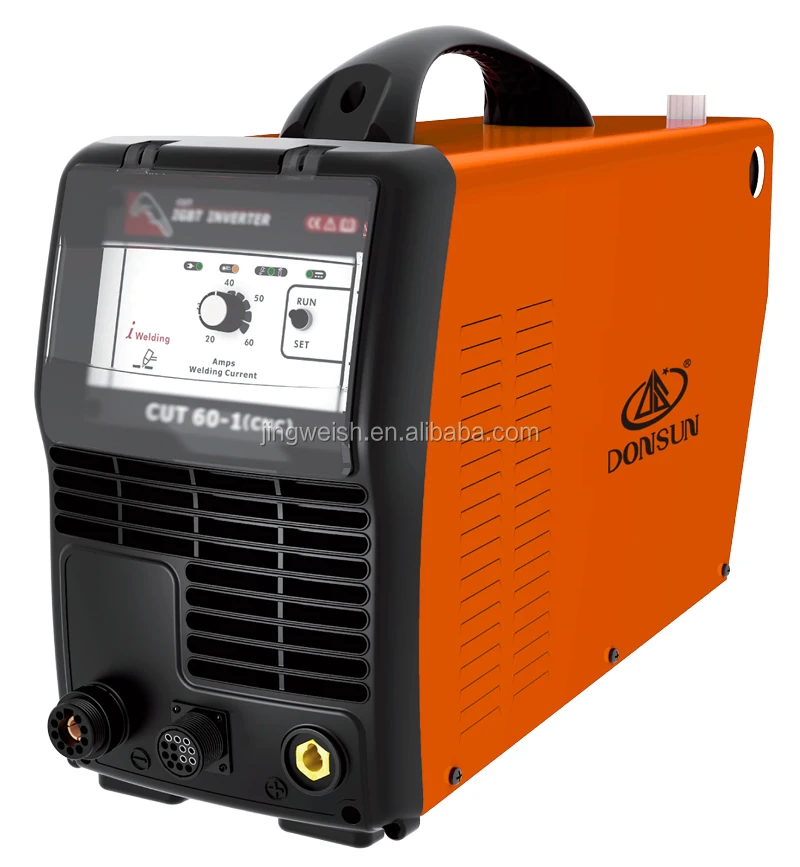

Industry Level DONSUN Inverter Cut 60 1 CNC Portable Plasma Cutting Machine
- Category: >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62314085367):
Product Overview
Description
Product Description
Features:
Pilot Arc Controller
Increases cutting capabilities and speed.
Extends tip’s life.Ideal for grid cutting.
Protections
Various protective and alarm functions for over-temperature and over-current.
| Model | CUT 60-1 CNC |
| power supply voltage(V) | 1~230 ±10% |
| Fre.(HZ) | 50/60 |
| Rated Input Power (KW) | 7.8 |
| Rated input current(A) | 41 |
| Duty Cycle(40℃ 10Min) | 95% 60A |
| 100% 58A | |
| No Load Voltage(V)220 | 400 |
| Cutting Current Range(A) | 20~60 |
| Wire Diameter(mm) | - |
| Severance cut for Carbon steel(mm) | ≤35 |
| Carbon Steel: | ≤25 |
| Stainless Steel: | ≤25 |
| Aluminum: | ≤20 |
| Copper: | ≤14 |
| Efficiency | - |
| Net Weight(Kg) | 23 |
| Dimensions(mm) | 640x240x445 |
| power factor | 0.76 |
| Insulation Class | H |
| Protection Class | IP23 |
| Cooling | AF |
