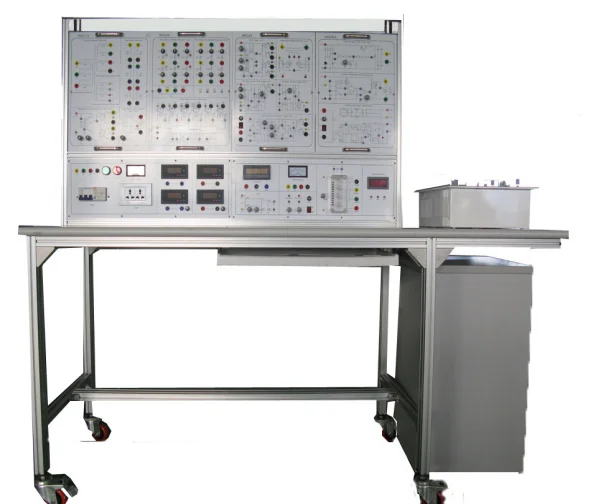

POWER ELECTRONICS TRAINING BENCH (modularized training experiment apparatus study bench teaching education didactic trainer)

Product Overview

Description

Product overview:

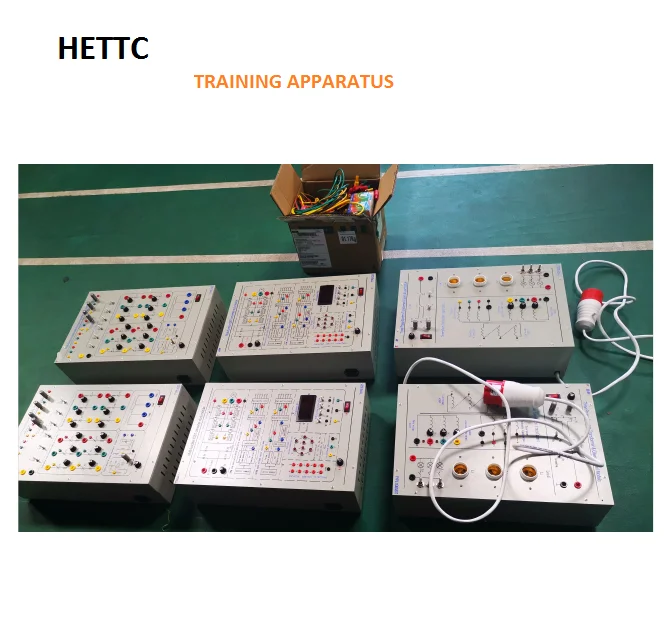

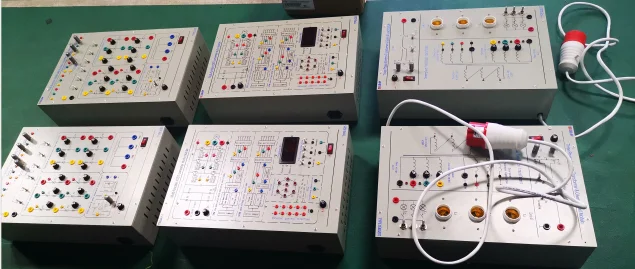

1.this product include : 1 Mult-ifunction IGBT converter study module

1 Multi-function diode and thyristor converter study module and 1 3 phases Synchronous transformer module

2. Each module size: 450*300*200mm

3. Power supply:

AC 3 phases 5 line, 380V/50/60HZ, <500W

4. Function:

4.1 single-phase uncontrolled rectification experiment
4.2 single-phase controllable rectifier experiment
4.3 three-phase uncontrolled rectification experiment
4.4 three-phase controllable rectifier experiment
4.5 power adjustment experiment
4.6 three-phase frequency conversion speed regulation experiment (IGBT VVF)

5. User manual

Product introduction
IG20: Multi-function diode and thyristor converter study module
IG05: Multi-function IGBT converter study module
IG0520T: Three phase transformer & Given & Load Module
Technical parameters
Safety matters
Experimental content
Experimental circuit physical wiring diagram
