5.8ghz 5km wireless transmitter and receiver router wireless cpe
- Category: >>>
- Supplier: Zibo Zunzhi Trading Co. Ltd.
Share on (62314360804):
Product Overview
Description
WQ-580L wireless cpe

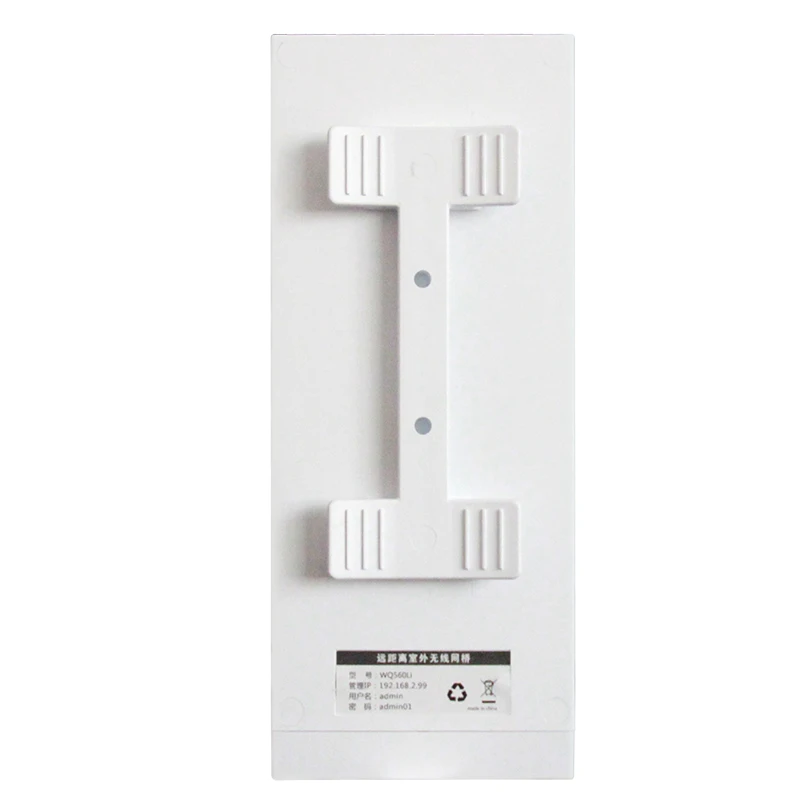

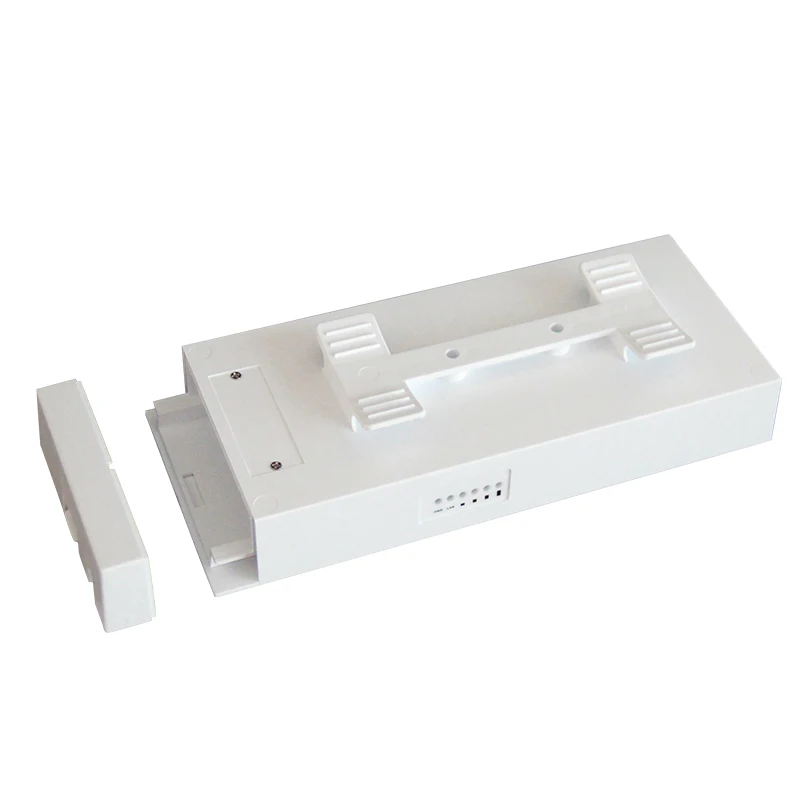

This new band product WQ-580L is made of engineering ABS plastic, it is waterproof and anti-oxidant. It meets the equirements of outdoor use.
5.8ghz 5km wireless transmitter and receiver router wireless cpe
Andy Shaw
Mob/Wechat/Whatsapp: +86 130 5334 3539
Skype: live:e125cf9f4b64b661
QQ: 1211031999
Model number | WQ-580L |
Chipset | Atheros QCA9342 560Mhz |
Frequency band | 5.150-5.850GHz |
PTP distance | 5km |
Through out | 300Mbps |
Antenna gain | 16dBi |
Interface | 1*10/100 Base-T, RJ45 |
Power supply | 24V PoE |

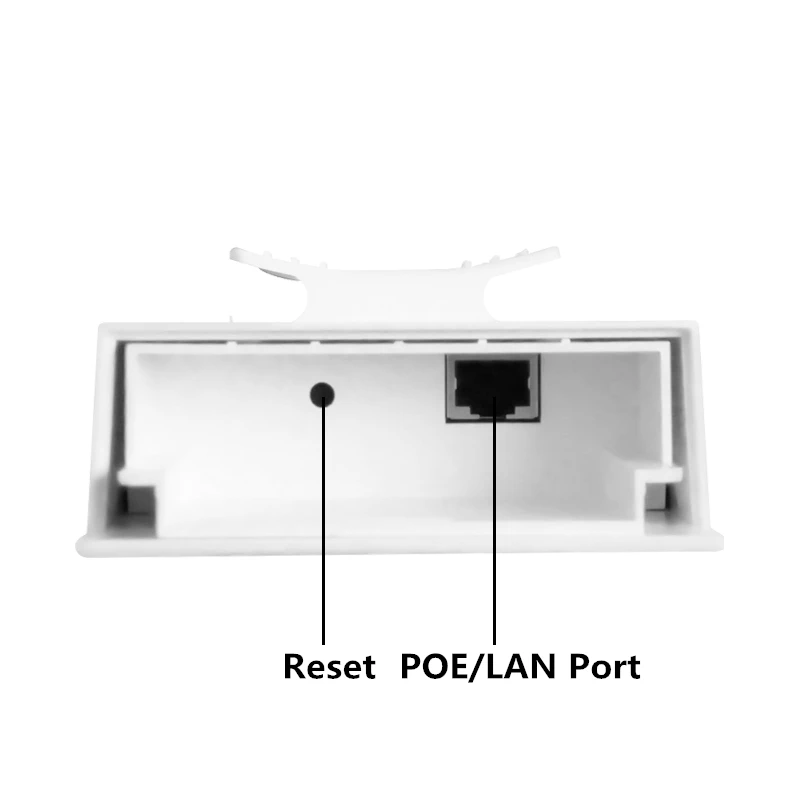

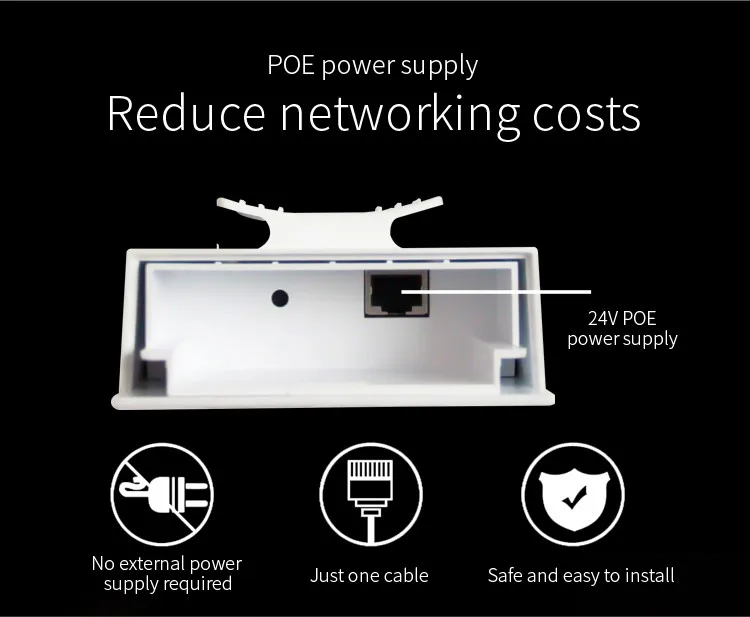

WQ-580L supports 24V power supply, this makes it more adaptable to the outdoor installation environment. we just need one network cable to connect CPE and PoE adapter. PoE adapter power WQ-580L wireless CPE, data comes from Lan port to PoE adapter.
1. No external power supply required
2. Just one cable to transmit both signal and power
3. Safe and easy to install
WQ-580L is equipped with WQ-Link operating system, which is independently developed by WQ-Link. It is easy to learn and operate, just need read the GUI and set it.
It is not afraid of severe heat and cold, WQ-580L can wokr stably in -40℃. IP65 protection can effectively prevent dust and sun exposure.
5.8GHz frequency band makes WQ-580L to transmit longer than 2.4GHz, through out comes to 300Mbps. 5.8GHz signal has strong anti-interference ability, no need to worry about signal loss

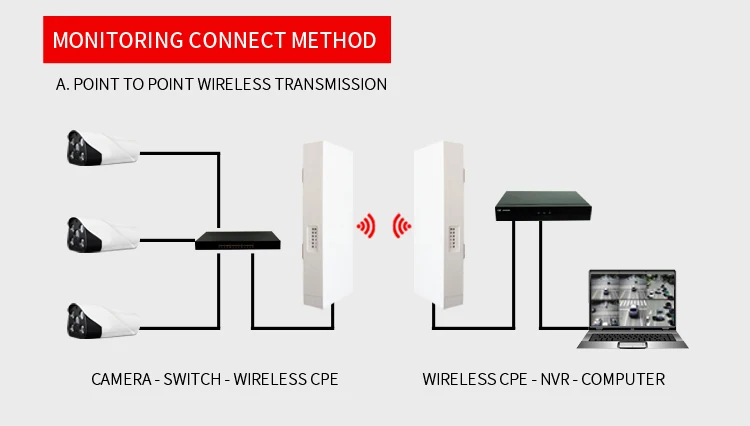

To solve the trouble of wiring, WQ-580L can be used for outdoor wireless cctv project. Install WQ-580L (Station mode) at each camera side and WQ-580L (Access point mode) at NVR side. Connection method is as follows.
Note: there should be as less as obstruction between wireless CPE and wireless Access Point.

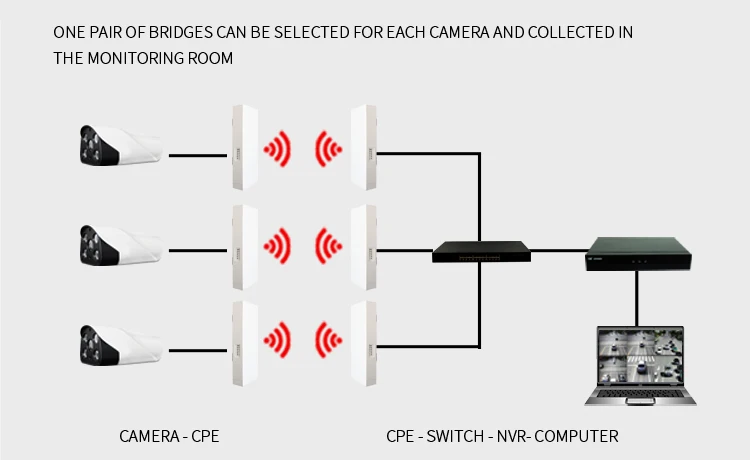

There are many different methods to install CPE and cameras, we can decide how to install according to different projects.

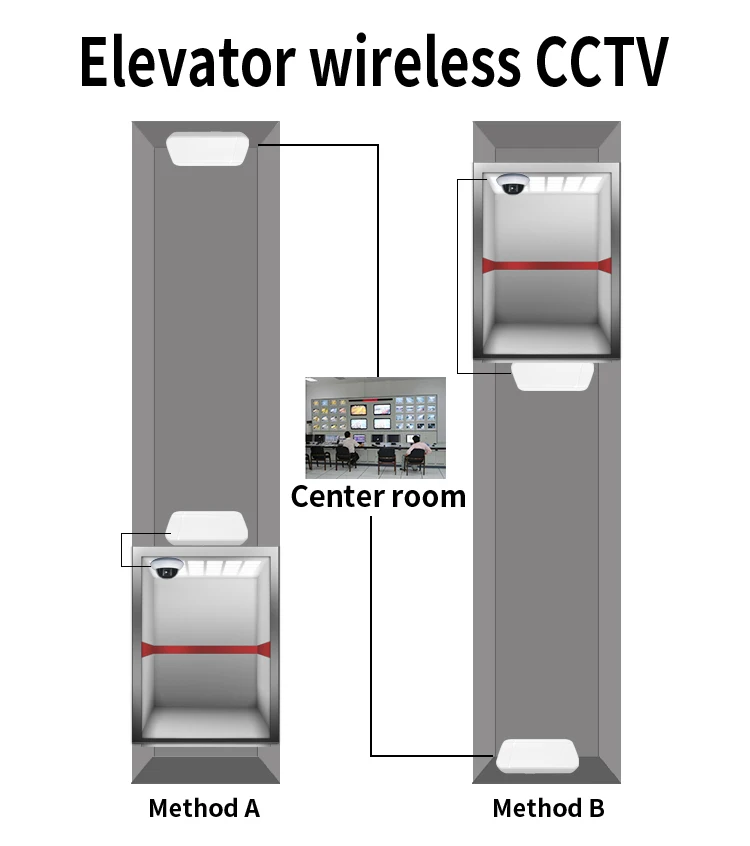

1) install WQ-580L up on the elevator and top of building, camera signal will be sent to the roof first. Collect all the signals on the roof and send them to the monitoring room.
2) install WQ-580L under the elevator and ground of the building.

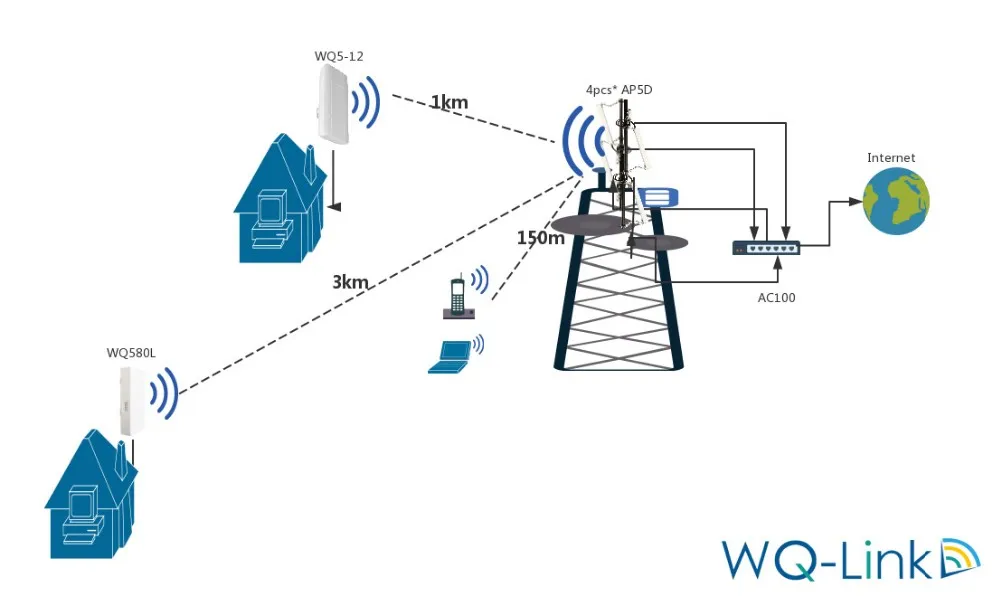

4. WISP
Still need a router to connect to this CPE, and we can start network near the router.
With 8 years of export experience along with excellent quality, advanced services and competitive prices, WQ-Link has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, WQ-Link has won numerous customers' trust and support.
