Exhibition Stand 10x10 Trade Show Displays Booth Stand For Fair
US $300.00-$580.00
Aluminum Stage Exhibition Triangular Spigot Truss
- Category: >>>
- Supplier: Nanjng NKK Expo Co. Ltd.
Share on (62314524506):
Product Overview
Description

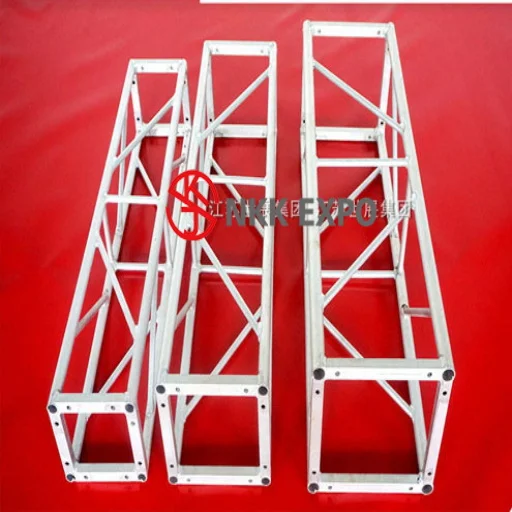

Aluminum Stage Exhibition Triangular Spigot Truss
Aluminum Truss reference standard
![]()
| ITEM | SECTION | Main Tube | Vice Tube | Brace Tube | Max span | symmetrical load |
| SS20 | 200*200MM | φ30*2MM | φ16*2MM | φ16*2MM | 8 Meter | 280KGS |
| SS30 | 300*300MM | φ50*3MM/φ50*4MM | φ30*2MM | φ25*2MM | 12 Meter | 300KGS |
| SS35 | 350*350MM | φ50*3MM/φ50*4MM | φ30*2MM | φ25*2MM | 14 Meter | 500KGS |
| SS40 | 400*400MM | φ50*3MM/φ50*4MM | φ30*2MM | φ25*2MM | 16 Meter | 600KGS |
| SS45 | 450*450MM | φ50*3MM/φ50*4MM | φ30*2MM | φ*2MM | 18 Meter | 700KGS |
| SS50 | 500*500MM | φ50*3MM/φ50*4MM | φ30*2MM | φ25*2MM | 18-20 Meter | 700KGS |
| SS5276 | 520*760MM | φ50*3MM/φ50*4MM | φ50*2MM | φ30*2MM | 20-22 Meter | 800KGS |
| SS6076 | 600*760MM | φ50*3MM/φ50*4MM | φ50*2MM | φ30*2MM | 24-26 Meter | 800KGS |
