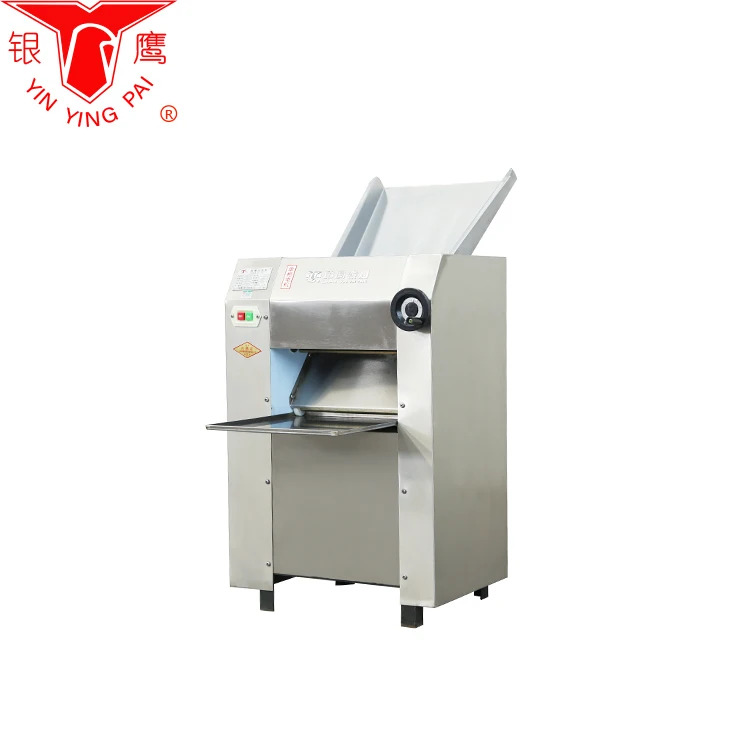

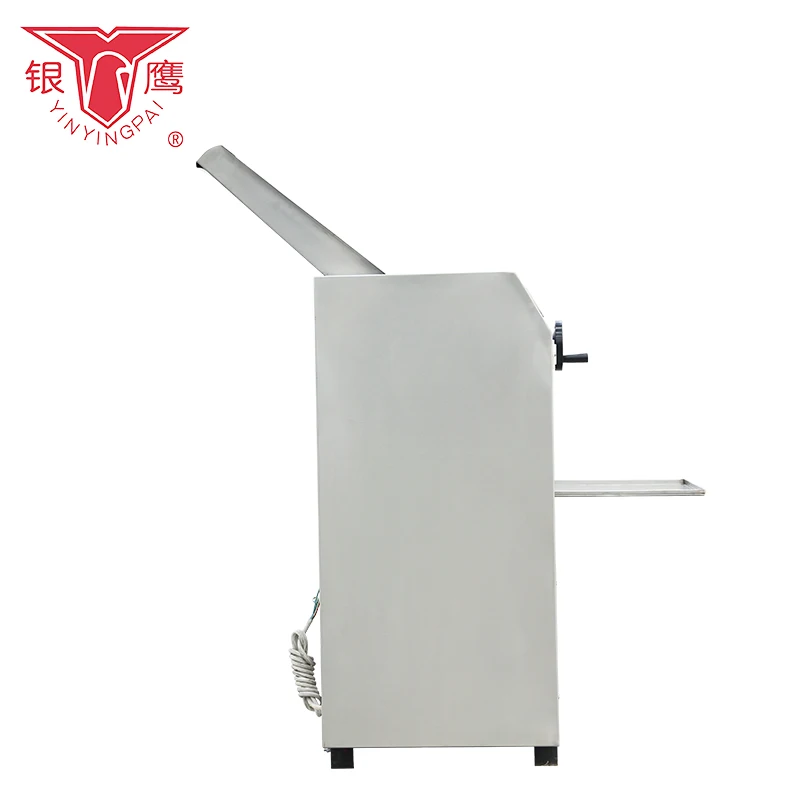

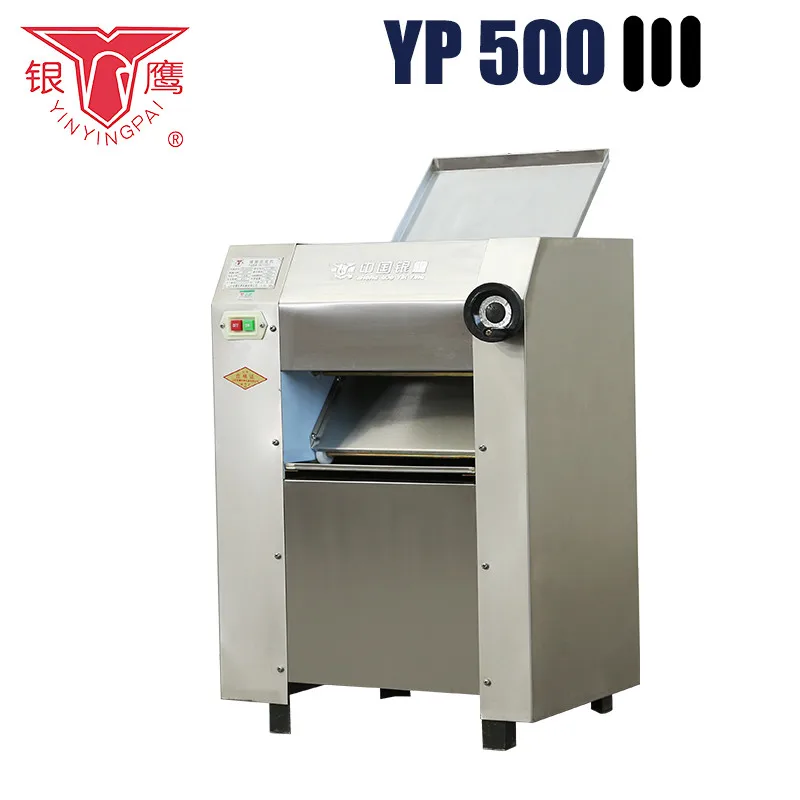

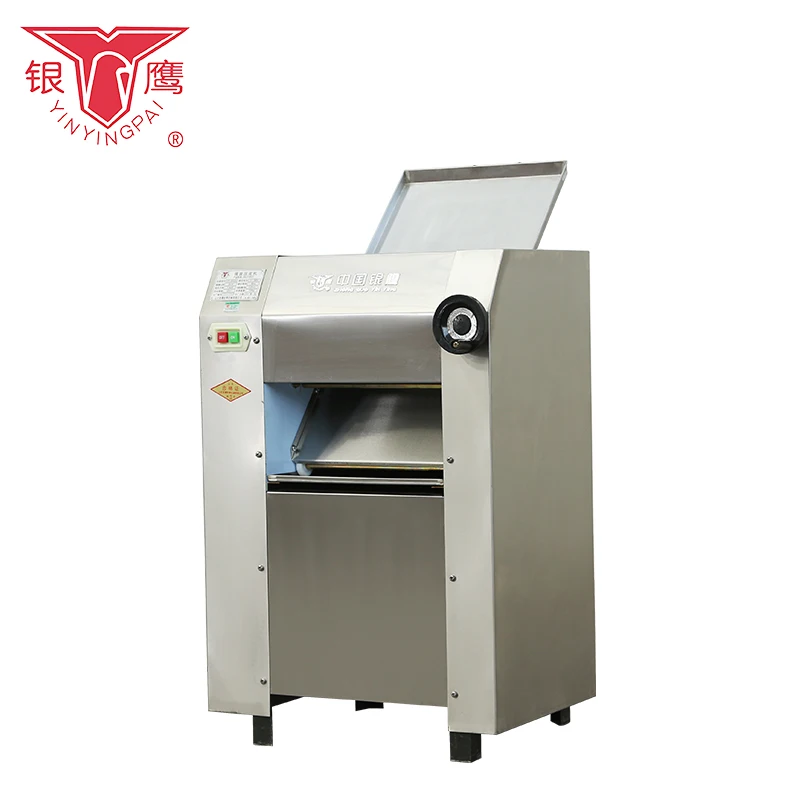

YP500III Dough Kneading & Pressing Machine is one important wheaten food processing device, mainly used for kneading and pressing all kinds of crisp pasty paste, toughness paste and various kinds of dough slices. It is widely used in office,schools,mines and other enterprises as well as wheaten food processing unit meanwhile it is the ideal equipment for steamed bread lines. The thickness of the dough slices can be adjusted steplessly within a certain range, the food which through kneading and pressing is more leavening,luscious,whiten,palatable.
Name
Capacity
Power
Size
Weight
Size after Packing
Weight after Packing
YP500III
6-8kg/once
1.5kw or Customize
705*565*970mm
145kg
950*660*1250mm
165kg
Product details

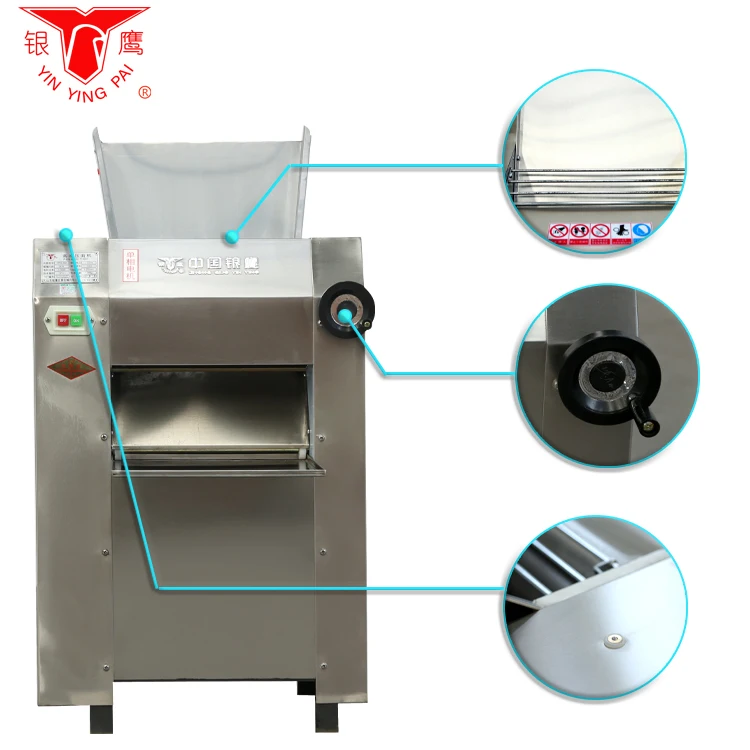

Main structure:The Roll Dough Machine consists of three main parts: chassis,pressing part,outer protective cover. The pressing part is including adjustable roller,bottom roller,right and left bracket,mangle gear,carrier gear,paste entry dustpan,worm wheel,worm and so on. The roller length and width parts of YP-350I and YP-500 are different, other drive parts are totally same.
The paste is kneaded and pressed by the spaced roller which revolves in opposite direction, and then folded,repressed for several times, all these steps make the pressed paste have much layer and taste well.To make sure the rollers are equally spaced, this machine adopts worm wheel,worm and eccentric wheel as the adjusted devices
