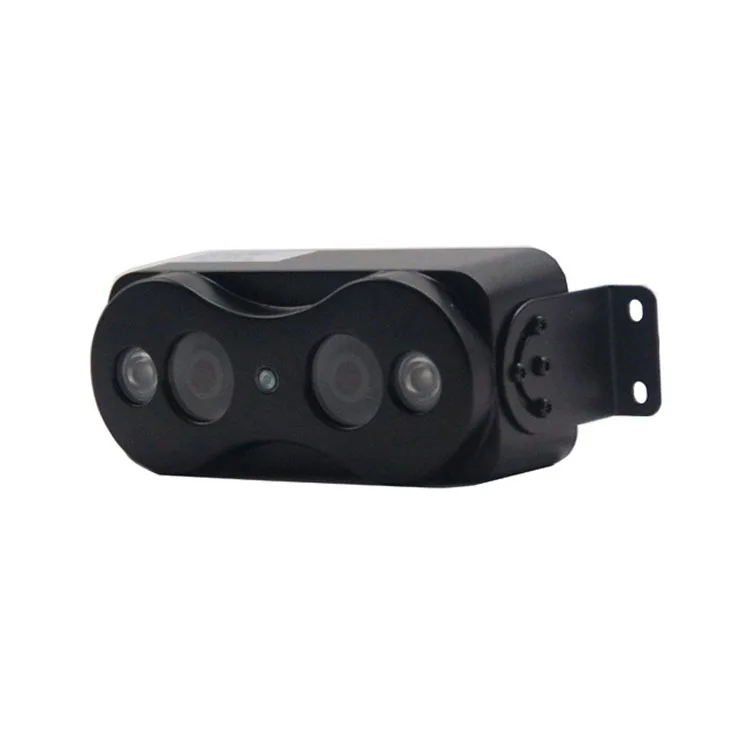

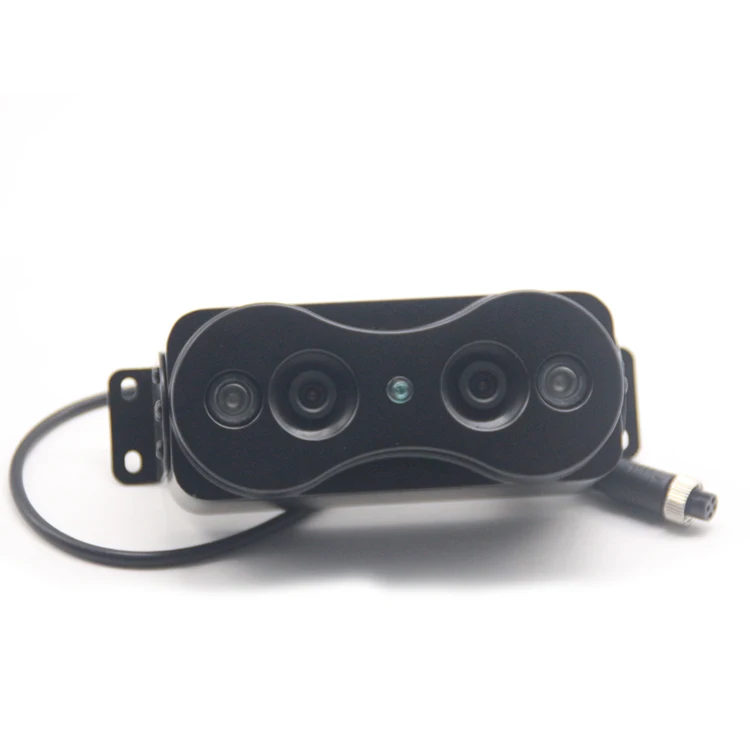

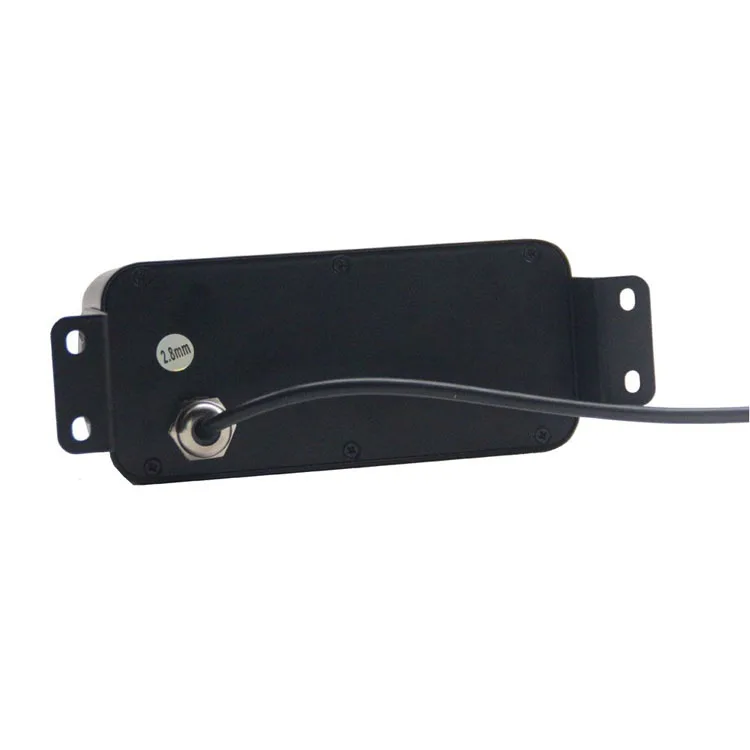

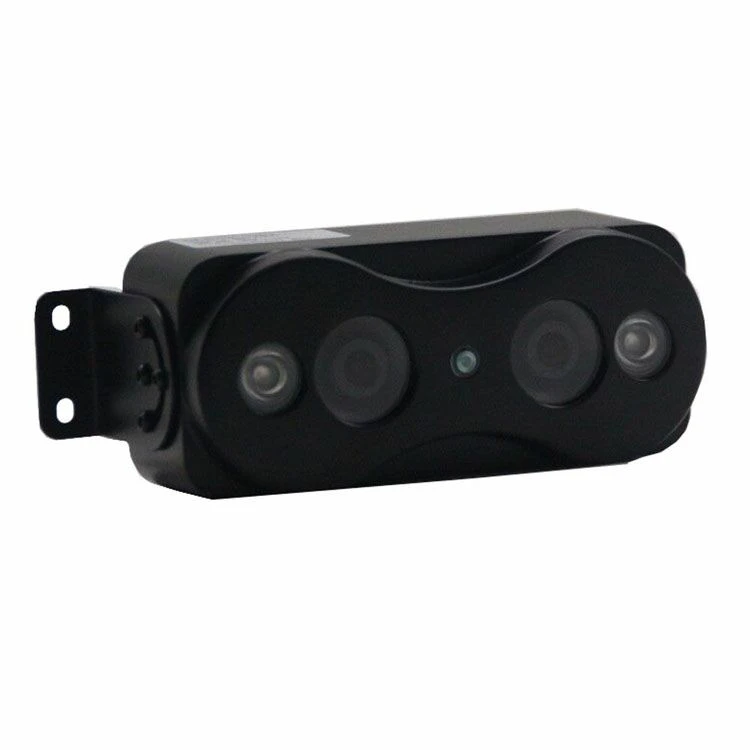

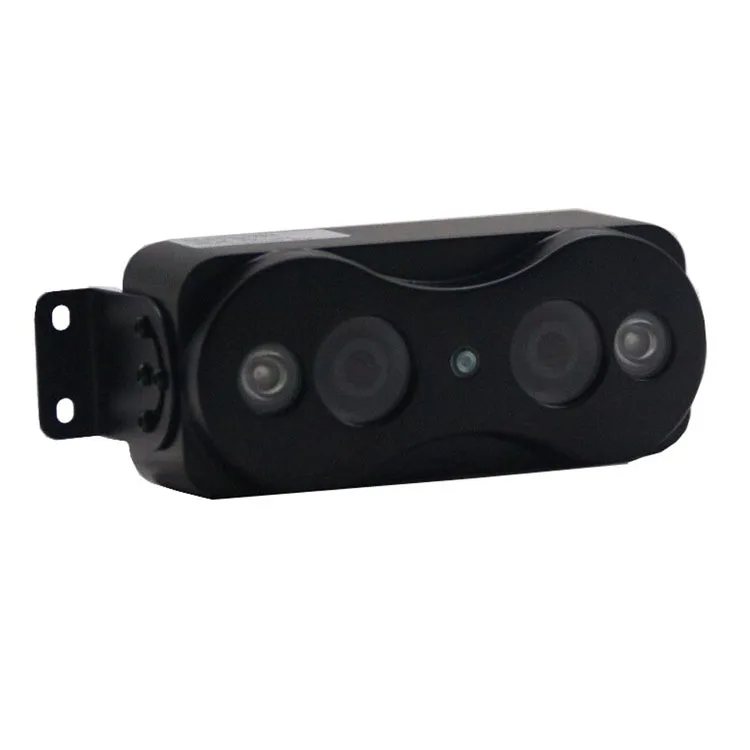

People Counter Camera for Mass Transport, Passenger People Counting for Bus
- Category: >>>
- Supplier: Shenzhen QOHO Electronics Co. Ltd.
Share on (62314615903):
Product Overview
Description
Product Overview

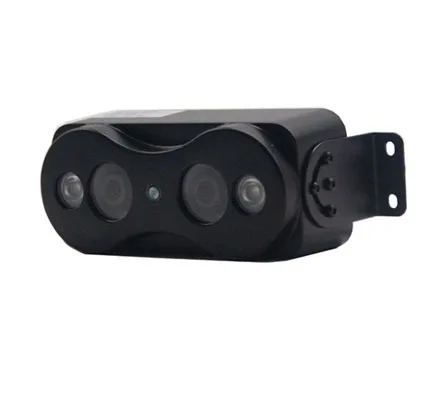

High Accuracy People Counter Safety Camera For Public Bus School Bus
Camera people counter system is based on advanced smart counting technology!
It attains high accuracy by detecting morphological characteristics of human
and the human movement situation of getting On&Off the vehicle,
avoid miscarriage of justice, repeat statistics or missed.
Because of this advanced technology and algorithm,
the precision is better than 95%.
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
Work with our mobile DVR to get report and data to your Center office management.
It attains high accuracy by detecting morphological characteristics of human
and the human movement situation of getting On&Off the vehicle,
avoid miscarriage of justice, repeat statistics or missed.
Because of this advanced technology and algorithm,
the precision is better than 95%.
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
Work with our mobile DVR to get report and data to your Center office management.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
Cost-effective and expandable
High-speed processor and embedded operating system
Special designed for public bus or school bus solution
Testing Video :
PRODUCT SPECIFICATIONS
Model | QH-CP040N |
Image sensor | 1/3 CCD |
Video | PAL |
Resolutin | 700 TV Lines |
Image output | Synchronous |
Lens distance | 5mm |
Lens parameter | 960*576 pixels,3.6 mm(2.8mm/3.6mm/4mm/6mm optinal) |
White balance | Auto white balance |
Shutter | 1/50-1/80000(Sec) 1/60-1/80000(sec) |
Frame | 25fps/sec |
Video output connector | Composite video output,75Ω 1Vp-p BNC |
Gain | Auto gain control |
SNR | ＞48db |
Power | DC12 voltage input |
Comsumption | ≤1W |
Size | 155×53×55 mm（L×W×H) |
Weight | ≤0.6kg |
Working temperature | -30～+55℃ |
Humidity | 10%～90% |
Installation Instructions
Special designed for school buses
Many school bus need to count noses first before set off, this counting camera can make it very easily.
Mount it on above the bus entrance

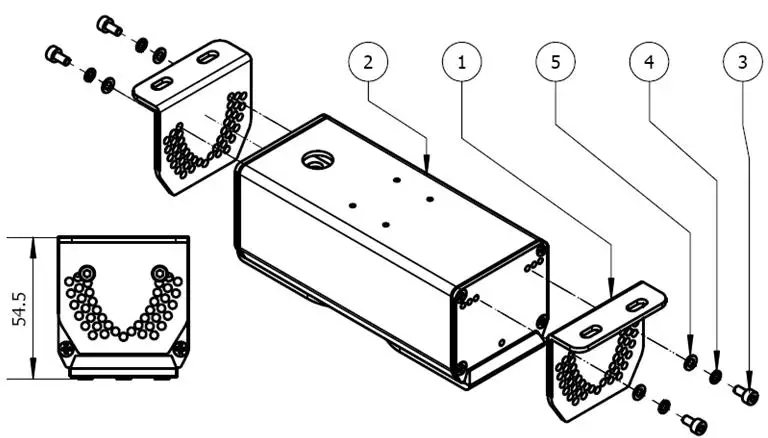

Product Diagram
SIMILAR PRODUCTS

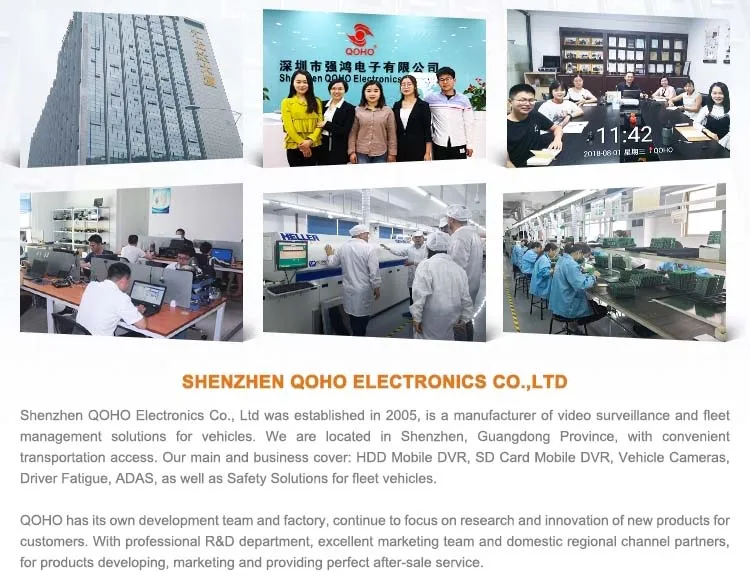

Company Profile
Why Choose US
Well-equipped facilities and excellent quality control
QOHO's well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, our products have all passed necessary certificates such as CE, FCC, RoHS , E-mark .E-9(European standard), CE-LVD, EN50155 (railway standard). high quality products and best services
QOHO provides high quality products and best services. QOHO*s products and solution have been widely used in more than 100 countries, such as Singapore, Malaysia, Thailand, Vietnan, Philippines. Cambodia. Indonesia, Japan, Oman, UAE, Kuwait, Honduras, USA, Dominican, Slovakia, Mexico. Denmark, Hungary, UK, Ireland, France, Brazil, Australia, New Zealand, South africa, Chile, etc.We have distributors in Australia, Singapore, Hungary, UAE, and so on. As a expert in vehicle security business, QOHO is constantly monitoring the market and investing into technologies. We value ourcustomers and all potential business relations. We are always looking forward to exploring new business adventures with you.

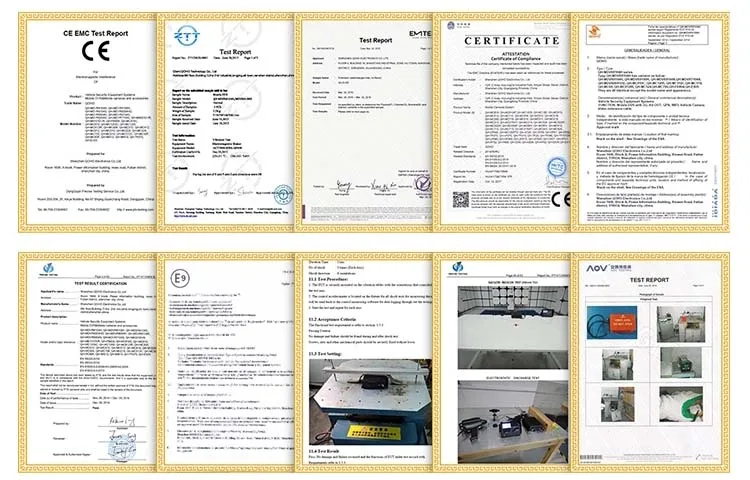

CETIFICATE
