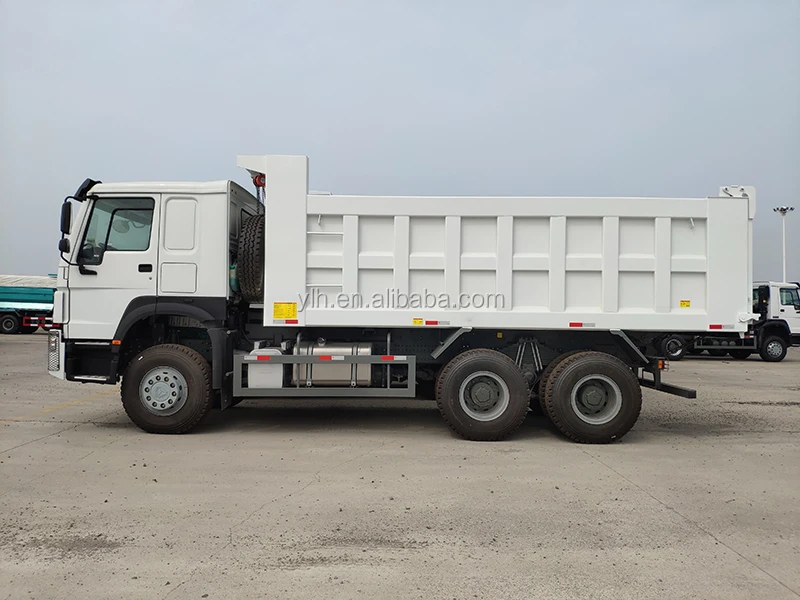

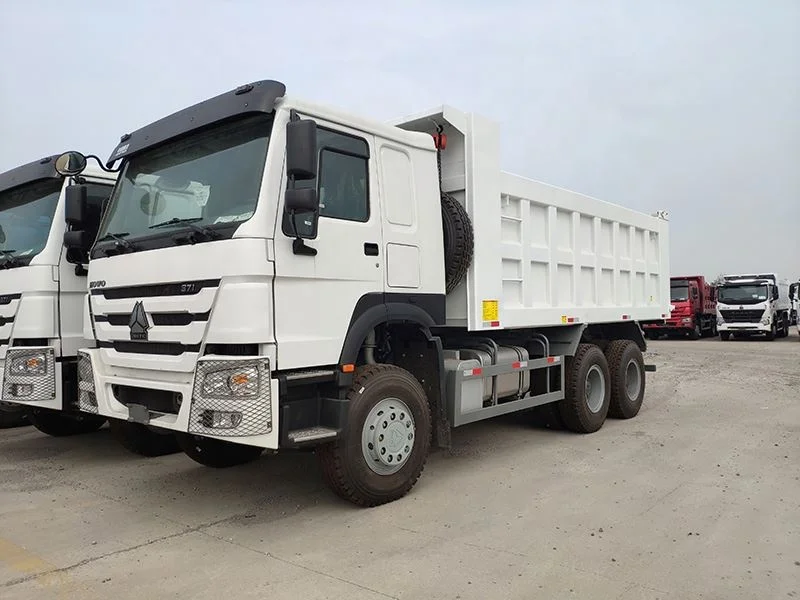

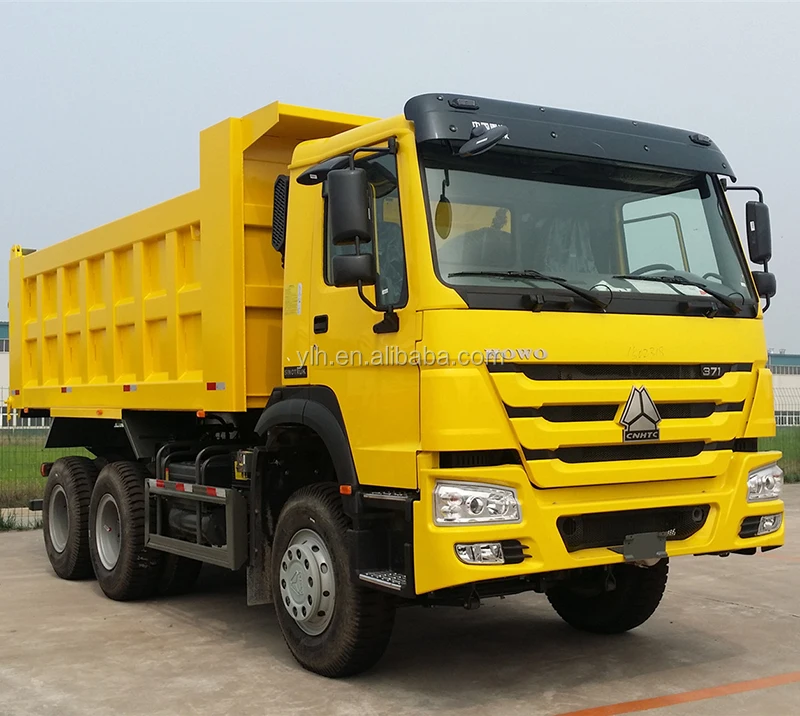

Sinotruk howo 20 ton tipper Truck for kenya
- Category: >>>
- Supplier: Shiyan Yunlihong Industrial & Trade Co. Ltd.
Share on (62314623164):
Product Overview
Description

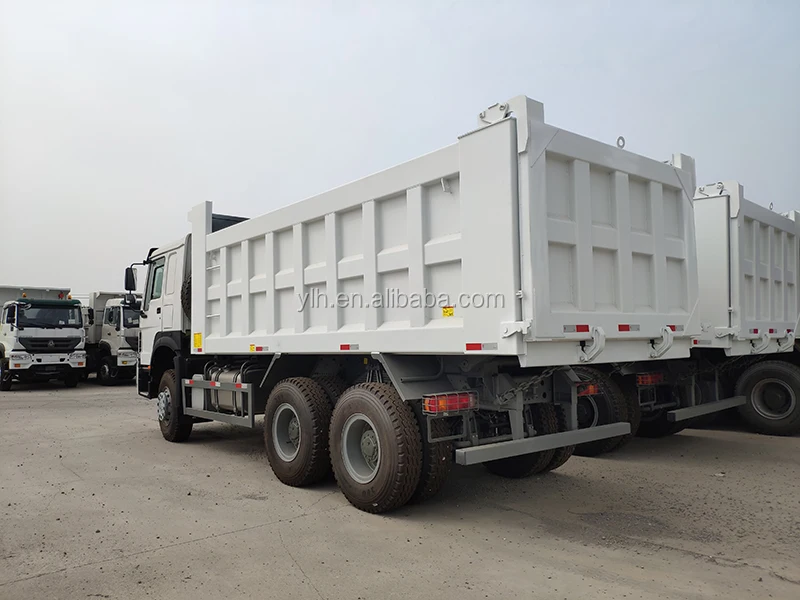

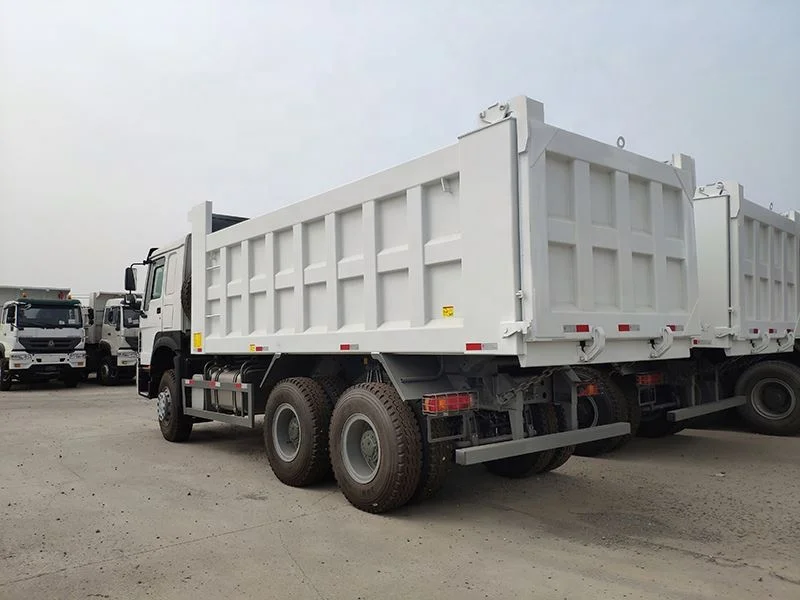

Sinotruk howo 20 ton tipper Truck for kenya
HOWO-76 Cab (with one sleeper)
HOWO-70 Cab (without sleeper)
| DUMP TRUCK | |
| Model | ZZ3257N4147W (Left Hand Driving) |
| Brand | SINOTRUK–HOWO |
| Dimension(L x W x H)(mm) | 8145x2496x3370 |
| Cargo body size (Lx W x H) (mm) | 5400x2300x1300 16 m3 |
| bottom:8mm, side:6mm | |
| Lifting type | Middle Lift |
| Approach/Departure angle(°) | 19/26 |
| Overhang(front/rear) (mm) | 1500/1739 |
| Wheel base (mm) | 3825+1350 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 12290 |
| Loading Weight(kg) | 30000 |
| Fuel tanker capacity(L) | 300 |
| Fuel consumption(L/km) | 20-40 L/100 km |
| Clutch | Single-plate dry clutch Φ430mm |
| Fuel type | Diesel |
| Horse Power | 336HP |
| Emission | EURO II |
| Engine | WD615.69, water-cooled,four strokes,6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
| Transmission | HW19710,10 forwards and 2 reverse |
| Service brake | Dual circuit compressed air brake |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Egine exhaust brake |
| Model | 8118 hydraulic steering with power assistance |
| HF9 , Steering with double T-cross section beam | |
| HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels | |
| Optional | |
| Tire | 12.00R20 |
| Cab | Right Hand Driving |
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |

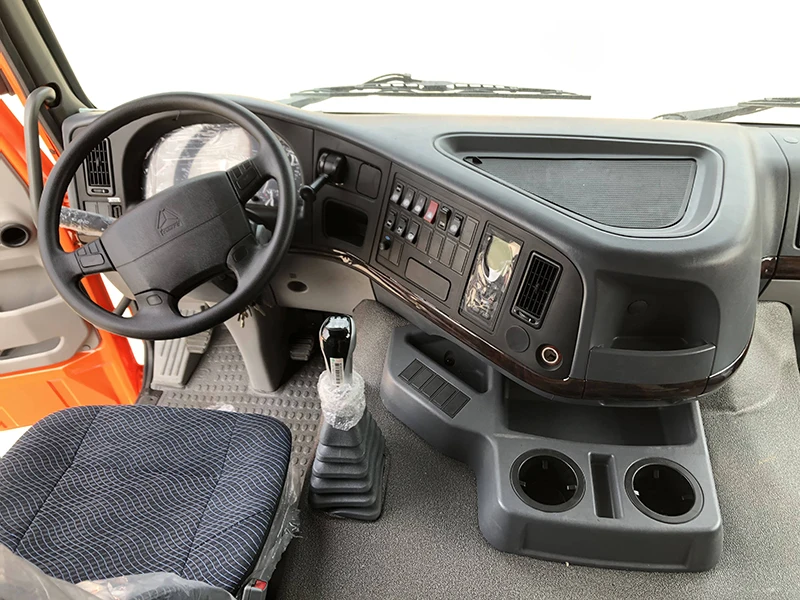

| HOWO76 cab, one sleepers, with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |

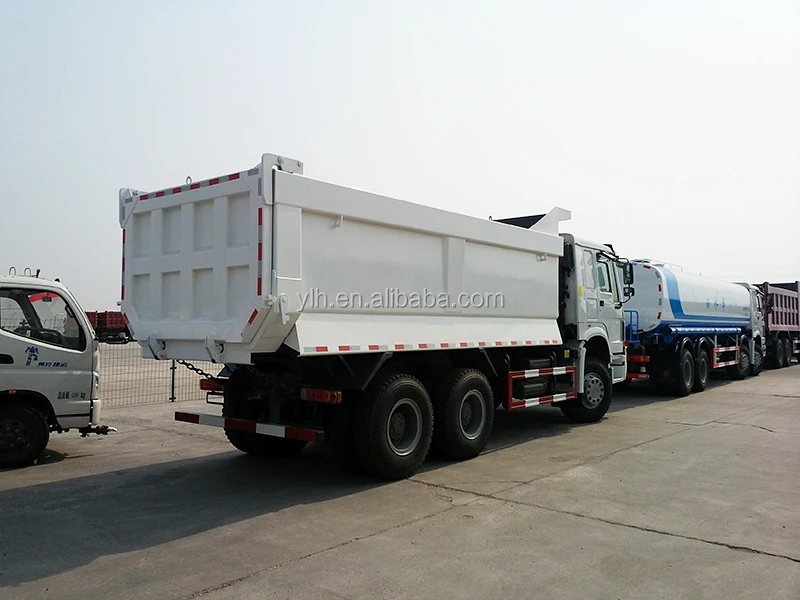

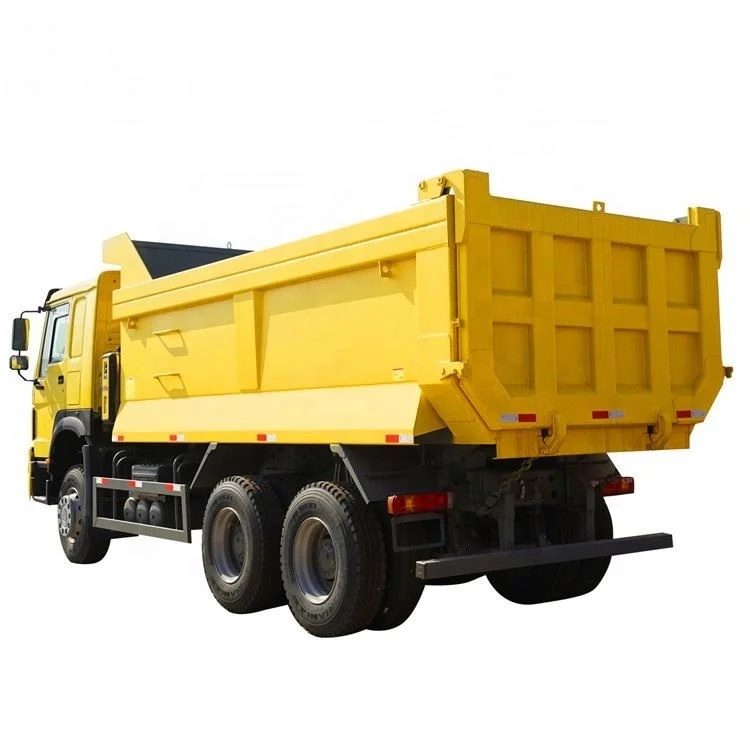

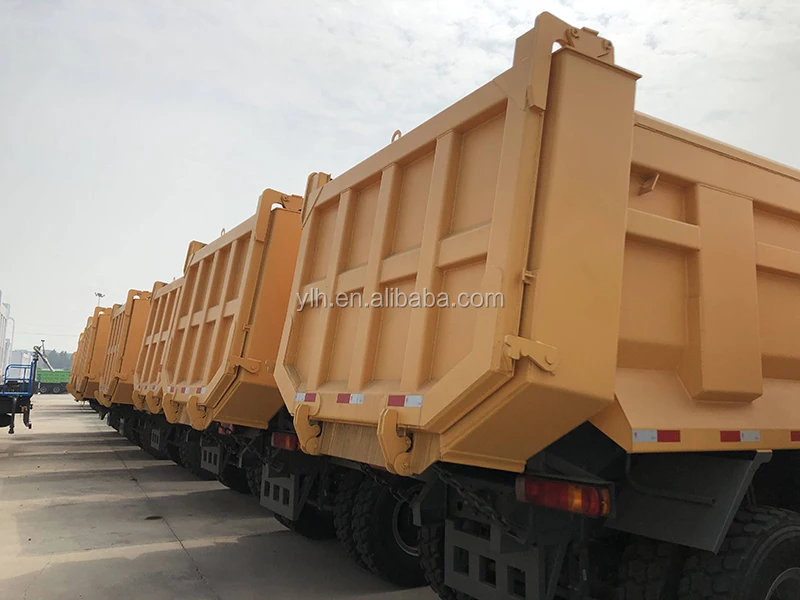

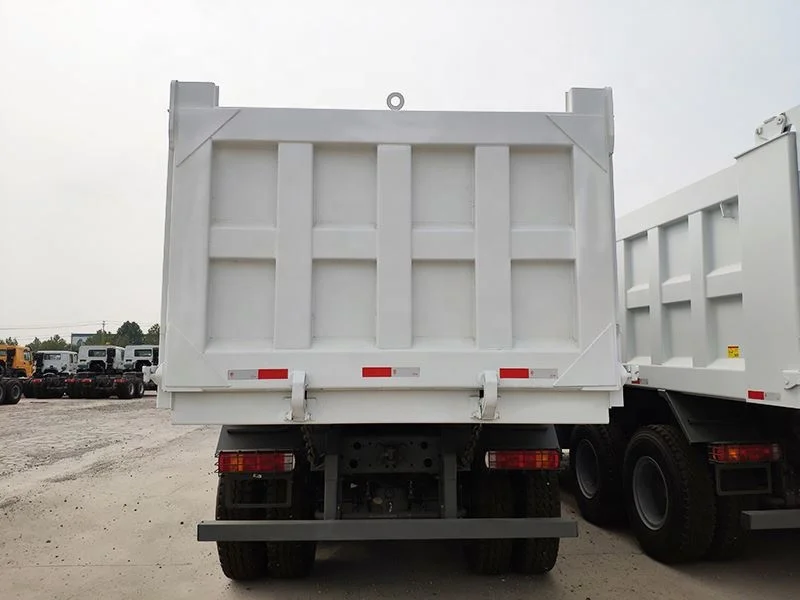

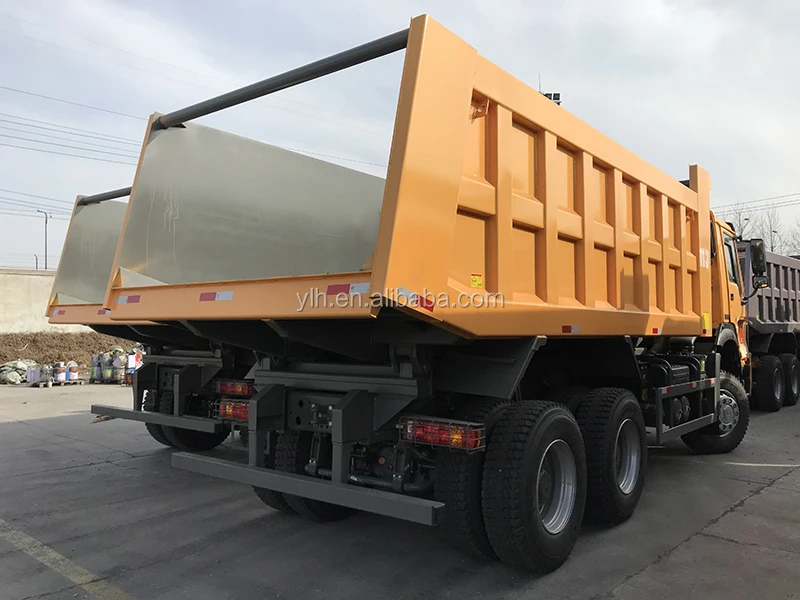

The tipper box 's style and dimensions could be optional according to your using conditions. We have U-shape style dumper box for your selecting as followed:

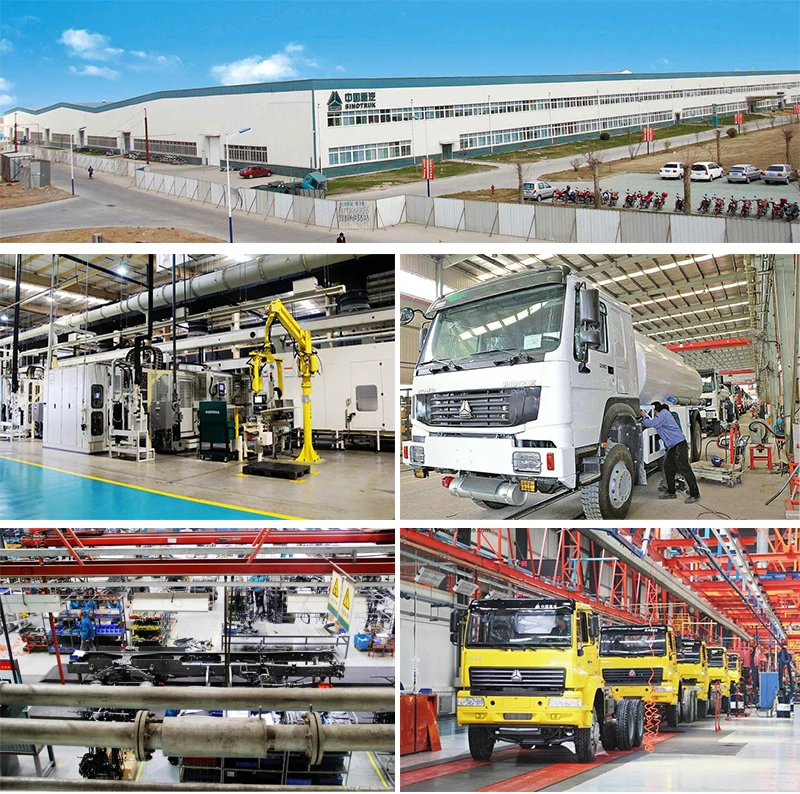

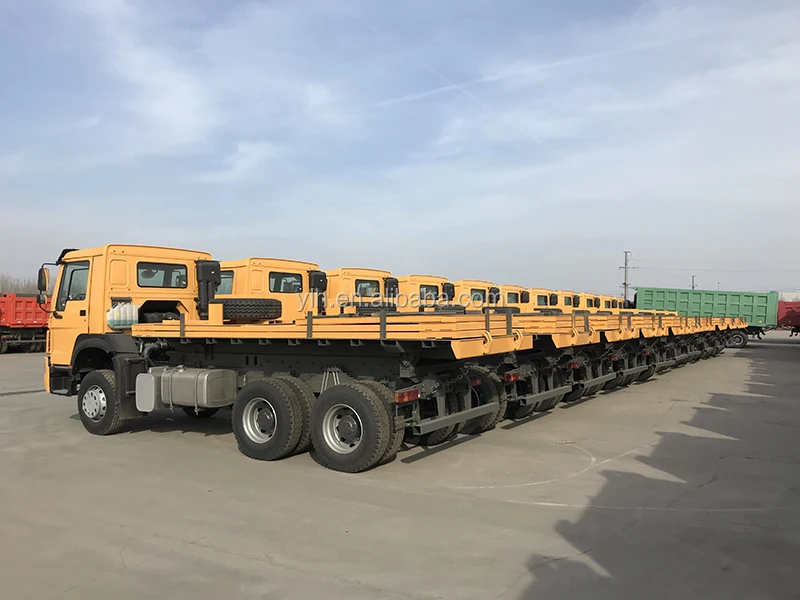

As followed is our factory 's workshop and test progress show:
Certifications
Packaging & Shipping
Factory Show
FAQ
FAQ
Q : Are your manufacturer ?
A : We are supplier of vehicle products for over 12 years. Thogh we are not manufacturer,
we have China famous vehicle factories to be our professional background and we have research and development department of ourselves to design special vehilces according to your reasonable needs. Also we have our own channal to get most competitive price for your high performance cost.
Q : How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q : Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with
you.
Q : What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special
vehicles. We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
