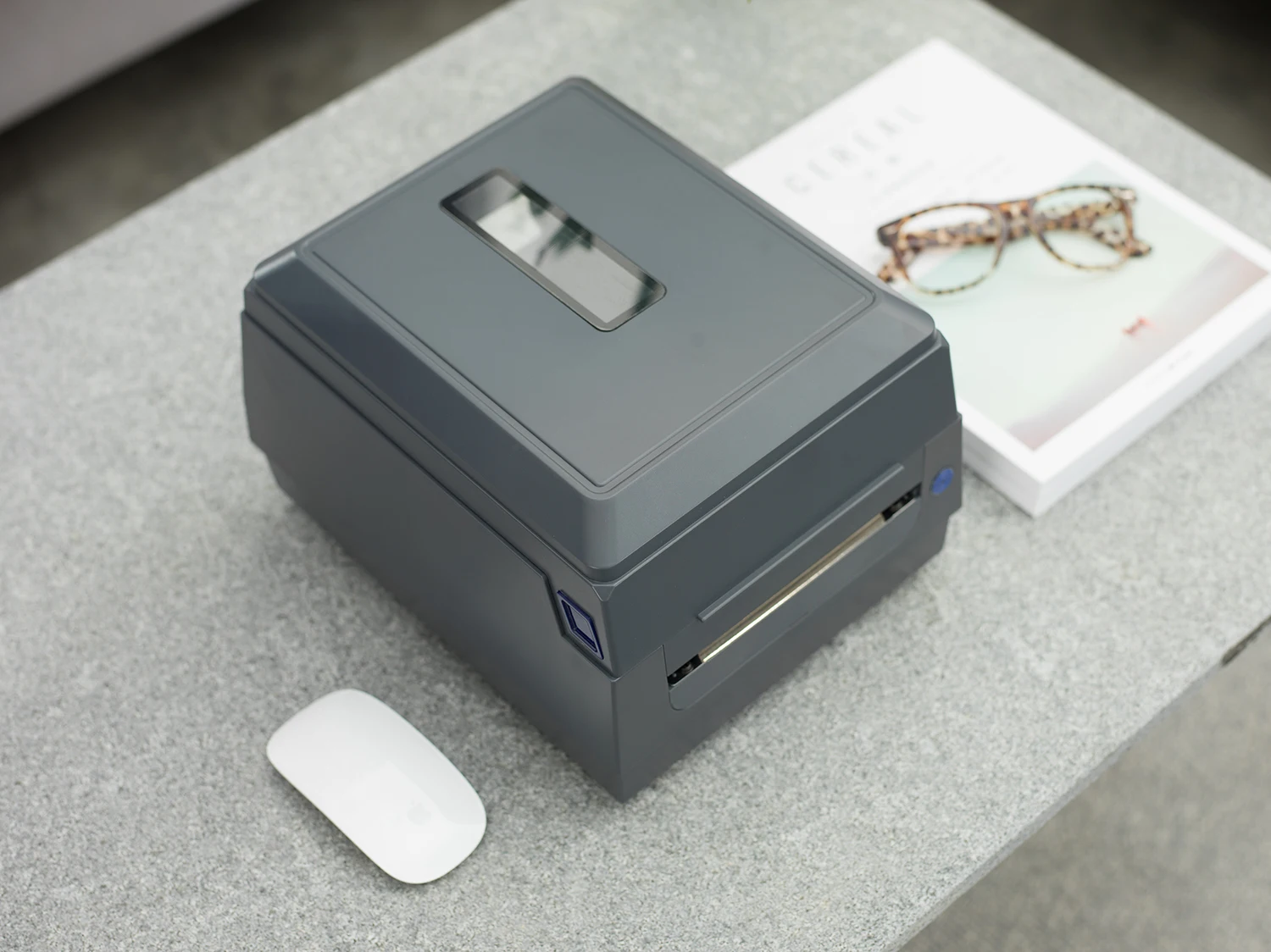

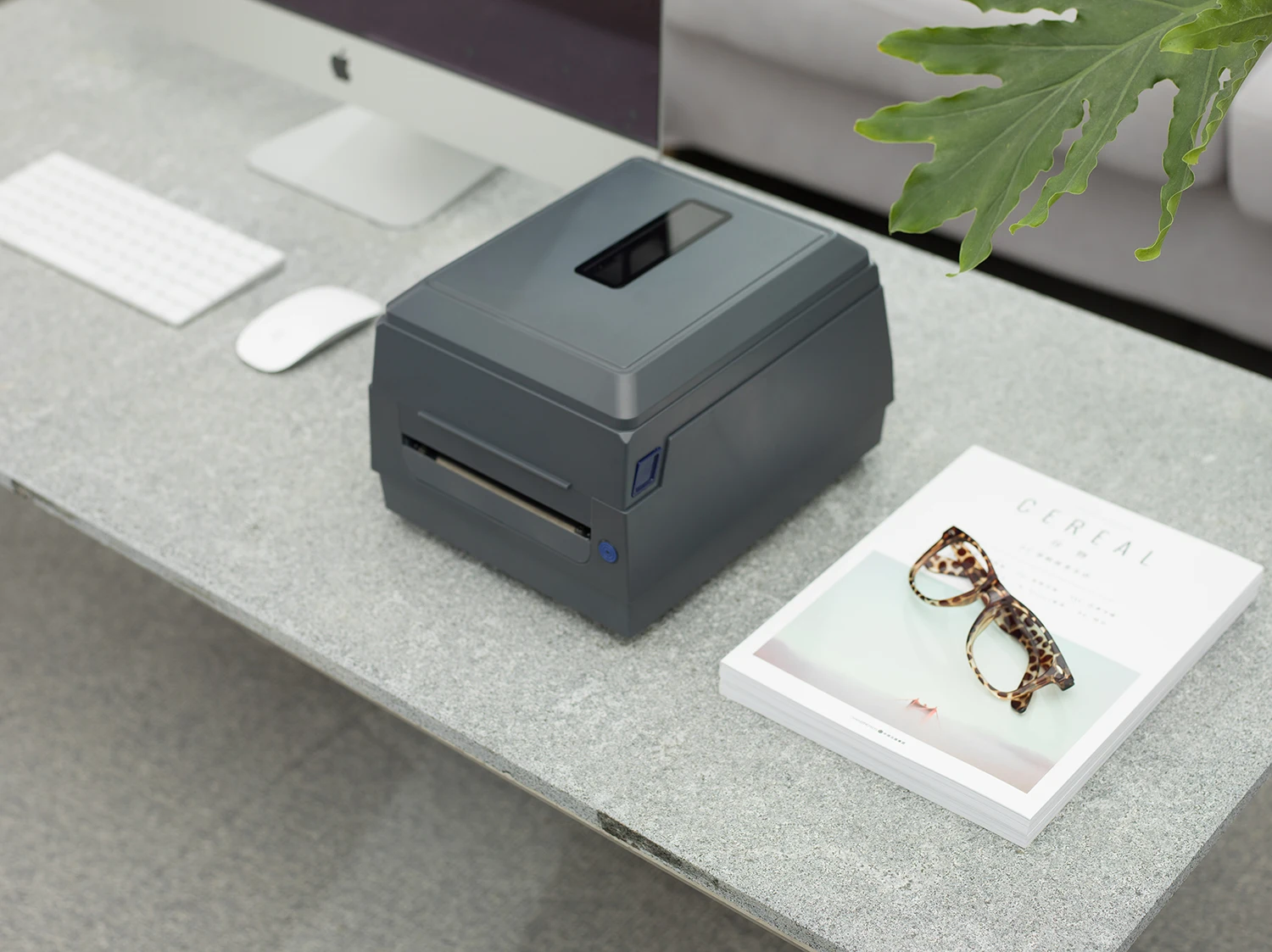

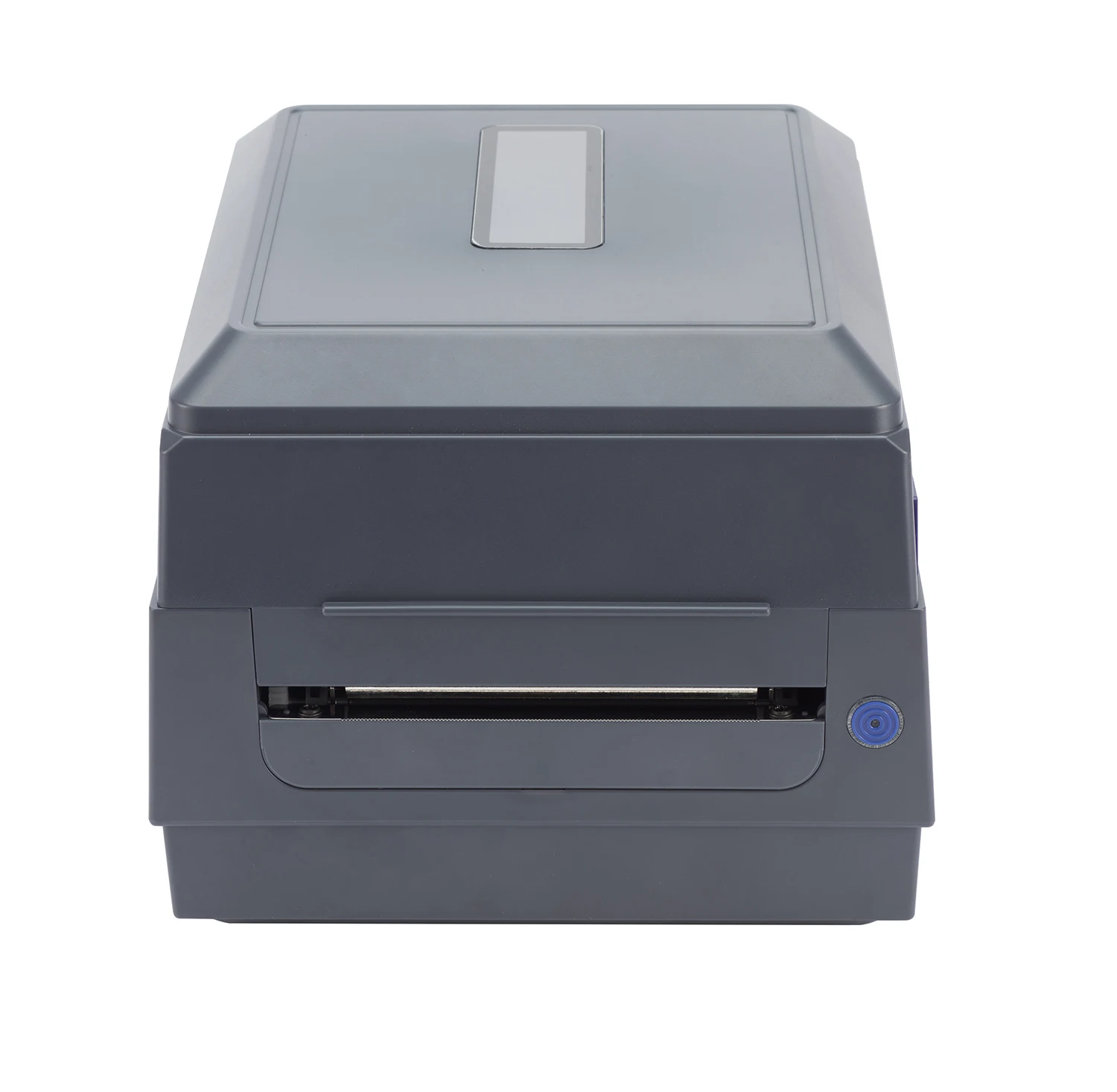

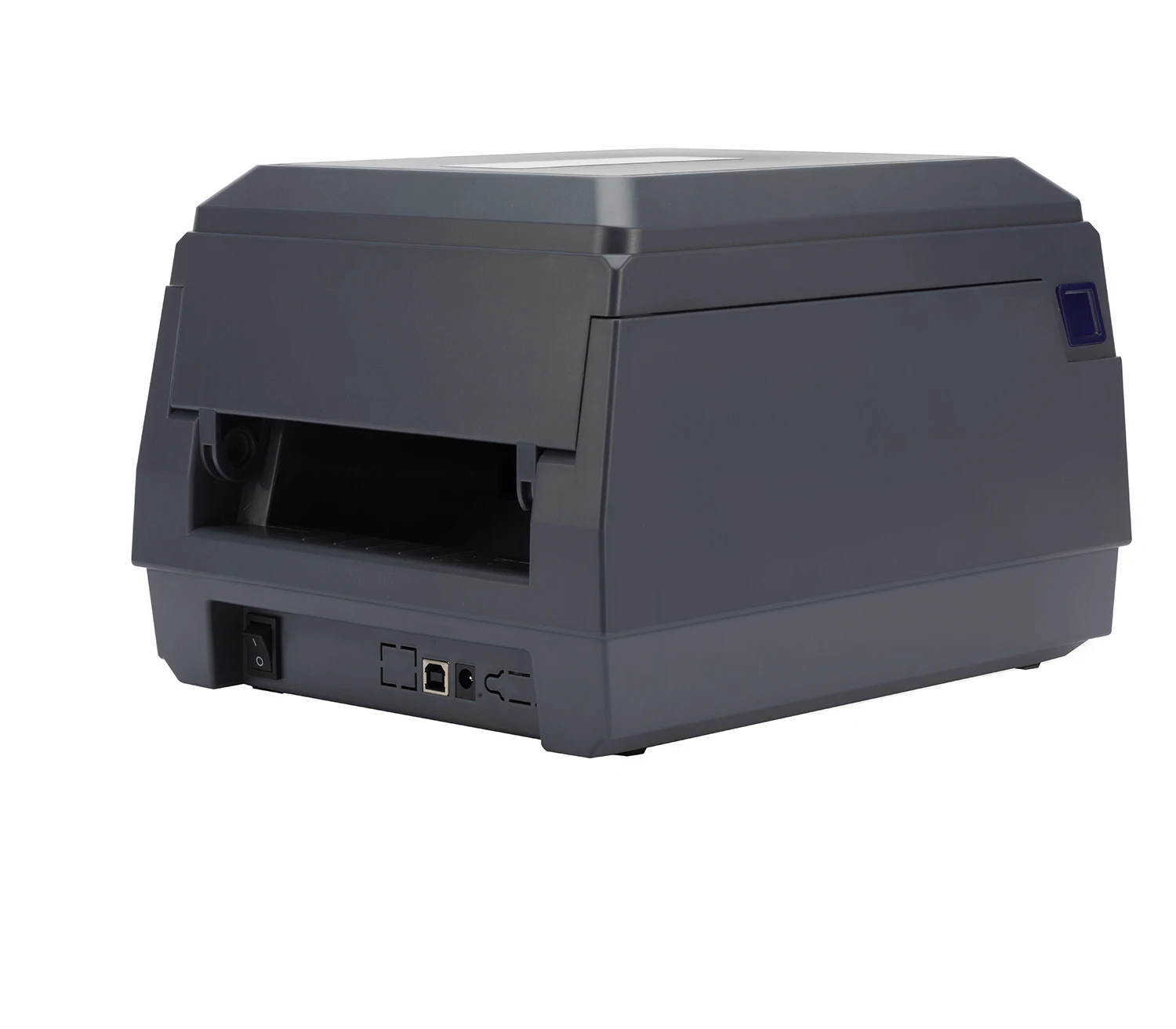

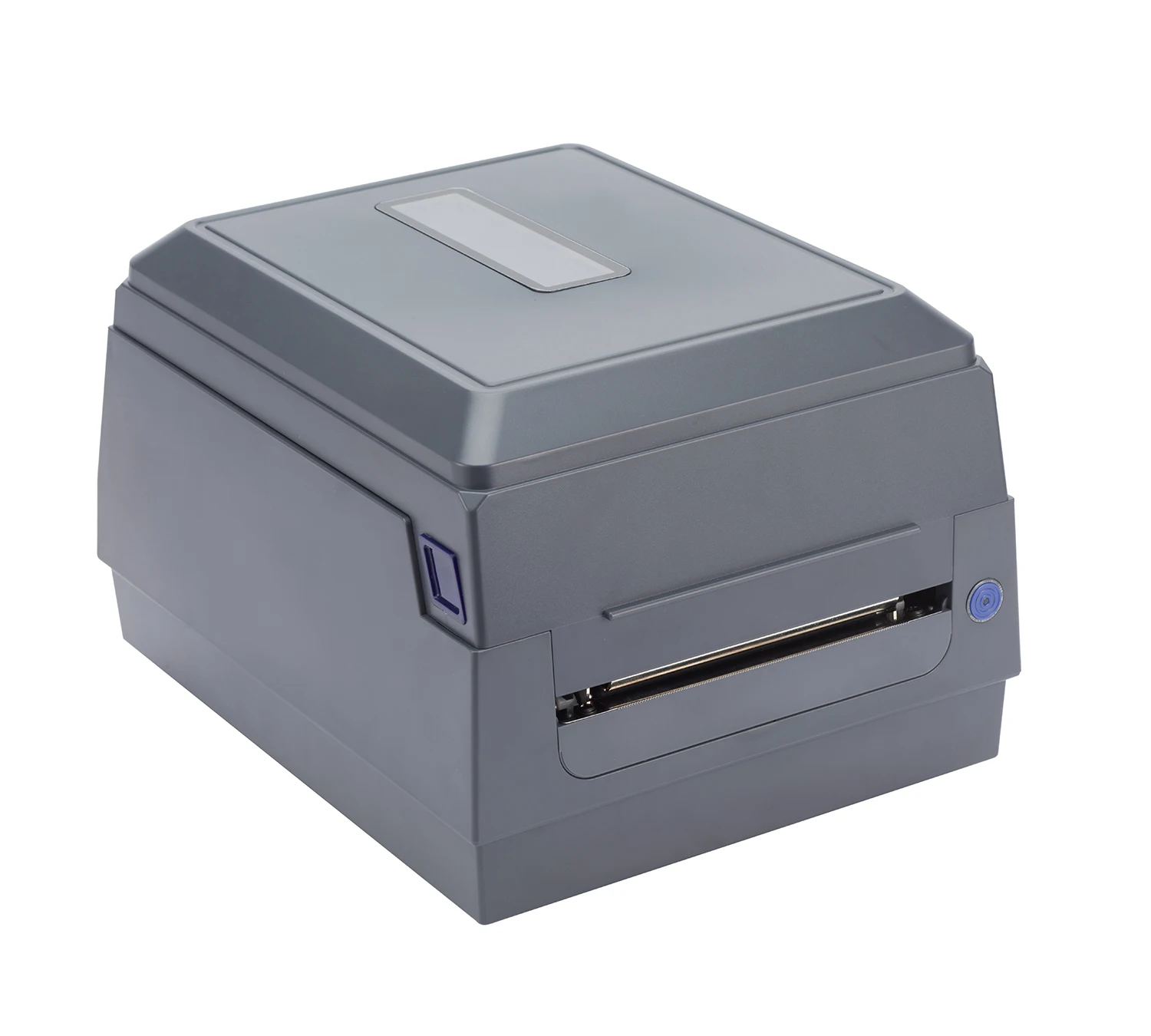

IPRT IP 683 Compatible with TSC TE 344 Thermal Transfer Printer for Clothing and Logistics Usage with 304 DPI
- Category: >>>
- Supplier: Xiamen Aiyin Technology Co. Ltd.
Share on (62314637424):
Product Overview
Description
Product Description
IP-683
Items | Parameters | |
| IP-583 | |
Printing | Method | Thermal Transfer |
| Resolution | 304DPI |
| Width | 108mm |
| Speed | 102mm/s |
| CPU | 32 Cortex-M4 ARM GHz 240MHZ |
| Storage | SDRAM:64MB |
|
| FLASH:16MB |
| Programming Language | Compatible TSPL EPL ZPL |
| Interface | Standard:USB Optional:Serial /Internet |
Detection | Paper Detective Sensor | Transmit Sensor/Moveable Reflected Sensor |
Character | Character Set | Normal single byte typeface:FONT1 to FONT8,5 kinds EPL2 typeface and 5 kinds ZPL2 typeface |
|
| Chinese typeface:16/24/32 dot matrix |
|
| Custom typeface:Users download custom typeface to FLASH or SDRAM |
| Magnify/Rotate | Across and down typeface magnify up to 1-8times,rotate to print(00,900,1800,2700) |
Diagram | Graphic processing |
|
Barcode | 1D | VCode39, Code93, Code128, ITF, ITF14, subsets A, B, C, Codbar, EAN-8, EAN-13,EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits, add-on, MSI, MSIC, PLESSEY, CPOST |
| 2D | PDF417,QR,MAXICODE etc.. |
Medium | Paper types | Label/Tag/Continuous/Folded/Perforated Paper |
| Width | 19mm–118mm |
| Thickness | 0.06 – 0.20mm |
| Paper roll outer | Max.127 mm |
| Core inner | 12.7 / 25.4mm |
Thermal Transfer Ribbon | Width | Max.110mm |
| Length | Max.300m |
| Core inner | 25mm |
Operation Interface | Key/pilot lamp | 1key 2lamps |
| Display Screen | Non |
Power | Input | 110-240 V AC,50/60 Hz |
| Output | 24V DC average current 2A |
Environment | Operation environment | Temperature:+5~45℃,Relative humidity:10~90% non-condensate |
| Storage environment | Temperature-20~60℃,Relative humidity:10~95% non-condensate |
Package | Dimension | 273(W)x 220(D)x177(H)mm |
| Weight | Approx 2.1kg |
Company Information
Xiamen IPRT is established and located in a beautiful and with convenient transportation seaside city-Xiamen in 2015 .
IPRT is specialized in developing and manufacturing Thermal Bar-code printer.IPRT has a 42 people R&D team with more than ten years rich experience in barcode printer industry and gains many patents.IPRT products and solutions apply to most printing industries: Manufacturing;Packing;Warehouse & Logistics;Retail;Health-care Entertainment & Hospitality etc..

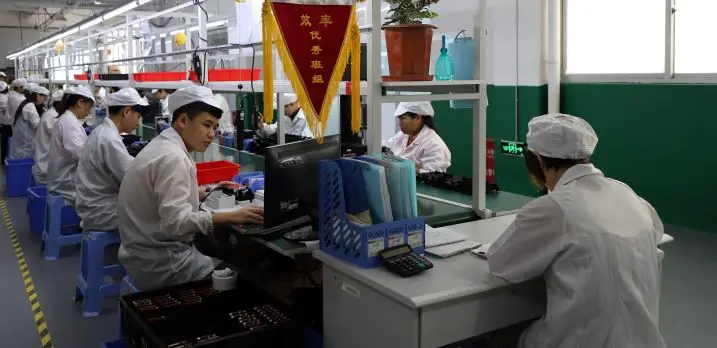

In order to match the fast growing orders,IPRT production lines increases up to 12 and factory area is up to 11000 square meters.So that IPRT has enough production capacity to satisfy urgent and bigger orders meanwhile ensuring products quality and delivery time as per customer’s requests.
IPRT pays highest attentions on Quality&Environment control and obtained ISO9001,ISO1400,3C,ROHS,CE certifications etc..IPRT inspects the incoming materials,tests printing effects of semi-products and finished products and clean up appearance.
IPRT trusts that Win-win is the base of cooperation,ODM&OEM cooperation methods are both welcomed.Looking forward your cooperation.
Packaging & Shipping
Our Services
What Service Our Provide?
1.Support your own software installed.
2.Provide SDK for your software integrating.
3.Technical support on your software integrating when there have any issuses.
4.Auto start your app can be customized when start the device.
5.Server management for your all of your devices when large order. Then we can fix bugs of the devices on the air.
6.Your logo can be printed on the devices.
7.Functions can be customized.
8.Color of the devices can be customized.
9.Install your app before the shipment.
10.Maintenance training if necessary.
11.12 months warranty from the date we ship you the devices.
Certifications
FAQ
Q:1. What about delivery time?
A: Samples within 2 working days and bulk quantity within 10 working days.
Q:2. What about MOQ?
A: We can accept sample order firstly.
Q:3. What warranty and after-sale service do you offer?
A: Each printer will have one year (12 months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
We will offer technical supports or helps in your daily use for lifetime and offer latest software for your updating.
Q:4. Can you offer driver/SDK for the printers?
A: Yes, We are supplying all windows driver, windows 98,2000,VISTA,7,8. Both 32 bit and 64 bit system.
Q:5. Besides the English language, do your printers support other languages? What operation system they backup?
A: Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese etc 48 different languages available, and it backups iOS, Android, Windows, Linux, Opos operation systems.
