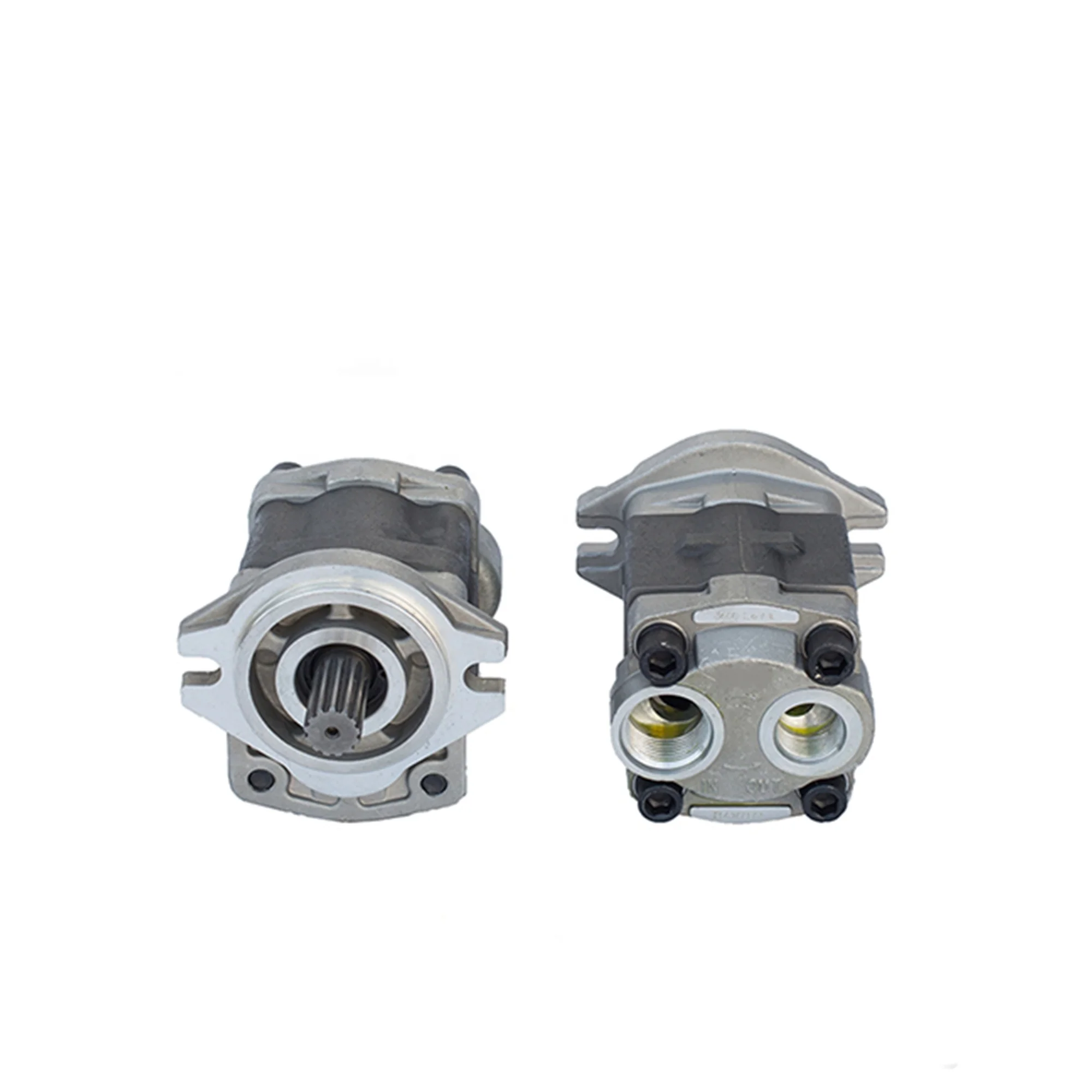

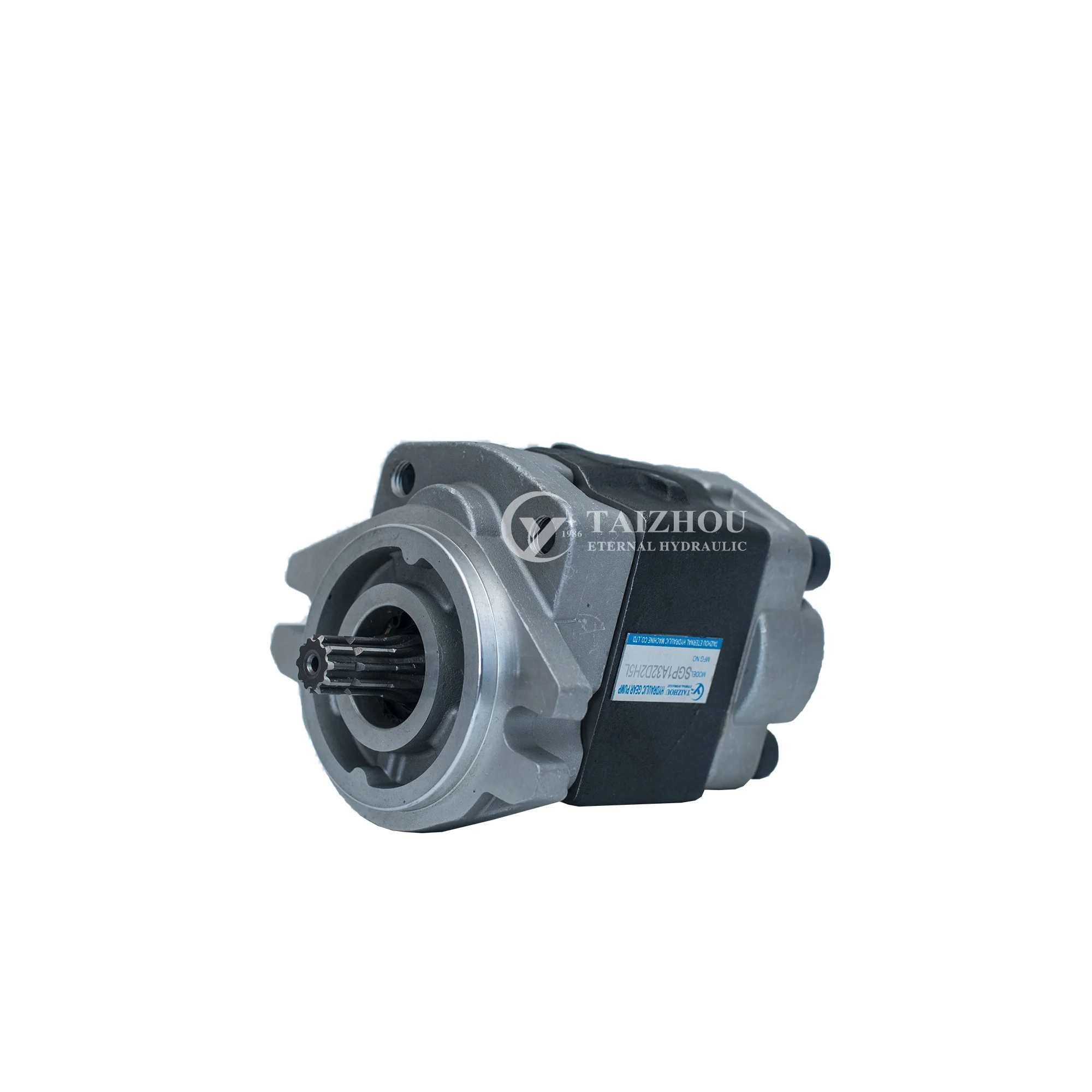

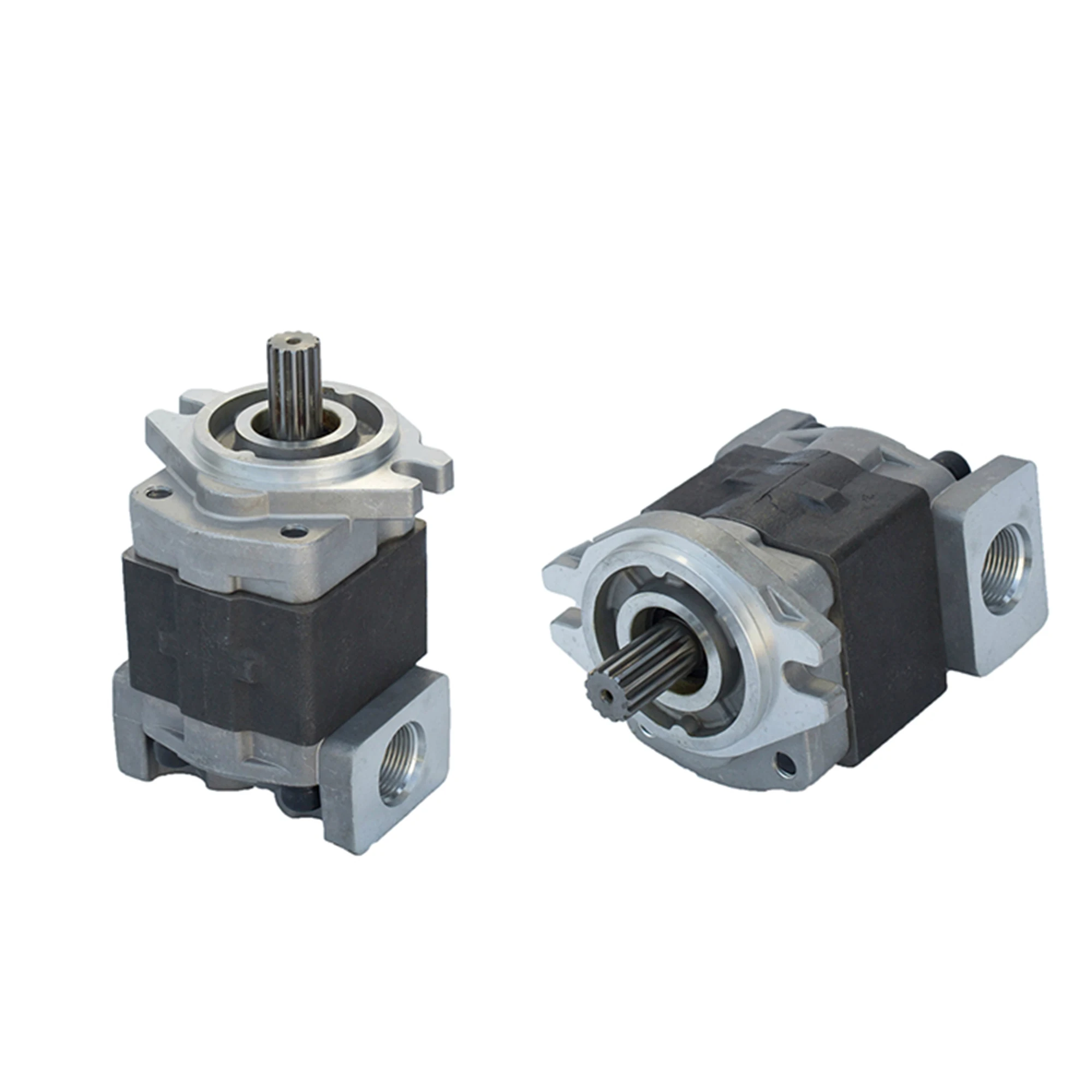

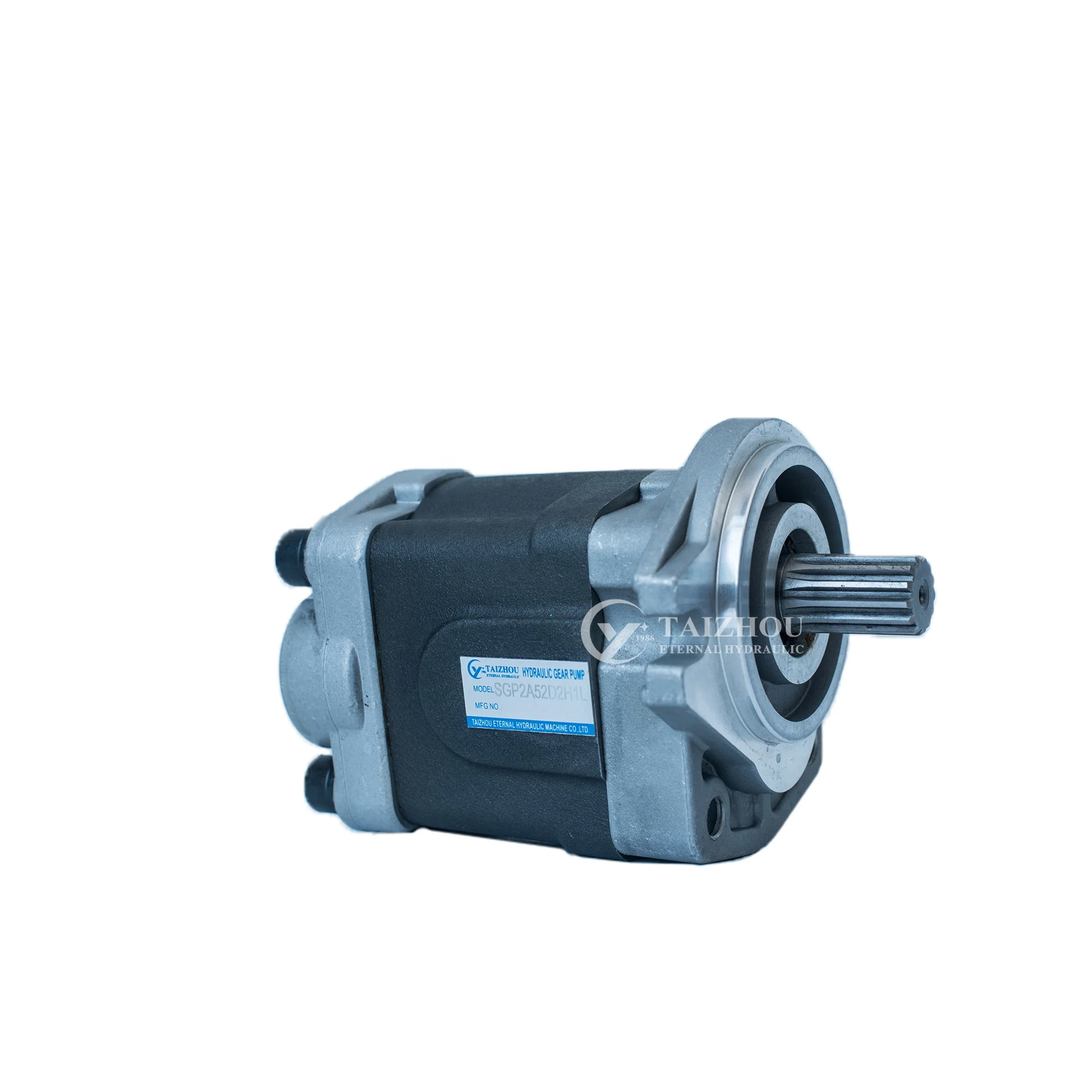

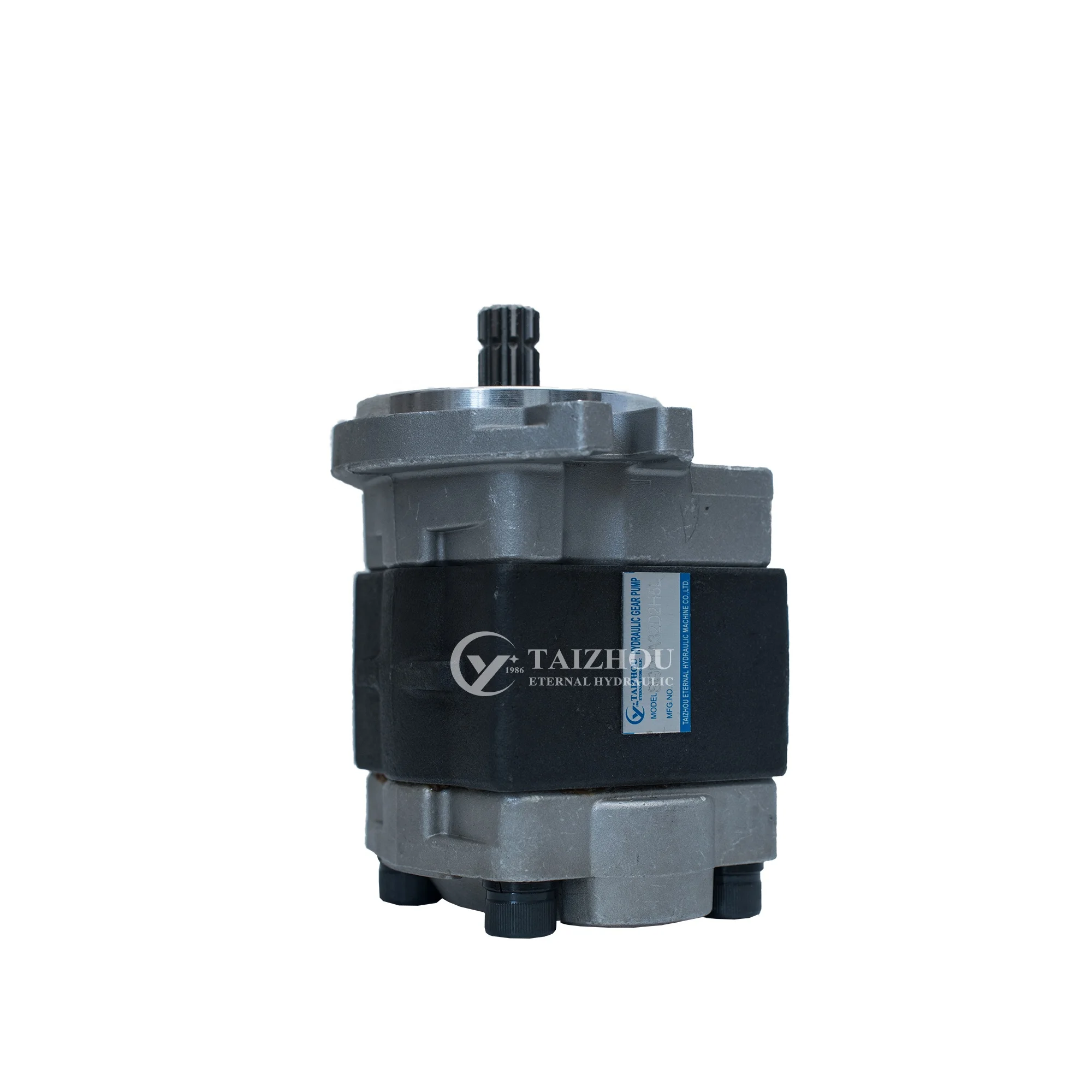

Kyb Japan Hydraulic Double Gear Pump, Kzp Sgp Tcm Forklift Spare Parts Hydraulic Gear Pumps
- Category: >>>
- Supplier: Taizhou Eternal Hydraulic Machine Co. Ltd.
Share on (62314714233):
Product Overview
Description

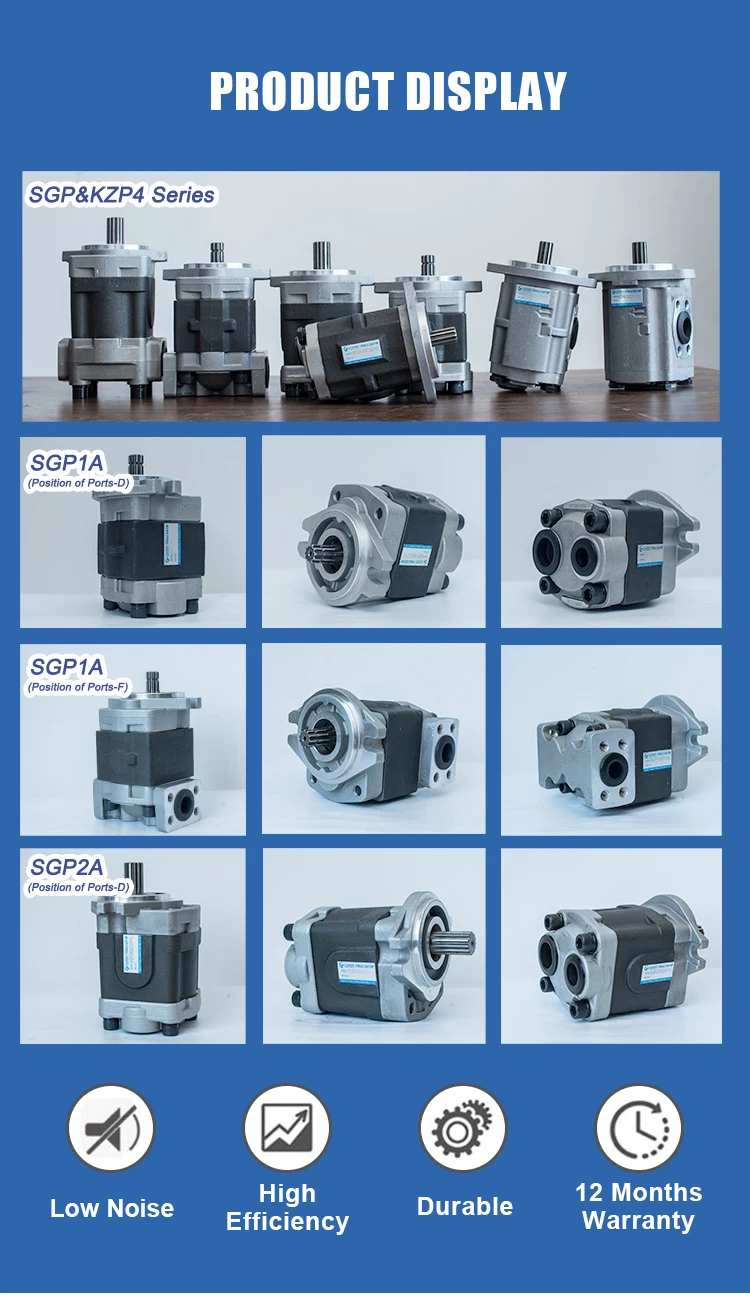

Products Show
ETERNAL SGP series gear pump :
* Light weight, compact structure, body aluminum alloy, high precision molding design
* High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency
* Low noise
* Stable operation and long working life
* High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency
* Low noise
* Stable operation and long working life

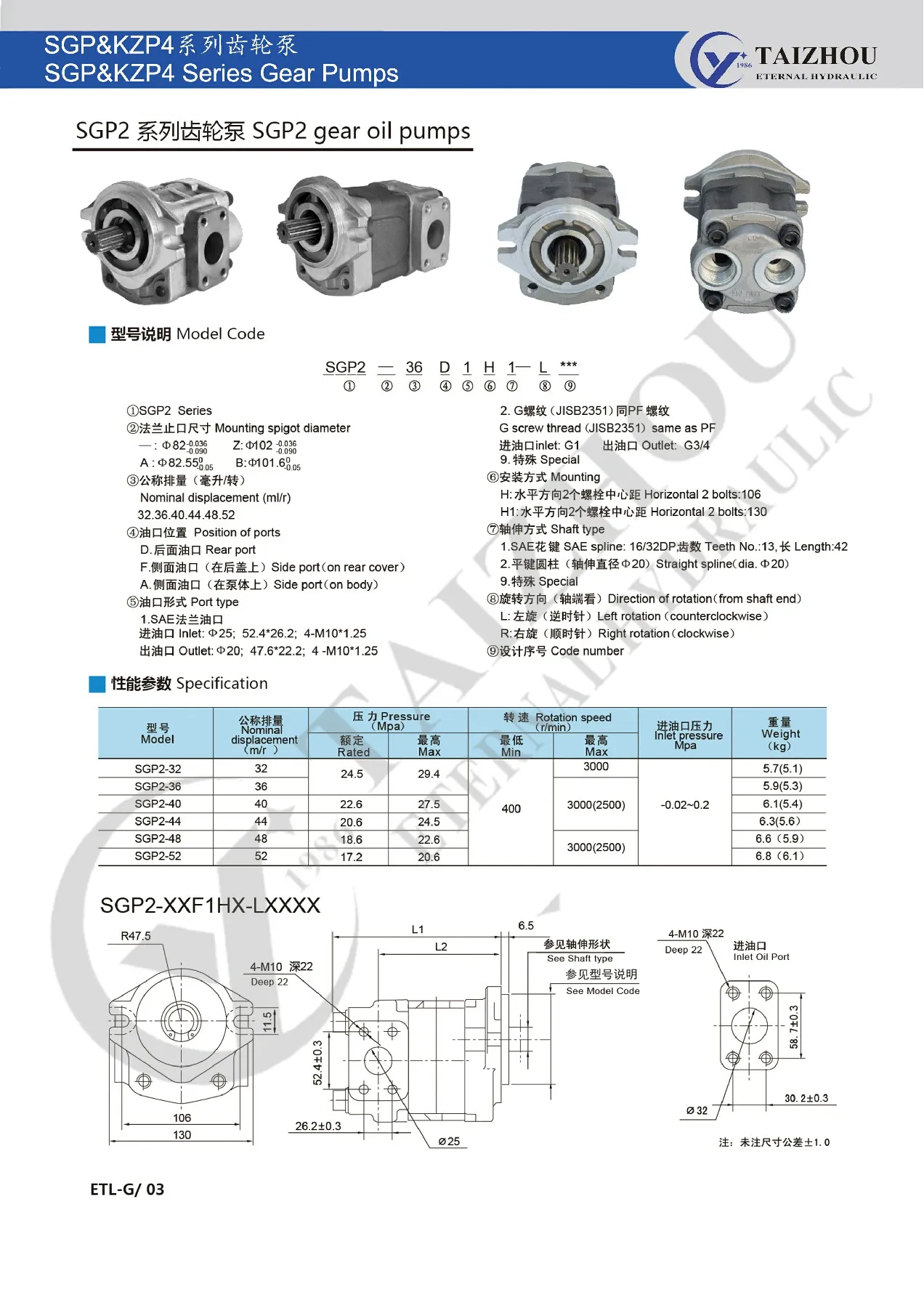

Model | Nominal displacement (m/r ) | Pressure (Mpa) | Rotation speed(r/min) | Inlet pressure (Mpa) | Weight (kg) | ||||
Rated | Max | Min | Max | ||||||
SGP2-32 | 32 | 24.5 | 29.4 | 400 | 3000 | -0.02~0.2 | 5.7(5.1) | ||
SGP2-36 | 36 | 3000(2500) | 5.9(5.3) | ||||||
SGP2-40 | 40 | 22.6 | 27.5 | 6.1(5.4) | |||||
SGP2-44 | 44 | 20.6 | 24.5 | 6.3(5.6) | |||||
SGP2-48 | 48 | 18.6 | 22.6 | 3000(2500) | 6.6 (5.9) | ||||
SGP2-52 | 52 | 17.2 | 20.6 | 6.8 (6.1) | |||||

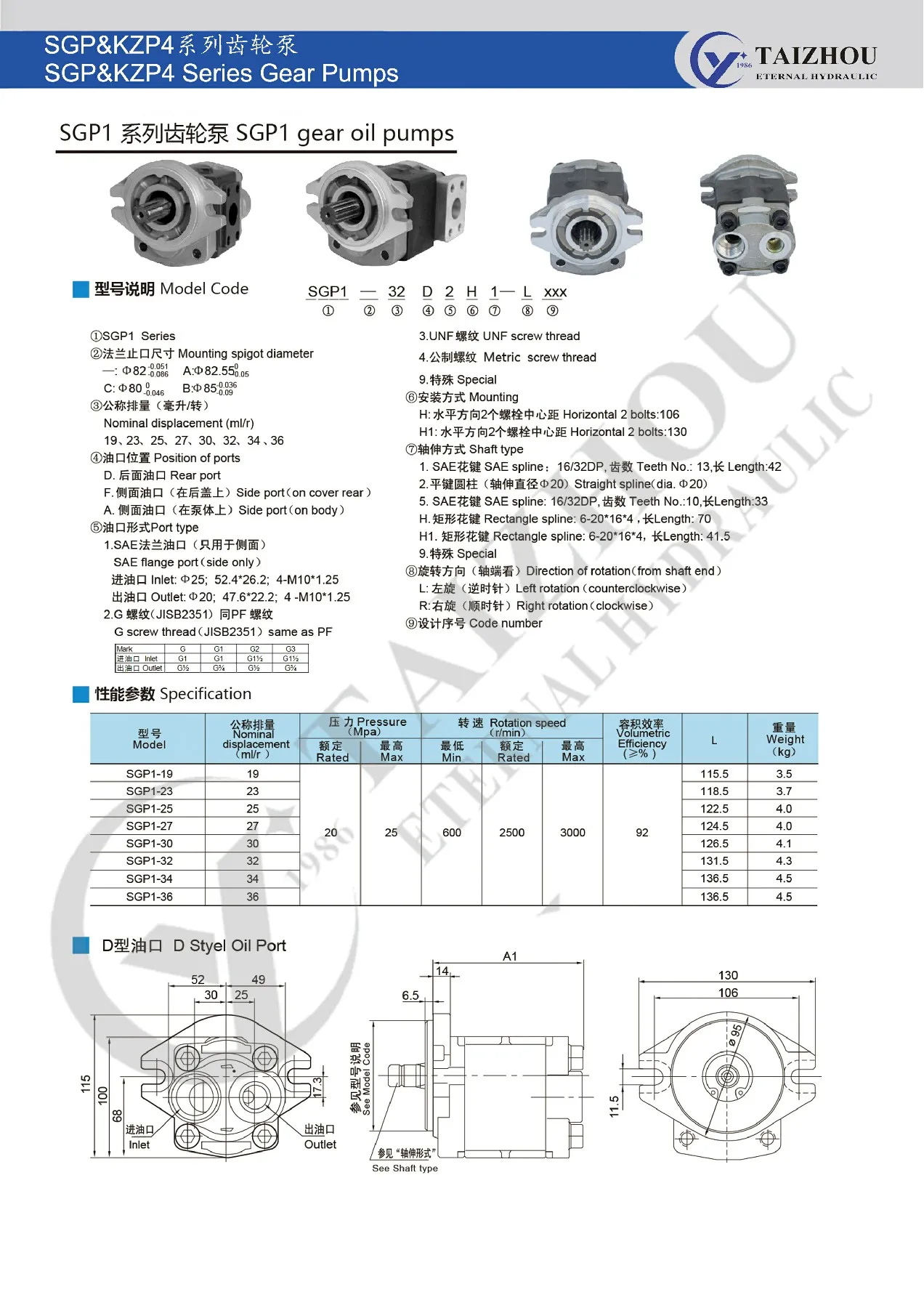

Model | Nominal displacement (m/r ) | Pressure (Mpa) | Rotation speed(r/min) | Volumetric Effciency(≥%) | Weight (kg) | ||||||
Rated | Max | Min | Rated | Max | |||||||
SGP1-19 | 19 | 20 | 25 | 600 | 2500 | 3000 | 92 | 3.5 | |||
SGP1-23 | 22 | 3000(2500) | 3.7 | ||||||||
SGP1-25 | 25 | 22.6 | 27.5 | 4 | |||||||
SGP1-27 | 27 | 20.6 | 24.5 | 4 | |||||||
SGP1-30 | 30 | 18.6 | 22.6 | 3000(2500) | 4.1 | ||||||
SGP1-32 | 32 | 17.2 | 20.6 | 4.3 | |||||||
SGP1-34 | 34 | 4.5 | |||||||||
SGP1-36 | 36 | 4.5 | |||||||||
Products Description
Product packaging

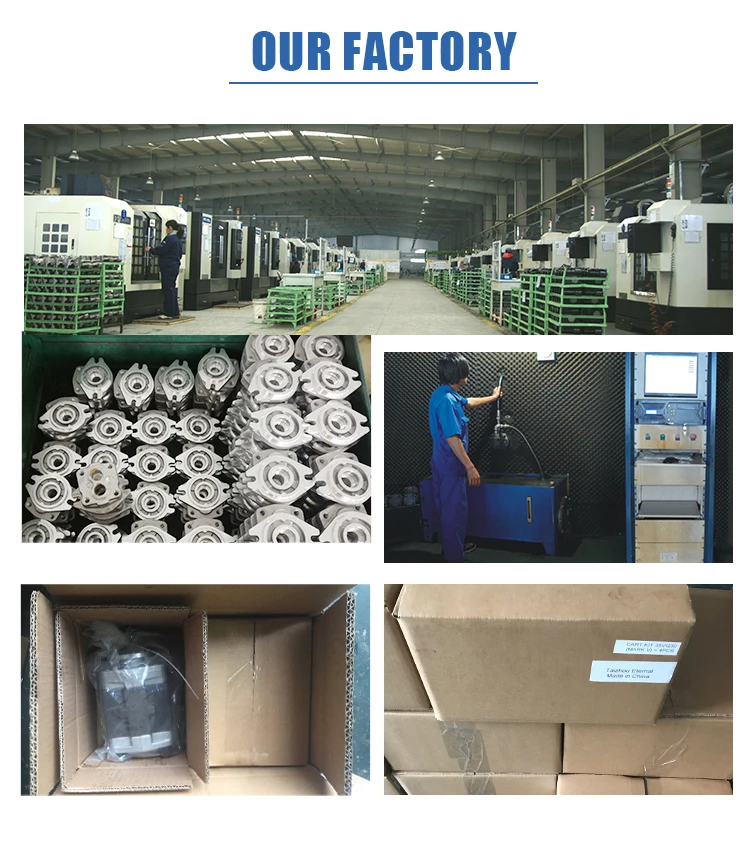

Company Profile
About Eternal Hydraulic
Eternal Hydraulic is a professional Manufacturer of Hydraulic Components with more than 10 years experiences, is also a One-Stop Mall in Hydraulic Filed, with 40+ distributors and 1000+ regular customers , 160+ Suppliers. CE/ISO/SGS/TUV certificate.
Our products including Piston Pump, Vane Pump, Gear Pump, Hydraulic Valve, Hydraulic
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
