DN15 hydrogen gas digital coriolis mass flowmeter for hydrogen
- Category: >>>
- Supplier: Shanghai Rocksensor Automation Co. Ltd.
Share on (62314816913):
Product Overview
Description

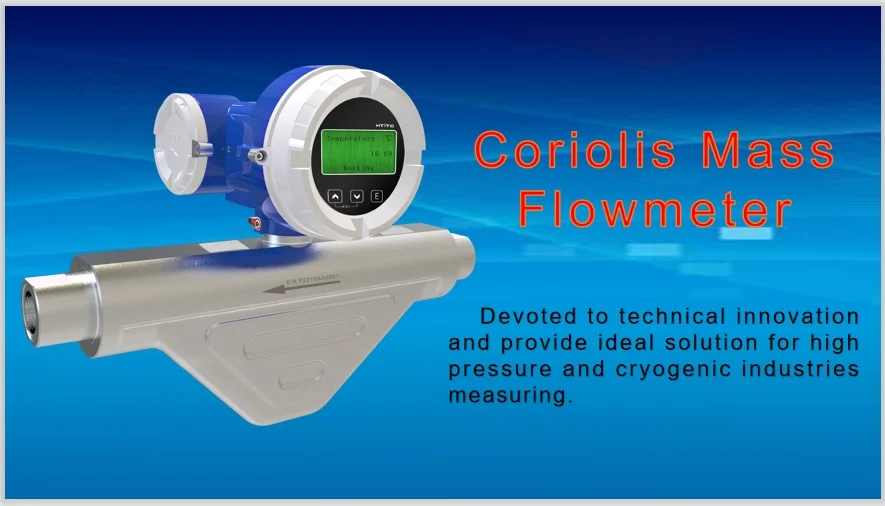

CORIOLIS MASS FLOWMETER
Product Description

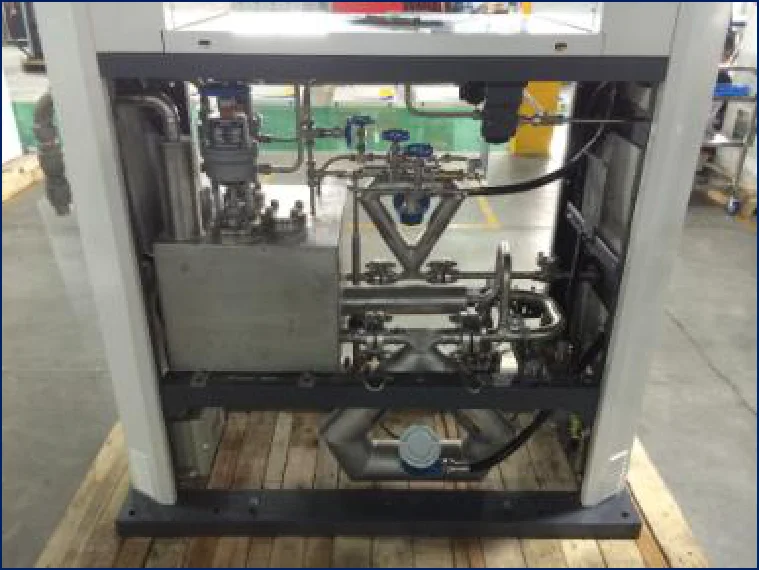

Apply to hydrogen dispenser,CNG dispenser, hydrogen refueling station,trade calculation of CNG refueling station, hydrogen,CNG measuring platform and etc.
Principle and Application
Coriolis mass flowmeter is developed according to the principle of coriolis mass flowmeter, it can directly measure parameters such as mass flow-rate, density and temperature. It has been widely used in Petrochemical, Natural gas, Chemical, Pipeline transportation industries and etc. Its function is for trade settlement and process control to ensure precision reflection, optimizing production, enhanced safety and maintenance cost save.
The Technological Advantages
- Measure the mass flow-rate directly, which is in the pipeline, so can’t affected by temperature, pressure and flow speed.
- High accuracy: generally grade 0.15, maximum grade 0.05, excellent repeatability.
- Wide span ratio rang, up to 100:1.
- Realize measuring for mass flow-rate, volume flow-rate, density and temperature.
- The stable and reliable performance.
- Besides general viscosity liquids, can also measure high viscosity and non-Newtonian liquids. Can measure not only the single phase flow but also the homogeneous multi-phase flow.
- Excellent corrosion resistance performance, able to measure various common corrosive fluids.
PRODUCT INFORMATION
Accurcy | Grade 0.15, Grade0.2, Grade0.5, Grade1.0…… |
Repeatability | 0.075％、0.1％、0.25％、0.5％ |
Density | ±0.001g/cm3 |
Temp. | ±1℃ |
Ambient temp. | -40℃～+55℃ |
Relative humidity | ≤95% |
Measuring medium | Gas,Liquid and Multi-phase flow |
Housing material | 304 stainless steel, ZL401(Transmitter) |
Meter tube material | 316L、Hastelloy |
FLOW PARAMETERS
Standard caliber | Rated flow | Max. flow | ||||
Model | inch | mm | kg/min | lb/min | kg/min | lb/min |
RCF-P300-04 | 1/8” | DN04 | 6 | 13 | 8 | 17 |
RCF-P300-08 | 1/4” | DN08 | 15 | 33 | 18 | 39 |
RCF-P300-15 | 1/2” | DN15 | 50 | 110 | 55 | 121 |
RCF-L50-08 | 1/4” | DN08 | 15 | 33 | 18 | 39 |
RCF-L50-25 | 1” | DN25 | 200 | 440 | 220 | 485 |
RCF-T200-04 | 1/8” | DN04 | 6 | 13 | 8 | 17 |
RCF-T200-08 | 1/4” | DN08 | 15 | 33 | 18 | 39 |
RCF-T200-15 | 1/2” | DN15 | 72 | 158 | 80 | 176 |
RCF-T200-25 | 1” | DN25 | 200 | 440 | 220 | 485 |
RCF-TR200-50 | 2” | DN50 | 720 | 1587 | 750 | 1653 |
DIMENSION

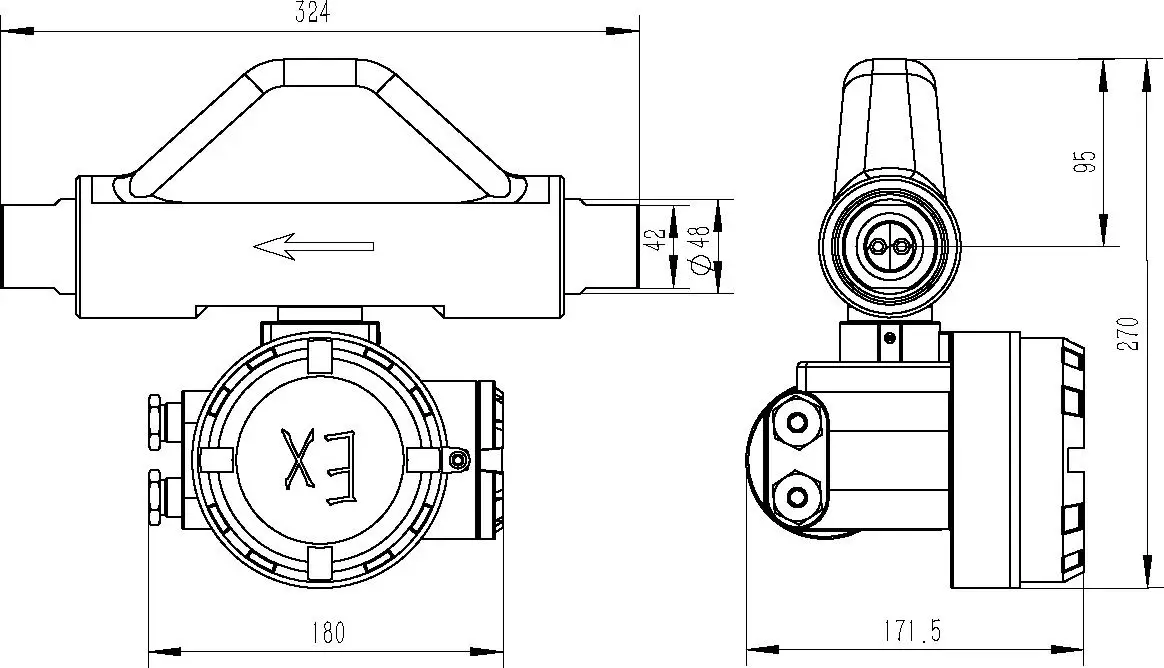

RCF-P300
Nominal diameter(mm): DN04,DN08, DN15.
Apply to hydrogen dispenser,CNG dispenser, hydrogen refueling station,trade calculation of CNG refueling station, hydrogen,CNG measuring platform and etc.

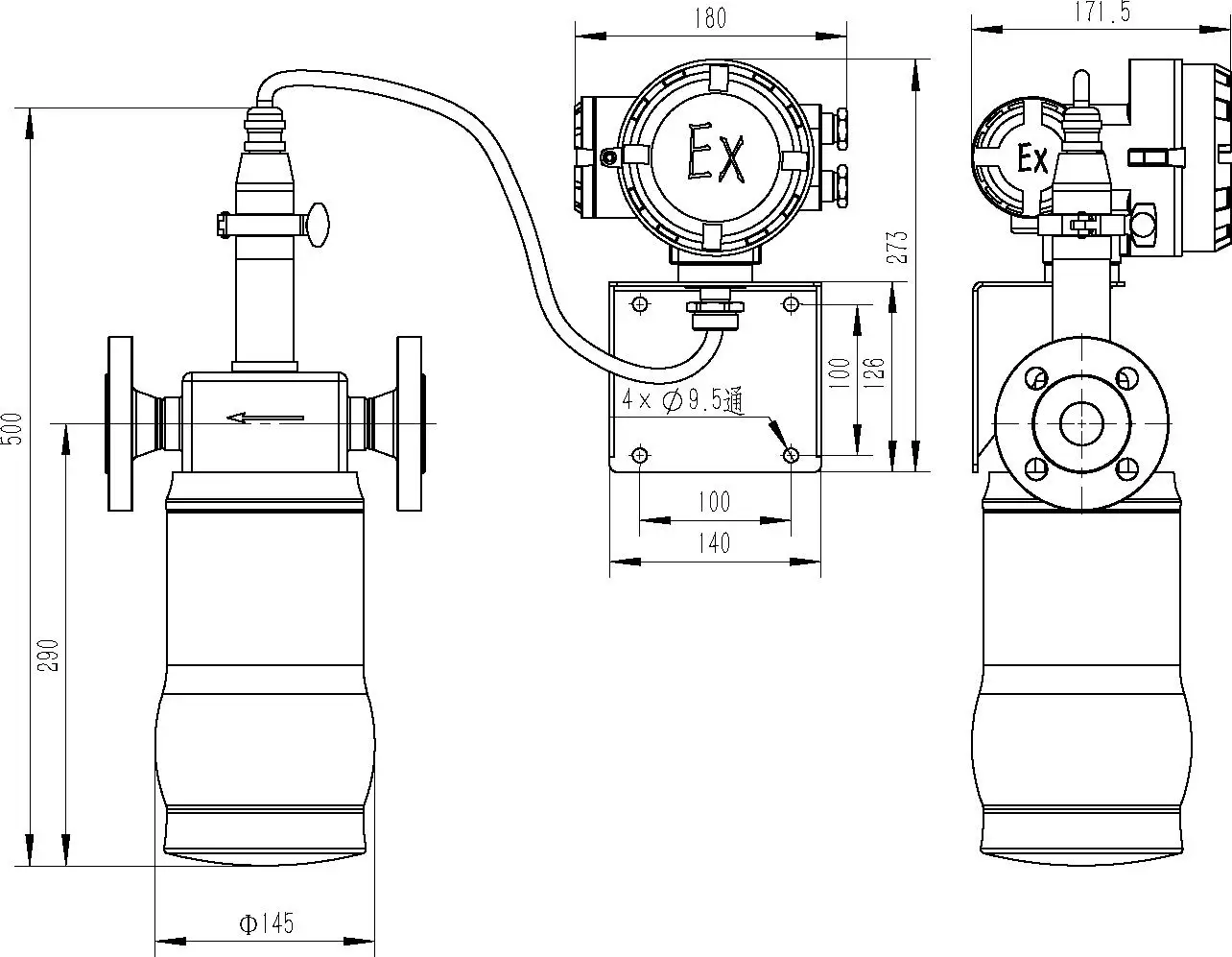

RCF-L50
Specialiiy desigened for chemical energy, natural gas field and cryogenic application envrionment.

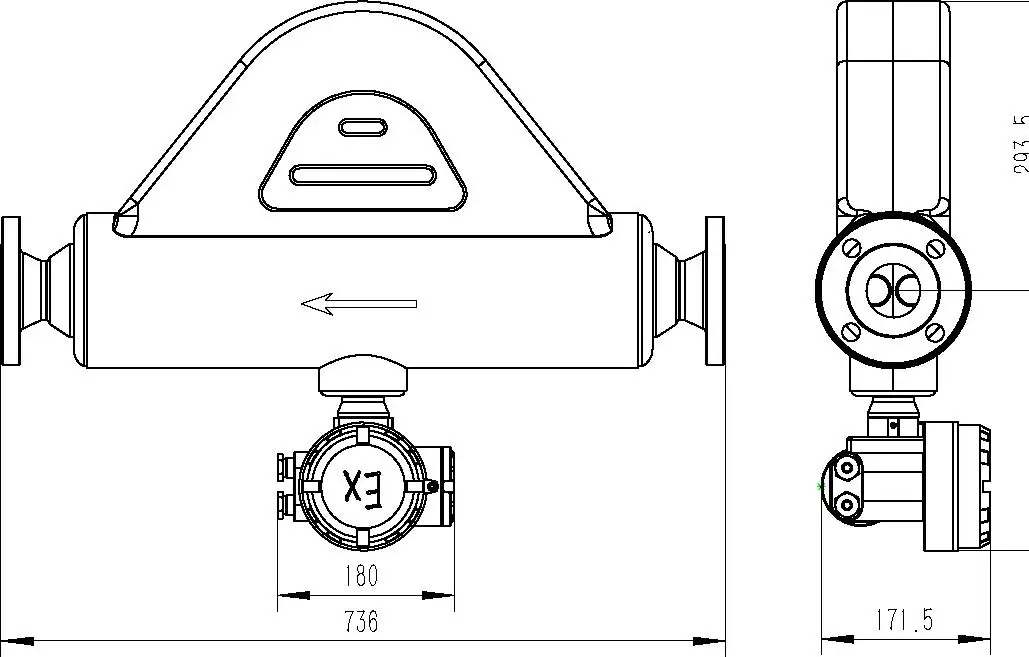

RCF-T200

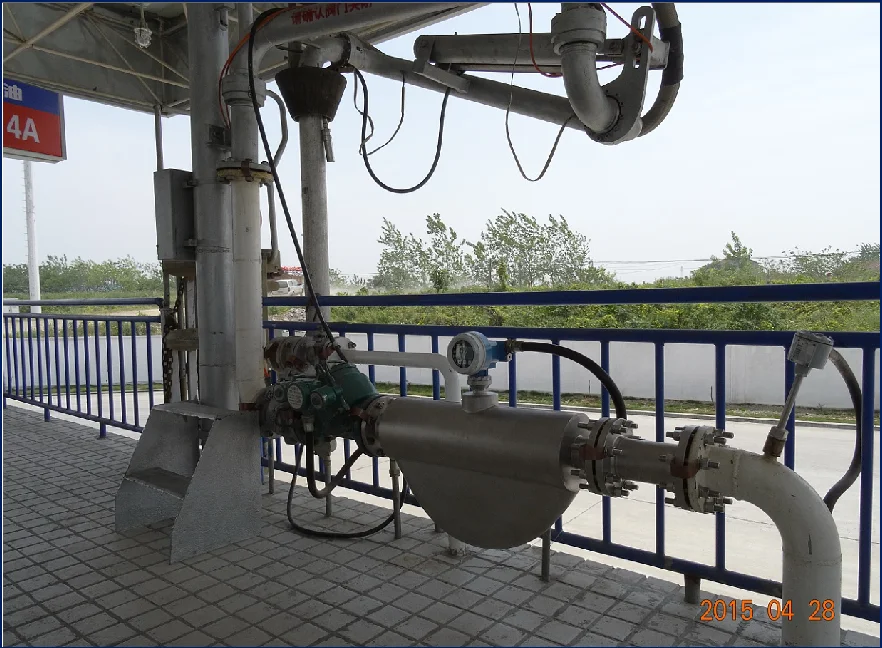

Apply to the trade metering and process control of loading and unloading goods in petrochemistry,metallurgy, electric power, paper making, semiconductor and other fields.
Product packaging

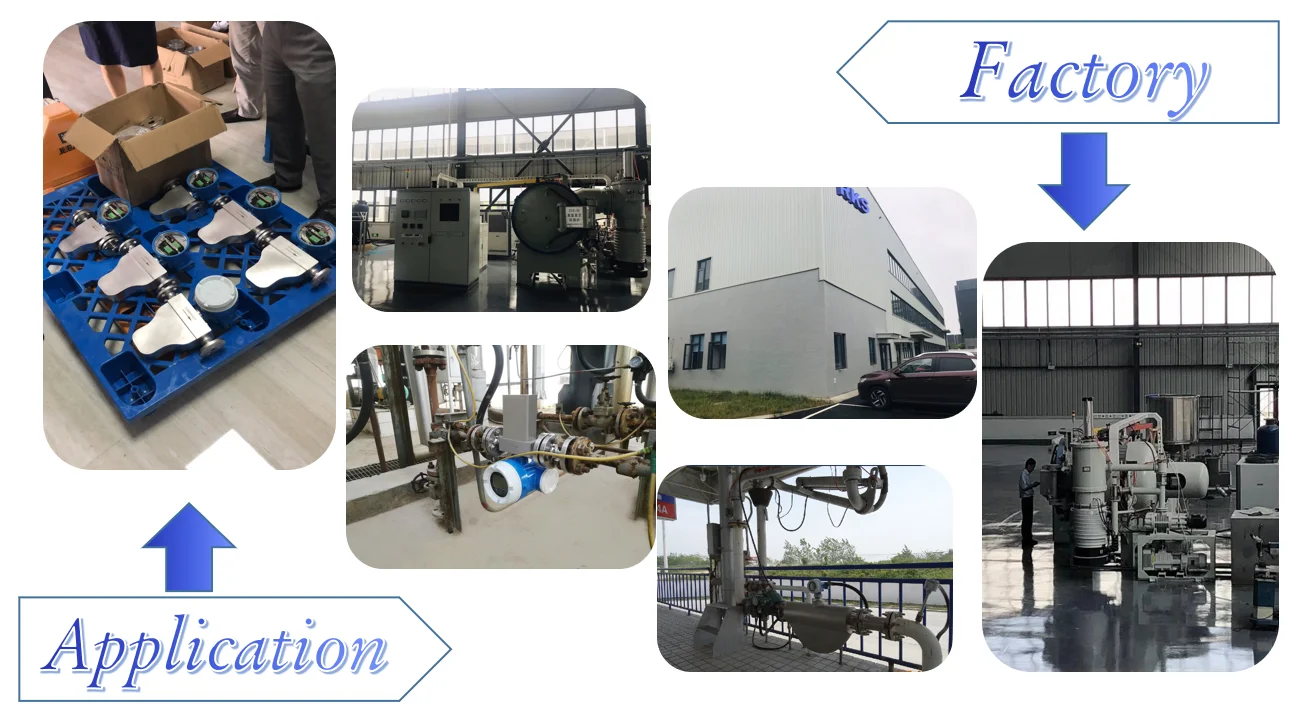

Company Profile
ROCKSENSOR (RKS) is specialized in the design and manufacture of industrial automation equipment, especially high accuracy pressure instruments. The products are used in industrial process control, gas and liquid analysis and flow measurement, RKS provide the whole solution of automation control and monitoringas well as professional technical services to the end users based on the qualified products.
As an industry leader in industrial automation, RKS is based in China and provides excellent products, technical services and support in the field of automation to customers all over the world. Products are exported to the United States, Germany, Italy, Russia, Netherlands, Switzerland, Brazil, Singapore, Malaysia, Indonesia, South Korea and other countries and regions
