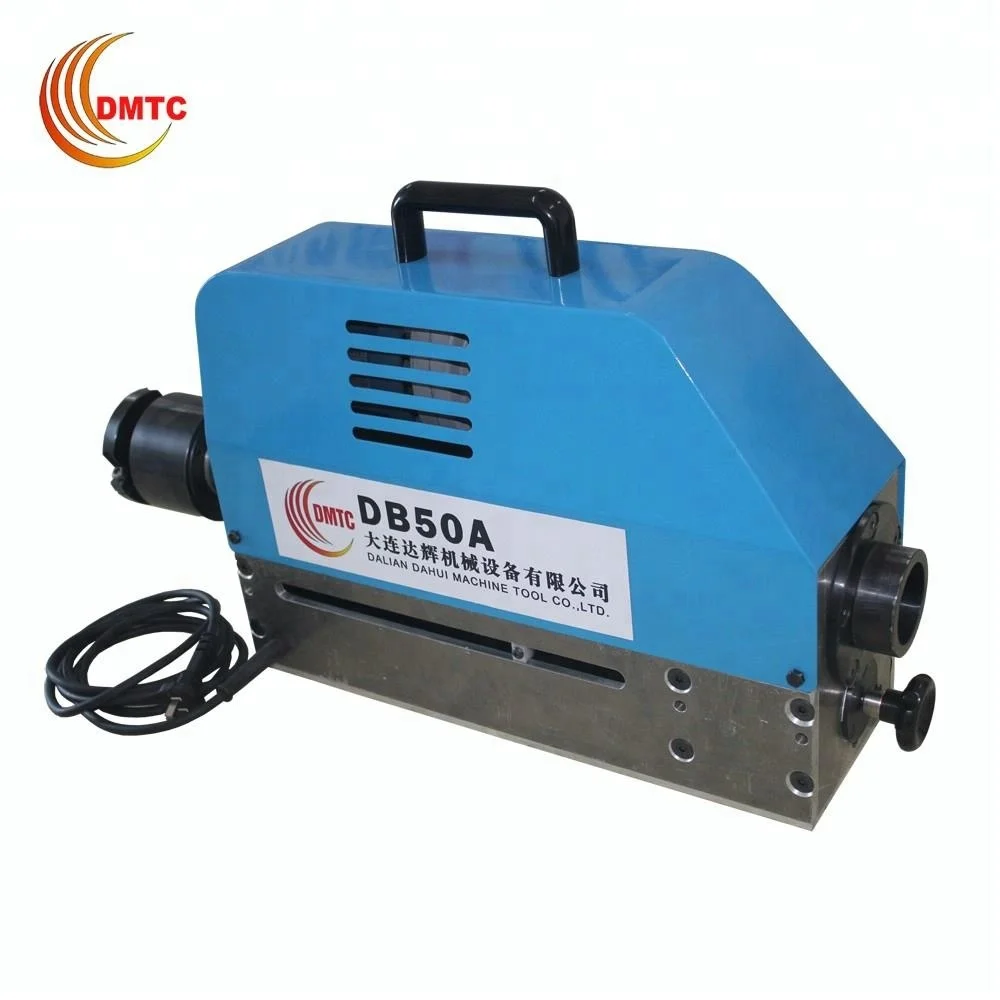

DB50A Line Boring Machine for engineering machinery is a portable processing equipment developed for field service of engineering machinery, which is mainly used in processing of small-scale pipeline inner hole and concentric span hole, and widely applied in engineering machinery, including excavator, crane, loader, and hoist. We developed DB50A hole drilling machine for engineering machinery by increasingly improving equipment structure according to actual demands on field processing. This hole boring machine is the best servicing installation for engineering machinery. Only one person is required for operation, and the actual operation difficulty greatly reduces for its focus on field in design concept and processing to make serviceman handier with the machine. THE MACHINE WEIGHT ONLY 29KG, CAN BE CARRIED TO ANYWHERE EASILY.
The lightest line boring machine in China!
ITEM
PARAMETER
Voltage
220V
Frequency
50HZ
Boring Diameter
55-220mm
Spindle Travel
260mm
Max feed depth
2mm on one side
Motor Power
1600W
Spindle Speed
2 Gear
Low：153r/min High：233r/min
Feeding Speed
0-0.7mm/r Per spindle rotate one circle(Stepless)
Surface roughness
Ra3.2
Boring Roundness error
≤0.02mm
Machine weight
29kg
Boring Bar weight
29kg
Main Features
1) Modular components make setup quick and easy.
2) Large torque motors make the machine with strong power. 3) Flexible and high quality design, aluminum alloy frame make the machine portable. 4) Optional facer tool make the machine more usage. 5) Spherical bearing mounts system allow quick setup. 6) Gear box allow manual and automatic feed.
Detailed Images

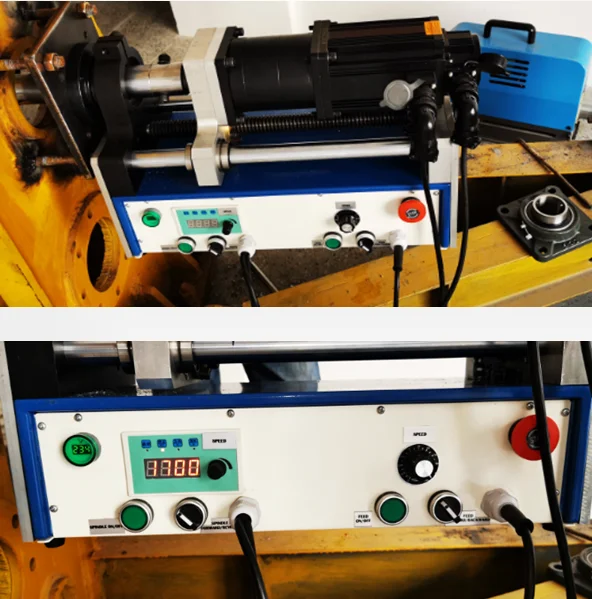

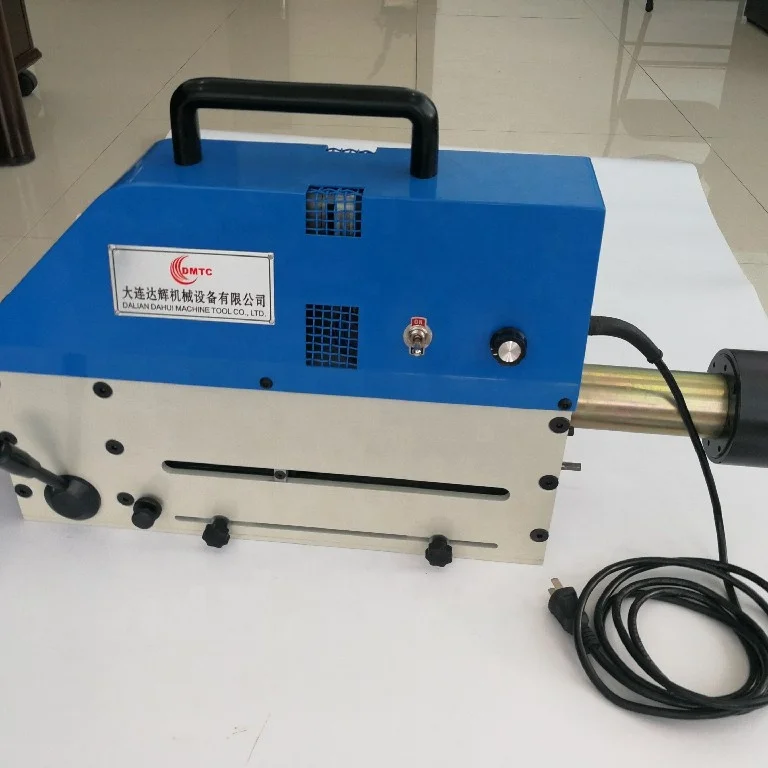

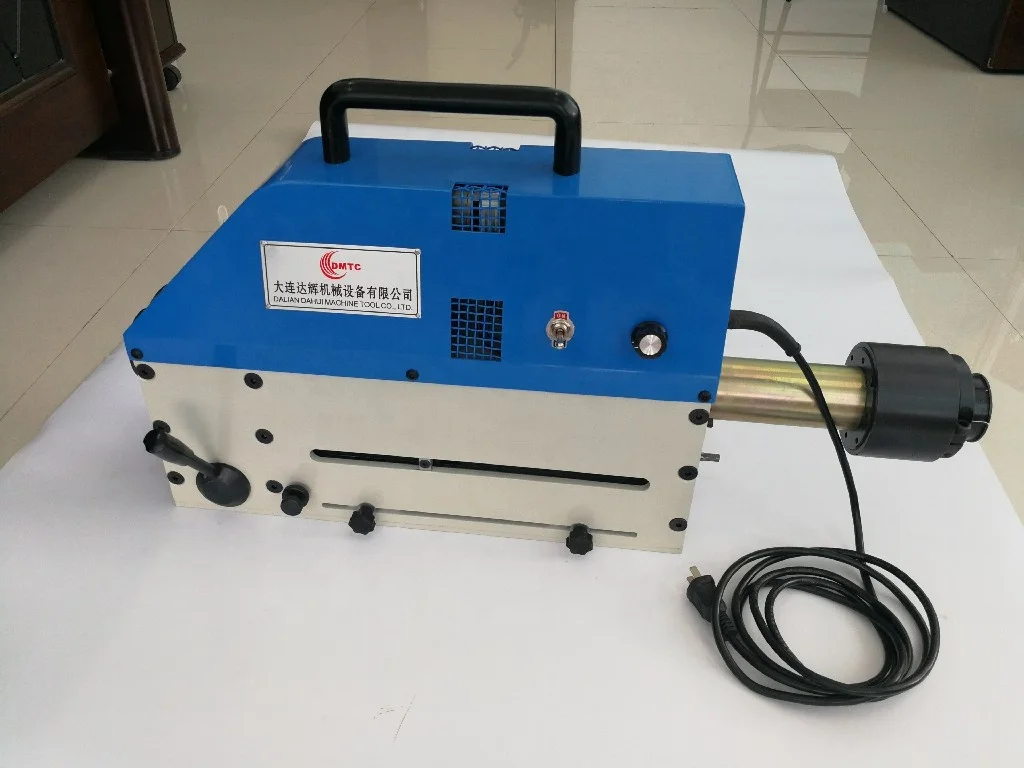

Machine introduction
Name: portable boring machine
Brand: DMTC
Original: China
From more than 100 users feeback, we developed this new design line boring machine, which is only 29kg for machine body, single person is enough to carry it and operate it!
Main Fuction

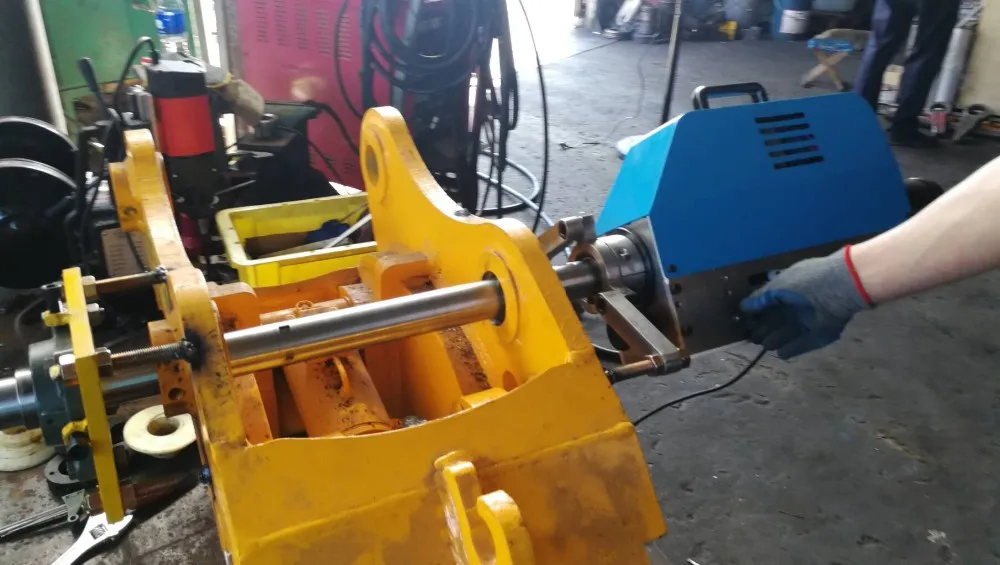

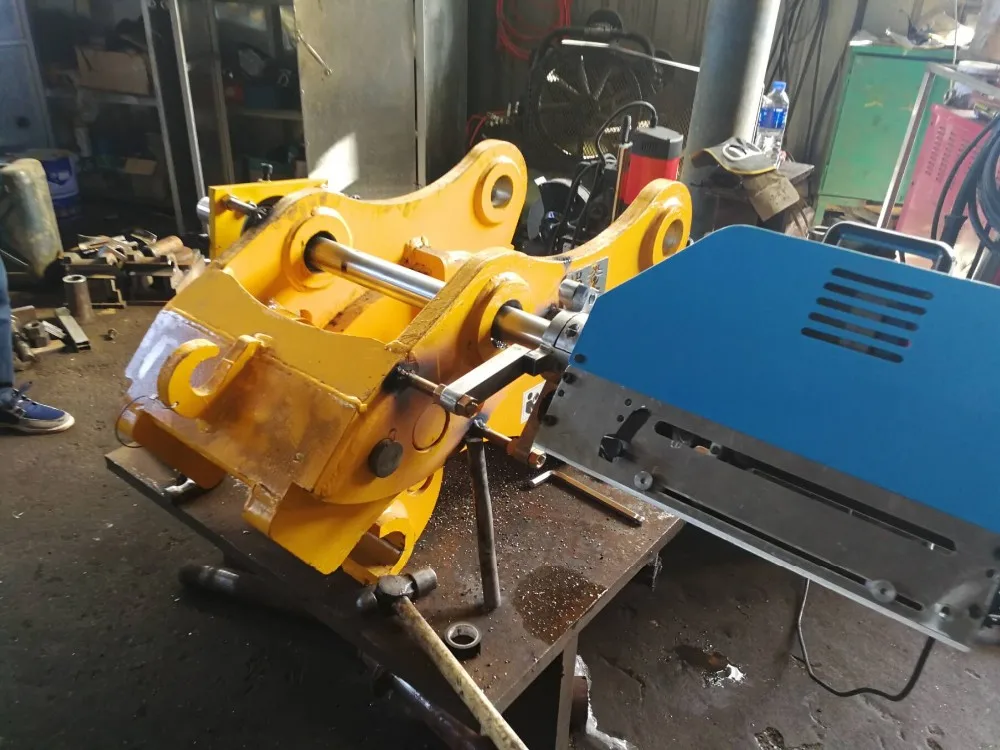

Name: portable boring machine Brand: DMTC Original: China Main application scope: processing after repair welding, or bushing installation after hole expansion of rotation hole, hinge joint hole, and hinge pin hole in all engineering machines; repair and processing of concentric hole in excavator, loader, pressure machine, crane, etc.; and multiple holes lying alongside to conduct disposable positioning processing to multiple holes to ensure the coaxiality of these holes.
Machine Parts

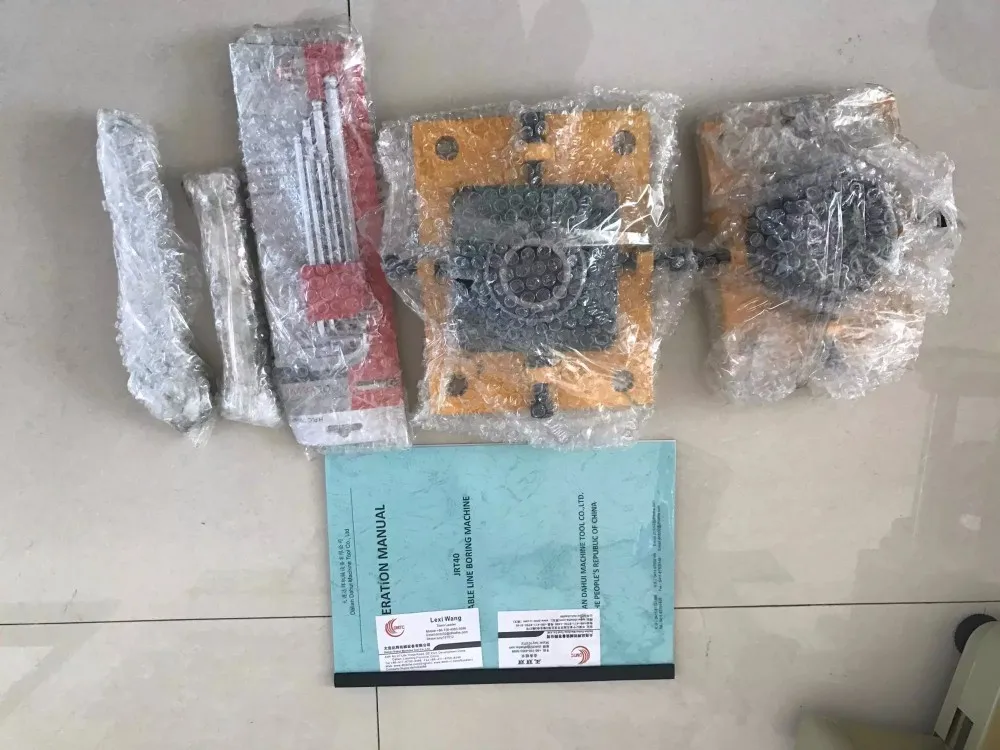

Name: Standard Accessories Brand: DMTC Original: China All of the installation tools will be provided(Including the cutters) which help users install the machine easily, operational manual and video will be provided as well.
Machine part
Name: Boring Bar Brand: DMTC Original: China Standard boring bar 1500mm, weight 29kg. The boring bar can boring 55-220mm holes. More option length can be customzied according to customers requests.
Packing & Delivery
Packaging
Size
780 (L) * 456 (W) * 510 (D)
Weight
58kg
Packaging Details
The normal package is wooden box(Size: 780x456x510mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
